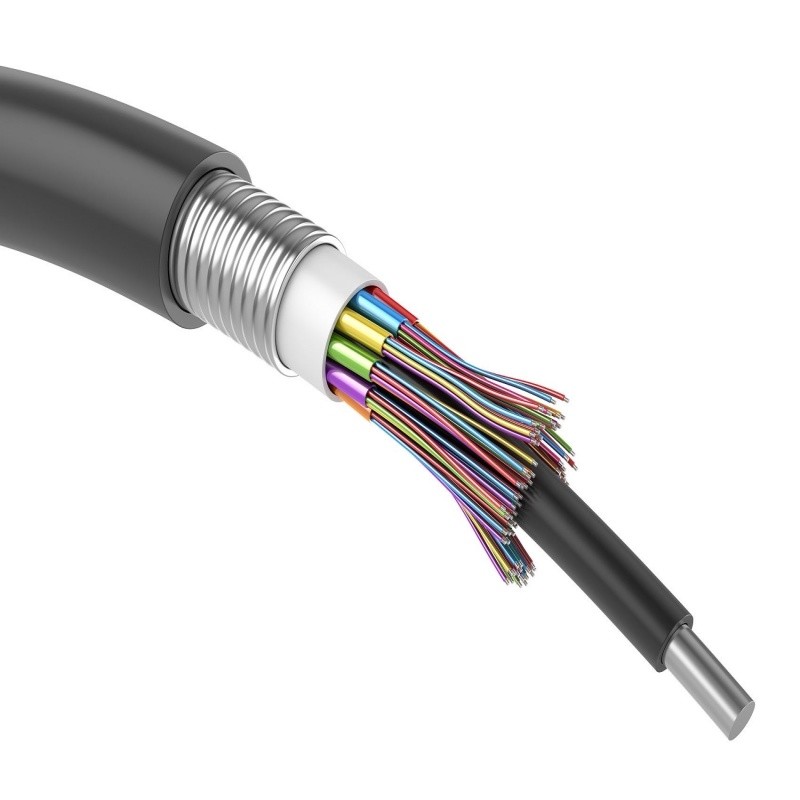

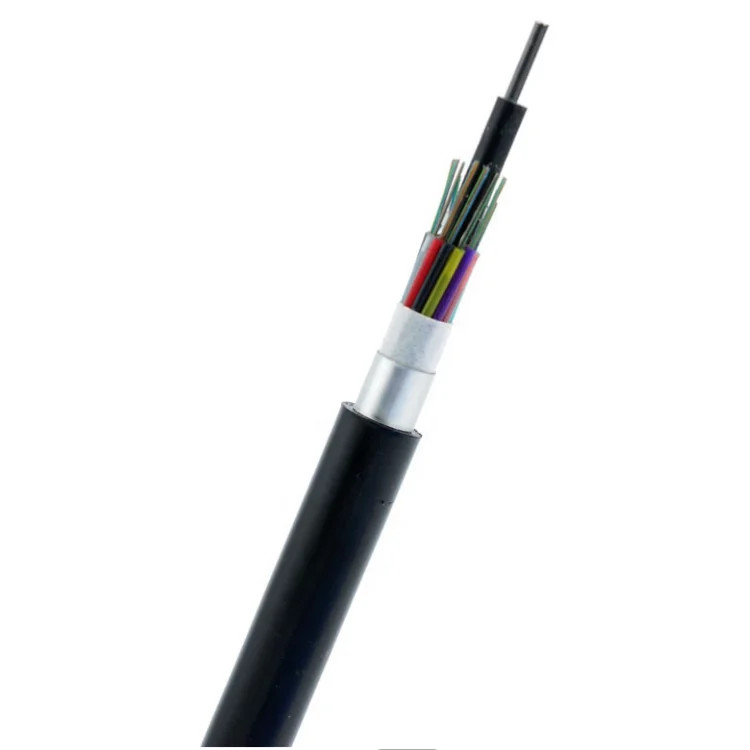

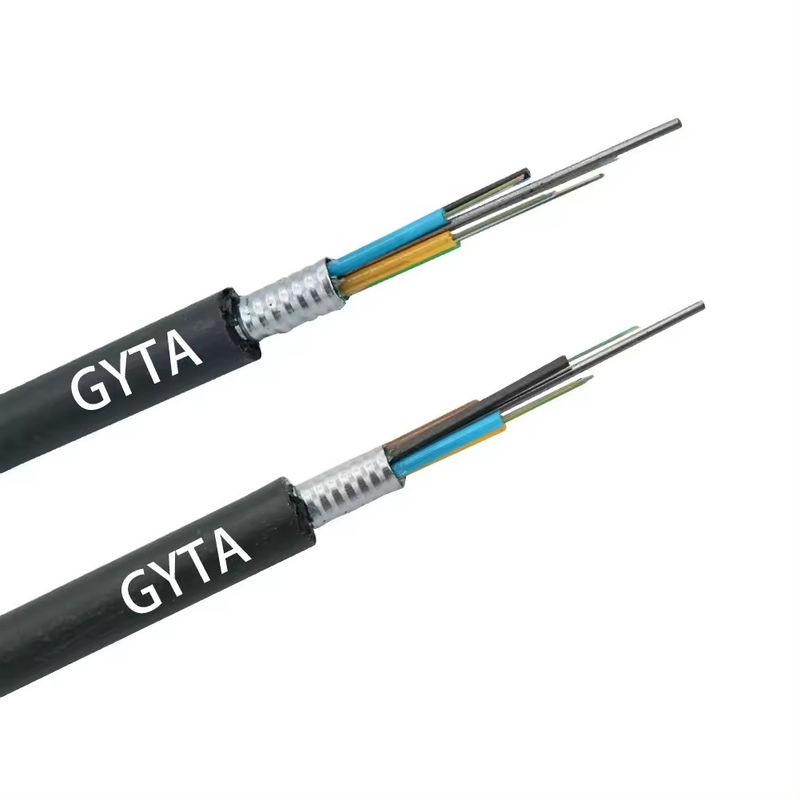

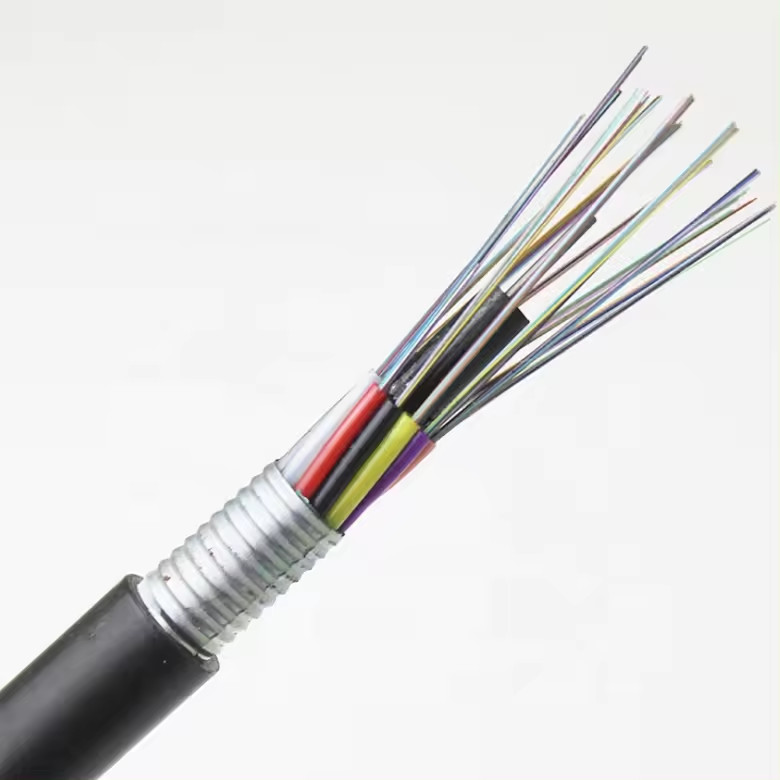

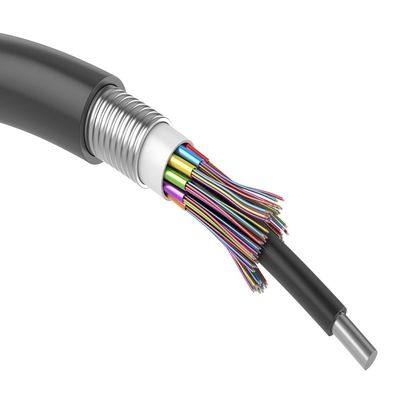

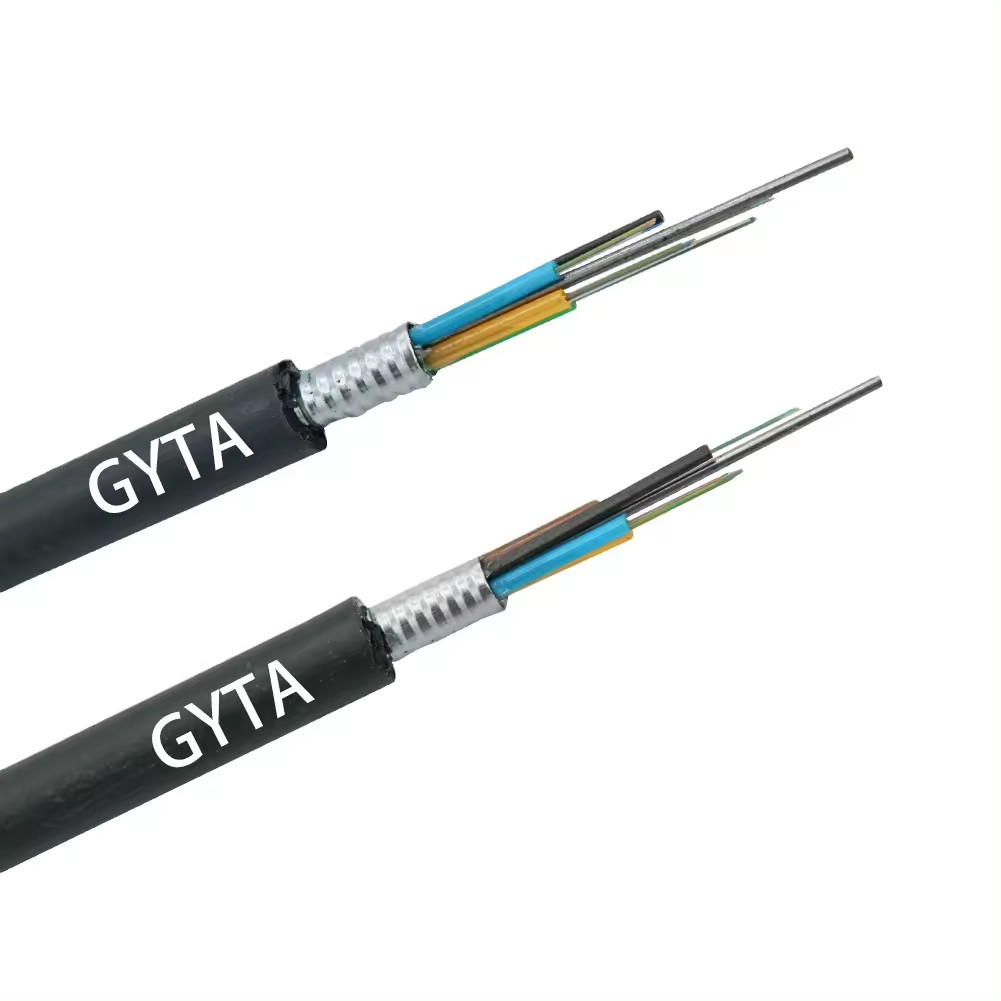

Outdoor Underwater Armored Fiber optic Cable GYTA33 steel wires armored 60 core
Contact Person : JQ CABLE
Phone Number : +8618122383351
whatsapp : +8618122383351
Minimum Order Quantity : | 1 Kilometer | Packaging Details : | Wooden Drum |
---|---|---|---|
Delivery Time : | 2-5days | Payment Terms : | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
Supply Ability : | 8000 kilometers per month |
Place of Origin: | Guangdong,China | Brand Name: | JQ |
---|---|---|---|
Certification: | CE/ISO9001 | Model Number: | GYTA |
Detail Information |
|||
Type: | Outdoor Fiber Optic Cable | Place Of Origin: | Guangdong, China |
---|---|---|---|
Fiber Type: | G652D Single Mode Or As Your Request | Fiber Count: | 24 Core、 48 Core |
Length: | Customized | Color: | Customized |
Tube: | Multi-Loose Tube | Central Strength Member: | Steel Wire |
Armoured: | Al Tape | Outer Sheath: | PE Or As Your Request |
Package: | Wooden Drum/Customized | Application: | Aerial,Overhead |
Oem: | Available | Operating Temperature: | -40°C~+70°C |
Highlight: | single mode fiber optic cable,Outdoor duct fiber optic cable,GYTA 24 48core fiber optic cable |
Product Description
* The loose casing material itself has good hydrolysis resistance and high strength
* The tube is filled with special ointment, providing critical protection to the optical fiber
* Specially designed tight cable structure to prevent casing retraction
* PE sheath has excellent uv radiation resistance
* Use the following measures to ensure the cable waterproof performance:
- Single steel wire center strengthening core.
- The loose casing is filled with a special waterproof compound.
- Complete cable core filling.
- Coated with APL moisture barrier.
Specification:
item | value |
Model Number | GYTA |
Type | Outdoor Fiber Optic Cable |
Place of Origin | Guangdong,China |
Brand Name | jiqian |
Number of Conductors | ≥ 10 |
Fiber count | 2-288 Cores |
Fiber Type | G652D Single mode or as your request |
Loose tube material | PBT |
Central strength member | steel wire |
Armoured | Al tape |
Outer Sheath | PE |

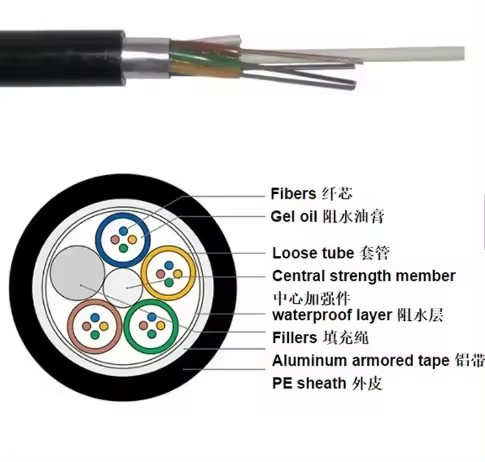

Cable Structure | Multi-Loose Tube Aluminum/Steel Tape armor |
Color | Black or as your need |
Package | Fumigation free wooden drum |
Installation | aerial, in duct |
Certification | CE/ROHS/ISO9001 /ANATEL |
OEM | Available |
Delivery:
For large orders: by sea (LCL or FCL)
For small orders: by sea (LCL), by air or by courier services(DHL ,UPS,TNT.....)
Packaging Details:
Wooden roll, 1000m/reel, 2000m/reel, 3000m/reel, customer's requirements are also welcomed.
Company:
Guangzhou Jiqian fiber optic Cable Co., Ltd. is a high-tech company integrating manufacturer and trade. The factory covers an area of 5000 square meters, with more advanced optical fiber cable production equipments and testing equipments. Our company has R&D department, production department, quality inspection department, sales department, after-sales department, and logistics department. Our company passed the ISO 9001:2000 quality system certification in 2010. With a complete quality control system, excellent technical team, advanced equipment and reliable quality, our customers are all over the world.
Certification:
FAQ:
1. Could I have prices of your products?
Welcome. Please feel free to send us an email here. You will get our reply in 24 hours
2. Can we print our logo/website/company name on products?
Yes.
3. What's the lead time for regular order?
7-15 days for order quantity lower than 1000pc
4. Can I get a discount?
Yes, for the order quantity more than 1000 pcs, please contact us to get the best price.
5. Do you inspect the finished products?
Yes, each step of production and finished products will be came out inspection by QC department before shipping.
