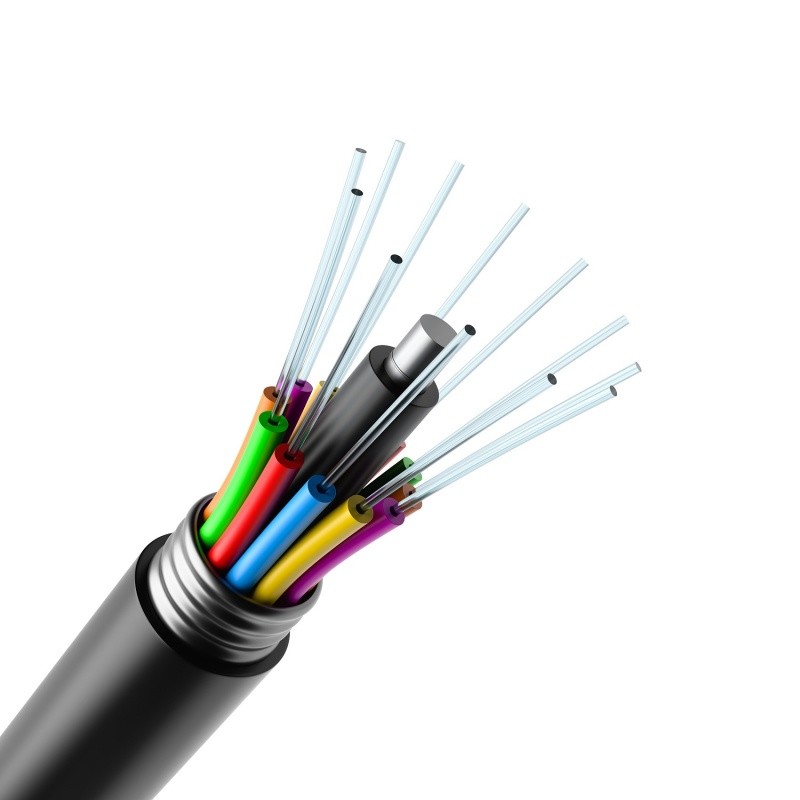

Outdoor 48 Core Single Mode Aerial Duct Armored GYTA Fiber Optic Cable

Minimum Order Quantity :	1 Kilometer	Packaging Details :	Wooden Drum
Delivery Time :	2-5days	Payment Terms :	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :	8000 kilometers per month

Place of Origin:	Guangdong，China	Brand Name:	JQ
Certification:	CE/ISO9001	Model Number:	GYTA

Detail Information
Type:	Outdoor Fiber Optic Cable	Place Of Origin:	Guangdong, China
Fiber Type:	Single Mode / Multi Mode	Fiber Count:	48 Core
Length:	Customized	Color:	Customized
Tube:	Multi-Loose Tube	Central Strength Member:	Steel Wire
Armoured:	Al Tape	Outer Sheath:	PE Or As Your Request
Package:	Wooden Drum/Customized	Application:	Aerial,Overhead
Oem:	Available	Operating Temperature:	-40°C~+70°C
Highlight:	48 core Fiber Optic Cable , Aerial Duct Armored Fiber Optic Cable , Outdoor Single Mode Fiber Optic Cable

Product Description

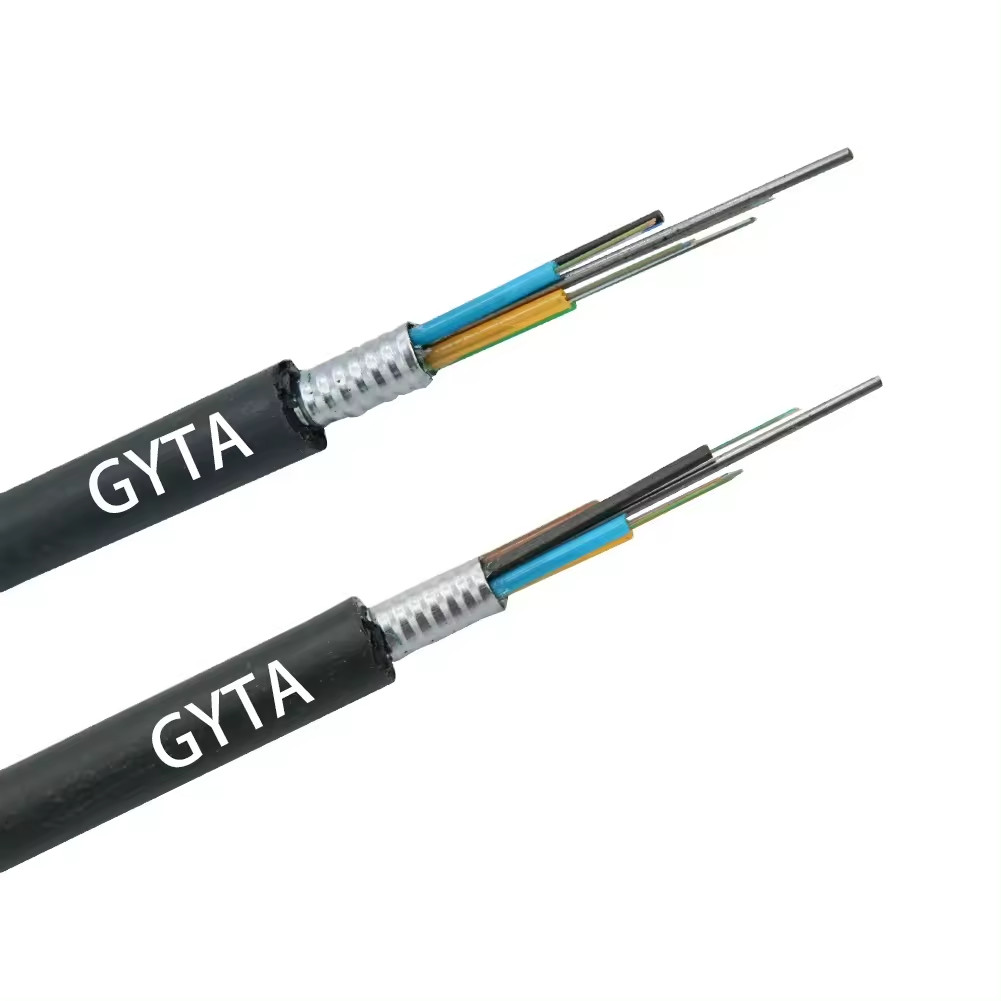

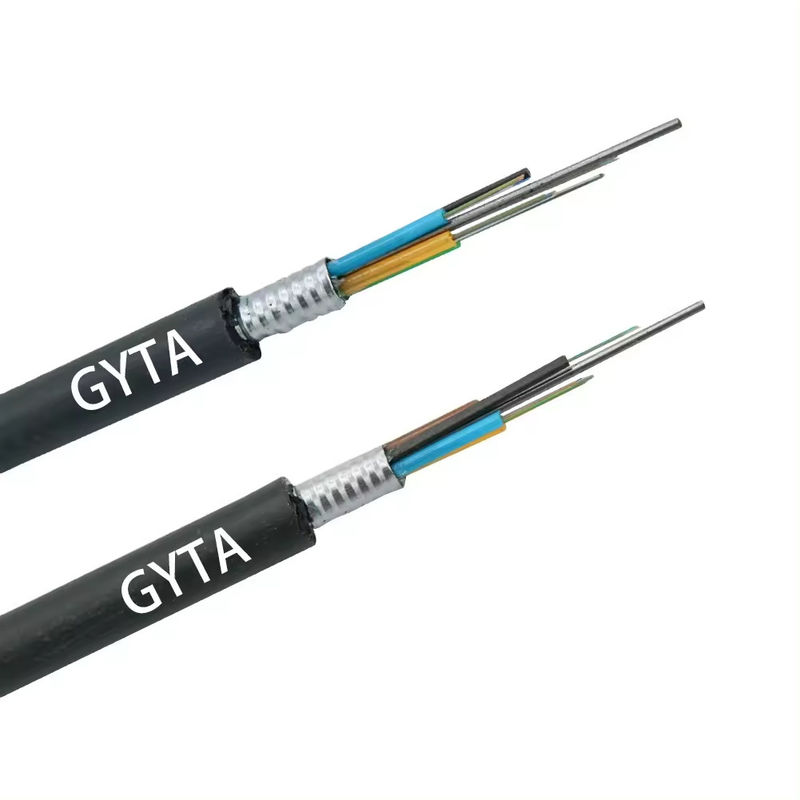

GYTA FIBER OPTIC CABLE
MODEL: GYTA-48B Fiber: SM G652D
Armoured: PSP AL Tape Jacket Diameter: 10.50mm
Jacket Material:HDPE/PE Cable Length: 3Km/Drum

Simple Specification:
Insertion Loss: ≤0.32dB Return Loss: ≥50dB
Durability: ≤0.20dB Test Wavelength: 1310/1550nm
Operation Temperature: -20℃ to +60℃

Outdoor 48 Core Single Mode Aerial Duct Armored GYTA Fiber Optic Cable 0

Fiber Parameters:

Outdoor 48 Core Single Mode Aerial Duct Armored GYTA Fiber Optic Cable 1

Optical cable parameters:

Outdoor 48 Core Single Mode Aerial Duct Armored GYTA Fiber Optic Cable 2

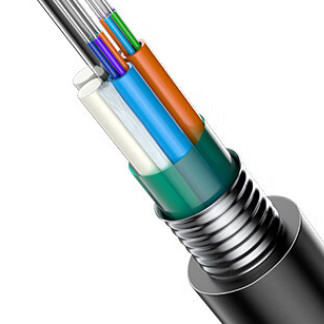

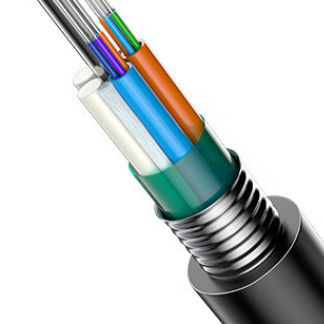

Construction:
1. Fiber 2. Jelly filling the tube 3. PBT loose tube 4. Jelly filling the cable 5, Corrugated armored
6,Steel wire central Strength 7,Water block tape 8 Possiable rip cords

Packaging Details:
Wooden roll, 1000m/reel, 2000m/reel, 3000m/reel, customer's requirements are also welcomed.

Outdoor 48 Core Single Mode Aerial Duct Armored GYTA Fiber Optic Cable 3

Company:

Guangzhou Jiqian fiber optic Cable Co., Ltd. is a high-tech company integrating manufacturer and trade. The factory covers an area of 5000 square meters, with more advanced optical fiber cable production equipments and testing equipments. Our company has R&D department, production department, quality inspection department, sales department, after-sales department, and logistics department. Our company passed the ISO 9001:2000 quality system certification in 2010. With a complete quality control system, excellent technical team, advanced equipment and reliable quality, our customers are all over the world.
