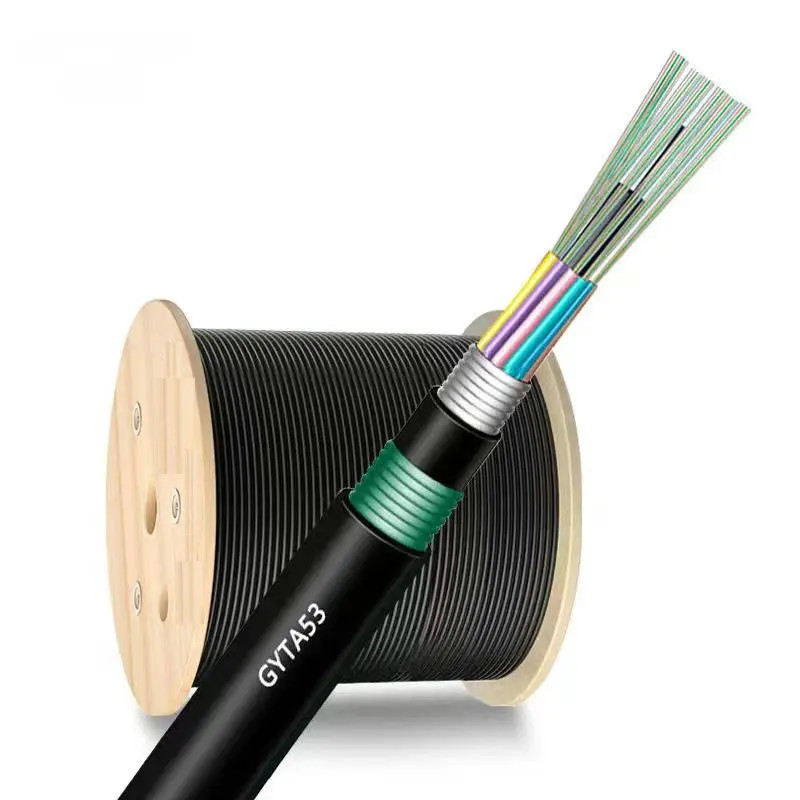

High Quality 96 Core Direct Burial GYTA53 Single Mode Underground Optical Fiber Cable

1kilometer
MOQ
High Quality 96 Core Direct Burial GYTA53 Single Mode Underground Optical Fiber Cable
Features Gallery Product Description Request A Quote
Features
Specifications
Place Of Origin:: Guangzhou,China
Fiber Count: 96 Cores
Fiber Type: G652D/G657A1/G657A2/OM1/OM2/OM3/OM4
Fiber Model: Singlemode/Multimode
Fiber Brand: YOFC
Strengthen Member: Steel Wire
Material Of Jacket: PE/PVC/HDPE
Loose Tube Material: PBT
Structure: Multi-strand
Application: Direct Buried
Certificate: CE/ROHS/ISO9001
Package: Wooden Drum/Customized
Armored: Steel Tape
Highlight:

Direct Burial Underground Optical Fiber Cable

,

High quality Underground Optical Fiber Cable

,

Single Mode Underground Optical Fiber Cable
Basic Infomation
Place of Origin: Guangdong,China
Brand Name: JQ/OEM
Certification: CE/ISO9001
Model Number: GYTA53
Payment & Shipping Terms
Packaging Details: Wooden Drum
Delivery Time: 3-5days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 8000 kilometers per month
Product Description
High Quality 96 Core Direct Burial GYTA53 Single Mode Underground Optical Fiber Cable 0
Characteristics:
* Good mechanical and temperature performance.
* High strength loose tube that is hydrolysis resistant.
* Special tube filling compound ensure a critical protection of fiber.
* Crush resistance and flexibility.
The following measures are taken to ensure the cable watertight.
- Steel wire used as the central strength member.
- Loose tube filling compound.
- 100% cable core filling.
- APL moisture barrier.
- PSP enhancing moisture-proof.
- Water-blocking material.
■Adapted to Outdoor distribution.
■Long distance and local area network communication.
■Suitable for aerial .pipeline layingmethod.High Quality 96 Core Direct Burial GYTA53 Single Mode Underground Optical Fiber Cable 1
Fiber parameter:
Item Unit Specification
Fiber Type G.652D



Mode field diameter

 1310nm mm 9.2±0.4
1550nm mm 10.4±0.8
Cladding diameter mm 125.0±1
Cladding non-circularity % ≤1.0
Core/cladding concentricity error mm ≤0.5
Coating diameter mm 245±5
Coating non-Circularity % ≤6.0
Coating/cladding concentricity error mm ≤12.0
Cable cut-off wavelength nm ≤1260



Attenuation Coefficient

 1310nm dB/km 0.36
1550nm dB/km ≤0.22
Proof stress level kpsi ≥100

Dimensions of Cable Constructions





Fiber count







Structure



Fibers per tube



Loose tube diameter (mm)



CSM

diameter/pad diameter (mm)

Nominal Thickness of outer jacket

(mm)



Cable diameter/ Height (mm)



Cable weight (kg/km)
4 1+5 4 1.8±0.1 1.4/1.4 1.4 8.5±0.3 75
6 1+5 6 1.85±0.1 1.4/1.4 1.4 8.5±0.3 75
8 1+5 8 1.9±0.1 1.4/1.4 1.4 8.5±0.3 75
12 1+5 6 1.85±0.1 1.4/1.4 1.4 8.5±0.3 75
24 1+5 6 1.85±0.1 1.4/1.4 1.4 8.5±0.3 75
36 1+6 12 1.95±0.1 1.5/1.5 1.6 8.8±0.3 85
48 1+5 12 1.95±0.1 1.5/1.5 1.6 9.3±0.3 90
60 1+5 12 1.95±0.1 1.6/1.6 1.6 9.3±0.3 90
72 1+6 12 1.95±0.1 2.0/2.0 1.6 9.6±0.3 95
96 1+8 12 1.95±0.1 1.4/3.2 1.6 11.5±0.3 120
144 1+12 12 1.95±0.1 2.0/5.7 1.8 14.2±0.3 185
216 1+6+12 12 1.95±0.1 2.0/2.0 1.8 14.5±0.3 200
288 1+9+15 12 1.95±0.1 2.0/3.7 1.8 16.2±0.3 240

We produce and test cable comply with following standard:

Mechanical Performance
Max Tension Performance IEC 60794–1-2-E
Max. Operation Tension IEC 60794–1-2-E1
Crush Test IEC 6079 –1-2-E3
Impact Test IEC 60794–1-2-E4
Repeated Bending IEC 60794–1-2-E6
Torsion Test IEC 60794–1-2-E7
Cable bend IEC 60794–1-2-E11A
Attenuation Coefficient ITU-T G.652
Structural Test IEC-60793-1-20
Environmental Performance
Temperature Cycling IEC 60794–1-2-F1
Water Penetration IEC 60794–1–2-F5B
Filing Compound Flow

IEC 60794-1-E14

Packing

1/2/3/4km or customized length export wooden drum.

High Quality 96 Core Direct Burial GYTA53 Single Mode Underground Optical Fiber Cable 2High Quality 96 Core Direct Burial GYTA53 Single Mode Underground Optical Fiber Cable 3

Delivery
For large orders: by sea (LCL or FCL)
For small orders: by sea (LCL), by air or by courier services(DHL ,UPS,TNT.....)

FAQ

1. Are you trading company or manufacturer?
We are the manufacturer and trade with 10 years' experience ,we are specialized in research,development and production for GYTS, GYTA and GYXTW.

2. About the quality?
After price confirmation, you can require for samples to check our quality.

3. Can you accept small order?
Yes, small order is available. We support new project of our customers, as we know business is always from small order.

4. What is your delivery time?
Usually about 10-30 days working days, it mainly depend on order quantity. But pls be assured that we will arrange your goods asap after your payment .

5. Can you accept the OEM service?
Yes, we welcome the OEM service. We can print your logo on the product. Any idea from you is available.

6. What is your payment way?
T/T, L/C, D/A, D/P, Western Union and Paypal.
