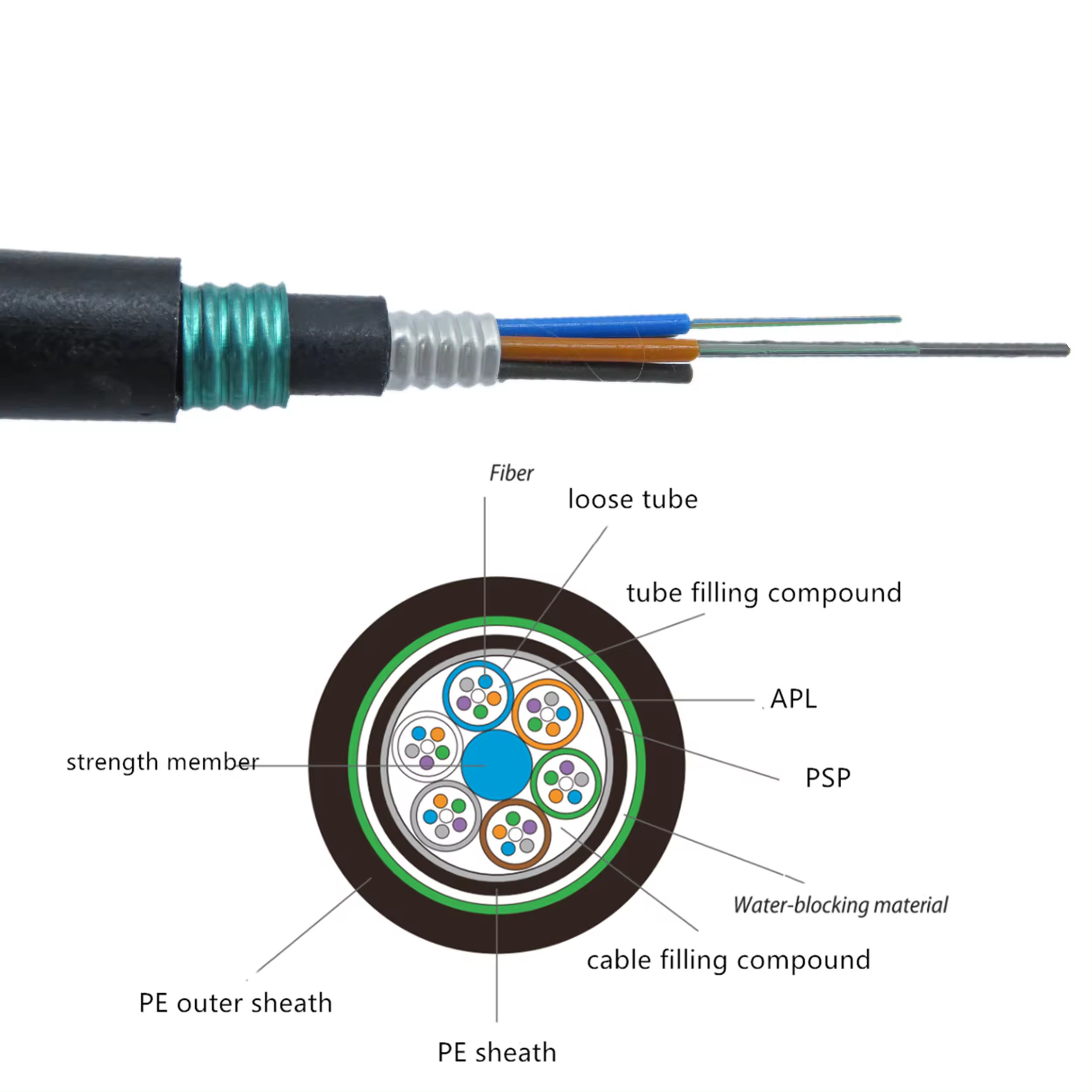

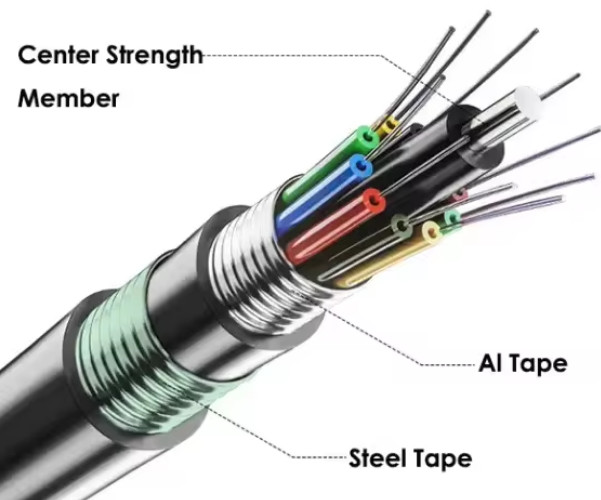

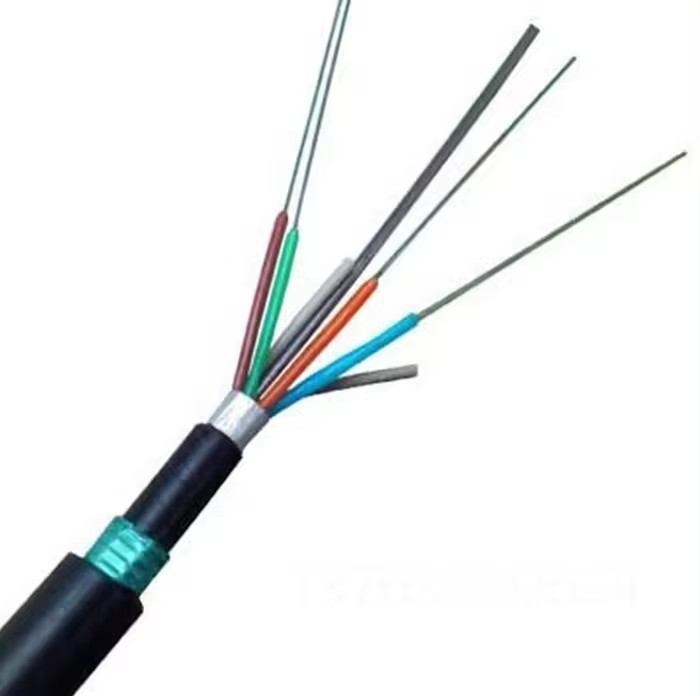

The GYTA53 cable is constructed by inserting a 250μm fiber into a loose tube made of a high-modulus material filled with a water-repellent compound. The center of the core is a metal reinforced core. For some cores, the metal reinforced core needs to be extruded with a layer of polyethylene (PE). The loose tube (and the filling rope) is twisted around the center reinforcing core into a compact and round core, and the gap in the core is filled with a water blocking filler. After the plastic coated aluminum strip (APL) is longitudinally wrapped, a polyethylene inner sheath is extruded, and the double-coated plastic strip (PSP) is longitudinally wrapped and extruded into a polyethylene sheath to form a cable.
Applications:
Applied to campus buildings in the connection, long-distance network, the main line system, the local loop or branch network, severe outdoor humid environment, temperature changes in the environment.
Fiber parameter:
| Item |
Unit |
Specification |
| Fiber Type |
G.652D |
|
Mode field diameter
|
1310nm |
mm |
9.2±0.4 |
| 1550nm |
mm |
10.4±0.8 |
| Cladding diameter |
mm |
125.0±1 |
| Cladding non-circularity |
% |
≤1.0 |
| Core/cladding concentricity error |
mm |
≤0.5 |
| Coating diameter |
mm |
245±5 |
| Coating non-Circularity |
% |
≤6.0 |
| Coating/cladding concentricity error |
mm |
≤12.0 |
| Cable cut-off wavelength |
nm |
≤1260 |
|
Attenuation Coefficient
|
1310nm |
dB/km |
0.36 |
| 1550nm |
dB/km |
≤0.22 |
| Proof stress level |
kpsi |
≥100 |
Dimensions of Cable Constructions
|
Fiber count
|
Structure
|
Fibers per tube
|
Loose tube diameter (mm)
|
CSM
diameter/pad diameter (mm)
|
Nominal Thickness of outer jacket
(mm)
|
Cable diameter/ Height (mm)
|
Cable weight (kg/km)
|
| 4 |
1+5 |
4 |
1.8±0.1 |
1.4/1.4 |
1.4 |
8.5±0.3 |
75 |
| 6 |
1+5 |
6 |
1.85±0.1 |
1.4/1.4 |
1.4 |
8.5±0.3 |
75 |
| 8 |
1+5 |
8 |
1.9±0.1 |
1.4/1.4 |
1.4 |
8.5±0.3 |
75 |
| 12 |
1+5 |
6 |
1.85±0.1 |
1.4/1.4 |
1.4 |
8.5±0.3 |
75 |
| 24 |
1+5 |
6 |
1.85±0.1 |
1.4/1.4 |
1.4 |
8.5±0.3 |
75 |
| 36 |
1+6 |
12 |
1.95±0.1 |
1.5/1.5 |
1.6 |
8.8±0.3 |
85 |
| 48 |
1+5 |
12 |
1.95±0.1 |
1.5/1.5 |
1.6 |
9.3±0.3 |
90 |
| 60 |
1+5 |
12 |
1.95±0.1 |
1.6/1.6 |
1.6 |
9.3±0.3 |
90 |
| 72 |
1+6 |
12 |
1.95±0.1 |
2.0/2.0 |
1.6 |
9.6±0.3 |
95 |
| 96 |
1+8 |
12 |
1.95±0.1 |
1.4/3.2 |
1.6 |
11.5±0.3 |
120 |
| 144 |
1+12 |
12 |
1.95±0.1 |
2.0/5.7 |
1.8 |
14.2±0.3 |
185 |
| 216 |
1+6+12 |
12 |
1.95±0.1 |
2.0/2.0 |
1.8 |
14.5±0.3 |
200 |
| 288 |
1+9+15 |
12 |
1.95±0.1 |
2.0/3.7 |
1.8 |
16.2±0.3 |
240 |
|
We produce and test cable comply with following standard:
| Mechanical Performance |
| Max Tension Performance |
IEC 60794–1-2-E |
| Max. Operation Tension |
IEC 60794–1-2-E1 |
| Crush Test |
IEC 6079 –1-2-E3 |
| Impact Test |
IEC 60794–1-2-E4 |
| Repeated Bending |
IEC 60794–1-2-E6 |
| Torsion Test |
IEC 60794–1-2-E7 |
| Cable bend |
IEC 60794–1-2-E11A |
| Attenuation Coefficient |
ITU-T G.652 |
| Structural Test |
IEC-60793-1-20 |
| Environmental Performance |
| Temperature Cycling |
IEC 60794–1-2-F1 |
| Water Penetration |
IEC 60794–1–2-F5B |
| Filing Compound Flow |
IEC 60794-1-E14
|

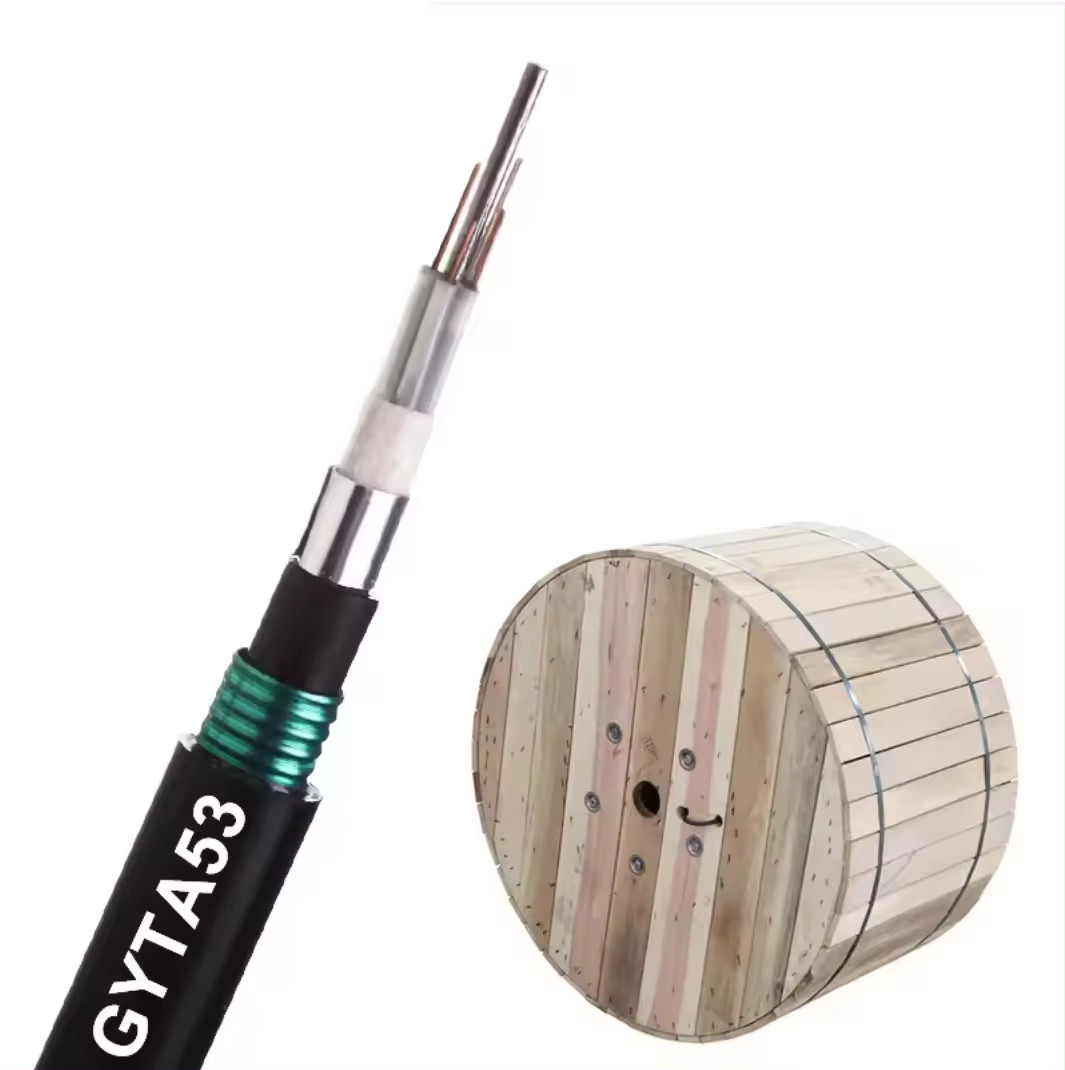

Packing
1/2/3/4km or customized length export wooden drum.
Delivery
For large orders: by sea (LCL or FCL)
For small orders: by sea (LCL), by air or by courier services(DHL ,UPS,TNT.....)
