72 Core GYFTY Gel-Filled Non-metallic Strength Member Telecommunication Fiber Optic Cable

Contact Now

72 Core GYFTY Gel-Filled Non-metallic Strength Member Telecommunication Fiber Optic Cable

Minimum Order Quantity :	1 Kilometer	Packaging Details :	Wooden Drum
Delivery Time :	2-5days	Payment Terms :	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :	8000 kilometers per month

Place of Origin:	Guangdong，China	Brand Name:	JQ
Certification:	CE/ISO9001	Model Number:	GYFTY

Detail Information
Model Number:	GYFTY-72F	Type:	Outdoor Fiber Optic Cable
Number Of Conductors:	12/24/36/72/96/144	Place Of Origin:	Guangdong, China
Fiber Type:	SM MM	Length:	As Required
Color:	Customized	Cable Structure:	Multi-Loose Tube None Armor
Tube:	Multi-Loose Tube	Central Strength Member:	FRP
Outer Sheath:	PE / LSZH	Package:	Wooden Drum/Customized
Application:	Direct Buried/Duct/Aerial	Temperature Range:	-20~+60
Oem:	Available	Warrantry:	2 Years
Life Time:	30days	Certification:	ISO9001/CE/RoHS/CE
Highlight:	Telecommunication Fiber Optic Cable , 72 core GYFTY Fiber Optic Cable

Product Description

72 Core GYFTY Gel-Filled Non-metallic Strength Member Telecommunication Fiber Optic Cable 0

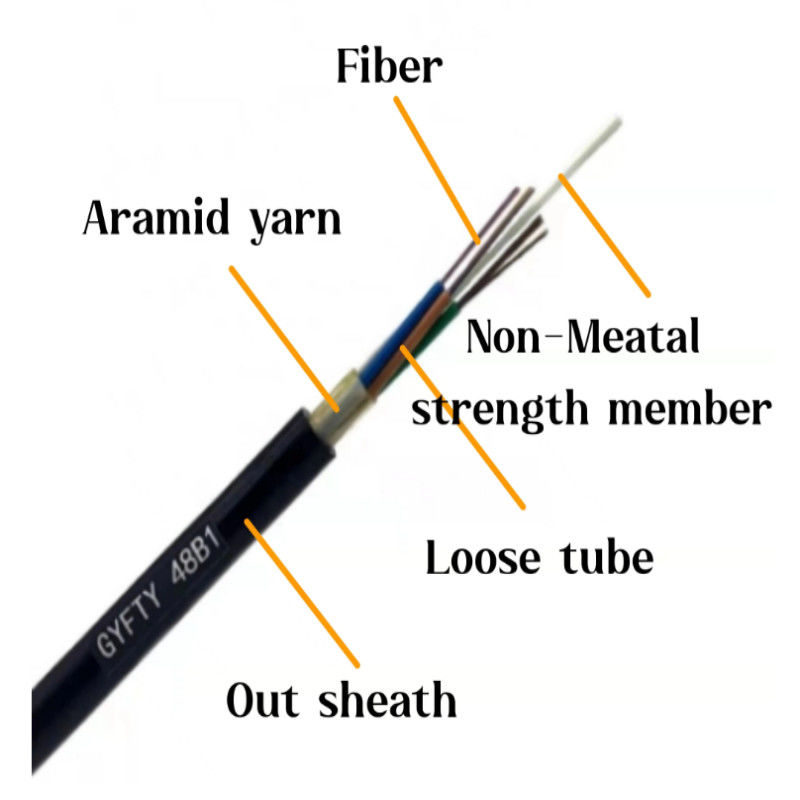

GYFTY Outdoor Fiber Optic Cable
High quality,long distance transmission fiber.

Reinforced FRP strength member,and Water-Resistant.

Brand NEW PE,or HDPE cable sheath.

- Loose tube 100% gel-filled

- Moisture Barrier:Aluminum polyethylene laminate

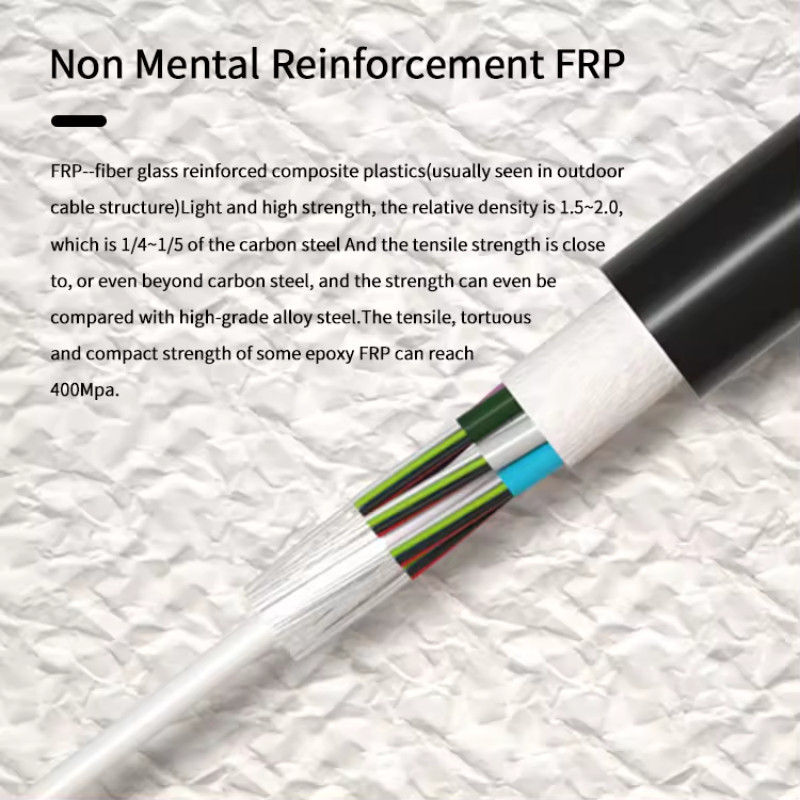

- Central Strength Member: FRP or Steel Wire

- Outer Jacket: Black UV-and moisture-resistant polyethylene(PE)

- Applications: Backbones and Access.Underground &duct
- Option: Dry core structure is available.

72 Core GYFTY Gel-Filled Non-metallic Strength Member Telecommunication Fiber Optic Cable 1

1. Max attenuation : 0.35dB @ 1310nm and 0.21dB/Km @1550nm
2. Fiber : G652D
3. Installation : Suitable for aerial or duct
4. Application : Apply to Long distance communication system, Local area network system and Subscriber network system
5. Lifetime : above 30 years
6. Operating temperature : -40°C~+70°C
7. Permisson bent radius Static : 10 times O.D.
8. Dynamic : 20 times O.D.

Structure and Technical Specifications:

Model

fiber cores

OD (outer dia.)

Weight

kg/km

Tensile

Strength Long

/Short Term

Crush Resistance

Long/Short Term N

/100mm

Bending Radius

Static

/Dynamic mm

GYFTY

2-288

10.4-21.5mm

90-375

600/1500N

300/1000

15D/30D

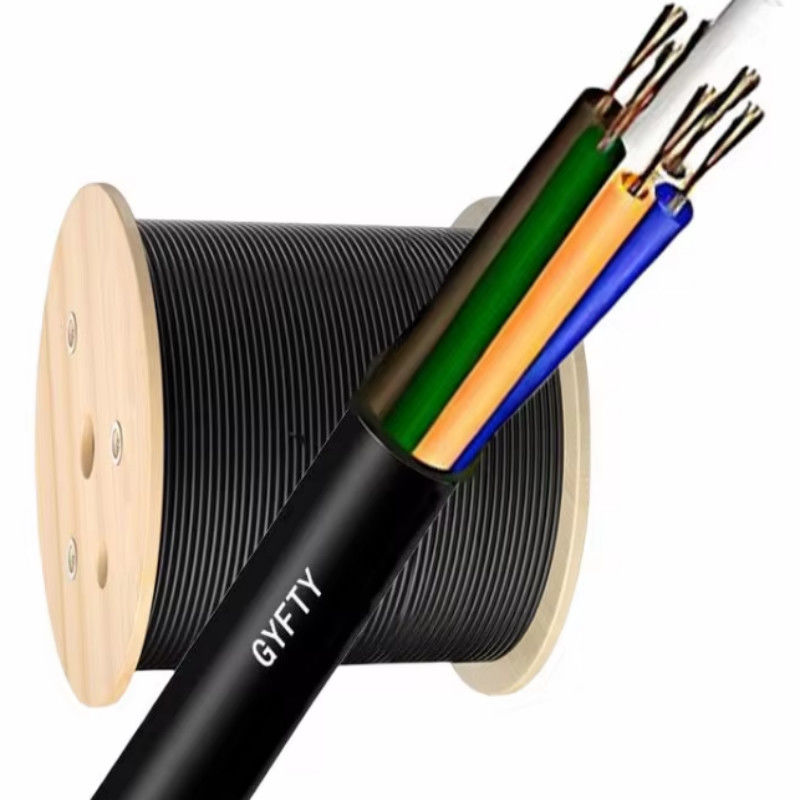

Packing:

Polywood Drum Polywood Drum Fumigation-free wooden drum

72 Core GYFTY Gel-Filled Non-metallic Strength Member Telecommunication Fiber Optic Cable 2

Company Profile:

1.Guangzhou jiqian fiber optic cable co.,ltd is a high-tech company group engaged in researching, manufacturing, selling communication products with our import and export rights.

2. Our corporation is a professional manufacturer of fiber optic cable for 10 years, with ISO9001, FCC, ROHS and CE certificates.

72 Core GYFTY Gel-Filled Non-metallic Strength Member Telecommunication Fiber Optic Cable 3

Certification:

72 Core GYFTY Gel-Filled Non-metallic Strength Member Telecommunication Fiber Optic Cable 5
