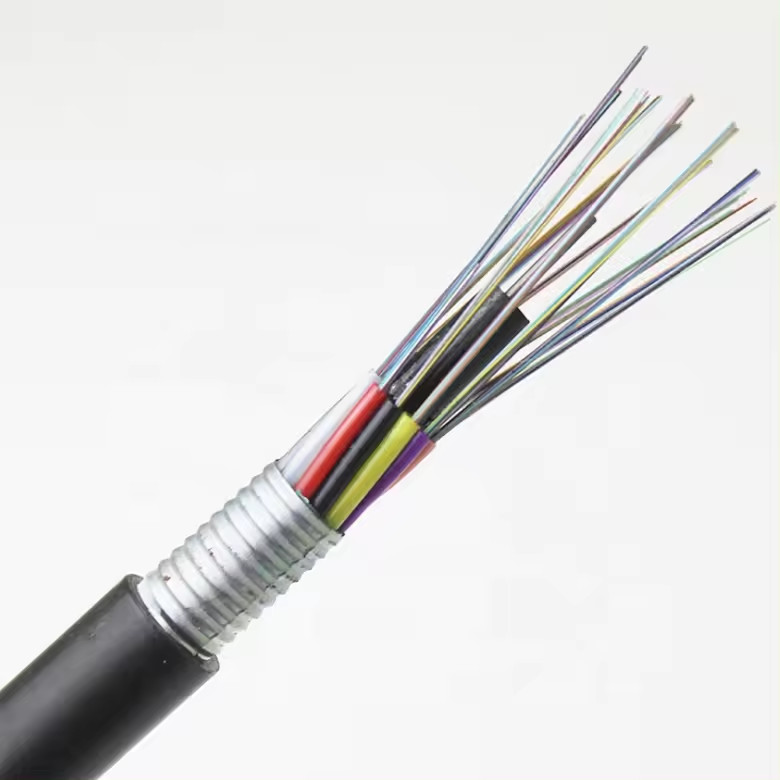

Hot Selling GYTA 24 Cores Stranded Loose Tube For Aerial Duct Anti Moisture Installation Optical Fiber Cable

Contact Now

Hot Selling GYTA 24 Cores Stranded Loose Tube For Aerial Duct Anti Moisture Installation Optical Fiber Cable

Minimum Order Quantity :	1 Kilometer	Packaging Details :	Wooden Drum
Delivery Time :	2-5days	Payment Terms :	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :	8000 kilometers per month

Place of Origin:	Guangdong，China	Brand Name:	JQ
Certification:	CE/ISO9001	Model Number:	GYTA

Detail Information
Type:	Outdoor Fiber Optic Cable	Place Of Origin:	Guangdong, China
Fiber Type:	G652D/G657A1/G657A2	Fiber Count:	2-144 Cores
Length:	Customized	Color:	Customized
Tube:	Multi-Loose Tube	Central Strength Member:	Steel Wire
Armoured:	Al Tape	Outer Sheath:	PE Or As Your Request
Package:	Wooden Drum/Customized	Application:	Aerial,Overhead
Oem:	Available	Operating Temperature:	-40°C~+70°C
Certificate:	ISO9001/CE/ROHS
Highlight:	anti moisture installation Stranded Loose Tube , GYTA 24 cores Stranded Loose Tube , Aerial Duct Stranded Loose Tube

Product Description

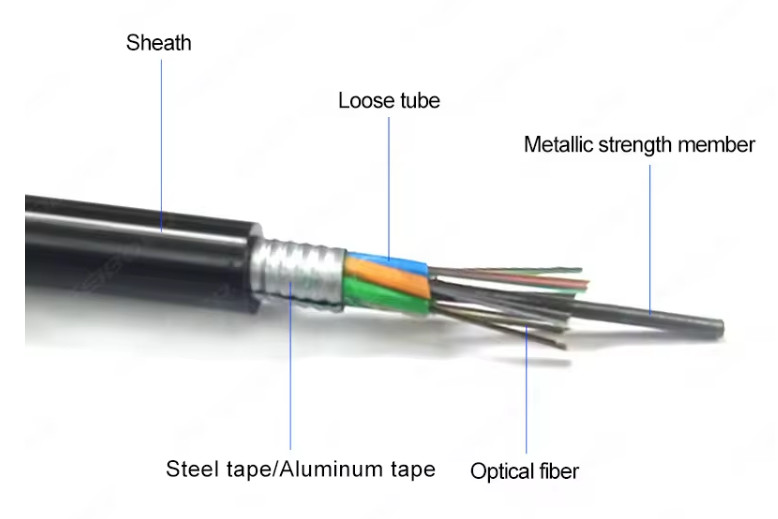

The fibers, either of single-mode or multimode type, are positioned in a loose tube made of high modulus plastic. The tubes are filled with a water-resistant filling compound.A steel wire sometimes sheathed with polyethylene(PE) for cable with high fibre count, locates in the center of core as a metallic strength member.Tubes (and fillers) are stranded around the strength member into a compact and circular cable core.
An Aluminum Polyethylene Laminate (APL) is applied around the cable core, which is filled with the filling compound to protect it from water-ingress. Then, the cable is completed with a PE sheath.

Hot Selling GYTA 24 Cores Stranded Loose Tube For Aerial Duct Anti Moisture Installation Optical Fiber Cable 0

Feature:

1. Good mechanical and temperature performance
2. High strength loose tube that is hydrolysis resistant
3. Special tube filling compound ensures a critical protection of fiber
4. Crush resistance and flexibility
5. The following measures are taken to ensure the cable watertight:
a. Steel wire used as the central strength member
b. Loose tube filling compound
c. 100% cable core filling
d. APL moisture barrier
e. Water-blocking material

Application:
•Interbuilding voice or data communication backbone.
•Installed in duct, underground conduit.

Specification:

item	value
Model Number	GYTA
Type	Outdoor Fiber Optic Cable
Place of Origin	Guangdong,China
Brand Name	jiqian
Number of Conductors	≥ 10
Fiber count	2-288 Cores
Fiber Type	G652D Single mode or as your request
Loose tube material	PBT
Central strength member	steel wire
Armoured	Al tape
Outer Sheath	PE
Cable Structure	Multi-Loose Tube Aluminum/Steel Tape armor
Color	Black or as your need
Package	Fumigation free wooden drum
Installation	aerial, in duct
Certification	CE/ROHS/ISO9001 /ANATEL
OEM	Available

Structure and Technical Specifications:

Fiber	Nominal	Nominal	Max Fiber	Max No.	Allowable Tensile		Allowable Crush
Count	Diameter	Weight	Per Tube	of(Tubes+	Load(N)		Resistance(N/100mm)
	(mm)	(kg/km)		fillers)	Short Term	Long Term	Short Term	Long Term
2~36	10.3	109	6	6	1500	600	1000	300
38~72	11.5	145	12	6	1500	600	1000	300
74~96	13.5	175	12	8	1500	600	1000	300
98~120	14.8	209	12	10	1700	600	1000	300
122~144	16.6	249	12	12	2000	600	1000	300
146~216	16.7	254	12	18(2 layers)	2000	600	1000	300
218~288	19	325	12	24(2 layers)	2500	600	1000	300

Delivery:
For large orders: by sea (LCL or FCL)
For small orders: by sea (LCL), by air or by courier services(DHL ,UPS,TNT.....)

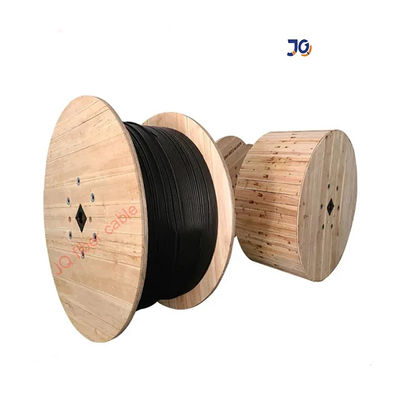

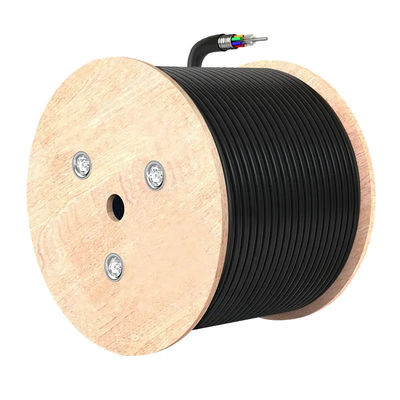

Packaging Details:
Wooden roll, 1000m/reel, 2000m/reel, 3000m/reel, customer's requirements are also welcomed.

Hot Selling GYTA 24 Cores Stranded Loose Tube For Aerial Duct Anti Moisture Installation Optical Fiber Cable 1

WHY CHOOSE US:

Hot Selling GYTA 24 Cores Stranded Loose Tube For Aerial Duct Anti Moisture Installation Optical Fiber Cable 2

Certification:

Hot Selling GYTA 24 Cores Stranded Loose Tube For Aerial Duct Anti Moisture Installation Optical Fiber Cable 3

FAQ:

1. who are we?
We are based in Guangdong, China, start from 2017,sell to Africa(33.00%),South America(17.00%),Western Europe(17.00%),Mid East(17.00%),Southeast Asia(9.00%),South Asia(7.00%). There are total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Fiber Optic Cable, FTTH Drop Cable, Communication Cables, Outdoor/Indoor Fiber Cable
4. what services can we provide?
Accepted Delivery Terms: FOB,EXW；
Accepted Payment Currency:USD,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A,Credit Card,PayPal,Western Union,Cash;
Language Spoken:English,Chinese
5.Can I get a sample?
-Yes, we provide FREE sample and you just need to pay for express freight.
6.Accept OEM or ODM?
-Yes,we're manufacturer. And we have our own Engineering Department. You just need to tell us your requirements.
7.What is your delivery time?
-The general delivery time is 3-7 days after order confirmed. It depends on the order quantity.
