72 Core GYTA GYTS Internet Telecommunication Network With Stranded Wire Armored Optical Fiber Cable

Contact Now

72 Core GYTA GYTS Internet Telecommunication Network With Stranded Wire Armored Optical Fiber Cable

Minimum Order Quantity :	1 Kilometer	Packaging Details :	Wooden Drum
Delivery Time :	2-5days	Payment Terms :	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :	8000 kilometers per month

Place of Origin:	Guangdong，China	Brand Name:	JQ
Certification:	CE/ISO9001	Model Number:	GYTA

Detail Information
Type:	Outdoor Fiber Optic Cable	Place Of Origin:	Guangdong, China
Fiber Type:	G652D/G657A1/G657A2	Fiber Count:	2-144 Cores
Length:	Customized	Color:	Customized
Tube:	Multi-Loose Tube	Central Strength Member:	Steel Wire
Armoured:	Al Tape	Outer Sheath:	PE Or As Your Request
Package:	Wooden Drum/Customized	Application:	Aerial,Overhead
Oem:	Available	Operating Temperature:	-40°C~+70°C
Certificate:	ISO9001/CE/ROHS
Highlight:	72 core armored optical fiber cable , Stranded Armored optical fiber cable

Product Description

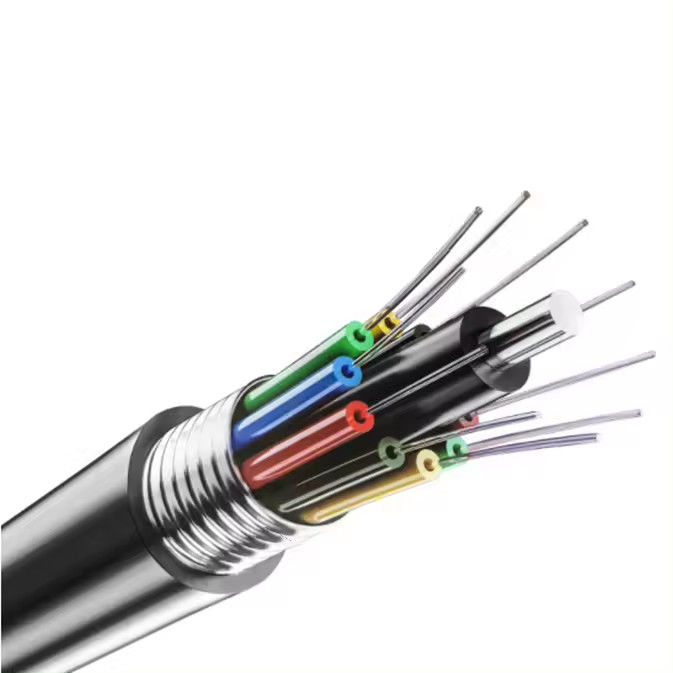

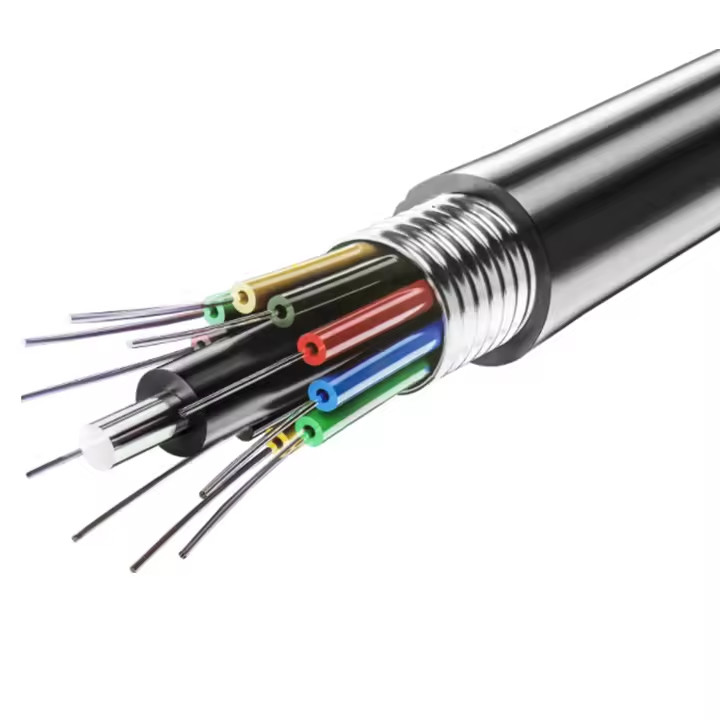

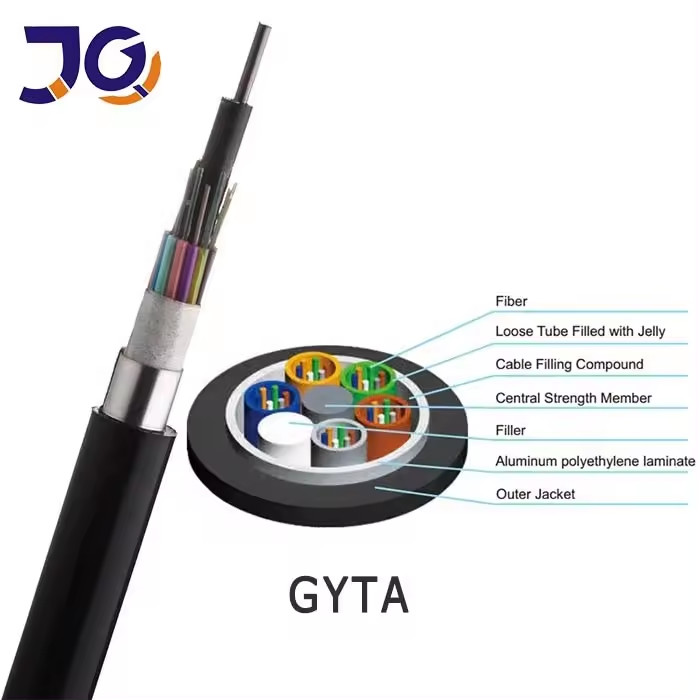

GYTA (Metal Reinforced, Loose-Sleeve Laminated Filled, Aluminum-Polyethylene Bonded Jacketed Outdoor Fiber Optic Cable) is a single-mode or multi-mode fiber optic cable that is enclosed in a loose sleeve made of high modulus plastic filled with a waterproof compound. At the center of the core is a metal reinforcement core or, for some cores, a layer of polyethylene (PE) extruded over the metal reinforcement core. The loose tube (and filler rope) is twisted around the central reinforcement to form a compact and round core with gaps filled with a water-blocking compound. The aluminum-plastic composite tape is wrapped longitudinally and then extruded with a polyethylene sheath.

72 Core GYTA GYTS Internet Telecommunication Network With Stranded Wire Armored Optical Fiber Cable 0

Feature:

1.PBT loose sleeve material has good hydrolysis resistance, and the tube is filled with special oil paste to protect the fiber.
2. PE sheath has good resistance to solar radiation.
3. The smooth outer sheath allows the fiber optic cable to have a smaller coefficient of friction in the installation.
4. The following measures are used to ensure the waterproof performance of the fiber optic cable: special waterproof compound filling inside the loose sleeves; complete cable core filling; aluminum-plastic composite tape with moisture-proof layer.
5. Aluminum tape side pressure index is not as good as steel tape, but the effect of moisture-proof and rust-proof is better than steel tape, GYTA is used for long life when threading.

Application:
•Interbuilding voice or data communication backbone.
•Installed in duct, underground conduit. 72 Core GYTA GYTS Internet Telecommunication Network With Stranded Wire Armored Optical Fiber Cable 1

Specification:

item	value
Model Number	GYTA
Type	Outdoor Fiber Optic Cable
Place of Origin	Guangdong,China
Brand Name	jiqian
Number of Conductors	≥ 10
Fiber count	2-288 Cores
Fiber Type	G652D Single mode or as your request
Loose tube material	PBT
Central strength member	steel wire
Armoured	Al tape
Outer Sheath	PE
Cable Structure	Multi-Loose Tube Aluminum/Steel Tape armor
Color	Black or as your need
Package	Fumigation free wooden drum
Installation	aerial, in duct
Certification	CE/ROHS/ISO9001 /ANATEL
OEM	Available

Structure and Technical Specifications:

Fiber	Nominal	Nominal	Max Fiber	Max No.	Allowable Tensile		Allowable Crush
Count	Diameter	Weight	Per Tube	of(Tubes+	Load(N)		Resistance(N/100mm)
	(mm)	(kg/km)		fillers)	Short Term	Long Term	Short Term	Long Term
2~36	10.3	109	6	6	1500	600	1000	300
38~72	11.5	145	12	6	1500	600	1000	300
74~96	13.5	175	12	8	1500	600	1000	300
98~120	14.8	209	12	10	1700	600	1000	300
122~144	16.6	249	12	12	2000	600	1000	300
146~216	16.7	254	12	18(2 layers)	2000	600	1000	300
218~288	19	325	12	24(2 layers)	2500	600	1000	300

Delivery:
For large orders: by sea (LCL or FCL)
For small orders: by sea (LCL), by air or by courier services(DHL ,UPS,TNT.....)

Packaging Details:
Wooden roll, 1000m/reel, 2000m/reel, 3000m/reel, customer's requirements are also welcomed.

72 Core GYTA GYTS Internet Telecommunication Network With Stranded Wire Armored Optical Fiber Cable 2

WHY CHOOSE US:

72 Core GYTA GYTS Internet Telecommunication Network With Stranded Wire Armored Optical Fiber Cable 3

Certification:

72 Core GYTA GYTS Internet Telecommunication Network With Stranded Wire Armored Optical Fiber Cable 4

FAQ:

1. Are you the real manufacturer?
Yes, we are factory in Guangzhou china, welcome to visit us!

2. what is your minimum quantity?
1KM. We support new project of our customers, trial order is available

3.Can I get a sample?
Yes, we provide FREE sample and you just need to pay for express freight.

4.What about Payment?
T/T, L/C, Western Union and Paypal are acceptable.

5.Delivery time?
Generally 3-7 working days, also it is according to qty.

6.Can you supply customized products and logo?
Yes, we supply OEM&ODM service, pls feel free to contact.
