24 Hilos 48 Fo 72 96 144 Core Single / Double Sheath ADSS Outdoor Aerial All Dielectric Fiber Optical Cable Span 100m Pri
24 Hilos 48 Fo 72 96 144 Core Single / Double Sheath ADSS Outdoor Aerial All Dielectric Fiber Optical Cable Span 100m Pri
24 Hilos 48 Fo 72 96 144 Core Single / Double Sheath ADSS Outdoor Aerial All Dielectric Fiber Optical Cable Span 100m Pri 24 Hilos 48 Fo 72 96 144 Core Single / Double Sheath ADSS Outdoor Aerial All Dielectric Fiber Optical Cable Span 100m Pri 24 Hilos 48 Fo 72 96 144 Core Single / Double Sheath ADSS Outdoor Aerial All Dielectric Fiber Optical Cable Span 100m Pri 24 Hilos 48 Fo 72 96 144 Core Single / Double Sheath ADSS Outdoor Aerial All Dielectric Fiber Optical Cable Span 100m Pri 24 Hilos 48 Fo 72 96 144 Core Single / Double Sheath ADSS Outdoor Aerial All Dielectric Fiber Optical Cable Span 100m Pri 24 Hilos 48 Fo 72 96 144 Core Single / Double Sheath ADSS Outdoor Aerial All Dielectric Fiber Optical Cable Span 100m Pri
Contact Now

24 Hilos 48 Fo 72 96 144 Core Single / Double Sheath ADSS Outdoor Aerial All Dielectric Fiber Optical Cable Span 100m Pri

Minimum Order Quantity : 1 Kilometer Packaging Details : Wooden Drum
Delivery Time : 2-5days Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability : 8000 kilometers per month
Place of Origin: Guangdong，China Brand Name: JQ/OEM
Certification: ISO9001/CE/RoHS Model Number: ADSS

Detail Information
Model Number: ADSS Type: Outdoor Fiber Optic Cable
Place Of Origin: Guangdong, China Number Of Conductors: ≥ 10
Fiber Type: G652D Single Mode Or As Your Request Length: As Required
Color: Customized Tube: Multi Loose Tube
Outer Sheath: PE Or As Your Request Central Strength Member: FRP
Package: Wooden Drum/Customized Application: Self-supporting Aerial
Span: 100-500M Oem: Available
Temperature Range: -40°~60°C Standards: YD/T 769-2003 As Well As IEC 60794-1
Highlight:

96 Core ADSS Cable

,

144 Core ADSS Cable

,

72 Core ADSS Cable

Product Description

ADSS FIBER OPTIC CABLE

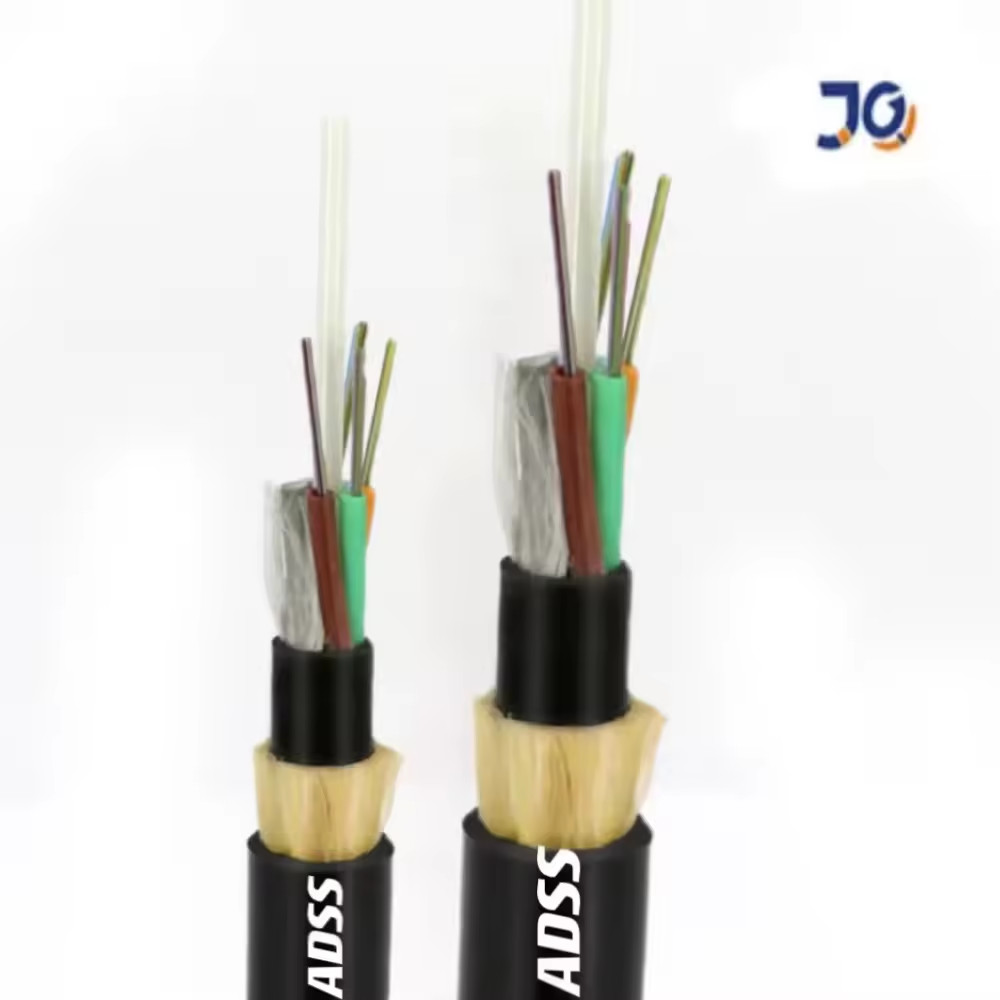

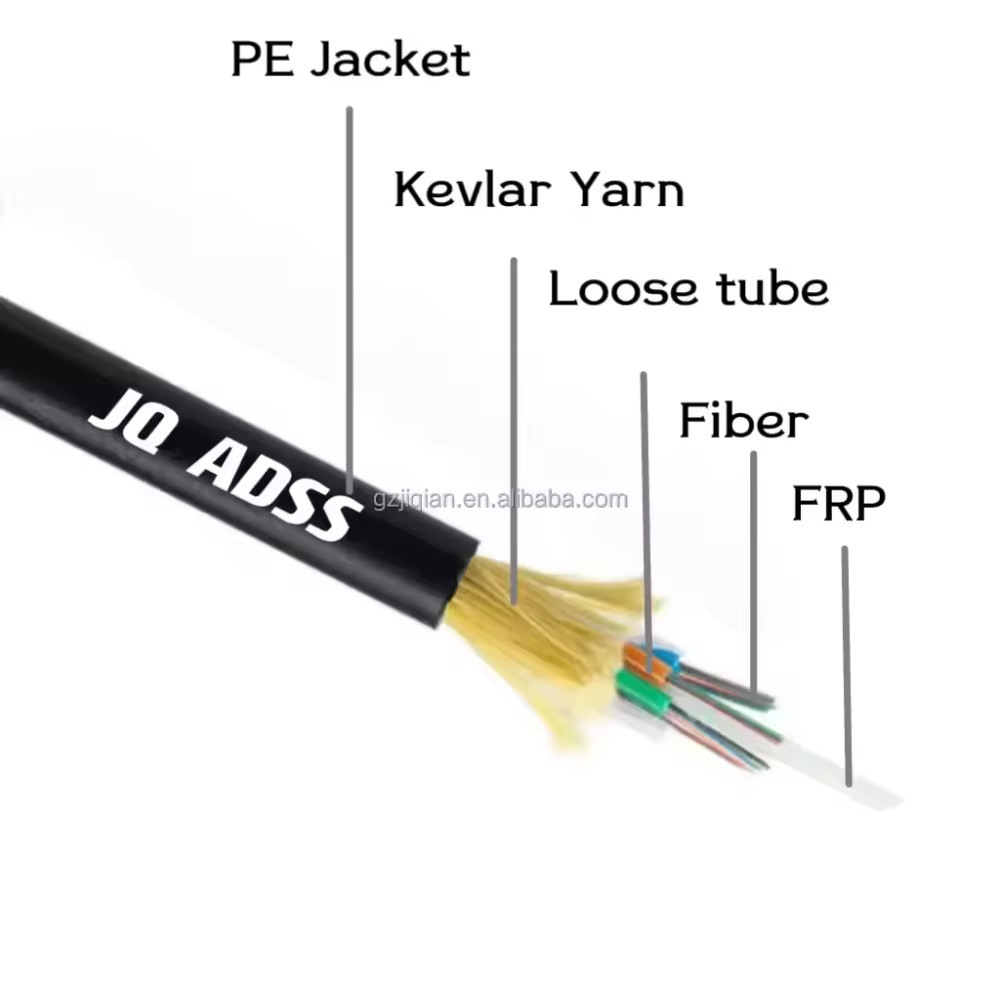

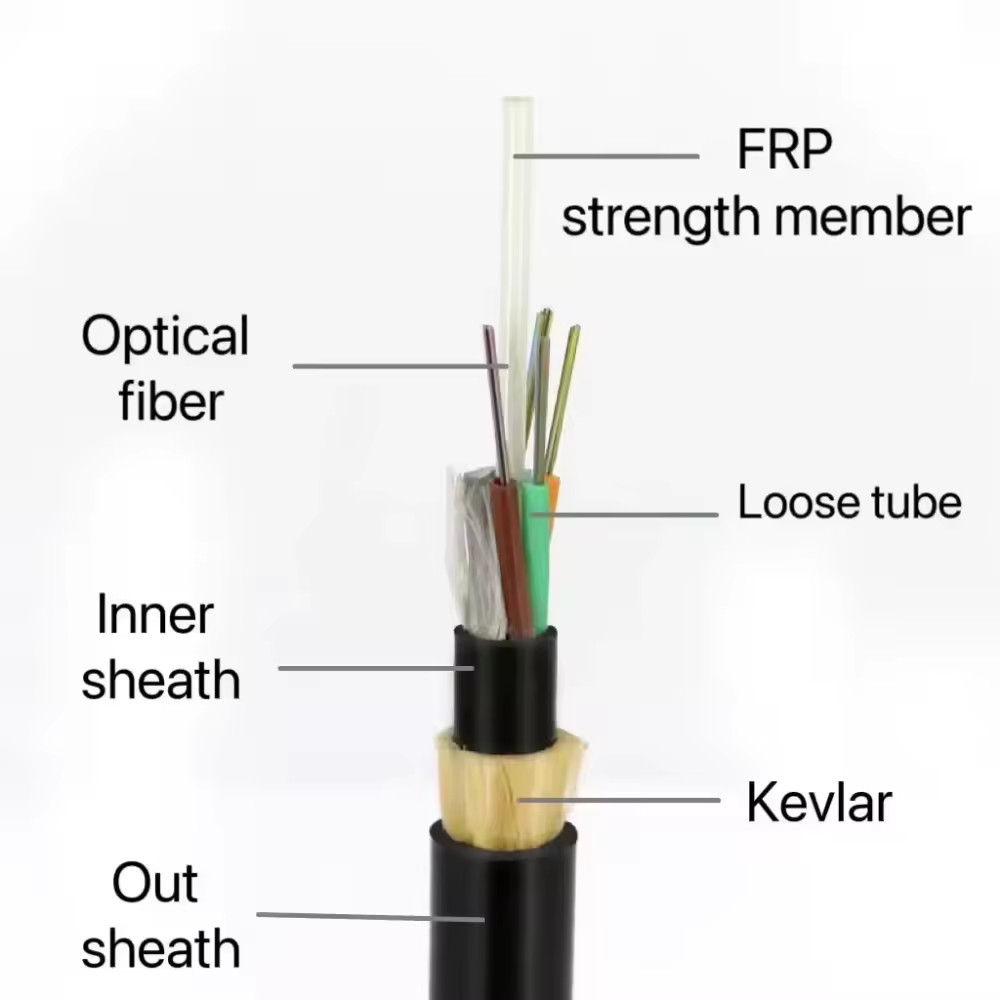

ADSS cable is loose tube stranded. The fibers, 125μm,are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. The tubes and fillers are stranded around a FRP as a non-metallic strength member into a compact and circular cable core,and the cable core is wrapped with a layer of Kevlar. Between the Kevlar yarn and the loose tube, water-blocking material is applied to keep the cable compact and watertight. Final the cable is completed with a polyethylene (PE) or AT outer sheath.

24 Hilos 48 Fo 72 96 144 Core Single / Double Sheath ADSS Outdoor Aerial All Dielectric Fiber Optical Cable Span 100m Pri 0

1. Can be installed without shutting off the power;

2. Excellent AT performance, The maximum inductive at the operating point of AT sheath can reach 25kV;

3.Light weight and small diameter reducing the load caused by ice and wind and the load on towers and backprops;

4. Large span lengths and the largest span is over 1000m;

5. Good performance of tensile strength and temperature;

6.The design life span is 30 years.

24 Hilos 48 Fo 72 96 144 Core Single / Double Sheath ADSS Outdoor Aerial All Dielectric Fiber Optical Cable Span 100m Pri 1

Specification:

item value
Model Number ADSS
Type Outdoor Fiber Optic Cable
Place of Origin Guangdong,China
Brand Name jiqian
Cable Structure Multi-Loose Tube None Armor
Number of Conductors ≥ 10
Fiber count 2-288 Cores
Fiber material silicon dioxide
Fiber Type G652D Single mode or as your request
Fiber color Blue, Orange, Green, Brown,etc
Central strength member FRP
Loose tube Jelly filled
Loose tube Material PBT
Jacket Sheath PE
Color Black or as your need
Package Plywood Reel/customized
Installation Self-supporting aerial
operating temperature -40 to +70
Certification CE/ROHS/ISO9001 /ANATEL


Packing and delivry

Delivery For large orders: by sea (LCL or FCL) For small orders: by sea (LCL), by air or by courier services(DHL ,UPS,TNT.....)

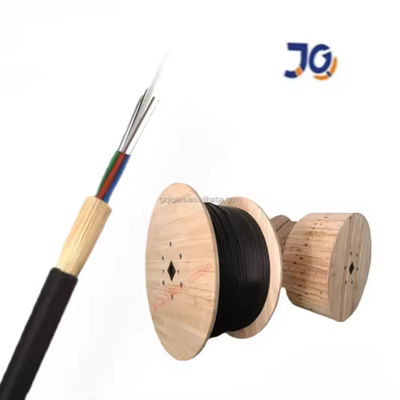

Packaging Details Wooden roll, 1000m/reel, 2000m/reel, 3000m/reel, customer's requirements are also welcomed;24 Hilos 48 Fo 72 96 144 Core Single / Double Sheath ADSS Outdoor Aerial All Dielectric Fiber Optical Cable Span 100m Pri 2

Free printing

We provide free cable printing service, you can print the information you need on the cable jacket. For example, company name, product features.

24 Hilos 48 Fo 72 96 144 Core Single / Double Sheath ADSS Outdoor Aerial All Dielectric Fiber Optical Cable Span 100m Pri 324 Hilos 48 Fo 72 96 144 Core Single / Double Sheath ADSS Outdoor Aerial All Dielectric Fiber Optical Cable Span 100m Pri 4

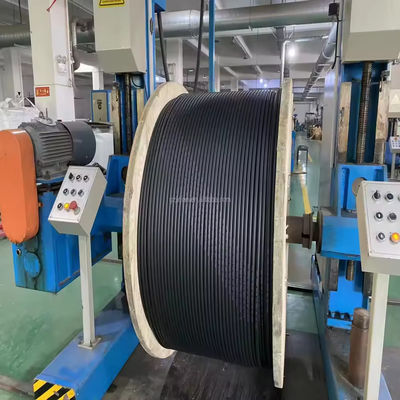

Company Profile:

Guangzhou Jiqian Fiber Optic Cable Co.Ltd. is located in 2nd Floor,Building B3,Building 3 No.43 Lixin 9th Road,Xintang Town,Zengcheng District,Guangzhou city,Guangdong province,China.We promise to work together with you with high-quality products, discounted prices,and first-class services to create a brilliant career.We sincerely welcome customers all over the world to visit our factory and build long term relationship with each other.

24 Hilos 48 Fo 72 96 144 Core Single / Double Sheath ADSS Outdoor Aerial All Dielectric Fiber Optical Cable Span 100m Pri 524 Hilos 48 Fo 72 96 144 Core Single / Double Sheath ADSS Outdoor Aerial All Dielectric Fiber Optical Cable Span 100m Pri 6

24 Hilos 48 Fo 72 96 144 Core Single / Double Sheath ADSS Outdoor Aerial All Dielectric Fiber Optical Cable Span 100m Pri 7

WHY CHOOSE US:

24 Hilos 48 Fo 72 96 144 Core Single / Double Sheath ADSS Outdoor Aerial All Dielectric Fiber Optical Cable Span 100m Pri 8

Certification:

24 Hilos 48 Fo 72 96 144 Core Single / Double Sheath ADSS Outdoor Aerial All Dielectric Fiber Optical Cable Span 100m Pri 9

FAQ:

★Can I have a sample order?
-Yes,we welcome sample order to test and check quality.

★What about the lead time?
-Sample needs 3-7 days,mass production time needs 7-10 days for order quantity more than 12000 kilometers require 20-25 days.

★Do you have any MOQ limit for order?
-Normally,10kms per one specification and one color.

★How do you ship the goods and how long does it take to arrive?
-We ususlly ship by DHL,UPS,Fedex or TNT for samples,It usually takes 3-5 days to arrive.Airline and sea shiping also optional.

★How to proceed an order for cables?
-Firstly let us know your requirements or application;Secondly we quote according to your requirements or our suggestions;Thirdly customer confirms the samples and places deposit for formal order;Fourthly We arrange production and deliver on time.

★Is it OK to print my logo on cables?
-Yes,Please inform us formally before our production.

★How do you make our business long-term and good relationship?
-1. We keep good quality and competitive price to ensure our customers benefit ;
-2. We respect every customer as our friend and we sincerely do business and make friends with them,no matter where they come from.

We Support OEM and Customize products.
Welcome to your inquiry! Welcome to visit our facotry!
Contact me at WhatsAapp +86 19120308386 to get free sample.
