Name: Underground Double Jacket Non Metallic Armoring Fiber Optic Cable GYFTA53/gYTA53
Brand: Guangzhou Jiqian Fiber Optic Cable Co., Ltd.
SKU: GYFTA53
Price: 1,249.01 USD
Availability: InStock

Features Gallery Product Description Request A Quote

Features

Specifications

Fiber Count: 4-288

Jacket Material: PE/MDPE/HDPE/LSZH

Jacket Color: Black

Lift Time: More Than 25years

Fiber Type: G652D

Application: Underground Directly Bired/duct

Factory: Yes

Fiber Brand: YOFC

Amore: Steel Tape/aluminum Tape

Highlight:

Underground Fiber Optic Cable

Non Metallic Armoring Fiber Optic Cable

GYFTA53/gYTA53 Fiber Optic Cable

Basic Infomation

Place of Origin: Guangdong, China

Brand Name: JQ/OEM

Certification: ISO9001

Model Number: GYFTA53

Payment & Shipping Terms

Packaging Details: wooden drum

Delivery Time: 3-5 working days ,it depends on your order

Payment Terms: L/C, D/A, D/P, T/T, Western Union

Supply Ability: 60000KM/month

Gallery

Underground Double Jacket Non Metallic Armoring Fiber Optic Cable GYFTA53/gYTA53

Product Description

GYFTA53 Underground Double Jacket Non Metallic Armoring Fiber Optic Cable

Cable Construction

The GYFTA53 cable is constructed by inserting a 250μm fiber into a loose tube made of a high-modulus material filled with a water-repellent compound. The center of the core is a non-metallic reinforcing core (FRP). A non-metallic reinforcing core is required to be extruded with a layer of polyethylene (PE)

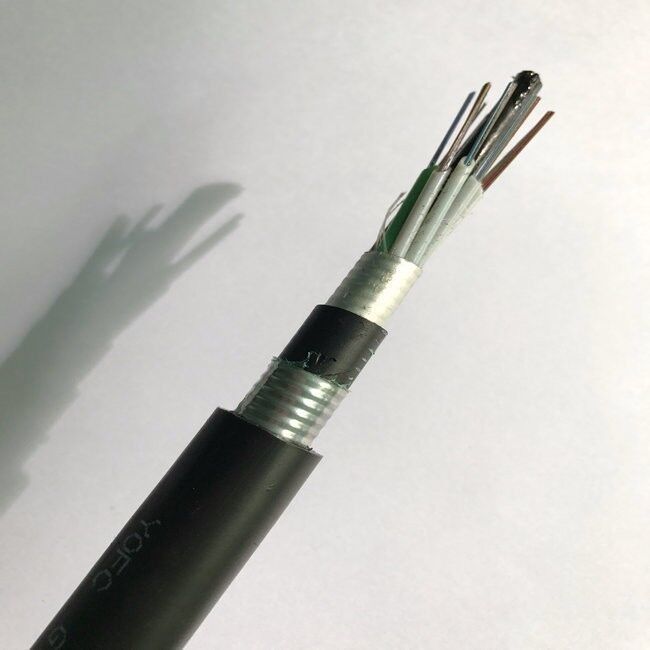

Underground Double Jacket Non Metallic Armoring Fiber Optic Cable GYFTA53/gYTA53 1

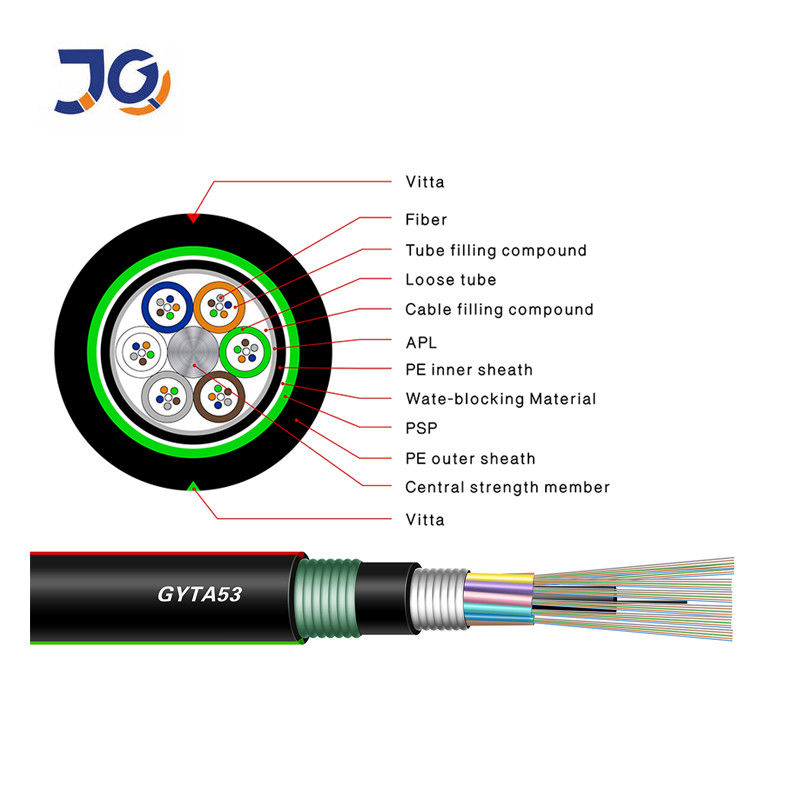

GYFTA53/GYTA53

The plastic coated aluminum strip (APL) is longitudinally wrapped and then extruded with a polyethylene inner sheath

The double-sided coated steel strip (PSP) is longitudinally wrapped and extruded into a polyethylene outer sheath to form a cable

Standards

The GYFTA53 fiber optic cable complies with YD/T 901 and IEC 60794-1 standards.

The following measures are taken to ensure the waterproof performance of the cable:

- Single non-metallic center reinforcement core

- The loose tube is filled with special waterproof compound

- Full core filling - Plastic coated aluminum tape (APL) moisture barrier

- Double-sided coated steel strip (PSP) improves the moisture resistance of the cable - Good water blocking material prevents longitudinal leakage of cable

Applicable fields: Direct buried/underground duct

Optical Parameters

		50/125µm	62.5/125µm	G.652	G.655
Attenuation(+20°C)	@850nm	≤3.0dB/km	≤3.3dB/km
	@1300nm	≤1.0dB/km	≤ 1.0dB/km
	@1310nm			≤0.36dB/km	≤0.4dB/km
	@1550nm			≤0.22dB/km	≤0.23dB/km
Bandwidth (Class A)	@850nm	≥ 500MHz.km	≥ 200MHz.km
	@1300nm	≥ 1000MHz.km	≥ 600MHz.km
Numerical Aperture		0.200 ±0.015NA	0.275 ±0.015NA
Cable Cut-off Wavelength λcc				≤ 1260nm	≤ 1450nm

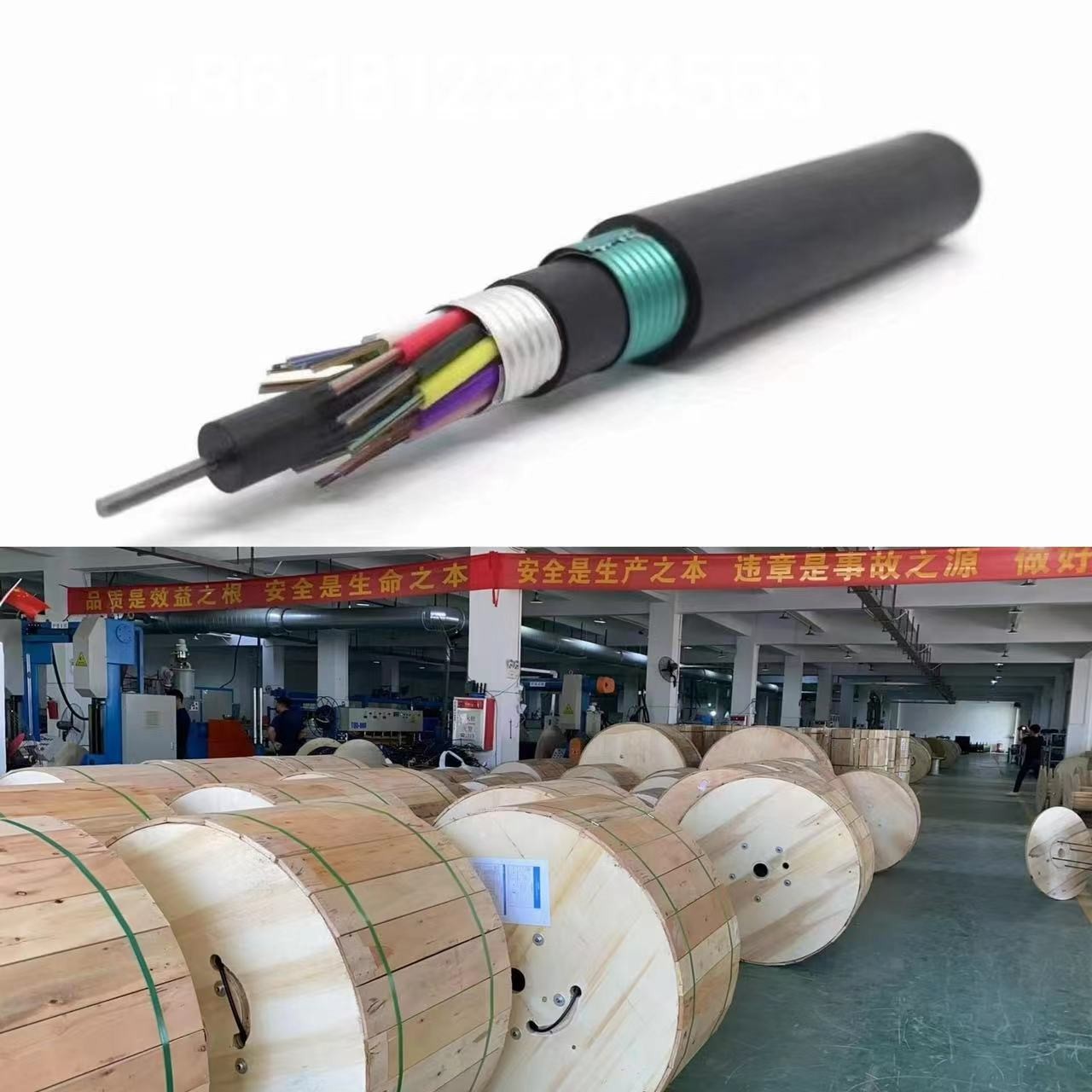

Underground Double Jacket Non Metallic Armoring Fiber Optic Cable GYFTA53/gYTA53 4

Underground Double Jacket Non Metallic Armoring Fiber Optic Cable GYFTA53/gYTA53 5

Cable Performance

Item		Parameters
Fiber Count		24
Colored coated fiber	Dimension	250µm±15µm
	Color	Blue,Orange,Green,Brown,Gray,White,
Loose tube	Dimension	1.8mm±0.1mm
	Material	PBT
	Color	Blue,Orange,Green,Brown
Filler	Material	PE
	Color	Black
Central Strength Member	Dimension	1.6mm±0.2mm
	Material	Phosphating steel wire
Armoured	Material	Plastic coated steel strip and aluminum tape
Outer jacket	Material	PE
	Color	Black

Mechanical and Environmental Characteristics

Item	Unit	Specifications
Tension(Long Term)	N	600
Tension(Short Term)	N	1500
Crush(Long Term)	N/10cm	1000
Crush(Short Term)	N/10cm	3000
Min. Bend Radius(Dynamic)	mm	20D
Min.Bend Radius(Static)	mm	10D
Installation Temperature	℃	-40～+60
Operating Temperature	℃	-40～+70
Storage Temperature	℃	-40～+70
Repeating bending	Load:250N;number of cycles:30 No obvious addition attenuation, no fiber break and no cable damage.
Torsion	Load:250N; number of cycles:10; twist angle:±90° No obvious addition attenuation, no fiber break and no cable damage.

OTDR testing

Underground Double Jacket Non Metallic Armoring Fiber Optic Cable GYFTA53/gYTA53 6
