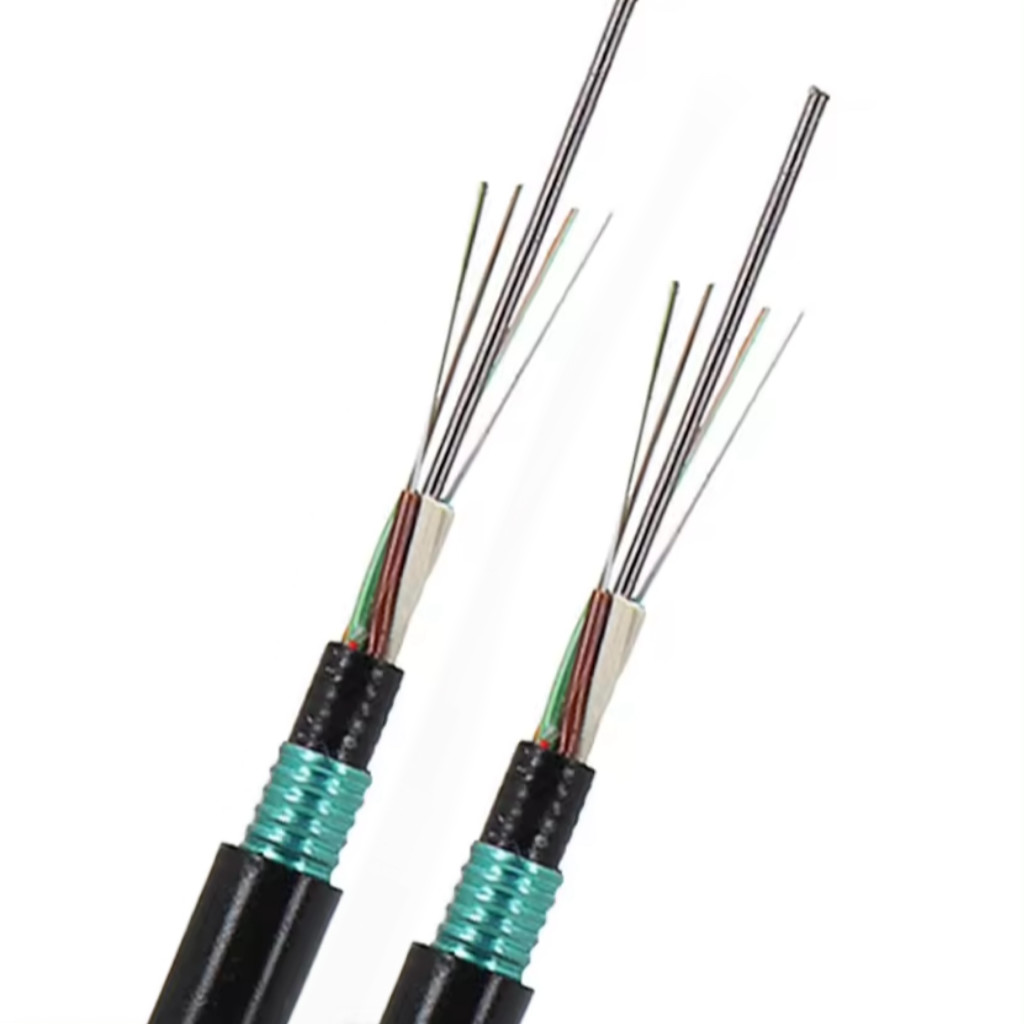

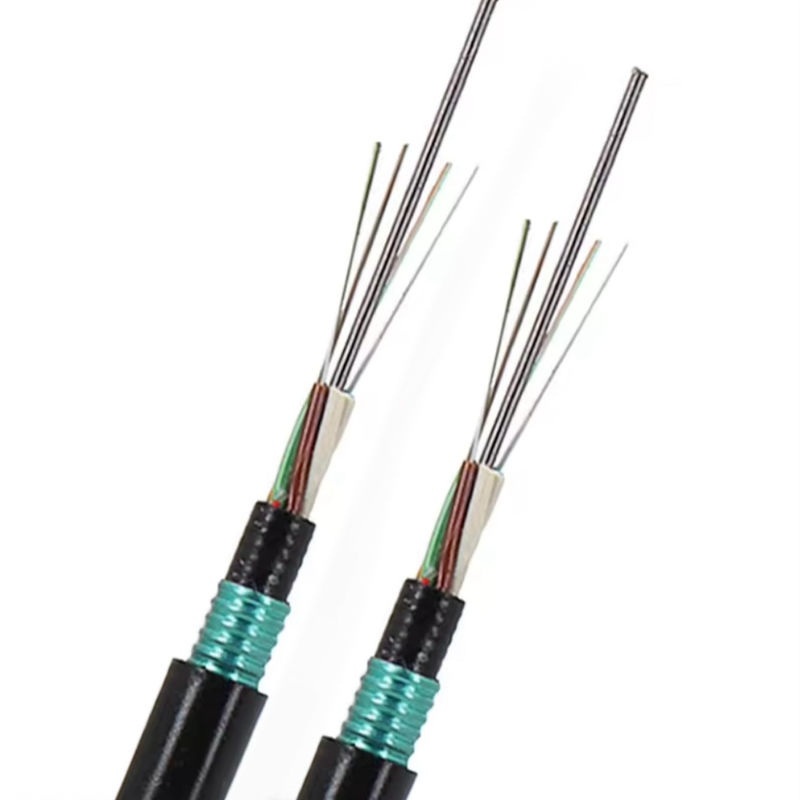

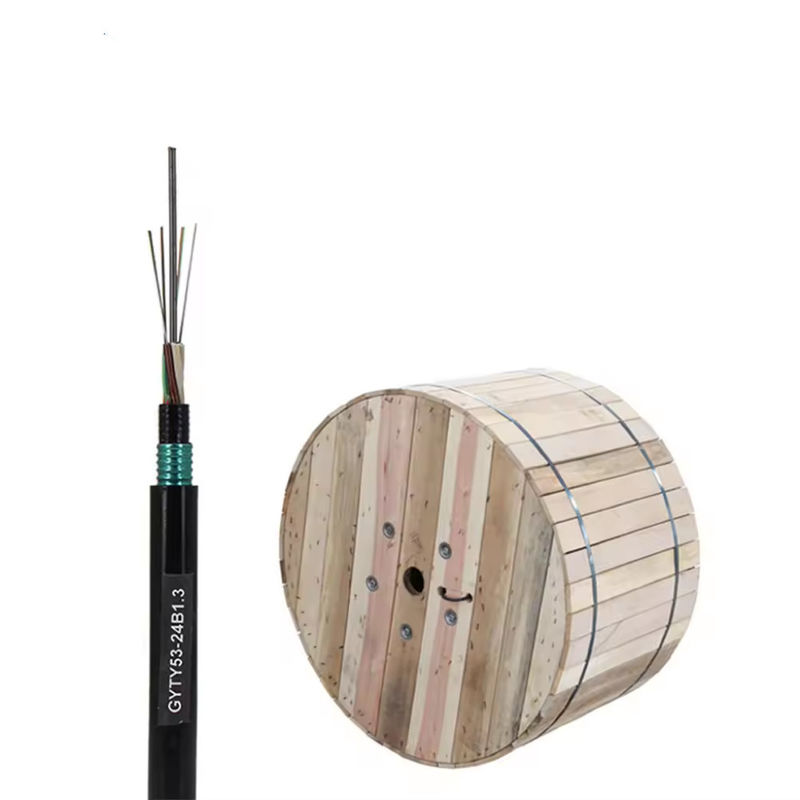

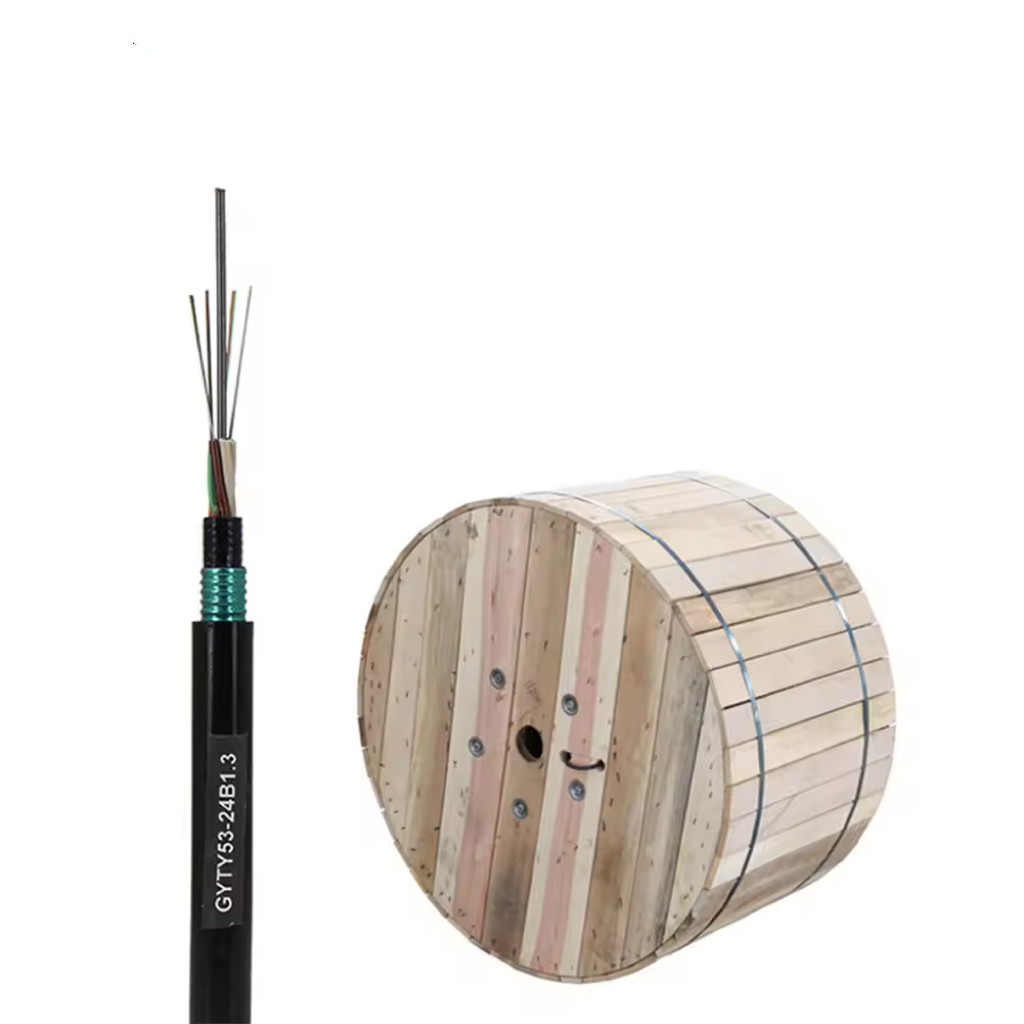

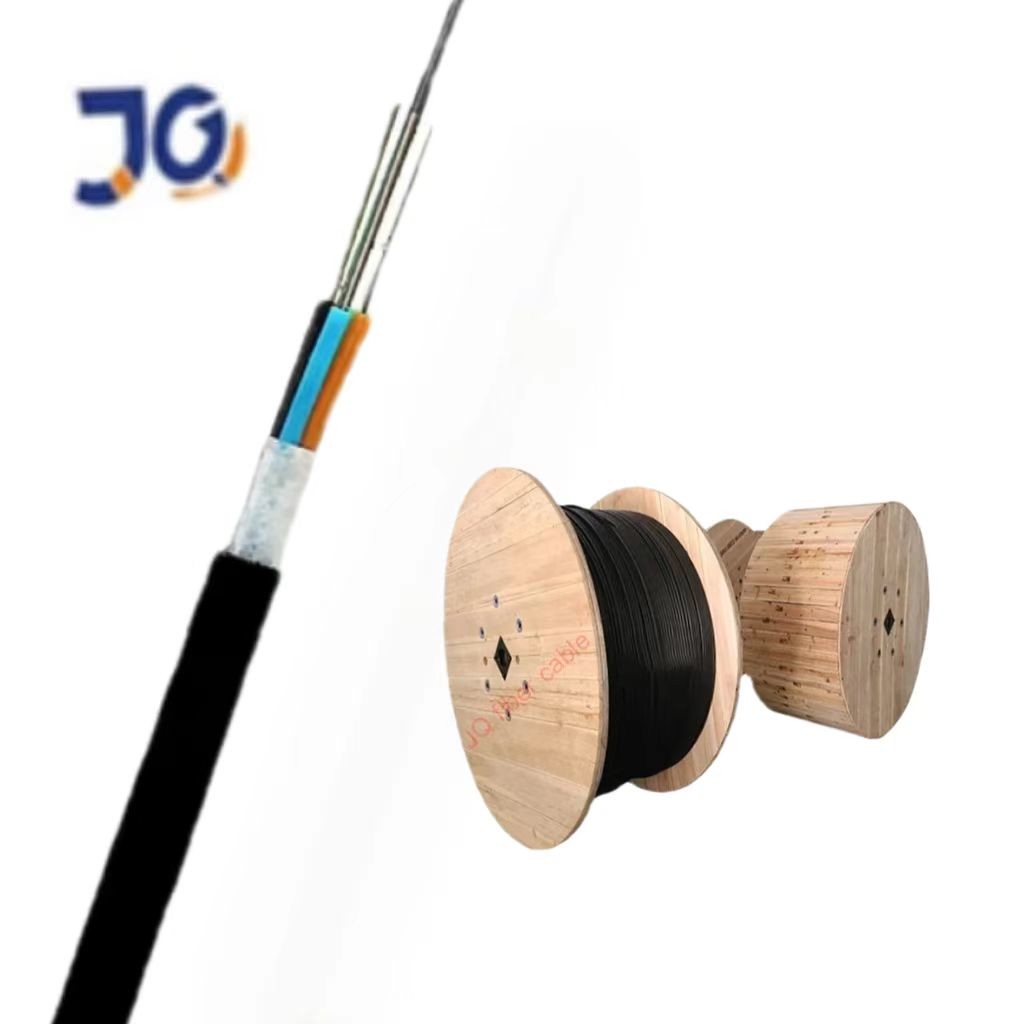

Outdoor GYTY GYTY53 Single Mode Multi-Mode 2~144 Core G652d FRP Fiber Optical Cable
Outdoor GYTY GYTY53 Single Mode Multi-Mode 2~144 Core G652d FRP Fiber Optical Cable
Outdoor GYTY GYTY53 Single Mode Multi-Mode 2~144 Core G652d FRP Fiber Optical Cable Outdoor GYTY GYTY53 Single Mode Multi-Mode 2~144 Core G652d FRP Fiber Optical Cable Outdoor GYTY GYTY53 Single Mode Multi-Mode 2~144 Core G652d FRP Fiber Optical Cable Outdoor GYTY GYTY53 Single Mode Multi-Mode 2~144 Core G652d FRP Fiber Optical Cable Outdoor GYTY GYTY53 Single Mode Multi-Mode 2~144 Core G652d FRP Fiber Optical Cable Outdoor GYTY GYTY53 Single Mode Multi-Mode 2~144 Core G652d FRP Fiber Optical Cable
Contact Now

Outdoor GYTY GYTY53 Single Mode Multi-Mode 2~144 Core G652d FRP Fiber Optical Cable

Minimum Order Quantity : 1km Price : 60-200USD/KM
Delivery Time : 3-5 days, it depends on your quantity Payment Terms : L/C, D/A, T/T, Western Union
Supply Ability : 60000KM/month
Place of Origin: Guangdong,China Brand Name: Jiqian
Certification: ISO9001/CE Model Number: GYTY GYTY53

Detail Information
Highlight:

144 Core Outdoor Fiber Optic Cable

,

Multi-Mode Outdoor Fiber Optic Cable

,

Single Mode Outdoor Fiber Optic Cable

Product Description

Product Description

Manufacturer Outdoor G652D Singlemode Fibre Optic Cable Aerial GYXTW 4 6 8 12 24 optical fiber cable 4 core

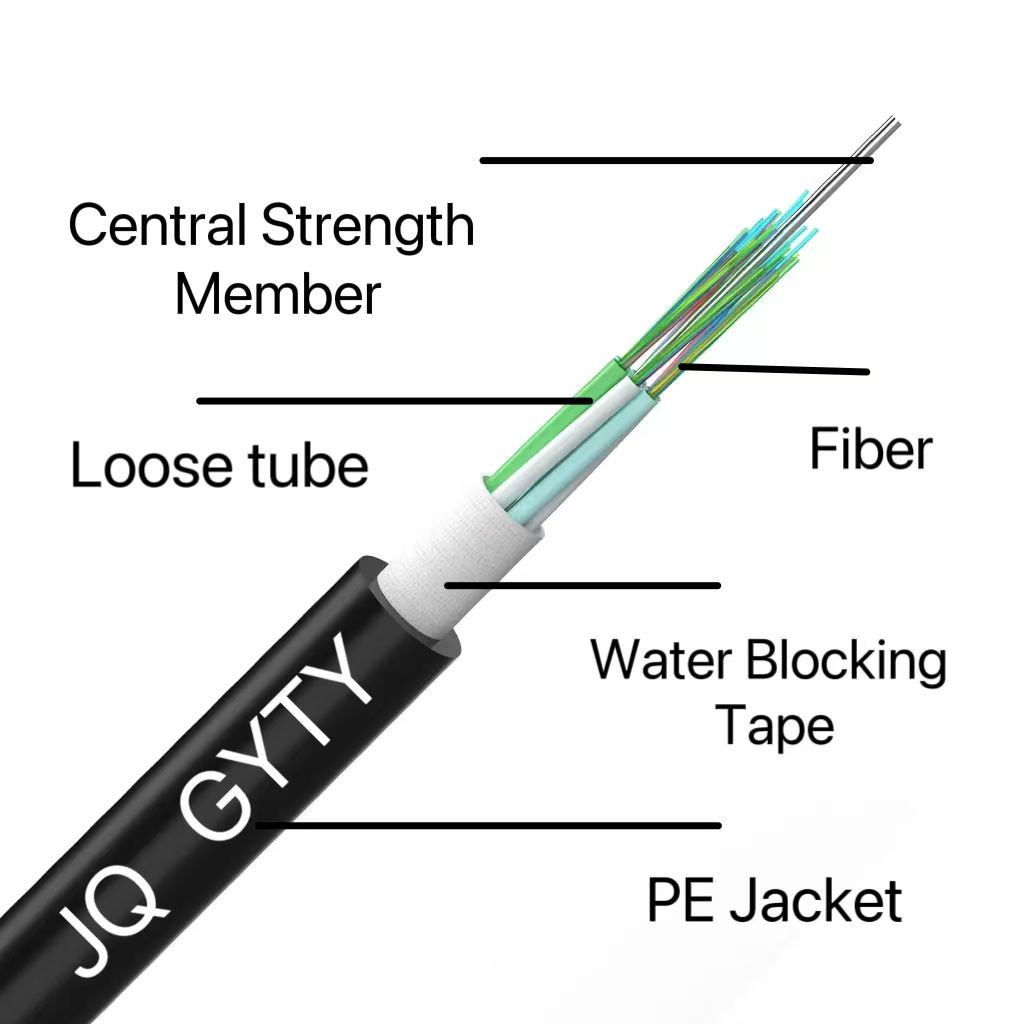

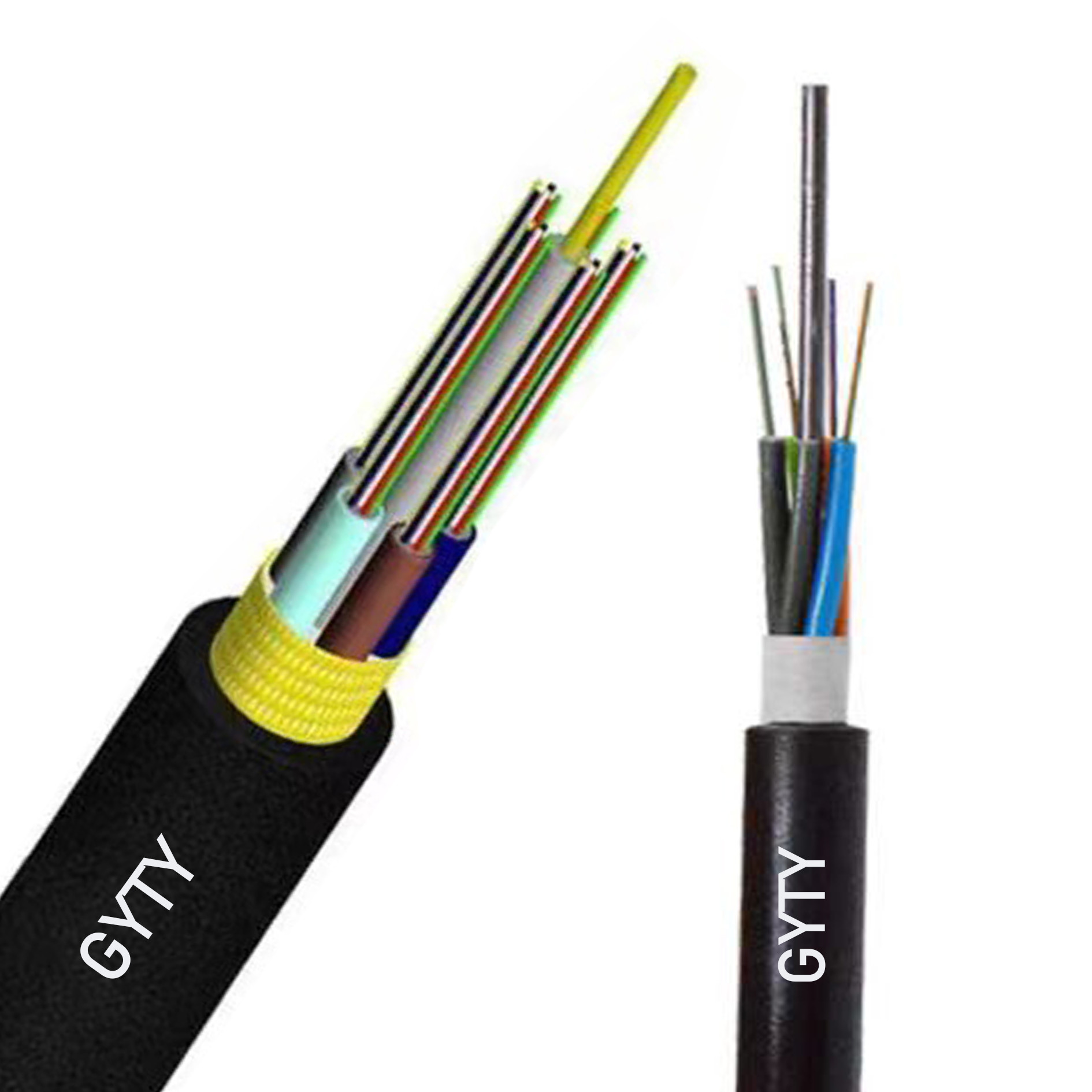

In the GYTY cable, single mode/multimode fibers are positioned in the loose tubes, the tubes are filled with water blocking filling and Glass yarn compound.Tubes and fillers are stranded around the Steel strength member into a circular cable core.Then the cable is completed with a PE sheath.
Outdoor GYTY GYTY53 Single Mode Multi-Mode 2~144 Core G652d FRP Fiber Optical Cable 0
Characteristics
Model: GYTY
Fiber:Up to 288 cores, Gel-filledFiber Types: Single-mode or multimode Cable Types: S-Z standard loose tube
Strength Member:(K)FRP or steel wire
Armor: None
Sheath Options: Single PE sheath
Operating Temperature: -40°C~+70°C
Compliances: In Accordance with I EC, ITU and EIA standards.

Operating temperature range
* -40°C~+60°C

Application
1, Adopted to Outdoor distribution. 2, Suitable for aerial pipeline laying method. 3, Long distance and local area network
communication.
Outdoor GYTY GYTY53 Single Mode Multi-Mode 2~144 Core G652d FRP Fiber Optical Cable 1
PRODUCT SPECIFICATIONS
Item
Parameters
Fiber Count
2-288
Colored coated fiber
Dimension
250µm±15µm
Color
Blue,Orange,Green,Brown,Gray,White,Red,Black,Yellow,Purple,Pink,Aqua
Loose tube
Dimension
2.2mm±0.1mm
Material
PBT
Color
nature
Filler
MATERIAL
none
color
none
Strength Member
Dimension
0.7mm±0.05mm
material
Phosphating steel wire
Armoured
Material
Plastic coated steel strip
Outer jacket
Material
PE
color
black
Related Products
Outdoor GYTY GYTY53 Single Mode Multi-Mode 2~144 Core G652d FRP Fiber Optical Cable 2
Company Profile
Guangzhou Jiqian fiber optic cable co.,ltd is a high-tech company engaged in researching, manufacturing, selling communication products with our import and export rights. Our corporation is a professional manufacturer of fiber optic cable and patch cord over 8 years, with ISO 9001:2015 certificate. OEM is available and we can design any kind of fiber optic cables for you. The main products of our company are optical fiber cables and related optical fiber components. All of the products are widely used in telecom, and exported to many countries,for example Egypt, Pakistan, Maldives India,Brazil and Chile etc.
Outdoor GYTY GYTY53 Single Mode Multi-Mode 2~144 Core G652d FRP Fiber Optical Cable 3
FAQ
1,Q:Are you a factory or trade company?
A:We are a factory

2,Q:Where is the MOQ?
A:The MOQ of Fiber Optic cable is 1km.

3.Q:Which brand of fiber do you use?
A:Corning,YOFC,Fiberhome,etc

4,Q:Can you accept small order?
A:Yes, small order is available .We support new project of our customers as we know business is always from small order.

5,Q:What’s delivery time?
A:The general delivery time is 5-7 days after order confirmed. It depends on the order quantity.

6.Can you supply customized products and logo?
A:Yes. We supply OEM service.

7.What’s your payment terms?
A: We accept T/T,L/C,Western Union, 30% in advance and 70% before shipment.
