24 Core Outdoor Loose Tube Stranded Direct Buried GYTS Communication Cable Armoured Optical Fiber Cable

Contact Now

24 Core Outdoor Loose Tube Stranded Direct Buried GYTS Communication Cable Armoured Optical Fiber Cable

Minimum Order Quantity :	1 Kilometer	Packaging Details :	Wooden Drum
Delivery Time :	2-5days	Payment Terms :	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :	8000 kilometers per month

Place of Origin:	Guangdong，China	Brand Name:	JQ/OEM
Certification:	CE/ISO9001/RoHS	Model Number:	GYTS

Detail Information
Model Number:	GYTS	Type:	Outdoor Fiber Optic Cable
Place Of Origin:	Guangdong, China	Number Of Conductors:	≥ 10
Fiber Type:	G652D Single Mode Or As Your Request	Length:	As Required
Color:	Customized	Cable Structure:	Multi-Loose Tube Steel Tape Armor
Central Strength Member:	Steel Wire	Armoured:	Steel Tape
Package:	Wooden Drum/Customized	Oem:	Available
Application:	Aerial, In Duct	Certification:	CE RoHS ISO:9001
Highlight:	Armoured Outdoor Fiber Optic Cable , 24 Core Outdoor Fiber Optic Cable , GYTS Outdoor Fiber Optic Cable

Product Description

GYTS FIBER OPTIC CABLE

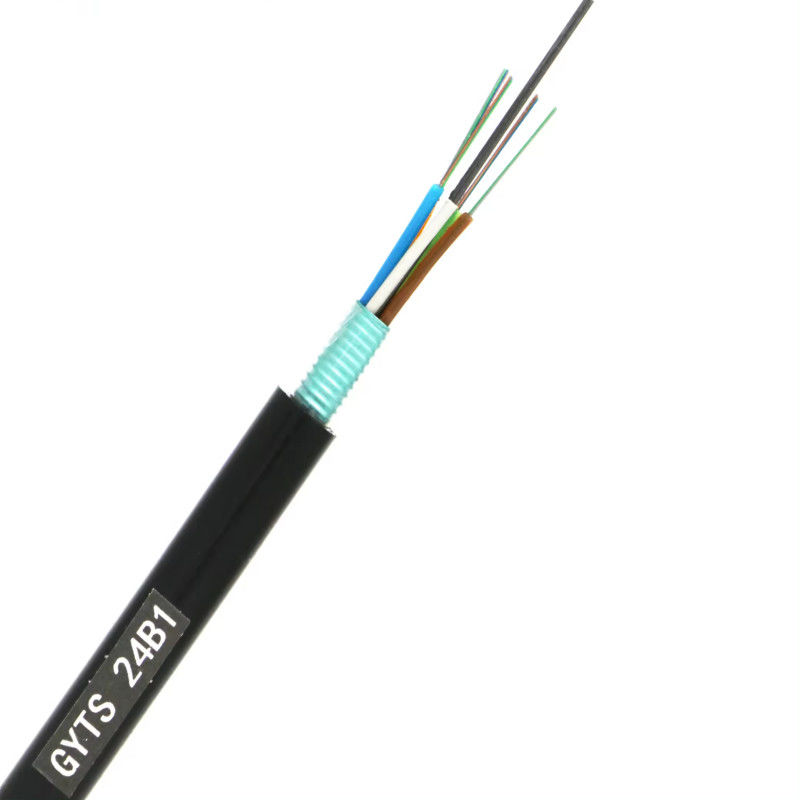

MODEL: GYTS-24B1
Fiber: SM G652D
Armoured: PSP Steel Tape
Jacket Diameter: 10.50mm
Jacket Material: LLDPE
Cable Length: 3Km/Drum

Simple Specification:
Insertion Loss: ≤0.30dB
Return Loss: ≥50dB
Durability: ≤0.20dB
Test Wavelength: 1310/1550nm
Operation Temperature

24 Core Outdoor Loose Tube Stranded Direct Buried GYTS Communication Cable Armoured Optical Fiber Cable 0

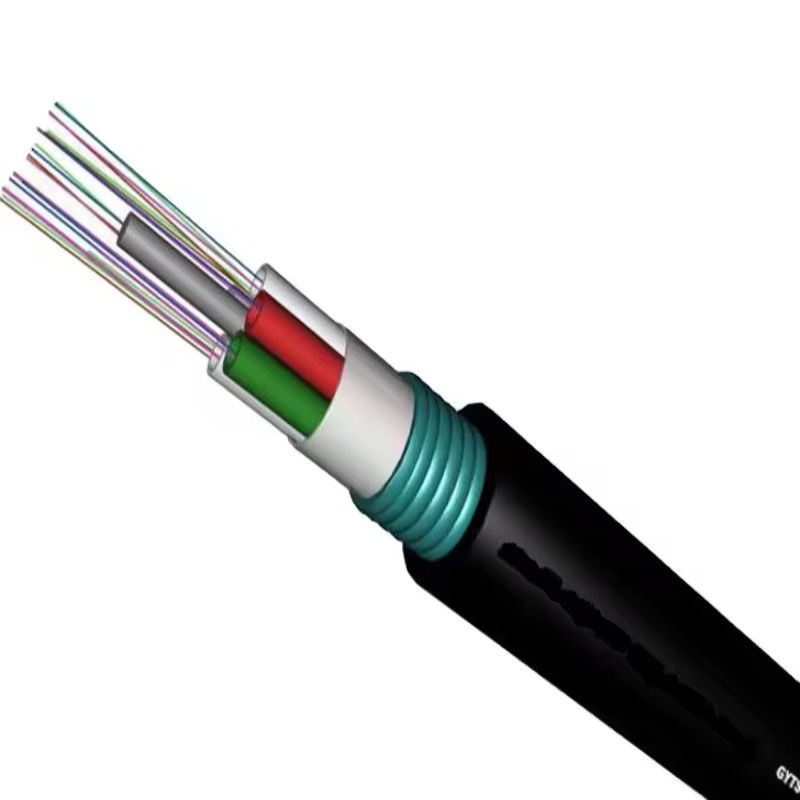

GYTS Fiber Optical Cable is positioned in a central loose tube and Fillers are stranded around the metallic central strength member, it pass SZ into a compact, the PSP is longitudinal covering, the cable is completed with PE sheath.In the loose tube, gap of the core is filled with the water-resistant filling compound.

24 Core Outdoor Loose Tube Stranded Direct Buried GYTS Communication Cable Armoured Optical Fiber Cable 1

Characteristics:

• Has good mechanical properties and temperature characteristics.

• The loose tube material itself has good hydrolysis resistance and high strength.

• The tube is filled with a special grease to protect the fiber.

• Specially designed tight cable structure to prevent casing retraction.

• Good pressure resistance and softness.

• Special jackets have excellent performance.

• The following measures are taken to ensure the waterproof performance of the cable.

- Single wire center reinforcement core.

- The loose tube is filled with special waterproof compound.

- Full core filling.

- Double-sided coated steel strip (PSP) improves the moisture resistance of the cable.

Application:

24 Core Outdoor Loose Tube Stranded Direct Buried GYTS Communication Cable Armoured Optical Fiber Cable 2

Specification:

item	value
Model Number	GYTS
Type	Outdoor Fiber Optic Cable
Place of Origin	Guangdong,China
Brand Name	jiqian
Number of Conductors	≥ 10
Fiber count	2-288 Cores
Fiber Type	G652D Single mode or as your request
Central strength member	steel wire
Loose tube	Jelly filled
Loose Tube Material	PBT
Armoured	Steel tape
Outer Sheath	PE
Cable Structure	Multi-Loose Tube Steel Tape armor
Color	Black or as your need
Package	Plywood Reel/customized
Installation	aerial, in duct
operating temperature	-40 to +70
Certification	CE/ROHS/ISO9001 /ANATEL

Structure and Technical Specifications:

Fiber	Nominal	Nominal	Max Fiber	Max No.	Allowable Tensile		Allowable Crush
Count	Diameter	Weight	Per Tube	of(Tubes+	Load(N)		Resistance(N/100mm)
	(mm)	(kg/km)		fillers)	Short Term	Long Term	Short Term	Long Term
2~36	10.3	109	6	6	1500	600	1000	300
38~72	11.5	145	12	6	1500	600	1000	300
74~96	13.5	175	12	8	1500	600	1000	300
98~120	14.8	209	12	10	1700	600	1000	300
122~144	16.6	249	12	12	2000	600	1000	300
146~216	16.7	254	12	18(2 layers)	2000	600	1000	300
218~288	19	325	12	24(2 layers)	2500	600	1000	300
