GYTS 48 Core Single Mode Multimode Moisture Resistant Steel Tape Armoured Duct Fiber Optic Cable 1km Price List per

1 Kilometer
MOQ
GYTS 48 Core Single Mode Multimode Moisture Resistant Steel Tape Armoured Duct Fiber Optic Cable 1km Price List per
Features Gallery Product Description Request A Quote
Features
Specifications
Model Number: GYTS
Type: Outdoor Fiber Optic Cable
Place Of Origin: Guangdong, China
Number Of Conductors: ≥ 10
Fiber Type: G652D Single Mode Or As Your Request
Length: As Required
Color: Customized
Cable Structure: Multi-Loose Tube Steel Tape Armor
Central Strength Member: Steel Wire
Armoured: Steel Tape
Package: Wooden Drum/Customized
Oem: Available
Application: Aerial, In Duct
Certification: CE RoHS ISO:9001
Cable Protection: Steel Wire Strength.filler Protect Tube Fiber.steel Tape Armord.
Use: FTTX
Highlight:

Steel Tape Armoured Fiber Optic Cable

,

1km Single Mode Fiber Optic Cable

,

Moisture Resistant Fiber Optic Cable

Basic Infomation
Place of Origin: Guangdong,China
Brand Name: JQ/OEM
Certification: CE/ISO9001/RoHS
Model Number: GYTS
Payment & Shipping Terms

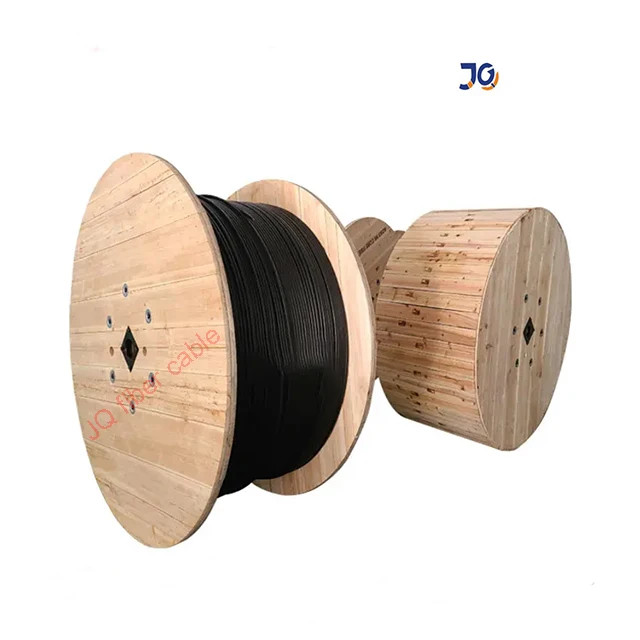

Packaging Details: Wooden Drum
Delivery Time: 2-5days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 8000 kilometers per month
Product Description

GYTS FIBER OPTIC CABLE
MODEL: GYTS-24B1
Fiber: SM G652D
Armoured: PSP Steel Tape
Jacket Diameter: 10.50mm
Jacket Material: LLDPE
Cable Length: 3Km/Drum

Simple Specification:
Insertion Loss: ≤0.30dB
Return Loss: ≥50dB
Durability: ≤0.20dB
Test Wavelength: 1310/1550nm
Operation Temperature

GYTS 48 Core Single Mode Multimode Moisture Resistant Steel Tape Armoured Duct Fiber Optic Cable 1km Price List per 0

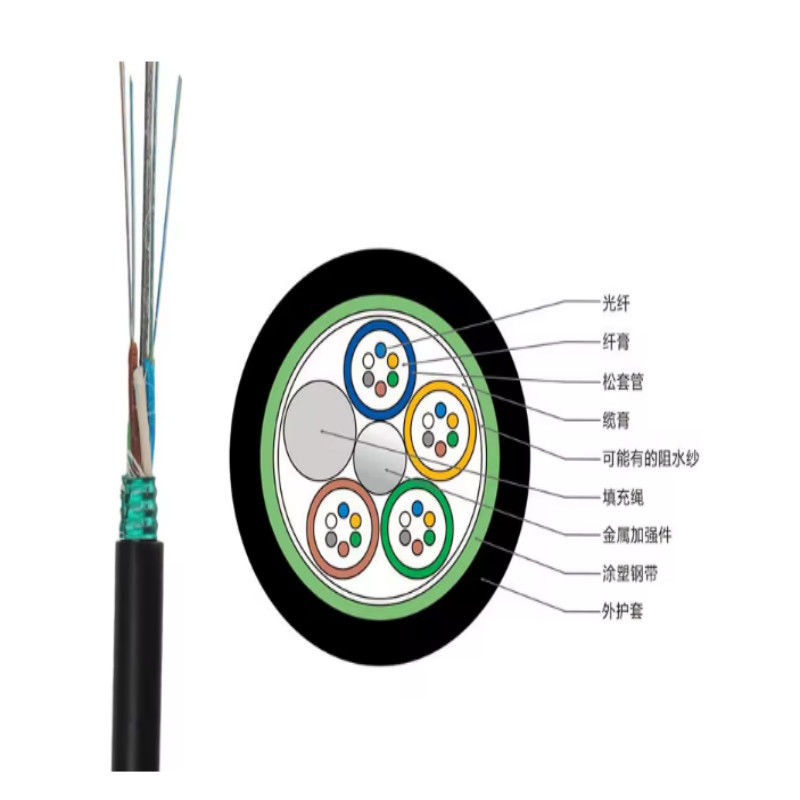

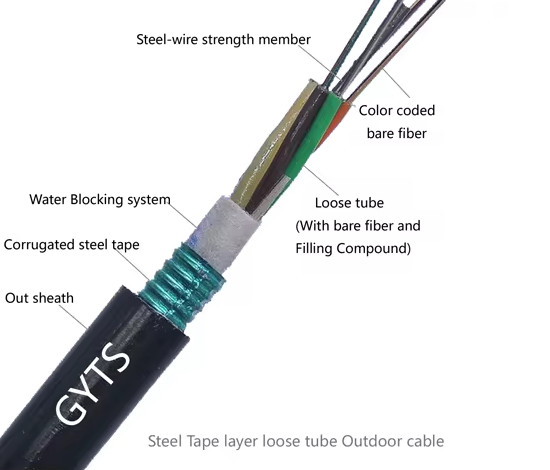

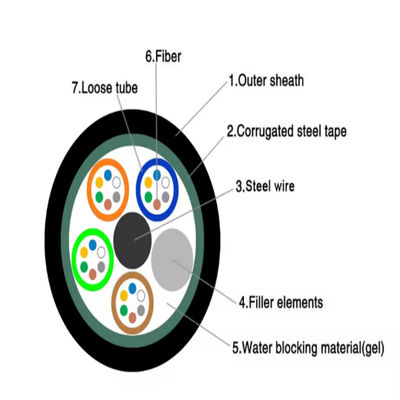

GYTS The fibers,250μmm,are position in a loose tube made of a high modulus plastic.The tube are filled with a water resistant filling compound.A steel wire,sometimes sheathed with ployethylene(PE) for cable with high fiber count,locates in the center of core as a metallic strength member.

Tubes (and fillers) are stranded around the strength member into a compact and circular cable core.The PSP is longitudinally applied over the cable core,which is filled with filling compound to protect it from water ingress,the cable is completed with a PE sheath.

GYTS 48 Core Single Mode Multimode Moisture Resistant Steel Tape Armoured Duct Fiber Optic Cable 1km Price List per 1

Characteristics:

• Has good mechanical properties and temperature characteristics.

• The loose tube material itself has good hydrolysis resistance and high strength.

• The tube is filled with a special grease to protect the fiber.

• Specially designed tight cable structure to prevent casing retraction.

• Good pressure resistance and softness.

• Special jackets have excellent performance.

GYTS 48 Core Single Mode Multimode Moisture Resistant Steel Tape Armoured Duct Fiber Optic Cable 1km Price List per 2

Application:

Direct burial preferred, other methods of installation are also available.

GYTS 48 Core Single Mode Multimode Moisture Resistant Steel Tape Armoured Duct Fiber Optic Cable 1km Price List per 3

Specification:

item value
Model Number GYTS
Type Outdoor Fiber Optic Cable
Place of Origin Guangdong,China
Brand Name jiqian
Number of Conductors ≥ 10
Fiber count 2-288 Cores
Fiber Type G652D Single mode or as your request
Central strength member steel wire
Loose tube Jelly filled
Loose Tube Material PBT
Armoured Steel tape
Outer Sheath PE
Cable Structure Multi-Loose Tube Steel Tape armor
Color Black or as your need
Package Plywood Reel/customized
Installation aerial, in duct
operating temperature -40 to +70
Certification CE/ROHS/ISO9001 /ANATEL
Structure and Technical Specifications:
Fiber Nominal Nominal Max Fiber Max No. Allowable Tensile Allowable Crush
Count Diameter Weight Per Tube of(Tubes+ Load(N) Resistance(N/100mm)
  (mm) (kg/km)   fillers) Short Term Long Term Short Term Long Term
2~36 10.3 109 6 6 1500 600 1000 300
38~72 11.5 145 12 6 1500 600 1000 300
74~96 13.5 175 12 8 1500 600 1000 300
98~120 14.8 209 12 10 1700 600 1000 300
122~144 16.6 249 12 12 2000 600 1000 300
146~216 16.7 254 12 18(2 layers) 2000 600 1000 300
218~288 19 325 12 24(2 layers) 2500 600 1000 300

Company Profile:

Guangzhou Jiqian Fiber Optic Cable Co.Ltd. is located in 2nd Floor,Building B3,Building 3 No.43 Lixin 9th Road,Xintang Town,Zengcheng District,Guangzhou city,Guangdong province,China.It is a large-scale high-tech specialized joint-stock enterprise that integrates scientific research, development,production, and sales. It specializes in producing various types and specifications of optical cables with 2-288 cores. The company adheres to the corporate spirit of "integrity, speed, flexibility, efficiency, and innovation", and strives for perfection, appreciation for customers, and paving the way for success, Adhere to the standard that "customer satisfaction is the most important measure of our performance". We promise to work together with you with high-quality products, discounted prices,and first-class services to create a brilliant career.
We sincerely welcome customers all over the world to visit our factory and build long term relationship with each other.

GYTS 48 Core Single Mode Multimode Moisture Resistant Steel Tape Armoured Duct Fiber Optic Cable 1km Price List per 4GYTS 48 Core Single Mode Multimode Moisture Resistant Steel Tape Armoured Duct Fiber Optic Cable 1km Price List per 5

WHY CHOOSE US:



1.24hours one-to-one online services ensure efficient support.

2.Considerate customer reception from hotel booking to factory visiting.

3.Excellent care from order confirmation to product shipment.

GYTS 48 Core Single Mode Multimode Moisture Resistant Steel Tape Armoured Duct Fiber Optic Cable 1km Price List per 6

Certification:

GYTS 48 Core Single Mode Multimode Moisture Resistant Steel Tape Armoured Duct Fiber Optic Cable 1km Price List per 7

FAQ:

1. who are we?
We are based in Guangdong, China, start from 2017,sell to Africa(33.00%),South America(17.00%),Western Europe(17.00%),Mid East(17.00%),Southeast Asia(9.00%),South Asia(7.00%). There are total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Fiber Optic Cable, FTTH Drop Cable, Communication Cables, Outdoor/Indoor Fiber Cable
4. what services can we provide?
Accepted Delivery Terms: FOB,EXW;
Accepted Payment Currency:USD,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A,Credit Card,PayPal,Western Union,Cash;
Language Spoken:English,Chinese

5.MOQ: what is your minimum quantity?
-MOQ : 1KM
We Support OEM and Customize products.
Welcome to your inquiry! Welcome to visit our facotry!
Contact me at WhatsAapp +86 19120308386 to get free sample.
