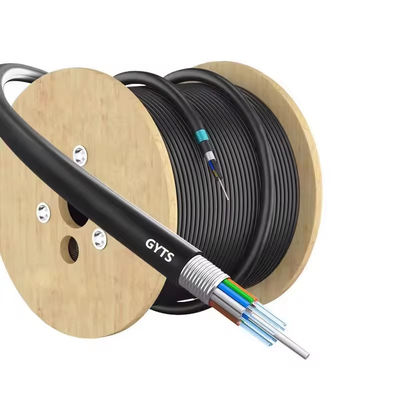

Outdoor 72 96 144 216 288 Core Steel Armor Fiber Optic Cable Non-self Supporting Aerial GYTS GYTA

Product Description

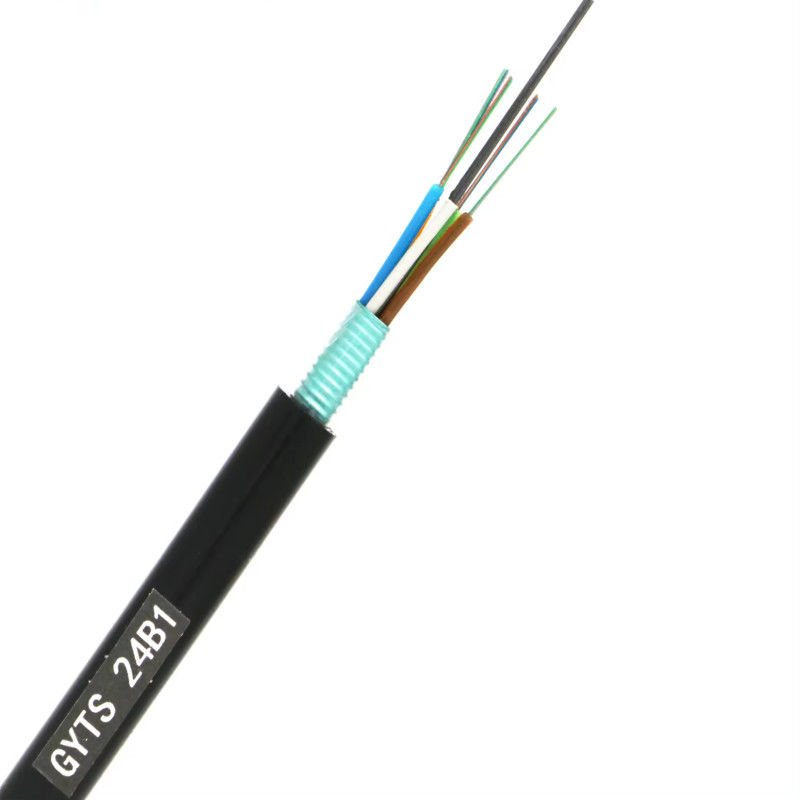

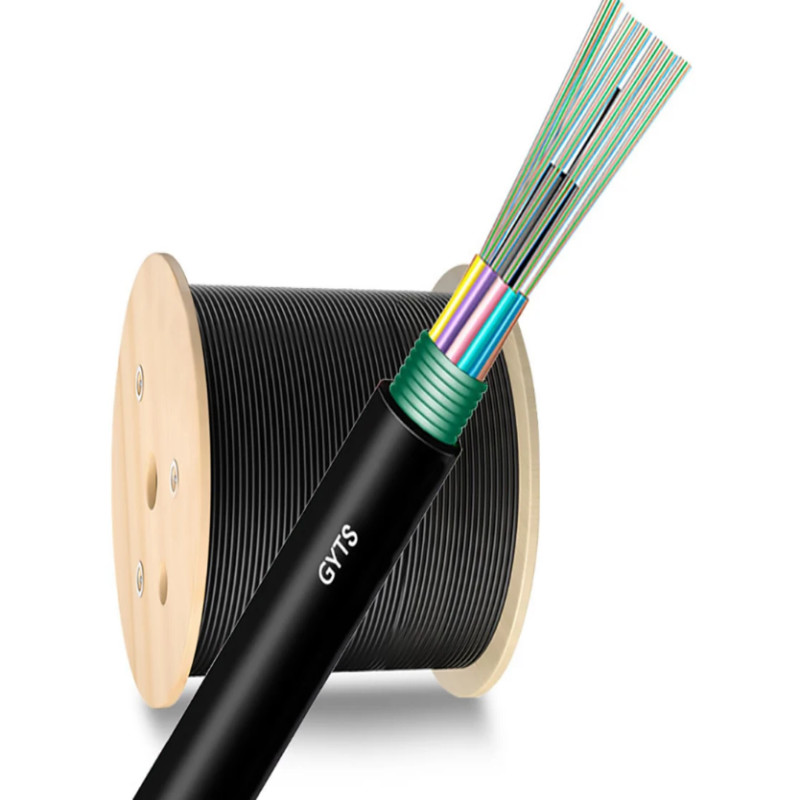

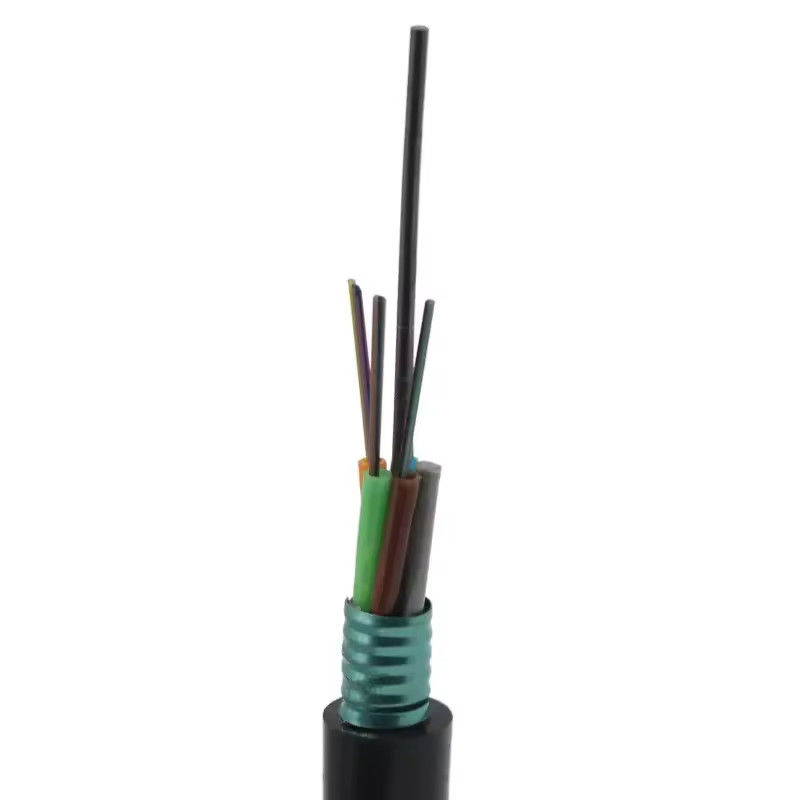

GYTS FIBER OPTIC CABLE
-Fiber count: 2-288(G652D);
-Loose tube: PBT;
-Central strength member: Steel wire or FRP;
-Waterproof layer:
Fiber gel, water blocking tape;
-Outer sheath: PE
-Operating temperature : -40°C~+70°C
-Application :
Long distance communication system;
Local area network system;
Subscriber network system;

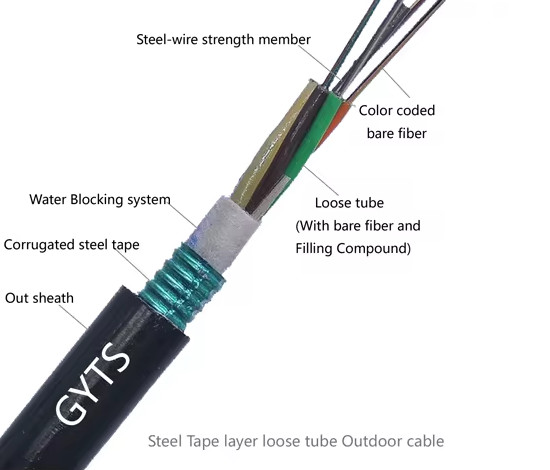

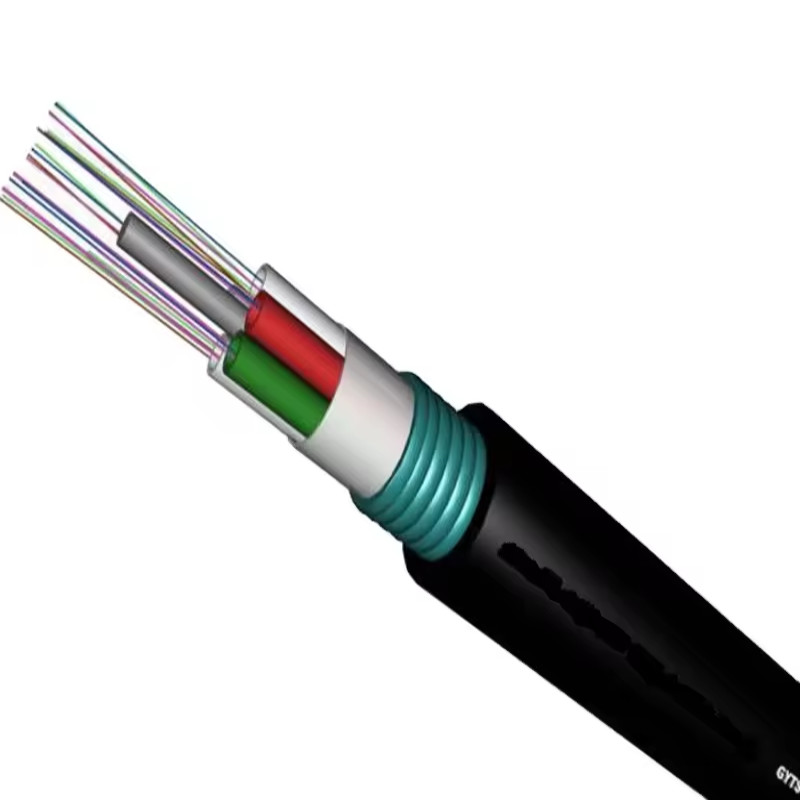

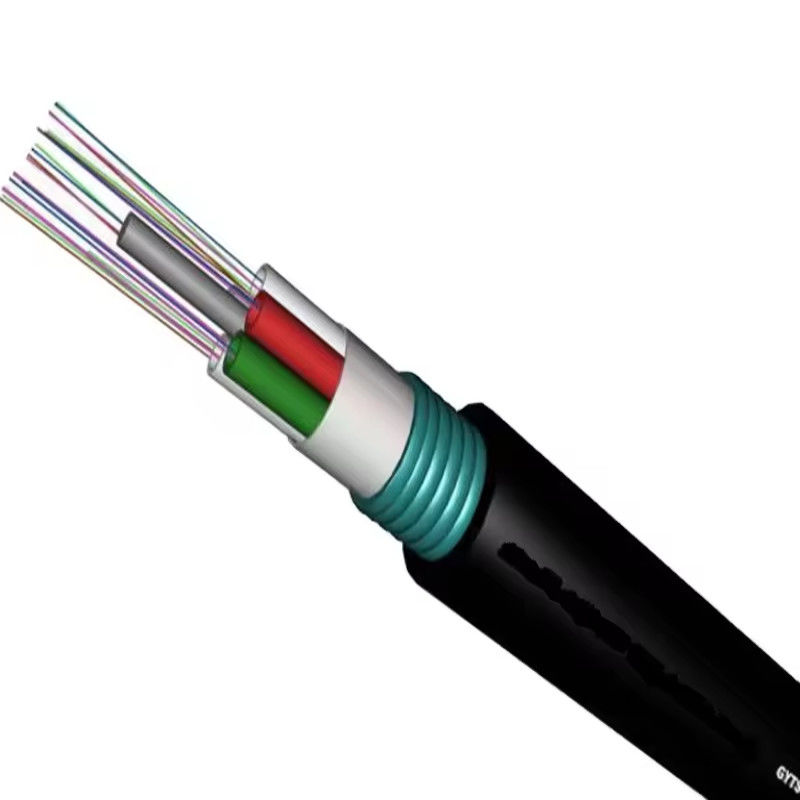

The structure of GYTS optical cable is to put the optical fiber into a loose tube made of high-grade water-blocking material, and the loose tube is filled with water-blocking compound material. In the center of the cable core is a metal reinforcing core. Loose tubes and filler ropes are intertwisted around a central reinforcing core to form a compact and round cable core. The gaps in the cable core are filled with water-blocking fillers. The double-sided corrugated steel strip (PSP) is longitudinally wrapped and then extruded with a polyethylene sheath to form a cable.

Characteristics:

• Has good mechanical properties and temperature characteristics.

• The loose tube material itself has good hydrolysis resistance and high strength.

• The tube is filled with a special grease to protect the fiber.

• Specially designed tight cable structure to prevent casing retraction.

• Good pressure resistance and softness.

• Special jackets have excellent performance.

Application:

Direct burial preferred, other methods of installation are also available.
