Gyxtw Aerial Armored Fiber Optic Cable With Steel Wire Messenger

1km
MOQ
Gyxtw Aerial Armored Fiber Optic Cable With Steel Wire Messenger
Features Gallery Product Description Request A Quote
Features
Specifications
Jacket Material: PE
Outer Diameter: 8MM
Steel Wire: 1.0mm
Color: Black
Fiber Count: 2/4/6/8/12/24 Core
Structure: Unit Tube
Strength Member: Two Steel Wire
Installation: Aerial &Duct
Product Name: Outdoor Optic Fiber Cable
Fiber Type: YOFC Or As Request
Oem: Available
Highlight:

Armored Aerial Fiber Optic Cable

,

Gyxtw Aerial Armored Fiber Optic Cable
Basic Infomation
Place of Origin: Guangzhou China
Brand Name: JQ/OEM
Certification: ISO9001
Model Number: GYXTW
Payment & Shipping Terms
Packaging Details: 1/2/3/4/5 km in one wooden drum
Delivery Time: 3-5dyas
Payment Terms: L/C, T/T, Western Union
Supply Ability: 10000 Per day
Product Description

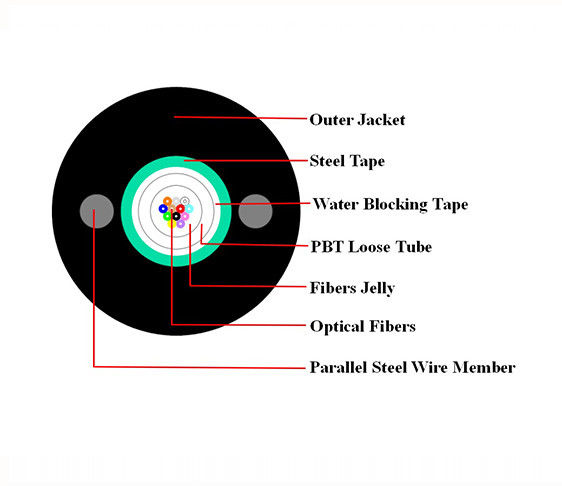

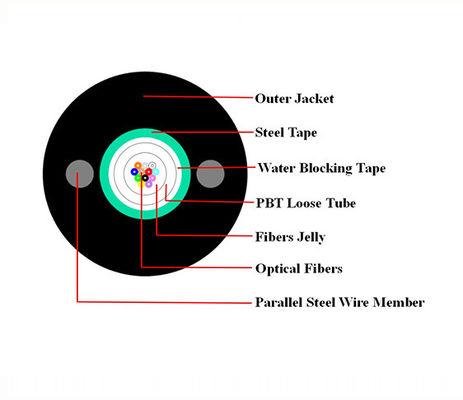

GYXTW AERIAL ARMORED FIBER OPTIC CABLE WITH STEEL WIRE MESSENGER





Product Description



Fiber:
2-24 fibers
Uni-loose tube gel-filled

Armor:
Corrugated steel tape

Strength Member:
Embedded steel wire

OuterJacket:
Black UV-and moisture-resistant polyethylene (PE).

Gyxtw Aerial Armored Fiber Optic Cable With Steel Wire Messenger

Gyxtw Aerial Armored Fiber Optic Cable With Steel Wire Messenger



Performance of Cabled Optical Fiber
The performance of cabled optical fiber (ITU-T Rec. G.652D)

Item
Specification
Fiber type
Single mode
Fiber material
Doped silica
Attenuation coefficient
@ 1310 nm
@ 1383 nm
@ 1550 nm
@ 1625 nm

≤ 0.36 dB/km
≤0.35 dB/km
≤0.22 dB/km
≤0.25 dB/km
Point discontinuity
≤ 0.05 dB
Cable cut-off wavelength
≤ 1260 nm
Zero-dispersion wavelength
1300 ~ 1324 nm
Zero-dispersion slope
≤0.092 ps/(nm².km)
Chromatic dispersion
@ 1288 ~ 1339 nm
@ 1271 ~ 1360 nm
@ 1550 nm
@ 1625 nm

≤3.5 ps/(nm. km)
≤5.3 ps/(nm. km)
≤18 ps/(nm. km)
≤22 ps/(nm. km)
PMD
≤0.2 ps/km½
Mode field diameter @ 1310 nm
(8.6~9.5)±0.6 um
Core / Clad concentricity error
≤0.6 um
Cladding diameter
125.0 ± 1 um
Cladding non-circularity
≤1.0%
Primary coating diameter
245 ± 10 um
Proof test level
100 kpsi (=0.69 Gpa), 1%
Temperature dependence
0℃~ +70℃ @ 1310 & 1550nm
≤ 0.1 dB/km



Cable structure and parameter
Fiber
count
Tube
diameter
Steel wire
diameter
Sheath thickness
(nominal*)
Overall diameter
(nominal**)
Weight
(approx.)
mm
mm
mm
mm
kg/km
6
2.0
1.0
1.7
8.0
70
12
2.0
1.0
1.7
8.0
75
* The nominal sheath thickness may have a tolerance with 0.2mm.
* * The nominal overall diameter may have a tolerance with 0.2mm.







Cable Parameters

Items Specifications
Fiber Count 2~24
Colored Coating Fiber Dimension 250μm+15μm
Color Blue,Orange,Green,Brown,Gray,White
Loose Tube Dimension 2.0mm±0.05mm
Material PBT
Color Natural
Strength Member Diameter 1.0mm
Material Steel
Outer Jacket Dimension 8.0mm±0.1mm
Material PE
Color Black

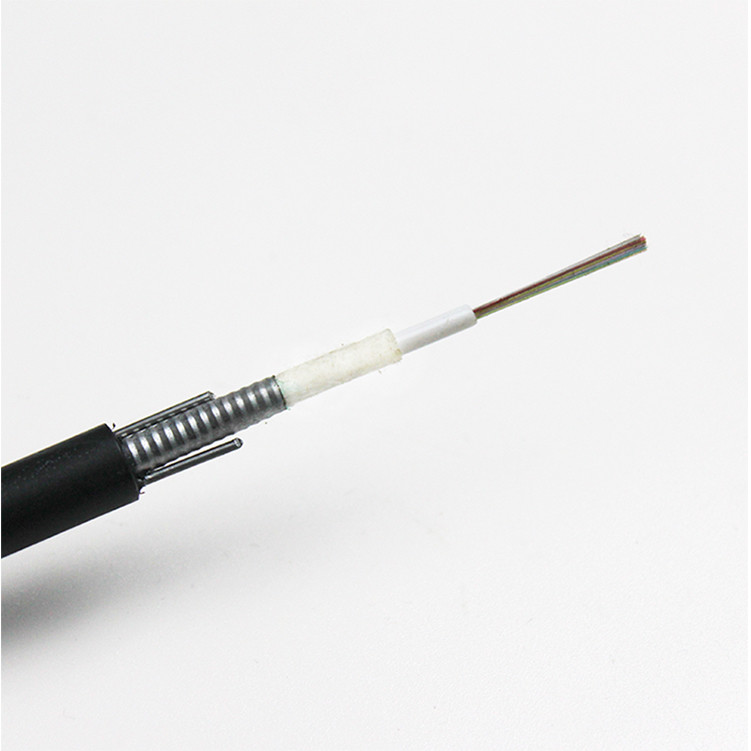

Product Image

Gyxtw Aerial Armored Fiber Optic Cable With Steel Wire Messenger



Application

Suitable for Duct / Aerial

Storage / Operating Temperature: -40℃~+70℃





Leading Time :


Quantity(km)
Samples
1-100km
100-1000km
Earliest time
1days
3-5 work days
5-7 work days

Packing&Delivery

1/2/3/4/5 km in one wooden drum

To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.1-5km/roll. Packed by wooden drum. Other packing available according to client's Request.



Gyxtw Aerial Armored Fiber Optic Cable With Steel Wire Messenger



Gyxtw Aerial Armored Fiber Optic Cable With Steel Wire Messenger
