SM MM Armoured G652D 24 48 96Core Fiber Optic Cable GYTS

Minimum Order Quantity :	1000m	Packaging Details :	wooden drum
Delivery Time :	Usually 5-7 days	Payment Terms :	Western Union, MoneyGram, T/T, L/C
Supply Ability :	1000km per month

Place of Origin:	CHINA	Brand Name:	Jiqian
Certification:	ISO9001/CE/ROHS/FCC	Model Number:	GYTS

Detail Information
Fiber Type:	SM G652D	Application:	Aerial/duct
Number Of Conductors:	4-288 Core	Structure:	Stranded Loose Tube
Operating Temperature:	-40 ~ +60 C	Factory:	Yes
OEM:	Available	Armoured Type:	Yes
Highlight:	SM MM Armoured Fiber Optic Cable , G652D Fiber Optic Cable , 96Core Fiber Optic Cable

Product Description

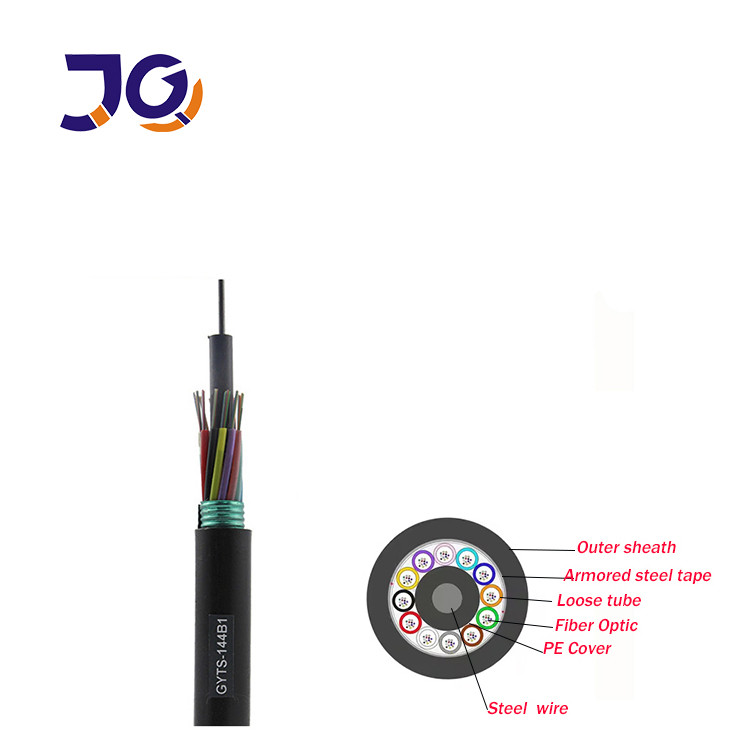

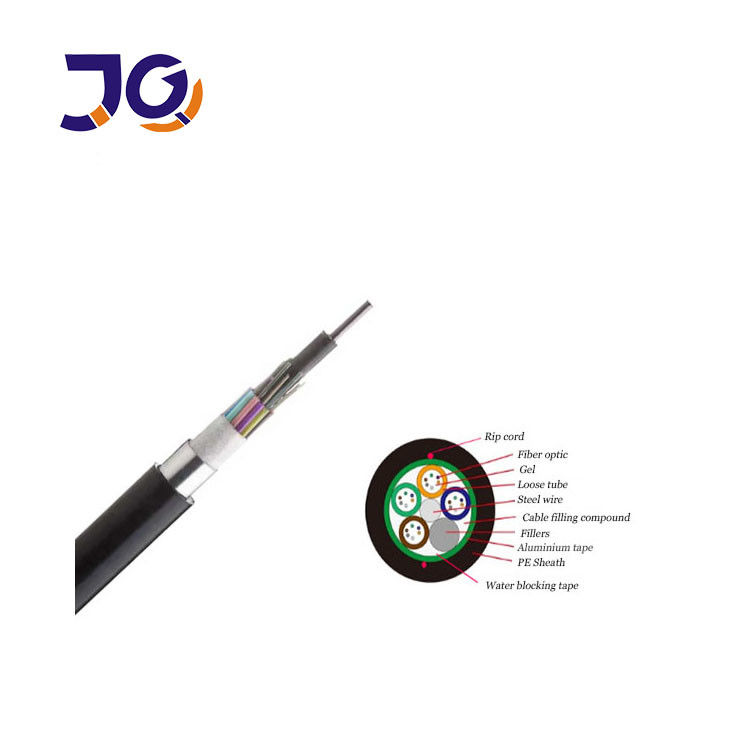

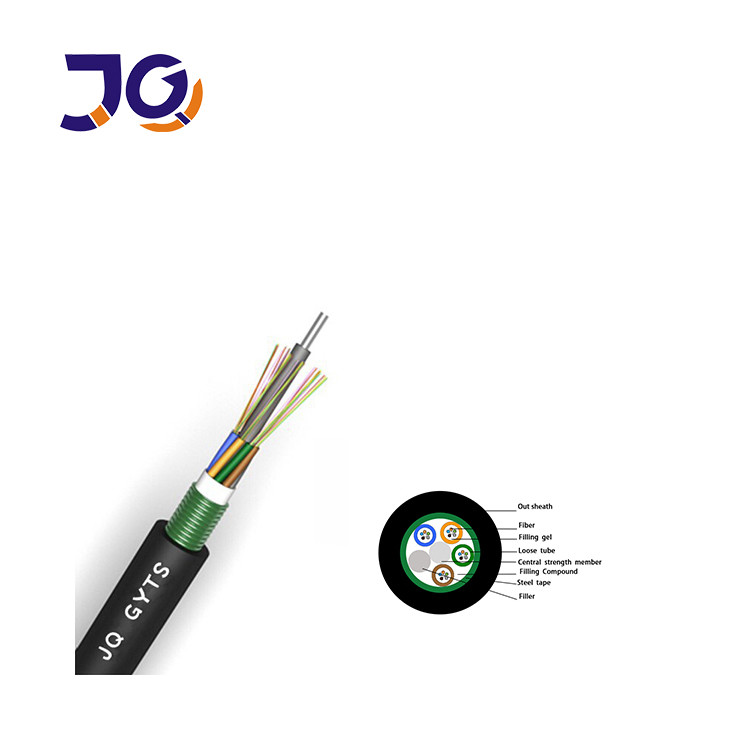

The structure of GYTS optical cable is to put 9/125μm single-mode optical fiber or 50/125μm, 62.5/125μm multi-mode optical fiber (silicon dioxide) into a loose tube made of high-grade water-blocking material, and the loose tube is filled with water-blocking compound material. The center of the cable core is a metal reinforcing core. For multi-core optical cables, the reinforcing core needs to be covered with a layer of PE jacket. The loose tube and the filling rope are twisted around the central reinforcing core to form a compact and round cable core. The gaps in the cable core are filled with water-blocking fillers. The double-sided corrugated steel belt (PSP) is longitudinally wrapped and then extruded into a polyethylene sheath to form a cable.

SM MM Armoured G652D 24 48 96Core Fiber Optic Cable GYTS 0

Optical cable characteristics

The loose tube material itself has good hydrolysis resistance and high strength
◆ The tube is filled with special grease, which provides critical sealing protection for the optical fiber
◆ The PE sheath has good resistance to ultraviolet radiation
◆ The single steel wire center reinforcement core helps the parallelism and stretching of the optical cable
◆ It is resistant to stretching, abrasion, impact, flattening, repeated bending, twisting, bending, winding (bending angle does not exceed 90°), shooting, etc., and has good mechanical properties and temperature characteristics
◆ The double-sided corrugated steel belt (PSP) improves the moisture resistance of the optical cable. At the same time, the corrugated part can be better combined with PE to make the structure more solid.
◆ GYTS single-mode optical cable has fast transmission speed, long distance, good confidentiality, anti-electromagnetic field interference, good insulation, good chemical stability, long life, low loss, and has good characteristics and economic benefits.
◆ Suitable for long-distance communication and inter-office communication
◆ Laying method: overhead pipeline tunnel
◆ Applicable temperature range: -40℃—+60℃

G652D Fiber Optic:

Item		Unit	Specification
Fiber Type			G.652D
Mode field diameter	1310nm	mm	9.2±0.4
Mode field diameter	1550nm	mm	10.4±0.8
Cladding diameter		mm	125.0±1
Cladding non-circularity		%	≤1.0
Core/cladding concentricity error		mm	≤0.5
Coating diameter		mm	245±5
Coating non-Circularity		%	≤6.0
Coating/cladding concentricity error		mm	≤12.0
Cable cut-off wavelength		nm	≤1260
Attenuation Coefficient	1310nm	dB/km	≤0.35
Attenuation Coefficient	1550nm	dB/km	≤0.21
Proof stress level		kpsi	≥100

COMPANY PROFILE:

1.Located in Guangzhou China
2.12 years experiance of producing fiber optic cable
3.CE/ROSH/FCC/ISO9001 Certifications
4.Exporting fiber optic cable to all over the world

Exhibition:

FAQ:

Q1.What is your terms of packing?
A: Generally, we pack our goods in drum with pallet for export.2KM/3KM/4KM/5KM of one drum or as per your requirements

Q2. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages
before you pay the balance.

Q3. What is your terms of Trade?
A: EXW, FOB, CFR, CIF

Q4. How about your delivery time?
A: Generally, it will take 5 to 7days after receiving your initial. The specific delivery time depends
on the items and the quantity of your order.

Q5. Can you provide OEM or ODM
A: Yes

Q6. What is your sample policy?
A: We provide FREE sample if we have them in stock

Q7. Do you test all your goods before delivery?
A: Yes, all of cables have to be tested before delivery

Q8: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
