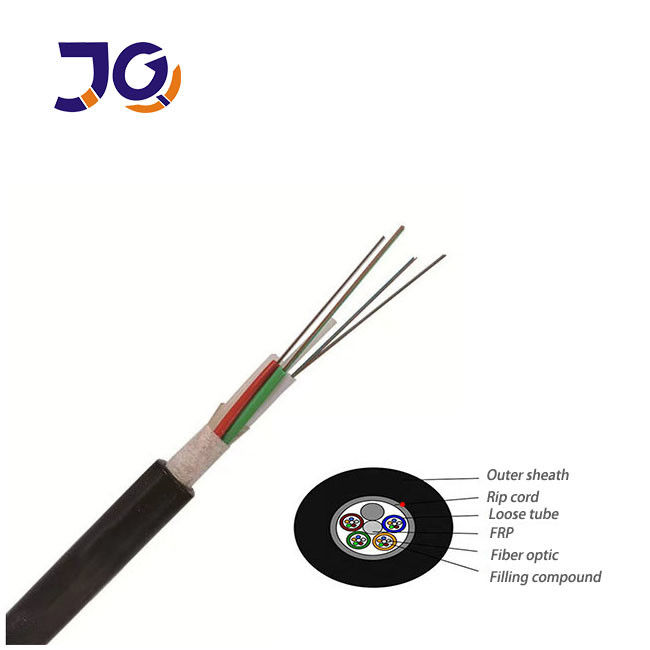

FRP Strength Duct / Aerial Outdoor Fiber Optic Cable For Networking

1km
MOQ
FRP Strength Duct / Aerial Outdoor Fiber Optic Cable For Networking
Features Gallery Product Description Request A Quote
Features
Specifications
Place Of Origin: Zhejiang, China
Brand Name: Jiqian
Number Of Conductors: ≥ 10
Strength Member: FRP
Laying Mode: Duct/Aerial
Storage/operating Temperature:: -40 To +70 °C
Application: Networking
OEM: Yes
Highlight:

Duct Outdoor Fiber Optic Cable

,

FRP Strength Outdoor Fiber Optic Cable

,

Outdoor Fiber Optic Cable For Networking

Basic Infomation
Place of Origin: China
Brand Name: Jiqian
Certification: ISO 9001
Model Number: GYFTY
Payment & Shipping Terms
Packaging Details: Wooden drum
Delivery Time: Normally 3-5 days,it depends on order quantity
Payment Terms: L/C, T/T, Western Union,Alipay
Supply Ability: 4500km per month
Product Description

Manufacturing Non-metallic GYFTY single mode G652D fiber optic cable

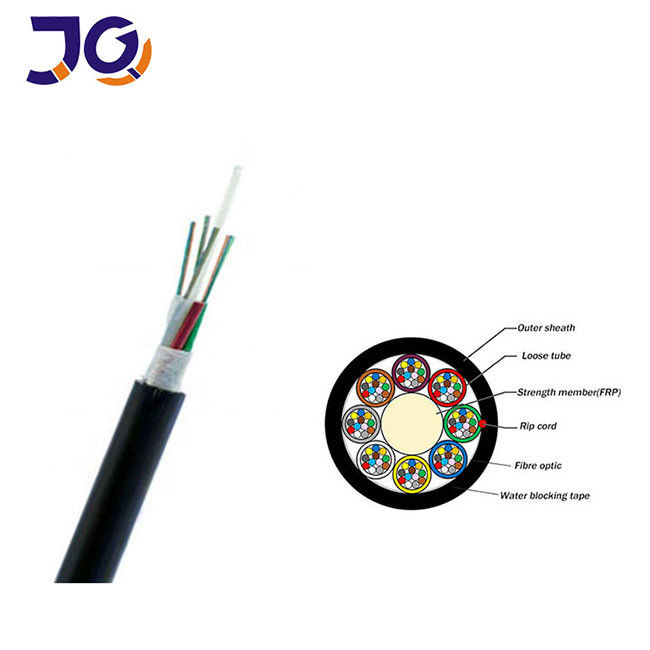

The fibers, 250μm, are positioned in a loose tube which is made of a high modulus plastic. All the tubes are filled with a water- resistent filling compound. We use the FRP(fiber reinforced plastic) as the strength member. The optical cable have a very good mechanical and temperature performance. You don't need to worry about the crush resistance and flexibility during the storage and operating.

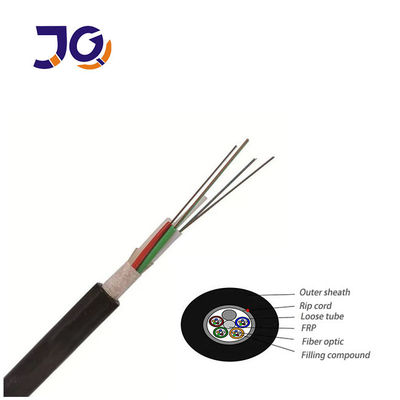

FRP Strength Duct / Aerial Outdoor Fiber Optic Cable For Networking 0

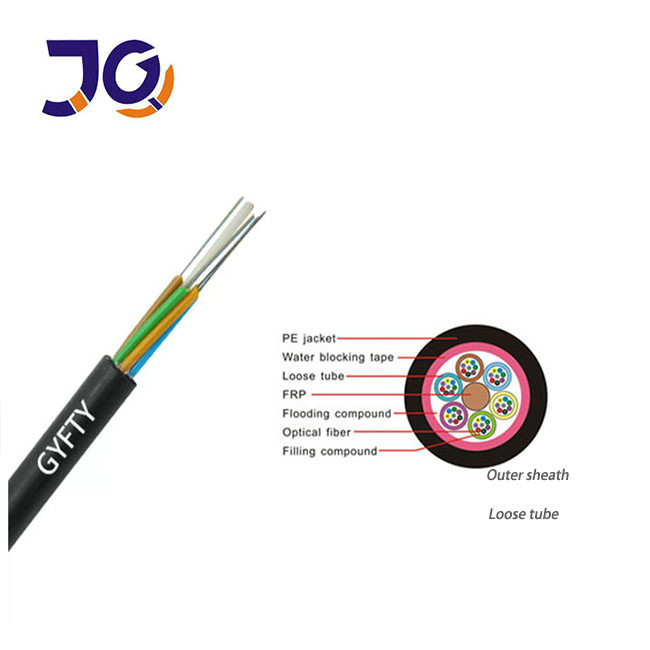

FRP Strength Duct / Aerial Outdoor Fiber Optic Cable For Networking 1

Fiber Properties

The properties of single mode optical fiber (ITU-T Rec. G.652D)

Item Specification
Fiber type Single mode
Fiber material Doped silica
Attenuation coefficient
@ 1310 nm
@ 1383 nm
@ 1550 nm
@ 1625 nm

≤ 0.36 dB/km
≤0.32 dB/km
≤0.22 dB/km
≤0.30 dB/km
Point discontinuity ≤ 0.05 dB
Cable cut-off wavelength ≤ 1260 nm
Zero-dispersion wavelength 1300 ~ 1324 nm
Zero-dispersion slope ≤0.093 ps/(nm².km)
Chromatic dispersion
@ 1288 ~ 1339 nm
@ 1271 ~ 1360 nm
@ 1550 nm
@ 1625 nm

≤3.5 ps/(nm. km)
≤5.3 ps/(nm. km)
≤18 ps/(nm. km)
≤22 ps/(nm. km)
PMD ≤0.2 ps/km½
Mode field diameter @ 1310 nm 9.2±0.4 um
Core / Clad concentricity error ≤0.5 um
Cladding diameter 125.0 ± 0.7 um
Cladding non-circularity ≤1.0%
Primary coating diameter 245 ± 10 um
Proof test level 100 kpsi (=0.69 Gpa), 1%
Temperature dependence
0℃~ +70℃ @ 1310 & 1550nm
≤ 0.1 dB/km



1,Q:Are you a factory or trade company?
A:We are a factory


2,Q:What is the MOQ?

A:The MOQ of Fiber Optic cable is 1km.



3.Q:Which brand of fiber do you use?

A:YOFC,Fiberhome,etc



4,Q:Can you accept small order?
A:Yes, small order is available .We support new project of our customers as we know business is always from small order.


5,Q:What’s delivery time?
A:The general delivery time is 5-7 days after order confirmed. It depends on the order quantity.



6.Can you supply customized products and logo?

A:Yes. We supply OEM service.



7.What’s your payment terms?

A: We accept T/T,L/C,Western Union, 30% Deposit and 70% before shipment.
