Home ProductsOutdoor Fiber Optic CableGYXTW Fiber Optic Cable Single Mode Armored HDPE Sheath Aerial Duct Optical Cable
GYXTW Fiber Optic Cable Single Mode Armored HDPE Sheath Aerial Duct Optical Cable
GYXTW Fiber Optic Cable Single Mode Armored HDPE Sheath Aerial Duct Optical Cable
GYXTW Fiber Optic Cable Single Mode Armored HDPE Sheath Aerial Duct Optical Cable GYXTW Fiber Optic Cable Single Mode Armored HDPE Sheath Aerial Duct Optical Cable GYXTW Fiber Optic Cable Single Mode Armored HDPE Sheath Aerial Duct Optical Cable GYXTW Fiber Optic Cable Single Mode Armored HDPE Sheath Aerial Duct Optical Cable
Contact Now

GYXTW Fiber Optic Cable Single Mode Armored HDPE Sheath Aerial Duct Optical Cable

Minimum Order Quantity : 1KM Price : 60-200USD/KM
Packaging Details : wooden drum Delivery Time : 3-5 days, it depends on your quantity
Payment Terms : L/C, D/A, T/T, Western Union, MoneyGram Supply Ability : 60000KM/month
Place of Origin: Guangdong,China Brand Name: Jiqian/Customize
Certification: CE/ISO9001 Model Number: GYXTW

Detail Information
Fiber Count: 2-24Core Strength Member: Steel Strand
Warranty: 25 Years MOQ: 1KM
OEM: Yes Armored: Yes
Factory: Yes Construction: Stranded Loose Tube
No Of Core: 24 Pairs Connector Type: SC, LC, FC, ST, Or Customized
Outer Diameter: 10.5~18.8+_0.5mm Strengthen Core: FRP
Fiber Code: GYTA53 Temperature: -20 Degree ~+70 Degree
Cable Outer Dame: 8.9-10.2mm Sheath: HDPE/LSZH
Armour Material: Corrugated Aluminium Tape Armour: Double Steel Tape
Loose Tube Material: PBT Or Jelly Jacket: UV PE
Laying Mode: Duct/Aerial

Product Description

Product Description

OEM Outdoor Duct Aerial single mode/multi mode G652D Fibre Optical Cables GYXTW Armoured 2 4 6 8 12 24 core fiber optic cable

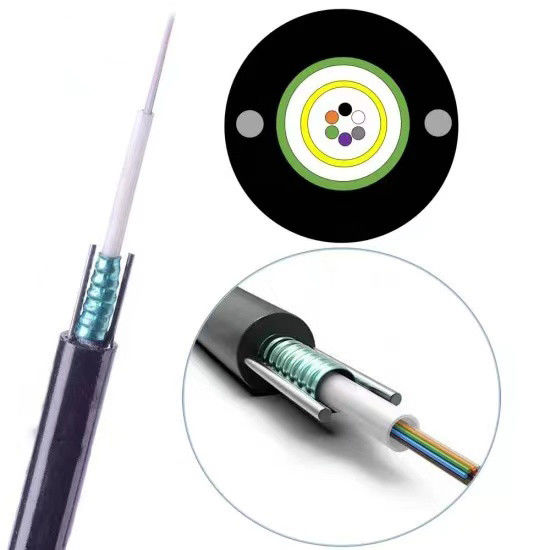

GYXTW optical cable, also known as the central bundle tube optical cable or light-armored optical cable, is a widely used outdoor cable model. Typically, GYXTW cables are designed with 2 to 12 cores, based on their fiber color structure. The abbreviation "GY" indicates an outdoor (field) optical cable, "X" represents the central bundle tube design, "T" signifies the filled structure, and "W" refers to the polyethylene outer sheath with steel wire reinforcement. GYXTW cables are versatile, suitable for overhead, buried, or piped installations, making them one of the most common types in the optical cable industry.
GYXTW Fiber Optic Cable Single Mode Armored HDPE Sheath Aerial Duct Optical Cable 0
Characteristics
  1. Steel-wire parallel member for added protection, with a filler tube safeguarding the fiber and steel components.
  2. Tape-armored design for enhanced durability.
  3. Outstanding mechanical and environmental performance.
  4. Compact and lightweight structure.
  5. Easy installation and simple operation.


Operating temperature range
* -40°C~+60°C

Application

  1. Designed for outdoor distribution.

  2. Ideal for aerial and pipeline installation methods.

  3. Suitable for long-distance and local area network communications.

GYXTW Fiber Optic Cable Single Mode Armored HDPE Sheath Aerial Duct Optical Cable 1

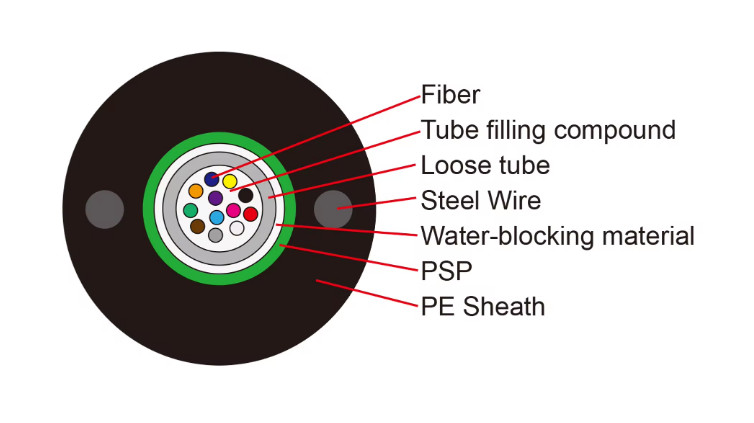

PRODUCT SPECIFICATIONS
Item
Parameters
Fiber Count
12
Colored coated fiber
Dimension
250µm±15µm
Color
Blue,Orange,Green,Brown,Gray,White,Red,Black,Yellow,Purple,Pink,Aqua
Loose tube
Dimension
2.2mm±0.1mm
Material
PBT
Color
nature
Filler
MATERIAL
none
color
none
Strength Member
Dimension
0.7mm±0.05mm
material
Phosphating steel wire
Armoured
Material
Plastic coated steel strip
Outer jacket
Material
PE
color
black
Related Products

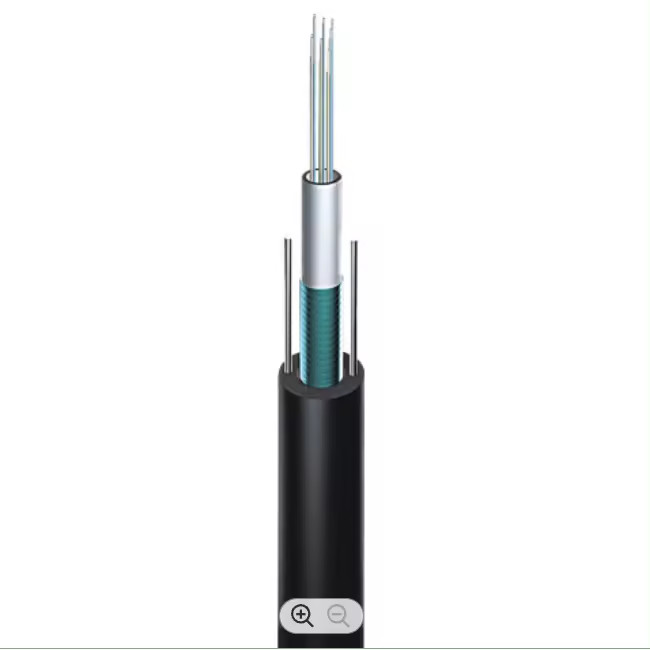

GYXTW Fiber Optic Cable Single Mode Armored HDPE Sheath Aerial Duct Optical Cable 2

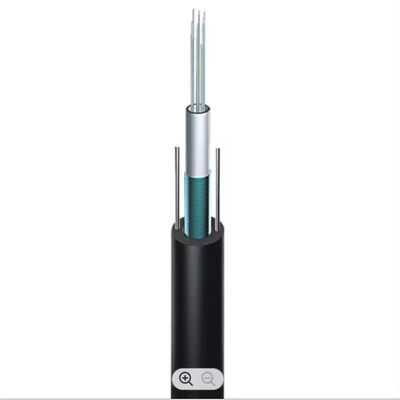

GYXTW Fiber Optic Cable Single Mode Armored HDPE Sheath Aerial Duct Optical Cable 3
Company Profile
Guangzhou Jiqian Fiber Optic Cable Co., Ltd. is a high-tech company specializing in the research, manufacturing, and sale of communication products, with import and export rights. With over 8 years of experience, we are a professional manufacturer of fiber optic cables and patch cords, holding an ISO 9001:2015 certification. We offer OEM services and can design custom fiber optic cables to meet your needs. Our main products include optical fiber cables and related components, which are widely used in telecommunications and exported to countries such as Egypt, Pakistan, the Maldives, India, Brazil, and Chile.
GYXTW Fiber Optic Cable Single Mode Armored HDPE Sheath Aerial Duct Optical Cable 4
FAQ

  1. Q: Are you a factory or a trading company?
    A: We are a factory.

  2. Q: What is the MOQ?
    A: The minimum order quantity (MOQ) for fiber optic cables is 1km.

  3. Q: Which fiber brands do you use?
    A: We use brands like Corning, YOFC, Fiberhome, and others.

  4. Q: Can you accept small orders?
    A: Yes, we accept small orders and support new projects for our customers, as we understand business often starts small.

  5. Q: What’s the delivery time?
    A: The usual delivery time is 5-7 days after order confirmation, depending on the order quantity.

  6. Q: Can you provide customized products and logos?
    A: Yes, we offer OEM services for customized products and logos.

  7. Q: What are your payment terms?
    A: We accept T/T, L/C, and Western Union, with 30% payment in advance and 70% before shipment.
