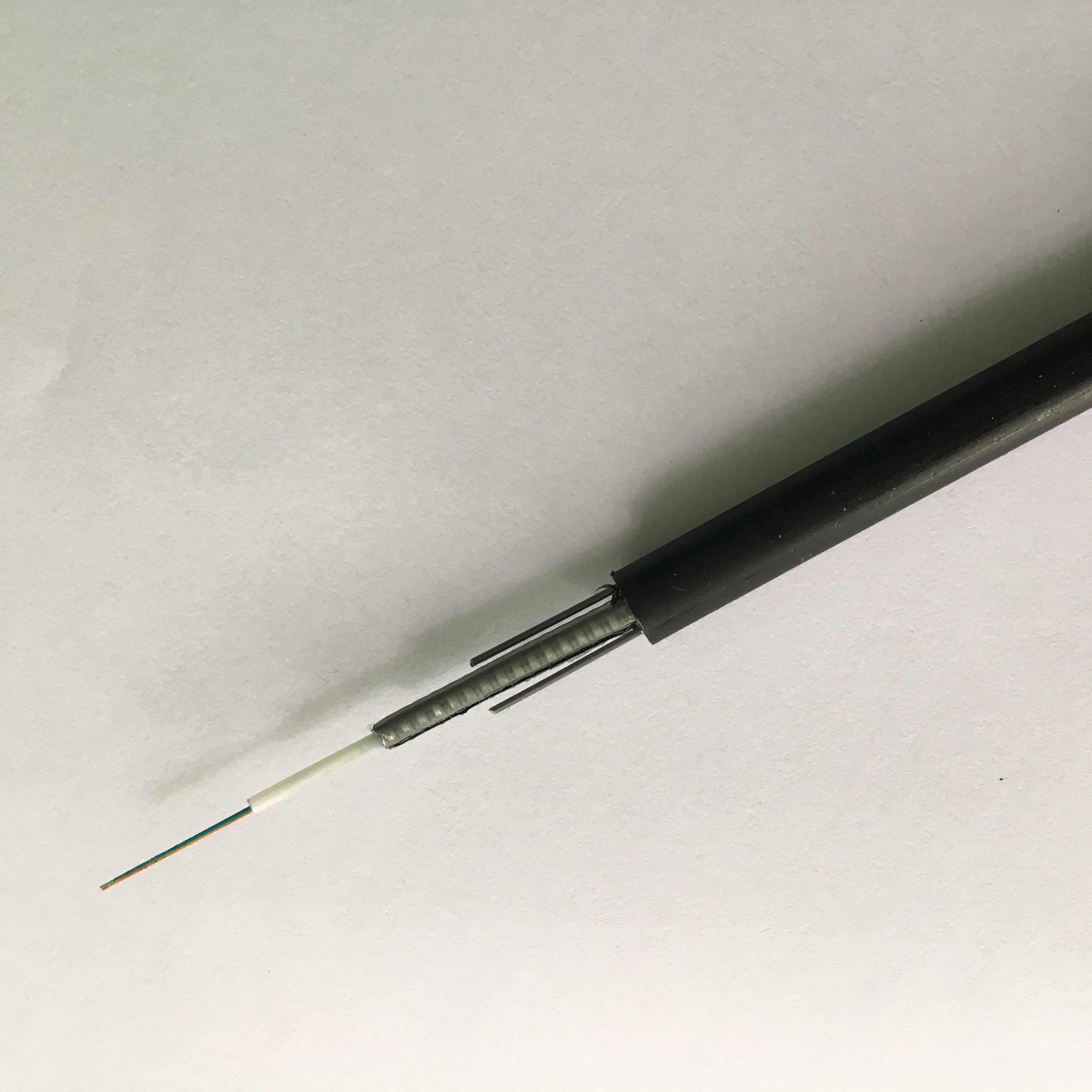

GYXTW Outdoor Aerial Fiber Optic Cable Duct Overhead 2 24 Core high Quality

Contact Now

GYXTW Outdoor Aerial Fiber Optic Cable Duct Overhead 2 24 Core high Quality

Minimum Order Quantity :	1KM	Price :	60-200USD/KM
Packaging Details :	wooden drum	Delivery Time :	3-5 days, it depends on your quantity
Payment Terms :	L/C, D/A, T/T, Western Union, MoneyGram	Supply Ability :	60000KM/month

Place of Origin:	Guangdong,China	Brand Name:	Jiqian
Certification:	CE/ISO9001	Model Number:	GYXTW

Detail Information
Fiber Count:	2-24Core	Strength Member:	Two Steel Wires Strand
Warranty:	30 Years	MOQ:	1KM
OEM:	Yes	Amoured:	Steel Armored
Length:	1/2/3/4/5KM	Network:	FTTH FTTX
Waterblocking Material:	Water Blocking Tape Or Filling Compound	Warranty Time:	15
Transport Package:	Wooden Reel	Type:	Fiber Optic Cable
Fiber Per Tube:	12/24F/48F/96F	Storage Temperature:	-40°C To +70°C
Armored:	Double Armored	Oem Factory:	Yes
Fiber Mode:	Single Mode	Armor:	Yes
Core:	8cores	Connection Structure:	Round Wire
Use:	FTTX	Tube:	Multi-Loose Tube

Product Description

OEM Outdoor Duct Aerial single mode/multi mode G652D Fibre Optical Cables GYXTW Armoured 2 4 6 8 12 24 core fiber optic cable

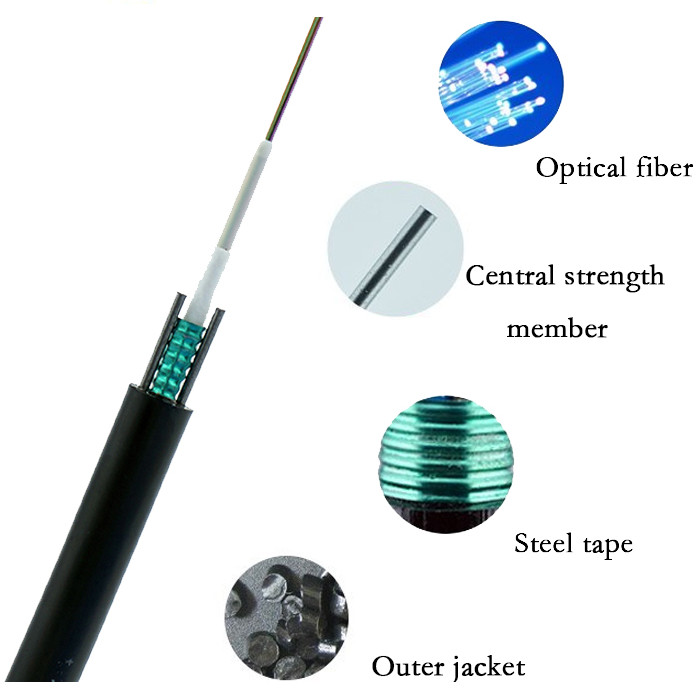

The GYXTW optical cable, also known as the central bundle tube optical cable or light armored optical cable, is a widely used model for outdoor applications. It typically has 2 to 12 cores, depending on the fiber color structure. The letters in GYXTW represent specific features: "GY" indicates it's an outdoor optical cable, "X" refers to the central bundle tube structure, "T" stands for a filled structure, and "W" means the polyethylene outer sheath is reinforced with steel wire. This cable type is versatile and can be used in overhead, buried, or piped installations, making it one of the most common optical cables in the market.

Characteristics:

Steel-wire parallel member and filler protect the fiber tube.
Armored with tape for added strength.
Excellent mechanical and environmental performance.
Compact design, lightweight.
Easy installation and simple operation.

Operating Temperature Range:

-40°C to +60°C

Applications:

Ideal for outdoor distribution.
Suitable for aerial or pipeline installations.
Used in long-distance and local area network communications.

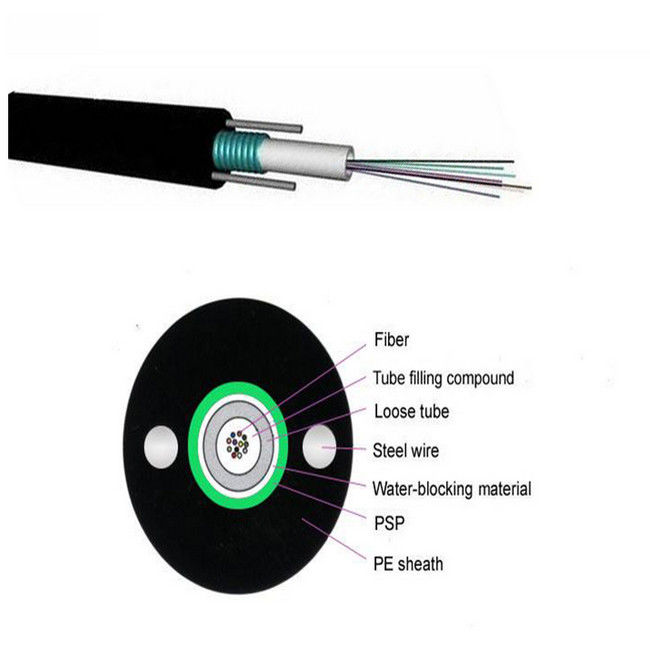

PRODUCT SPECIFICATIONS

Item		Parameters
Fiber Count		12
Colored coated fiber	Dimension	250µm±15µm
Colored coated fiber	Color	Blue,Orange,Green,Brown,Gray,White,Red,Black,Yellow,Purple,Pink,Aqua
Loose tube	Dimension	2.2mm±0.1mm
	Material	PBT
	Color	nature
Filler	MATERIAL	none
Filler	color	none
Strength Member	Dimension	0.7mm±0.05mm
Strength Member	material	Phosphating steel wire
Armoured	Material	Plastic coated steel strip
Outer jacket	Material	PE
Outer jacket	color	black

Related Products

Company Profile

Guangzhou Jiqian Fiber Optic Cable Co., Ltd. is a high-tech company specializing in the research, production, and sales of communication products, with import and export rights. With over 8 years of experience, the company is a professional manufacturer of fiber optic cables and patch cords, certified with ISO 9001:2015. OEM services are available, and we can design custom fiber optic cables to meet specific needs. Our main products include optical fiber cables and related components, widely used in telecommunications and exported to countries such as Egypt, Pakistan, Maldives, India, Brazil, and Chile.

FAQ

1,Q:Are you a factory or trade company?
A:We are a factory

2,Q:Where is the MOQ?
A:The MOQ of Fiber Optic cable is 1km.

3.Q:Which brand of fiber do you use?
A:Corning,YOFC,Fiberhome,etc

4,Q:Can you accept small order?
A:Yes, small order is available .We support new project of our customers as we know business is always from small order.

5,Q:What’s delivery time?
A:The general delivery time is 5-7 days after order confirmed. It depends on the order quantity.

6.Can you supply customized products and logo?
A:Yes. We supply OEM service.

7.What’s your payment terms?
A: We accept T/T,L/C,Western Union, 30% in advance and 70% before shipment.
