Name: GYTA33 Fiber Optic Cable 48 Core Subsea Submarine Subwater Communication Cable
Brand: Guangzhou Jiqian Fiber Optic Cable Co., Ltd.
SKU: GYTA33
Price: 1,249.28 USD
Availability: InStock

Features Gallery Product Description Request A Quote

Features

Specifications

Cable Type: GYTA33

Place Of Origin:: Guangzhou,China

Fiber Count: 2-288cores

Fiber Type: G652D Single Mode Or As Your Request

Fiber Brand: YOFC/Fiberhome/ Corning

Number Of Conductors: ≥ 10

Strength Member: Steel

Structure: Multi-Loose Tube Aluminum Tape Armor

Armoured: Steel Tape Armoured

Material Of Jacket: PE Or As Your Request

Cable Structure: Multi-Loose Tube Aluminum Tape Armor

Application: Submarine Underwater Undersea

Working Temperature: -40~+60℃

Capacity Of Produce: 10000m /day

Central Strength Member: FRP Or Steel Wire

Cable Crush Resistance: 1000N/100mm

Operating Temperature: -40~75

Armor Layer: Aluminum Tape

Use: Duct /aerial

Trial Order: Accepted

Strength Member: Steel Wire

Cable Jacket Material: PE

Model: Armored Fiber Optic Cable

Overall Diameter: 11.4mm~13.10mm

Outer Sheath: PE Or As Your Request

Fiber: Singlemode Or Mutimode

Highlight:

Submarine Fiber Optic Cable

48 Core Fiber Optic Cable

Subsea Fiber Optic Cable

Basic Infomation

Place of Origin: Guangdong,China

Brand Name: JQ/OEM/Customize

Certification: CE/ISO9001/FCC

Model Number: GYTA33

Payment & Shipping Terms

Packaging Details: Wooden Drum

Delivery Time: 3-5days

Payment Terms: L/C, D/A, D/P, T/T, Western Union

Supply Ability: 8000 kilometers per month

Gallery

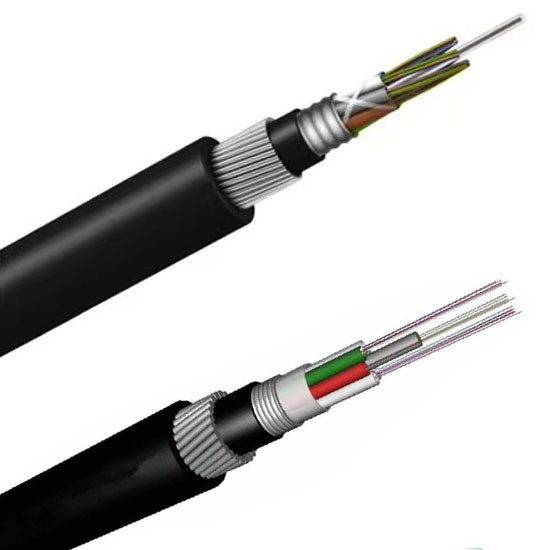

GYTA33 Fiber Optic Cable 48 Core Subsea Submarine Subwater Communication Cable

Product Description

GYTA33 fiber Optic Cable 48 60 core HDPE sheath steel wires strength member subsea submarine subwater Optical Fiber Cable Armored Communication cable

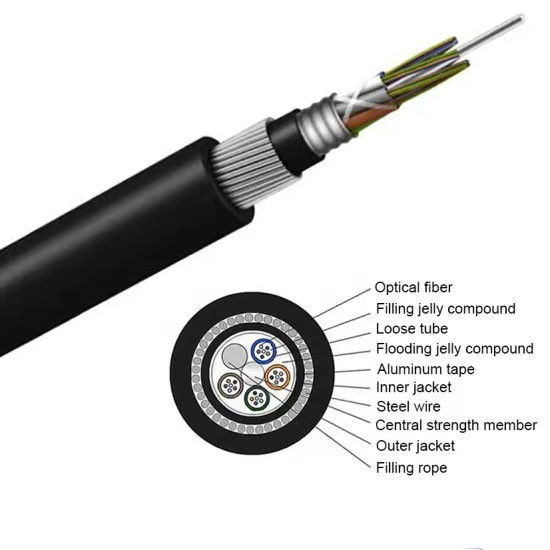

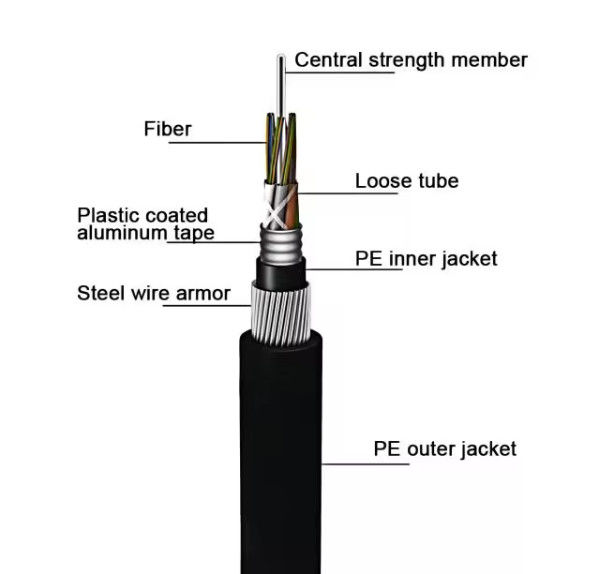

The GYTA33 optical cable consists of optical fibers housed in PBT loose tubes, which are filled with a thixotropic compound. The core is reinforced with a steel wire, and in cables with larger core counts, a PE cushion layer is added. The loose tubes are twisted around the central reinforcement using SZ stranding, and the gaps in the core are filled with water-blocking compounds. The outer sheath is armored with a single thin round steel wire and coated with a polyethylene layer.

The GYTA33 optic cables are especially applicable for the installation in the freshwater and shallow water area. It doesn’t need the junction, and can be used for the wiring under the water with shorter communication distance .

Outstanding mechanical and temperature performance.
Steel wire armoring enhances the cable's tensile strength.
AL tape provides a moisture barrier along the cable core.
Full cross-section water or saltwater blocking.
Outer sheath protects the cable from UV radiation.
Optional flame-retardant outer sheath.
Suitable for installation up to 250m underwater.

Product Specifications:

Package:

24 Core G652D GYTA33 Steel Armored Stranded Loose Tube Optical Fiber Cable
3km/Wooden Drum,Drum dimension 110*55*50cm,G.W 360.0kg.

FAQ:

Q1: Are you a manufacturer or trading company?
A1: We are a manufacturer.

Q2: Where is your factory, and how can I visit?
A2: Our factory is located in Shenzhen, Guangdong Province. You can fly into Shenzhen or Guangzhou International Airport. Let us know your flight number, and we’ll arrange a pick-up.

Q3: Can I purchase samples?
A3: Yes, we welcome sample orders to test our product quality and services.

Q4: What is your warranty?
A4: We offer a 12-month warranty on all products.

Q5: What payment methods do you accept?
A5: We accept LC, T/T, Western Union, MoneyGram, PayPal, etc.

Q6: Can you add my brand/logo to the products?
A6: Yes, we offer OEM services. For bulk orders, we can add your logo for free.
