GYTS Fiber Optic Cable 48 Core HDPE Jacket Armored Direct Burial Duct Optical Cable
GYTS Fiber Optic Cable 48 Core HDPE Jacket Armored Direct Burial Duct Optical Cable
GYTS Fiber Optic Cable 48 Core HDPE Jacket Armored Direct Burial Duct Optical Cable GYTS Fiber Optic Cable 48 Core HDPE Jacket Armored Direct Burial Duct Optical Cable GYTS Fiber Optic Cable 48 Core HDPE Jacket Armored Direct Burial Duct Optical Cable GYTS Fiber Optic Cable 48 Core HDPE Jacket Armored Direct Burial Duct Optical Cable
Contact Now

GYTS Fiber Optic Cable 48 Core HDPE Jacket Armored Direct Burial Duct Optical Cable

Minimum Order Quantity : 1 Kilometer Packaging Details : Wooden Drum
Delivery Time : 2-5days Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability : 8000 kilometers per month
Place of Origin: Guangdong，China Brand Name: JQ/OEM/Customize
Certification: CE/ISO9001/RoHS Model Number: GYTS

Detail Information
Model Number: GYTS Type: Outdoor Fiber Optic Cable
Place Of Origin: Guangdong, China Number Of Conductors: ≥ 10
Fiber Type: G652D Single Mode Or As Your Request Length: As Required
Color: Customized Cable Structure: Multi-Loose Tube Steel Tape Armor
Central Strength Member: Steel Wire Armoured: Steel Tape
Package: Wooden Drum/Customized Oem: Available
Application: Aerial, In Duct Certification: CE RoHS ISO:9001
Strengthen Core: FRP Fiber Port: LC
Sheath Material: PE Or LSZH Outer Sheath: PE Or As Your Request
Warranty Time: 30Years Packing: Wooden Drum
Jacket Material: PE Spam: 100/200/300/400/500m
Innerjacket: PE Uv Resistance: Yes
Laying Method: Aerial And Pipeline Laying Method Armored: Double Armored
Construction: Stranded Loose Tube Overall Diameter: 11.4mm~13.10mm
Factory: Yes

Product Description

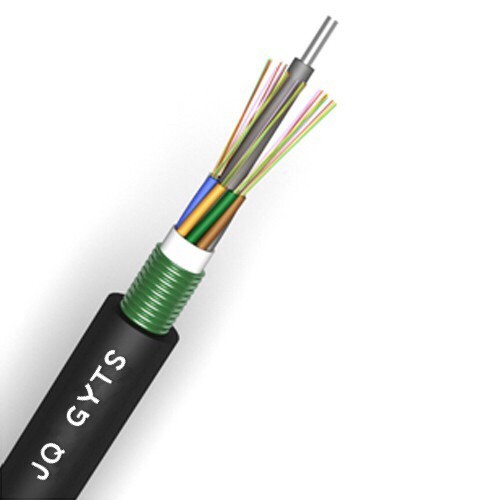

GYTS FIBER OPTIC CABLE
MODEL: GYTS-24B1
Fiber: SM G652D
Armoured: PSP Steel Tape
Jacket Diameter: 10.50mm
Jacket Material: HDPE
Cable Length: 3Km/Drum

Simple Specification:
Insertion Loss: ≤0.30dB
Return Loss: ≥50dB
Durability: ≤0.20dB
Test Wavelength: 1310/1550nm
Operation Temperature

GYTS Fiber Optic Cable 48 Core HDPE Jacket Armored Direct Burial Duct Optical Cable 0

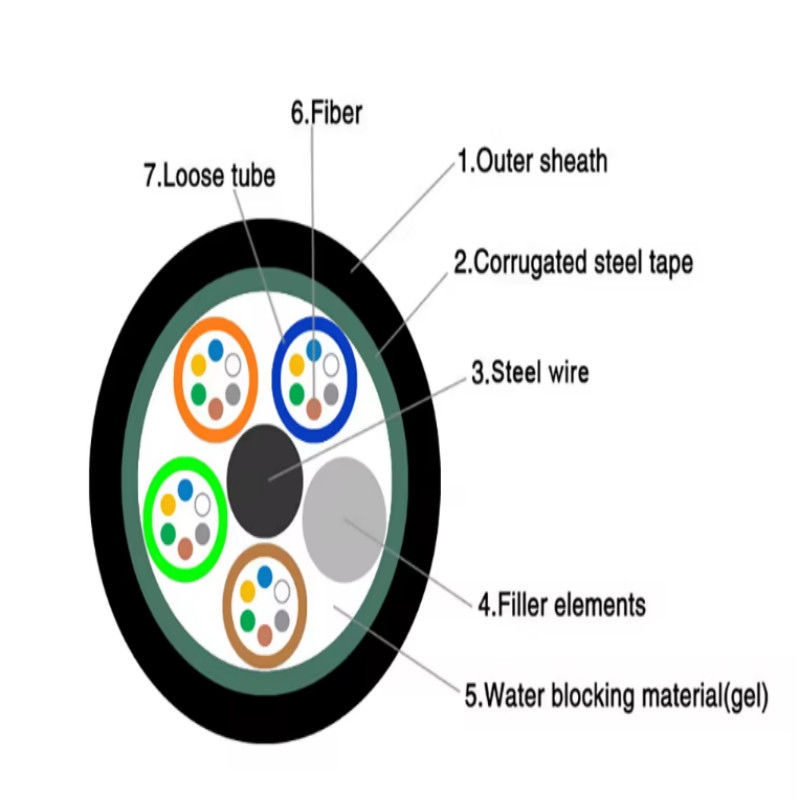

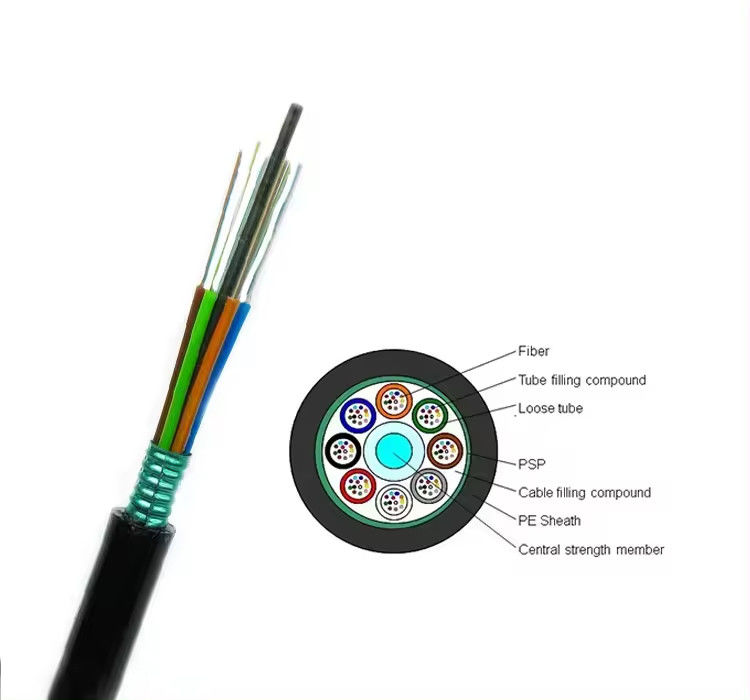

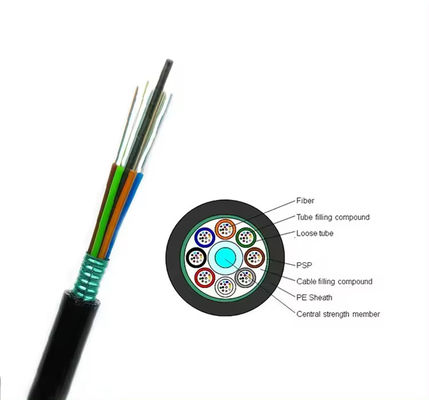

The GYTS Fiber Optical Cable consists of optical fibers placed in a central loose tube, with fillers stranded around a metallic central strength member. The cable is then twisted using an SZ pattern into a compact form. A longitudinally applied PSP (Polyester Strength Member) coating provides protection, and the entire cable is finished with a PE sheath. The loose tube’s core is filled with a water-resistant filling compound to prevent moisture damage.

GYTS Fiber Optic Cable 48 Core HDPE Jacket Armored Direct Burial Duct Optical Cable 1

Characteristics:

Here's a more concise version of your text:

  • The cable offers strong mechanical properties and temperature resistance.

  • The loose tube material has excellent hydrolysis resistance and high strength.

  • Special grease fills the tube, protecting the fibers.

  • The cable features a unique design to prevent sheath retraction.

  • It has good pressure resistance and flexibility.

  • The jacket is designed for superior performance.

  • Waterproofing measures include:

    • A central reinforcement core.

    • A special waterproof compound in the loose tube.

    • Full core filling.

    • Double-sided coated steel strip (PSP) for enhanced moisture resistance.

Application:

GYTS Fiber Optic Cable 48 Core HDPE Jacket Armored Direct Burial Duct Optical Cable 2

Specification:

item value
Model Number GYTS
Type Outdoor Fiber Optic Cable
Place of Origin Guangdong,China
Brand Name jiqian
Number of Conductors ≥ 10
Fiber count 2-288 Cores
Fiber Type G652D Single mode or as your request
Central strength member steel wire
Loose tube Jelly filled
Loose Tube Material PBT
Armoured Steel tape
Outer Sheath PE
Cable Structure Multi-Loose Tube Steel Tape armor
Color Black or as your need
Package Plywood Reel/customized
Installation aerial, in duct
operating temperature -40 to +70
Certification CE/ROHS/ISO9001 /ANATEL
Structure and Technical Specifications:
Fiber Nominal Nominal Max Fiber Max No. Allowable Tensile Allowable Crush
Count Diameter Weight Per Tube of(Tubes+ Load(N) Resistance(N/100mm)
  (mm) (kg/km)   fillers) Short Term Long Term Short Term Long Term
2~36 10.3 109 6 6 1500 600 1000 300
38~72 11.5 145 12 6 1500 600 1000 300
74~96 13.5 175 12 8 1500 600 1000 300
98~120 14.8 209 12 10 1700 600 1000 300
122~144 16.6 249 12 12 2000 600 1000 300
146~216 16.7 254 12 18(2 layers) 2000 600 1000 300
218~288 19 325 12 24(2 layers) 2500 600 1000 300

Company Profile:

Guangzhou Jiqian Fiber Optic Cable Co., Ltd. is located at 2nd Floor, Building B3, No. 43 Lixin 9th Road, Xintang Town, Zengcheng District, Guangzhou, Guangdong, China. It is a large, high-tech joint-stock enterprise specializing in the research, development, production, and sale of optical cables ranging from 2 to 288 cores. The company is committed to the values of integrity, speed, flexibility, efficiency, and innovation, always striving for excellence and customer satisfaction. We promise to provide high-quality products, competitive prices, and first-class service to help you succeed. We warmly welcome customers worldwide to visit our factory and establish long-term partnerships.

GYTS Fiber Optic Cable 48 Core HDPE Jacket Armored Direct Burial Duct Optical Cable 3GYTS Fiber Optic Cable 48 Core HDPE Jacket Armored Direct Burial Duct Optical Cable 4

WHY CHOOSE US:

1.24hours one-to-one online services ensure efficient support.

2.Considerate customer reception from hotel booking to factory visiting.

3.Excellent care from order confirmation to product shipment.

GYTS Fiber Optic Cable 48 Core HDPE Jacket Armored Direct Burial Duct Optical Cable 5

Certification:

GYTS Fiber Optic Cable 48 Core HDPE Jacket Armored Direct Burial Duct Optical Cable 6

FAQ:

  • Who are we?
    Based in Guangdong, China, we’ve been operating since 2017. We sell to various regions, including Africa (33%), South America (17%), Western Europe (17%), the Middle East (17%), Southeast Asia (9%), and South Asia (7%). Our team consists of 11-50 employees.

  • How do we ensure quality?

    • Pre-production samples are provided before mass production.

    • Final inspections are carried out before shipment.

  • What products do we offer?

    • Fiber Optic Cable

    • FTTH Drop Cable

    • Communication Cables

    • Outdoor/Indoor Fiber Cable

  • What services do we provide?

    • Delivery Terms: FOB, EXW

    • Payment Methods: T/T, L/C, D/P, D/A, Credit Card, PayPal, Western Union, Cash

    • Payment Currency: USD, CNY

    • Languages Spoken: English, Chinese

  • What is your minimum order quantity (MOQ)?

    • MOQ: 1KM

  • Can I get a sample?

    • Yes, we offer free samples; you only need to cover the express shipping costs.

  • Do you accept OEM or ODM?

    • Yes, we accept OEM/ODM. Our engineering department is ready to meet your specific requirements.

  • What is your delivery time?

    • Delivery time is typically 3-7 days after order confirmation, depending on the order quantity.

We Support OEM and Customize products.
Welcome to your inquiry! Welcome to visit our facotry!
