GYFTY Non Metal Glass Yarn Anti Rodent Duct Fiber Optic Cable 48 96 Core

1km
MOQ
GYFTY Non Metal Glass Yarn Anti Rodent Duct Fiber Optic Cable 48 96 Core
Features Gallery Product Description Request A Quote
Features
Specifications
Fiber Count: 2-288 Cores
Fiber Type: Single Mode/multi Mode
Jacket: PE
Color: Black
Product Name: Outdoor Fiber Optic Cable
Model Number: GYFTY
Length: 2km Or Customized Length
Structure: Loose Tube
Installation: Aerial & Duct
Number Of Conductors: ≥ 10
Maximum Span: 1500m
Core: 2~24 Core
Span: 100m
Cores: As Per Buyer's Request
Fiber Color: Blue,Orange,Brown,Aqua,Grey,Customized
Samples: Free
Temperature Range: -40°~60°C
Armor Layer: Steel Tape/Aluiminum Tape
Fiber: G652D
Construction: Central Loose Tube
Jacket Material: PE Outer Sheath
Waterproof: Yes
Central Strengthen Member: FRP
Modulus Of Elast: 95.6-162.0 Gpa
Bending Radius: 10-20D
Highlight:

Anti Rodent Duct Fiber Optic Cable

,

Duct Fiber Optic Cable 96 Core
Basic Infomation
Place of Origin: Guangzhou,China
Brand Name: JQ/OEM/Customize
Certification: ISO9001 ROHS CE-EMC FCC SDOC
Model Number: GYFTY-48B1
Payment & Shipping Terms
Packaging Details: wooden drum
Delivery Time: 5-8 work days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 30km per day
Product Description

48 Core Outdoor Fiber Optic Cable – Stranded Loose Tube, Non-Metallic (GYFTY/GYTY Type)

Product Overview

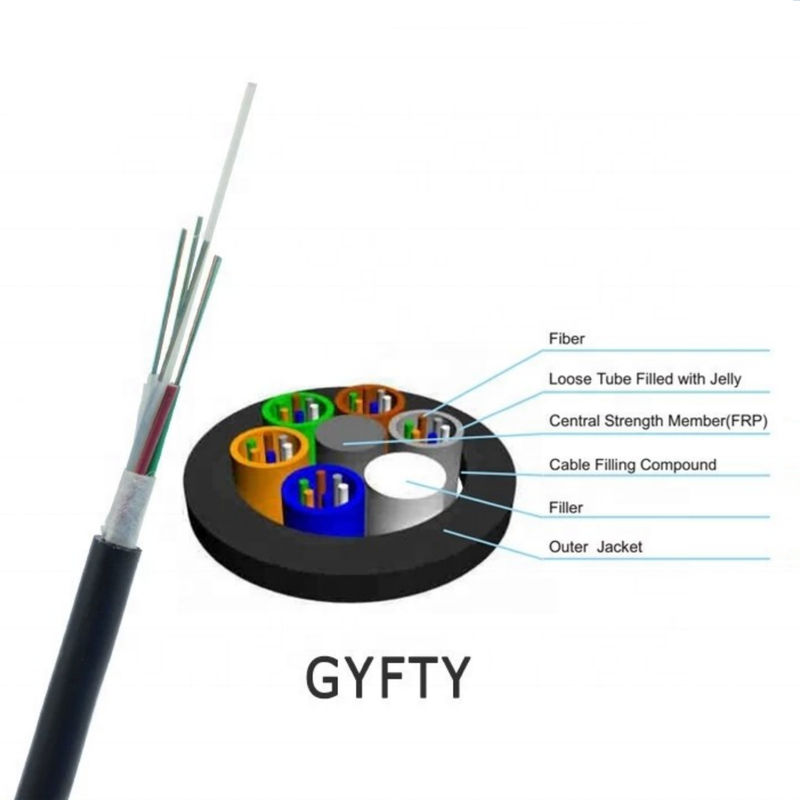

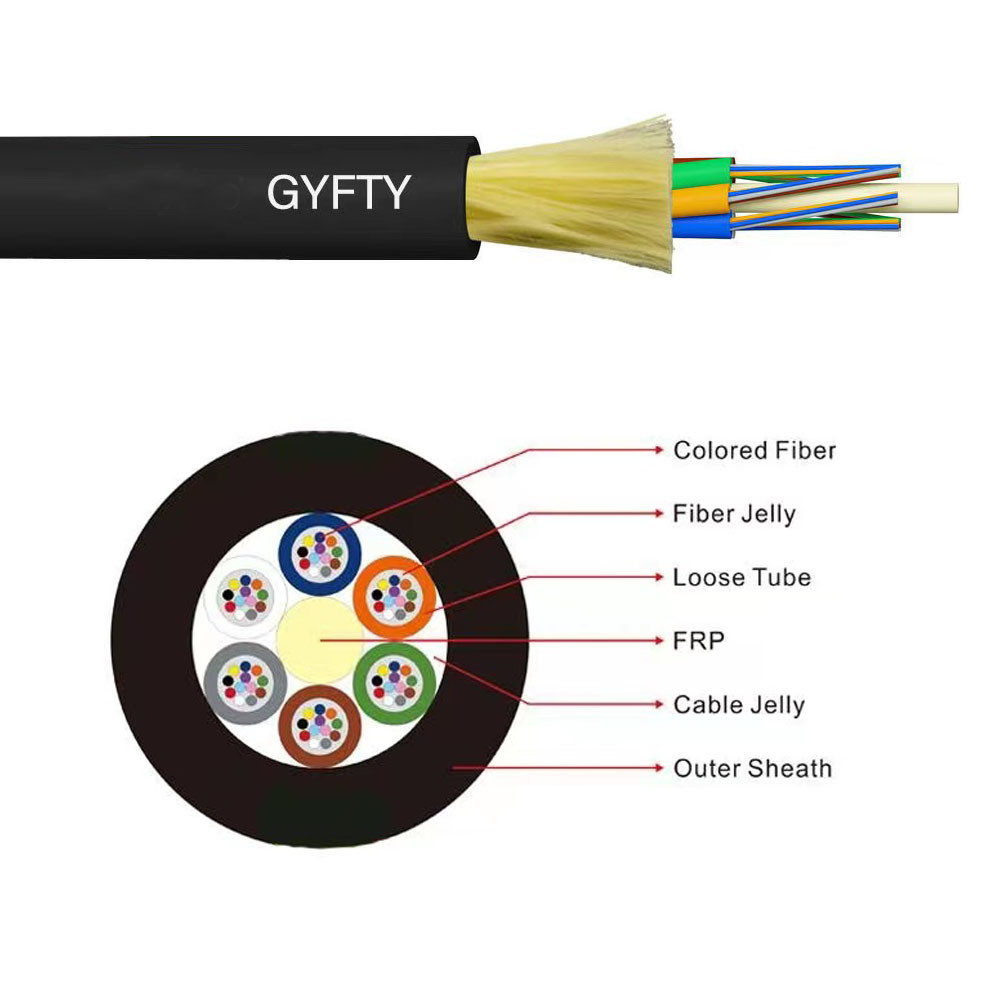

This 48-core fiber optic cable is designed with 250μm fibers housed in high-strength loose tubes made of robust plastic material. Each tube is filled with moisture-resistant gel to ensure stable optical performance. At the center of the cable is a non-metallic strength member—Fiber Reinforced Plastic (FRP)—providing solid structural support without electromagnetic interference. The tubes and fillers are helically stranded around the core, forming a compact and well-balanced cable structure.

To safeguard the internal core, a jelly-filled polyethylene (PE) inner sheath is applied, followed by a water-blocking layer that reinforces moisture protection. For additional mechanical strength, corrugated steel tape armor is wrapped around the inner layers. Finally, a durable PE outer jacket provides environmental protection, making this cable ideal for outdoor applications.

Key Features

  1. Compact design with low weight and high flexibility

  2. Optimized structure with superior water-blocking protection

  3. FRP central strength member ensures full dielectric and corrosion-free build

  4. Excellent resistance to electromagnetic interference

  5. Loose tube design with jelly filling and polypropylene (PP) fillers for enhanced stability

  6. Multi-layer water-blocking system with armored construction and rugged PE outer sheath

GYFTY Non Metal Glass Yarn Anti Rodent Duct Fiber Optic Cable 48 96 Core 0
Application
GYFTY Fiber Optic Cable is specifically engineered for environments with strong electromagnetic interference, such as regions prone to lightning strikes and areas near power transmission networks. Unlike traditional cables, it features a fully dielectric (non-metallic) structure, eliminating the need for grounding and ensuring reliable performance even in high-voltage surroundings. Its self-supporting design allows for easy aerial deployment without requiring external messenger wires. These advantages have significantly boosted its popularity, making GYFTY one of the most preferred fiber cable solutions for installations in power-intensive or thunder-prone zones.


Optical Characteristics











G.652D



50/125um



625/125μm



Attenuation



@850nm







≤3.0dB/km



≤3.0dB/km



(+20°C)



@1300nm







≤1.0dB/km



≤1.0dB/km







@1310nm



≤0.36dB/km















@1550nm



≤0.22dB/km











Bandwidth(ClassA)



@850nm







2500MHzkm



2200MHz:km







@1300nm







21000MHz-km



2600MHzkm



NumericalAperture











0.200+0.015NA



0.275+0.015NA



CableCut-

offWavelengthλcc







≤1260nm













Cable Parameters

Items Specifications
Fiber Count 48fibers
Colored Coating Fiber Dimension 250μm+15μm
Color Blue,Orange,Green,Brown,Gray,White
Loose Tube Dimension 2.0mm±0.05mm
Material PBT
Color Natural
Strength Member Diameter 2.0mm±0.2mm
Material FRP or steel wire
Outer Jacket Dimension 12.0mm±0.2mm
Material PE
Color Black



Product Detail



GYFTY Non Metal Glass Yarn Anti Rodent Duct Fiber Optic Cable 48 96 Core 1

FAQ

1. Are you a trading company or a manufacturer?
We are a professional manufacturer with over 10 years of experience, specializing in the R&D and production of fiber optic cables, drop cables, patch cords, and related products. Our factory is located in Guangzhou, and we warmly welcome you to visit us!

2. How do you ensure product quality?
Each fiber is thoroughly tested before shipment to guarantee quality. Once the price is confirmed, we’re happy to provide free samples for your evaluation.

3. Do you accept small orders?
Absolutely. We support small quantity orders, especially for new projects, as we understand that many long-term partnerships begin with a small trial.

4. What is your typical delivery time?
Normally, delivery takes about 3–7 working days, depending on the order volume. Rest assured, your goods will be arranged promptly once payment is received.

5. Do you offer OEM services?
Yes, OEM is available. We can customize your logo on the products, and any of your ideas are welcome—we're here to help bring them to life.
