Home /Products/Outdoor Fiber Optic Cable/12 Core Self Supporting FRP Menber ASU Mini ADSS Aerial Fiber Optic Cable 120M Span

12 Core Self Supporting FRP Menber ASU Mini ADSS Aerial Fiber Optic Cable 120M Span

1KM
MOQ
12 Core Self Supporting FRP Menber ASU Mini ADSS Aerial Fiber Optic Cable 120M Span
Features Gallery Product Description Request A Quote
Features
Specifications
Fiber Count: 4-12
Warranty: More Than 25years
Fiber Type: G652D,G652B,G657A
Application: Aerial
Fiber Brand: YOFC/Fiberhome/Fujikura/Corning
Packing: 2km/Wooden Durm
Strength Member: Two Steel Wire
OEM: Yes
Jacket: PE,MDPE,LSZH,PVC
Life Time: More Than 20 Years
Loose Tube: PBT
Cable Color: Black
Suspension Wire Material: Steel Wire
Sheath: PE
Package: Wooden Drum/Customized
Fiber Grade: G.652D, G.657A1, G.657A2, G.657B3
Function: Delivery Signal Light
Outer Jacket: PE
Cable Type: Loose Tube, Ribbon, Tight-Buffered
Fiber Standard: G657A1
Samples: Free
Flame Retardant Rating: LSZH/OFNR/OFNP
Mode: Single Mode Or Multi Mode
Highlight:

12 Core ASU Mini ADSS Cable

,

Self Supporting Mini ADSS Cable

,

Fiber Optic Cable 120M Span
Basic Infomation
Place of Origin: Guangdong, China
Brand Name: Jiqian/Customize
Certification: ISO9001/CE/RoHS
Model Number: ASU
Payment & Shipping Terms
Packaging Details: wooden drum
Delivery Time: 3-5 working days ,it depends on your order
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 60000KM/month
Product Description

12 Core Self Supporting 120M Span 2 Frp Strengthen Member Aerial ASU Cable De Fibra Optica



Features

  1. Low attenuation and dispersion, with precise excess length control for excellent mechanical and environmental stability.

  2. Non-metallic design effectively resists electromagnetic interference.

  3. High-strength aramid yarn ensures strong tensile performance, compact size, and lightweight construction—suitable for various climates and span lengths.

  4. Optional AT (anti-tracking) outer sheath provides enhanced resistance to electrical erosion.

12 Core Self Supporting FRP Menber ASU Mini ADSS Aerial Fiber Optic Cable 120M Span 0


Product Description

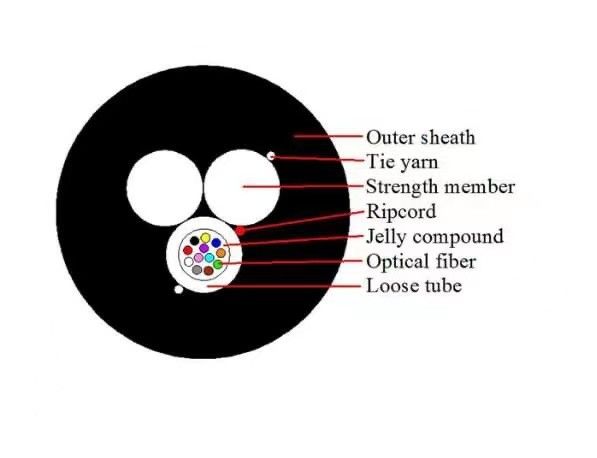

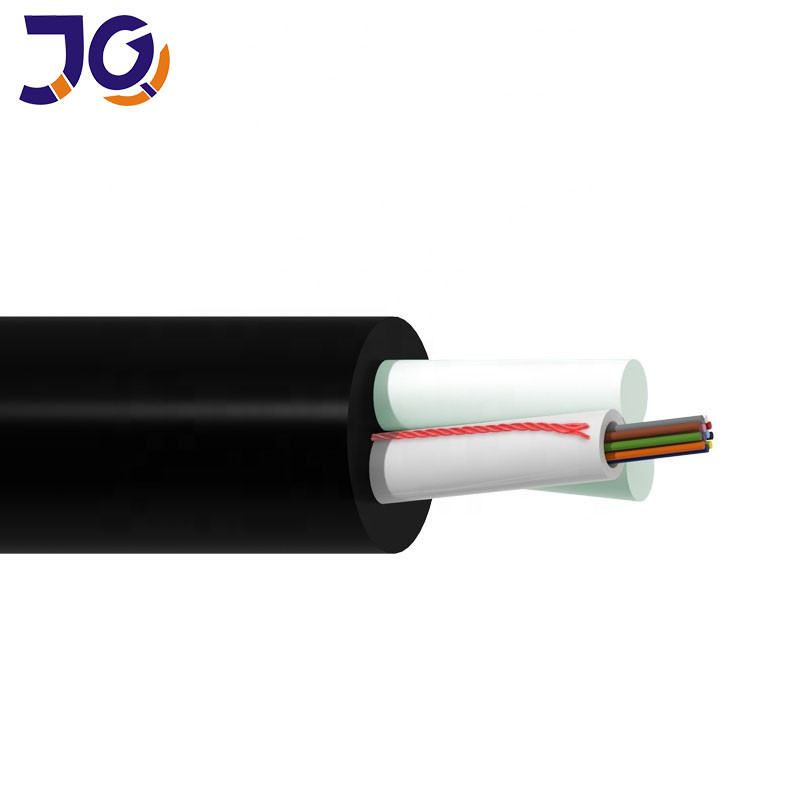

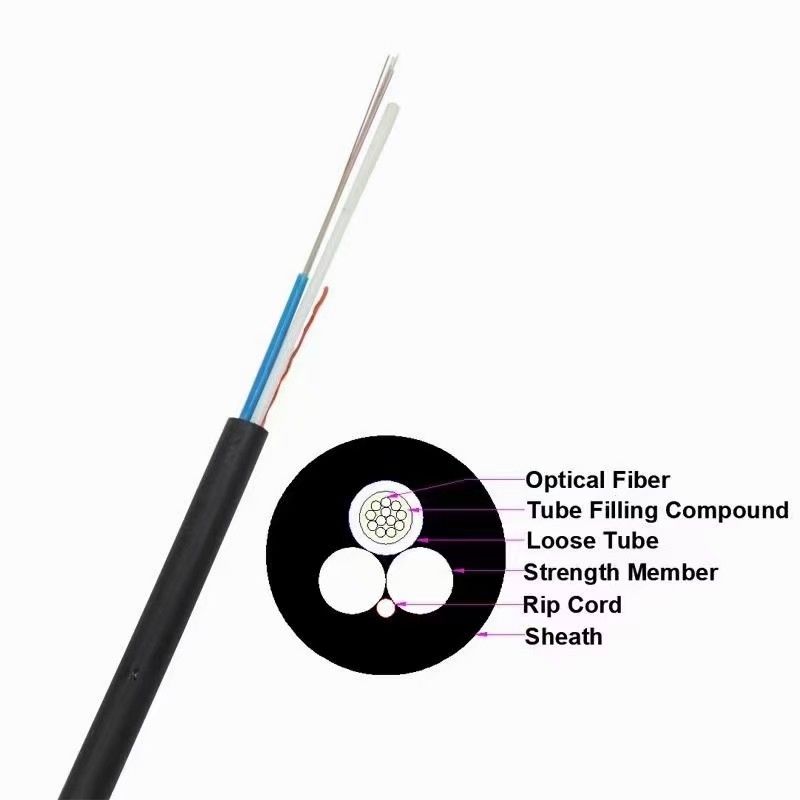

This cable features optical fibers housed in a loose tube filled with water-blocking jelly to guard against moisture. A black polyethylene outer jacket provides additional protection. Two built-in FRP or metallic strength members ensure proper tensile strength. A red ripcord allows for easy cable access.
12 Core Self Supporting FRP Menber ASU Mini ADSS Aerial Fiber Optic Cable 120M Span 1
ASU 100
Designed for self-supporting spans up to 100 meters, ASU100 cables are ideal for rural deployments where pole distances typically range from 90 to 100 meters.
12 Core Self Supporting FRP Menber ASU Mini ADSS Aerial Fiber Optic Cable 120M Span 2
ASU 120
Capable of self-supporting spans up to 120 meters, ASU120 cables are suitable for cable installation across areas with wide pole spacing or similar environments.

12 Core Self Supporting FRP Menber ASU Mini ADSS Aerial Fiber Optic Cable 120M Span 3





Applicable fields:

12 Core Self Supporting FRP Menber ASU Mini ADSS Aerial Fiber Optic Cable 120M Span 4







Specification



No. of cable
1-12
Fiber Model
G.652D
Strength Member
Material
FRP

Diameter(±0.05)mm
1.8
Loose Tube
Material
PBT

Diameter(±0.06)mm
1.8

Thickness(±0.03)mm
0.35

The Max.Core NO./Tube
12
Outer Sheath
Material
PE
Cable Diameter(±0.2)mm
6.7
Cable Weight(±5)kg/km
38
Min. bending radius
Without Tension
10.0×Cable-φ

Under Maximum Tension
20.0×Cable-φ
Temperature range
(℃)
Installation
-20~+60

Transport&Storage
-40~+70

Operation
-40~+70
We still have self-supporting cables for longer distances on the market.
Such as the ASU500, but the 80, 100 and 120 are the most commonly used due to their applicability.







12 Core Self Supporting FRP Menber ASU Mini ADSS Aerial Fiber Optic Cable 120M Span 5



There are twelve fiber color code.They are A grade fiber.

12 Core Self Supporting FRP Menber ASU Mini ADSS Aerial Fiber Optic Cable 120M Span 6

All products will have been strictly quality checked in house before packing.

12 Core Self Supporting FRP Menber ASU Mini ADSS Aerial Fiber Optic Cable 120M Span 7

All products will be well packed before shipment.



12 Core Self Supporting FRP Menber ASU Mini ADSS Aerial Fiber Optic Cable 120M Span 8




We are fiber cable manufacturer. We have a factory.

12 Core Self Supporting FRP Menber ASU Mini ADSS Aerial Fiber Optic Cable 120M Span 9

12 Core Self Supporting FRP Menber ASU Mini ADSS Aerial Fiber Optic Cable 120M Span 10



We have rich experience in foreign trade.

Give us a chance to server you, saving your time and money.

Contact me!!! Whatsapp & Wechat: +8618122383351



12 Core Self Supporting FRP Menber ASU Mini ADSS Aerial Fiber Optic Cable 120M Span 11
