Underground Duct 48 96 144 Core GYTS Cummunication Cable Single Mode Armored Fiber Optic Cable
Product Description

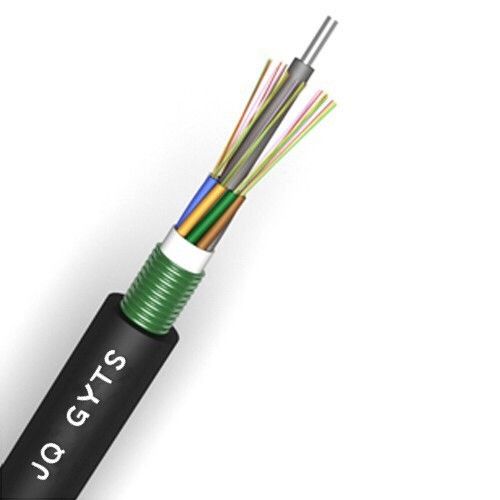

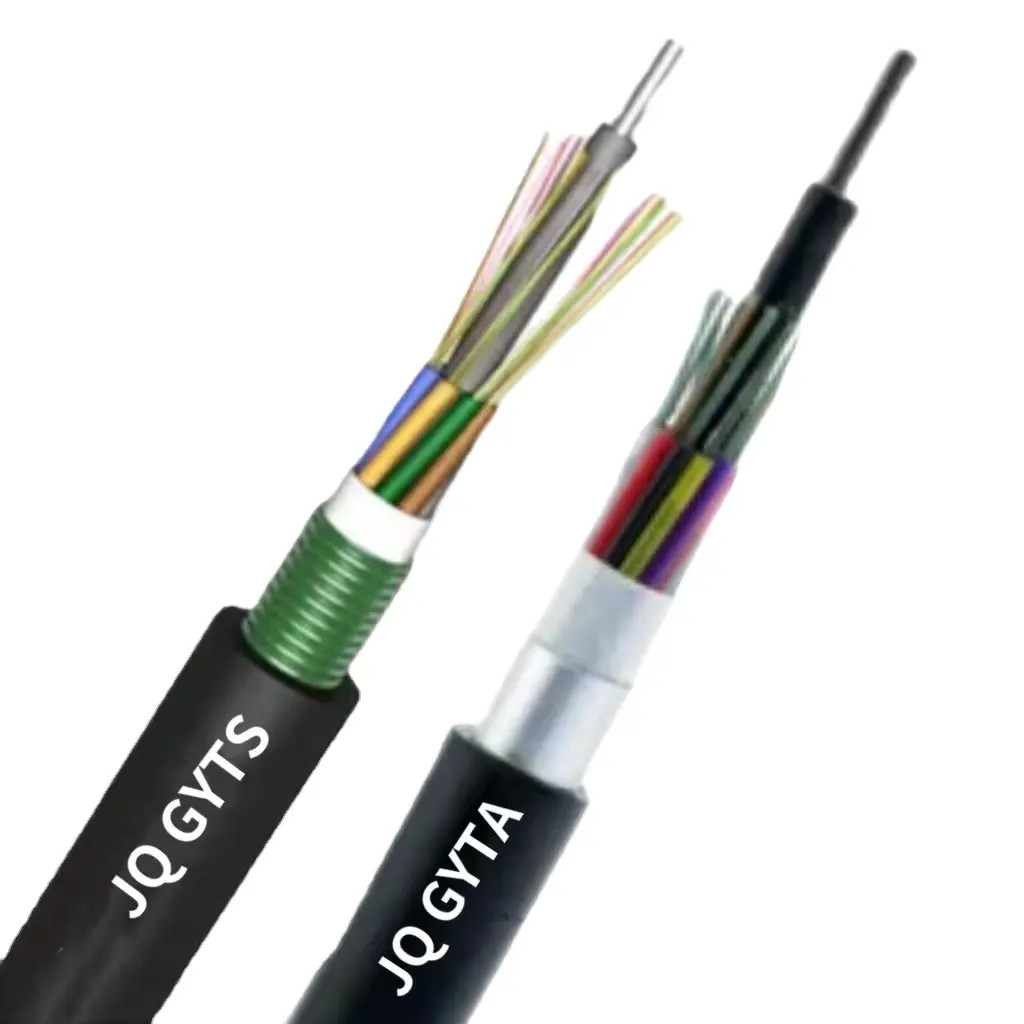

GYTS outdoor fiber optic cable is designed for duct and aerial installations. It is available in both single-mode and multimode types, with fiber counts ranging from 2 to 144 cores. A similar model, GYTA, is also offered. This cable ensures excellent mechanical strength and temperature resistance. The filling gel inside the loose tube provides essential fiber protection, while the PE outer sheath shields the cable from UV exposure.
Features
• Central steel wire and fillers enhance structure and protect fiber tubes.
• Steel tape armor improves mechanical durability.
• UV-resistant and moisture-proof design.
Applications
• Ideal for outdoor distribution networks.
• Suitable for aerial and duct (pipeline) installation.
• Used in long-distance transmission and LAN connections.
Description:

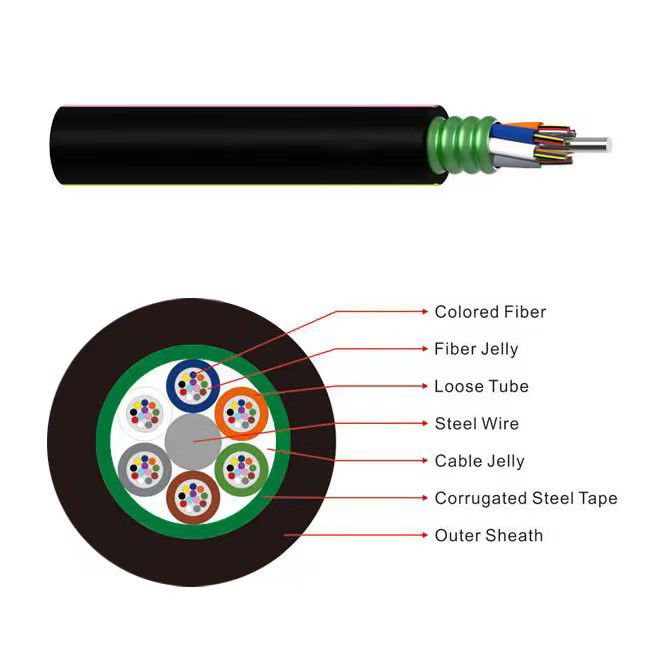

In GYTS cables, single-mode or multimode fibers are housed in loose tubes filled with water-blocking gel.
These tubes and fillers are stranded around a central strength member to form a compact circular core.
A layer of PSP (steel tape) is wrapped around the core, which is also filled with a protective compound to enhance water resistance.
Finally, the cable is finished with a durable PE outer sheath.
Characterisics
-
Precise excess fiber length design ensures strong mechanical performance and stable operation across temperature variations.
Critical protection is provided to safeguard fiber integrity.
-
Multiple water-blocking measures are implemented to enhance moisture resistance:
-
Central strength member made of single steel wire
-
Water-blocking gel inside loose tubes
-
Fully filled cable core for complete water ingress prevention
Dimensions of Cable Constructions
| Fiber count |
Structure |
Fibers per tube |
Loose tube diameter
(mm)
|
CSM diameter/pad diameter
(mm)
|
Nominal Thickness of outer jacket
(mm)
|
Cable diameter/
Height
(mm)
|
Cable weight
(kg/km)
|
| 4 |
1+5 |
4 |
1.8±0.1 |
1.4/1.4 |
1.4 |
9.0±0.3 |
80 |
| 6 |
1+5 |
6 |
1.9±0.1 |
1.4/1.4 |
1.4 |
9.0±0.3 |
80 |
| 8 |
1+5 |
8 |
1.9±0.1 |
1.4/1.4 |
1.4 |
9.0±0.3 |
80 |
| 12 |
1+5 |
6 |
1.9±0.1 |
1.4/1.4 |
1.4 |
9.0±0.3 |
80 |
| 24 |
1+5 |
6 |
1.9±0.1 |
1.4/1.4 |
1.4 |
9.0±0.3 |
85 |
| 36 |
1+6 |
12 |
2.2±0.1 |
1.6/1.6 |
1.6 |
9.7±0.3 |
100 |
| 48 |
1+5 |
12 |
2.2±0.1 |
1.6/1.6 |
1.6 |
9.7±0.3 |
105 |
| 60 |
1+5 |
12 |
2.2±0.1 |
1.6/1.6 |
1.6 |
9.7±0.3 |
110 |
| 72 |
1+6 |
12 |
2.2±0.1 |
2.0/2.0 |
1.6 |
10.6±0.3 |
122 |
| 96 |
1+8 |
12 |
2.2±0.1 |
1.6/3.5 |
1.6 |
12.0±0.3 |
160 |
| 144 |
1+12 |
12 |
2.2±0.1 |
2.0/6.4 |
1.8 |
15.6±0.3 |
240 |
| 216 |
1+6+12 |
12 |
2.2±0.1 |
2.2/2.2 |
1.8 |
16.0±0.3 |
270 |
| 288 |
1+9+15 |
12 |
2.2±0.1 |
2.2/4.3 |
2.0 |
18.2±0.3 |
282 |
There are twelve fiber color code.They are A grade fiber.
All products will have been strictly quality checked in house before packing.
All products will be well packed before shipment.
We are the factory, having quality control.
We privide you factory price.You can save costs, having good quality.
Package: Wooden reel, 1000m/reel, 2000m/reel, 3000m/reel, customer's requirements are also welcomed
We go to exhibitions. We have rich foreign trade experience, you can save purchasing time.
Don't hesitate to contact me. Whatsapp:+86 18122383351
FQA
1. Q: Are you a factory or a trading company?
A: We are a direct factory.
2. Q: What is your minimum order quantity (MOQ)?
A: The MOQ for fiber optic cable is 1 kilometer.
3. Q: Which fiber brands do you use?
A: We commonly use YOFC, Fiberhome, and other trusted brands.
4. Q: Do you accept small orders?
A: Yes, we support small orders, especially for new projects. We understand that every business starts with small steps.
5. Q: What is your delivery time?
A: Typically 5–7 days after order confirmation. The exact time depends on the quantity.
6. Q: Do you offer customized products and branding?
A: Yes, we provide OEM service with custom products and logos.
7. Q: What are your payment terms?
A: We accept T/T, L/C, and Western Union. A 30% deposit is required, with the balance paid before shipment.
