GYTA Factory Price Armored Aluminum Tape Outdoor Fibre Optic Cable For Direct Burial

Contact Now

GYTA Factory Price Armored Aluminum Tape Outdoor Fibre Optic Cable For Direct Burial

Minimum Order Quantity :	1000m	Packaging Details :	wooden drum
Delivery Time :	2-4day	Payment Terms :	Western Union, MoneyGram, T/T, L/C
Supply Ability :	100km per 2 day

Place of Origin:	Guangzhou China	Brand Name:	JQ/OEM/Customize
Certification:	ISO9001 ROHS CE-EMC FCC SDOC	Model Number:	GYTA 12core/24core/48core

Detail Information
Fiber Type:	G652D/G657A1	Oem:	Available
Application:	Duct/underground/direct Burial	Number Of Conductors:	24core 48core 72core
Structure:	Stranded Loose Tube	Operating Temperature:	-40 ~ +60 C
Central Strength Member:	Aluminium Wires	Armored:	Corrugated Steel Tape/Aluminium Tape
Fiber Protection:	Loose Tube	Loose Tube:	PBT
Fiber Counts:	2-288 Hilos	Installation:	Self- Supporting Aerial,aerial, Duct
Outer Jacket Materail:	PE	Number Of Fiber:	1-12 Core(1-12)
Model Name:	GYXTC8S	Jacket Color:	Black/Yellow/Orange/Green/Blue/Purple/Gray
Fiber Type:	Single-mode/Multi-mode	Frp:	FPR Central Strength Member
Sheath:	PVC,LSZH	Allowed Tensile Strength:	100N<1000N
Armoured:	Steel Tape	Single Armour Material:	Corrugated Aluminium Tape
Highlight:	armored outdoor fiber optic cable , direct burial fiber optic cable , aluminum tape fiber optic cable

Product Description

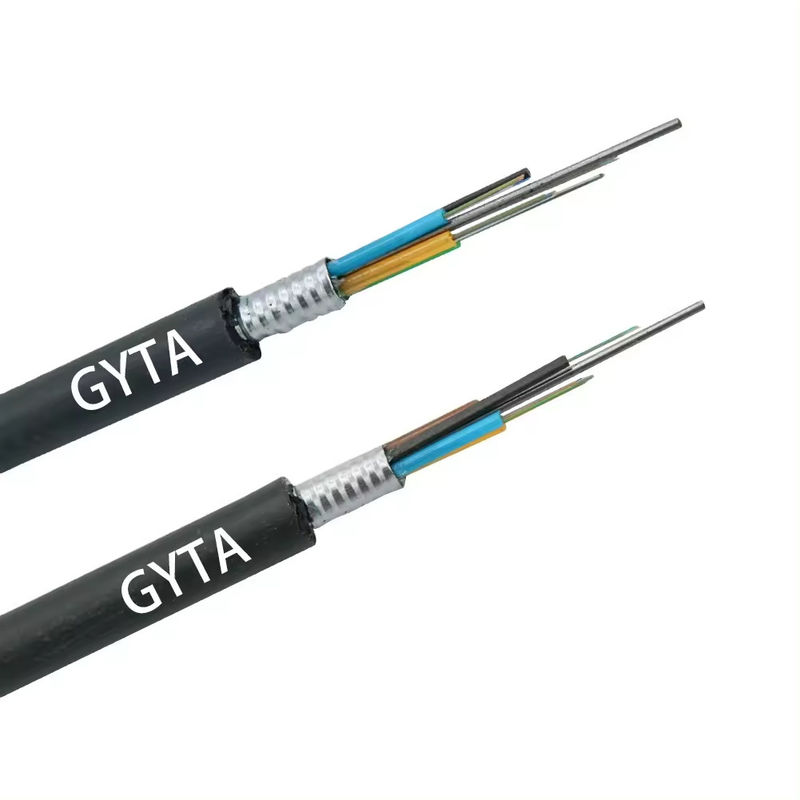

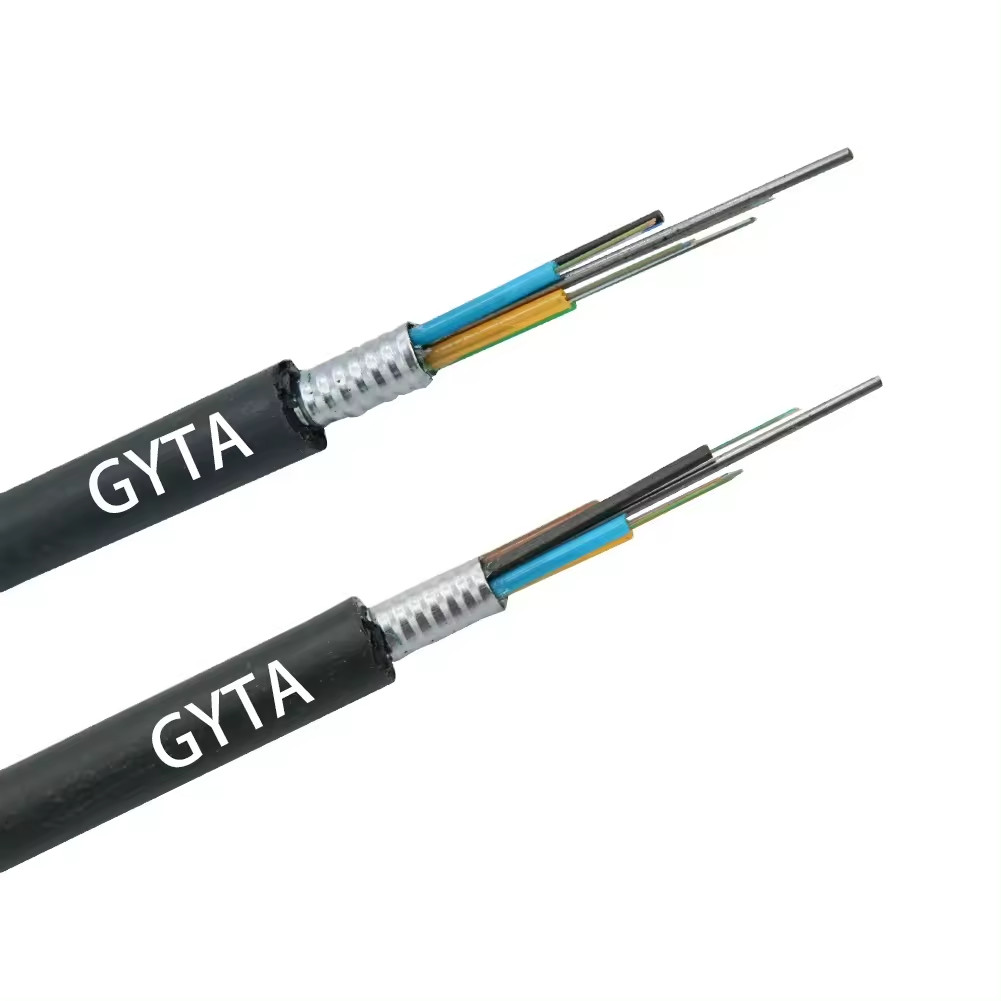

Armoured Outdoor 48 96 Core Fiber Optic Cable – GYTA Duct Type

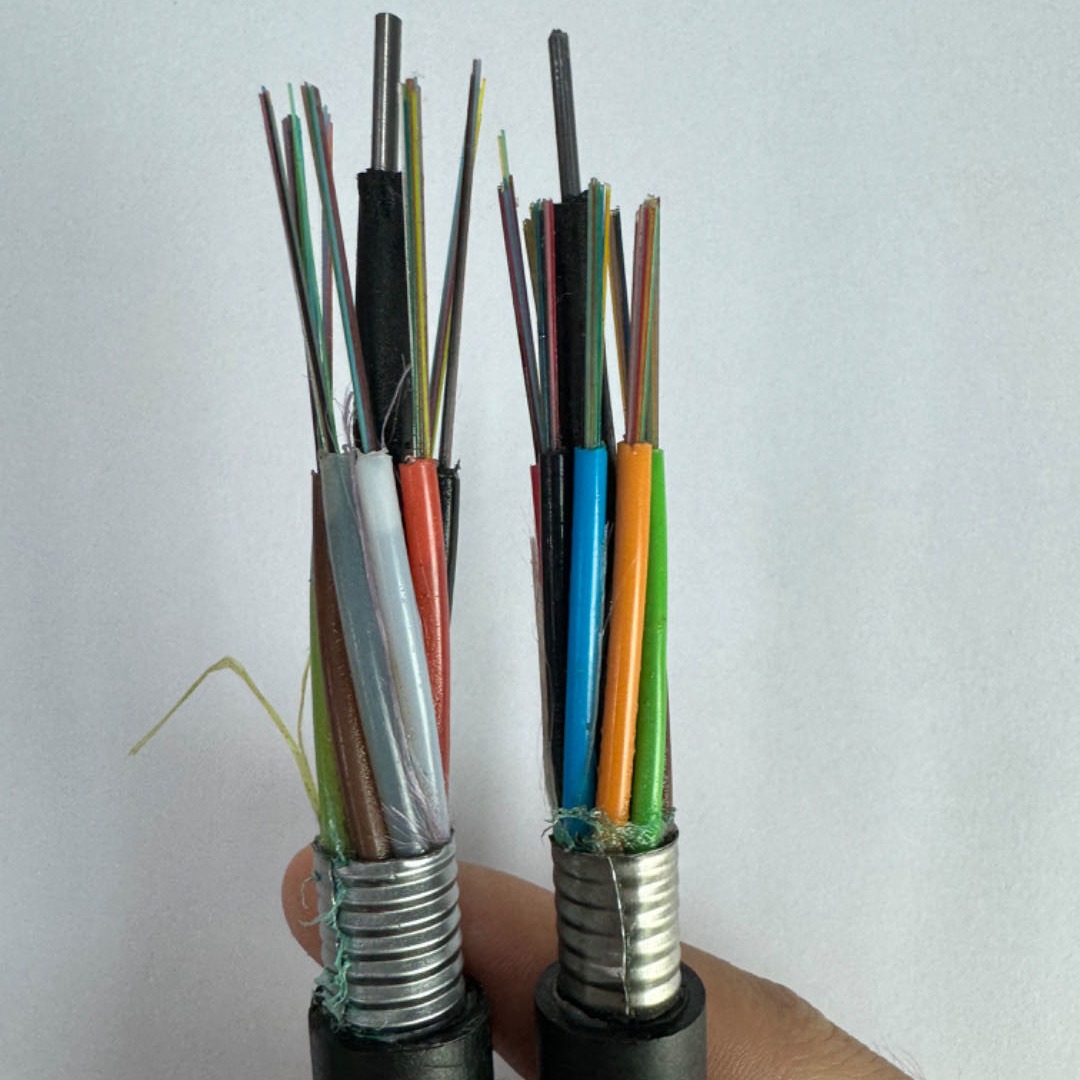

The GYTA fiber optic cable is designed for outdoor duct and aerial use. It features loose tubes filled with gel and wrapped in longitudinal steel tape (PSP) for excellent mechanical protection and moisture resistance. Water-blocking materials between the steel tape and the tubes ensure the cable remains compact and sealed. Finished with a durable polyethylene (PE) outer sheath, this cable performs reliably in harsh environments. It's ideal for metro networks, access systems, and inter-bureau communications—especially where high fiber density is needed.

Application:

1 ,Interbuilding voice or data communication backbone.

2 ,Installed in duct, underground conduit .

Optical Characteristics:

Fiber Type		G.652	G.655	50/125^m	62.5/125^m
Attenuation (+20X)	850 nm			<3.0 dB/km	<3.3 dB/km
	1300 nm			<1.0 dB/km	<1.0 dB/km
	1310 nm	<0.36 dB/km	<0.40 dB/km
	1550 nm	<0.22 dB/km	<0.23 dB/km
Bandwidth	850 nm			>500 MHz-km	>200 Mhz-km
Bandwidth	1300 nm			>500 MHz-km	>500 Mhz-km
Numerical Aperture				0.200±0.015 NA	0.275±0.015 NA
Cable Cut-off Wavelength λcc		<1260 nm	<1450 nm

Structure and Technical Specifications

Fiber Count	Nominal Diameter (mm)	Nominal Weight (kg/km)	Max Fiber Per Tube	Max No. of (Tubes+fillers)	Allowable Tensile Load (N)		Allowable Crush Resistance (N/100mm)
Fiber Count	Nominal Diameter (mm)	Nominal Weight (kg/km)	Max Fiber Per Tube	Max No. of (Tubes+fillers)	Short Term	Long Term	Short Term	Long Term
2~36	10.3	109	6	6	1500	600	1000	300
38~72	11.5	145	12	6	1500	600	1000	300
74~96	13.5	175	12	8	1500	600	1000	300
98~120	14.8	209	12	10	1700	600	1000	300
122~144	16.6	249	12	12	2000	600	1000	300
146~216	16.7	254	12	18(2 layers)	2000	600	1000	300
218~288	19.0	325	12	24(2 layers)	2500	600	1000	300

Note : This datasheet can only be a reference, but not a supplement to the contract. Please contact our sales people

for more detailed information.

Company Information

Guangzhou Jiqian Fiber Optic Cable Co., Ltd. is a specialized manufacturer of fiber optic cables based in Guangzhou, China. We offer a full range of outdoor and indoor fiber cables, FTTH drop cables, and fiber patch cords. Our products are certified by ISO9001, FCC, ROHS, and CE. With strong OEM capabilities, we can customize or design fiber cable structures to meet your specific needs.

Support OEM:

Print your logo on jacket : Customer logo+ GYTA 12 Core +G652D Cable .....2024 ....Meter

Such as :

GYTA Factory Price Armored Aluminum Tape Outdoor Fibre Optic Cable For Direct Burial 3

Delivery:

For large orders: by sea (LCL or FCL)
For small orders: by sea (LCL), by air or by courier services(DHL ,UPS,TNT.....)

Packaging Details

Wooden roll, 1000m/reel, 2000m/reel, 3000m/reel, customer's requirements are also welcomed;

FAQ

Are you a manufacturer?
Yes, we are a factory based in Guangzhou, China. You're welcome to visit us.
What is the minimum order quantity?
Our MOQ is 1 kilometer. We support trial orders and new projects.
Can I get a sample?
Yes, we offer free samples. You only need to cover the express shipping cost.
What payment methods do you accept?
We accept L/C, T/T, Western Union, and PayPal.
How long is the delivery time?
Normally 3–7 working days, depending on the order quantity.
Do you offer customized products and logo services?
Yes, OEM and ODM services are available. Feel free to contact us for details.
