Outdoor Microduct Air Blown Fiber Optic Cable 12-24 Cores G652D

Contact Now

Outdoor Microduct Air Blown Fiber Optic Cable 12-24 Cores G652D

Minimum Order Quantity :	2km	Price :	90-2500usd/km
Packaging Details :	wood drum

Place of Origin:	China	Brand Name:	Jiqian/Customize
Certification:	ISO9001 ROHS CE-EMC FCC SDOC	Model Number:	GCYFY/GCYFTY

Detail Information
Fiber Model:	G652D Or G657A	Waterproof:	Yes
Suitable Temperature:	-40℃ +70℃	Useful:	FTTX
Type:	Air Blown Fiber Optic Cable	Structure:	Small Loose Sleeve Central Tube / Loose Sleeve Layer Fiber Cable With Non-metallic Reinforcement
Network:	FTTH FTTX	Single Armour Material:	Corrugated Aluminium Tape
Flame Retardant:	Yes	Outer Diameter:	6.0-9.0mm
Inner Jacket:	Aramid Yarn	Fiber Count:	2/4/6/8/12/24/48/96
Allowed Lateral Pressure:	>1000(N/100mm)	Mode:	Singlemode G652D
Cable Type:	Outdoor Cable	Span:	200M
Number Of Fiber:	12/24/36/48/96	Armor Type:	Steel Tape/Steel Wire/Aluminum Tape
Spam:	100/200/300/400/500m	Overall Diameter:	11.4mm~13.10mm
Fiber Core:	4-144	Loose Tube Color:	At Your Request
Highlight:	Outdoor microduct fiber optic cable , Air blown fiber optic cable 12-24 cores , G652D outdoor fiber optic cable

Product Description

Factory Direct GCYFY Outdoor Microduct Air-Blown Single Mode Fiber Optic Cable – 6/12/24 Cores

The GCYFY Air Blown Cable (Mini) features a compact design and lightweight structure, ideal for microduct installation using air-blowing techniques. Its specially engineered outer thermoplastic sheath ensures superior protection and easy installation performance, making it well-suited for FTTx applications.

We offer a full range of fiber counts from 2 to 288 cores, with multiple structural options tailored to different installation environments. All cables are manufactured using premium materials to ensure mechanical durability and optical performance. With robust jackets and optional armoring, our cables provide reliable protection under harsh conditions.

Features

Central tube structure for fiber counts below 24, achieving a more compact design
Lightweight and small-diameter cable with low-friction outer sheath
Precisely controlled excess fiber length for consistent optical performance
Excellent temperature stability through advanced manufacturing processes
Supports high-speed, long-distance air blowing for fast and efficient deployment
Optional LSZH outer sheath suitable for indoor transitions
Available with 200μm mini fiber for further reduction in cable size

Application

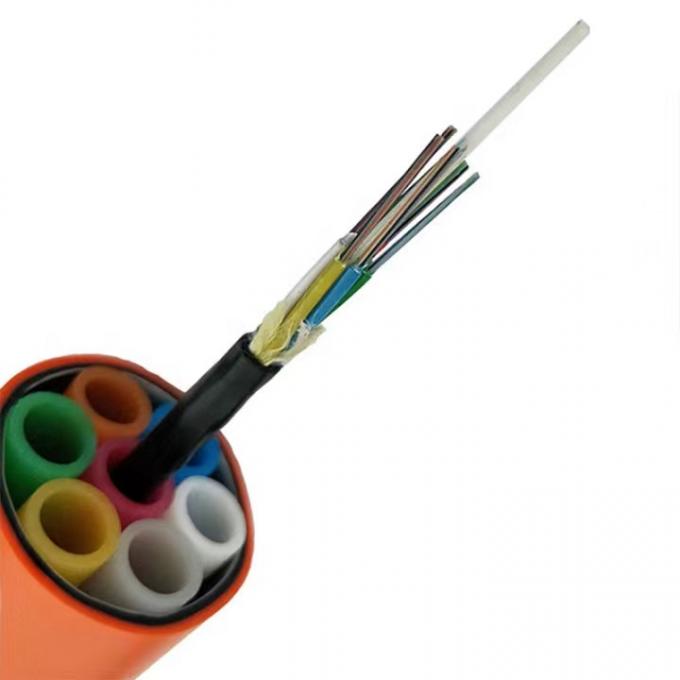

Designed for versatile installation scenarios, microduct assemblies can be used in direct burial, within existing conduits, or for indoor setups. Featuring heavy-walled microducts and a thin outer jacket, the inner tubes are strong enough for direct burying. Made from HDPE, these ducts provide a low-friction inner surface to ensure optimal air-blowing efficiency and reliable protection for fiber cables.

Specification

Product Name	Mirco Air Blown Fiber Optic Cable
Fiber Count	2-288 cores,can be customized according to customer's requirement

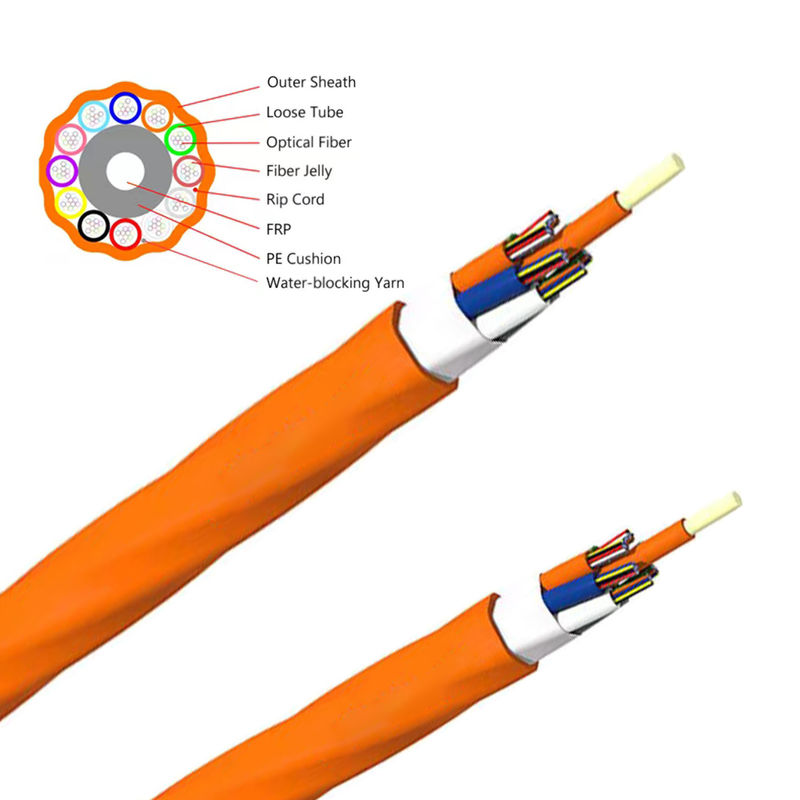

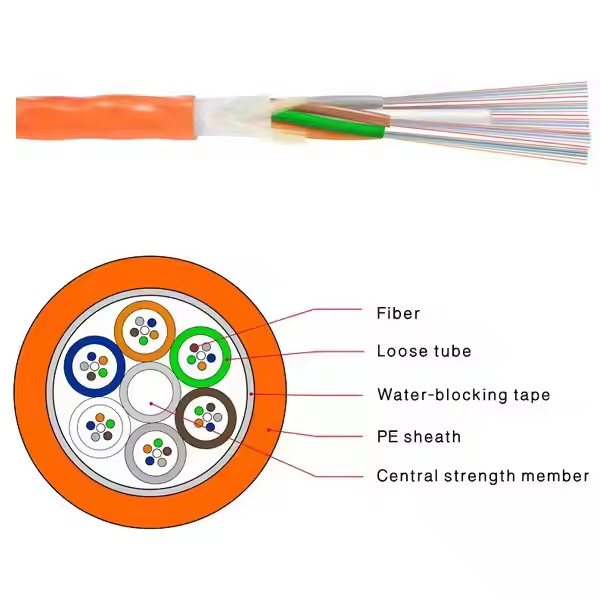

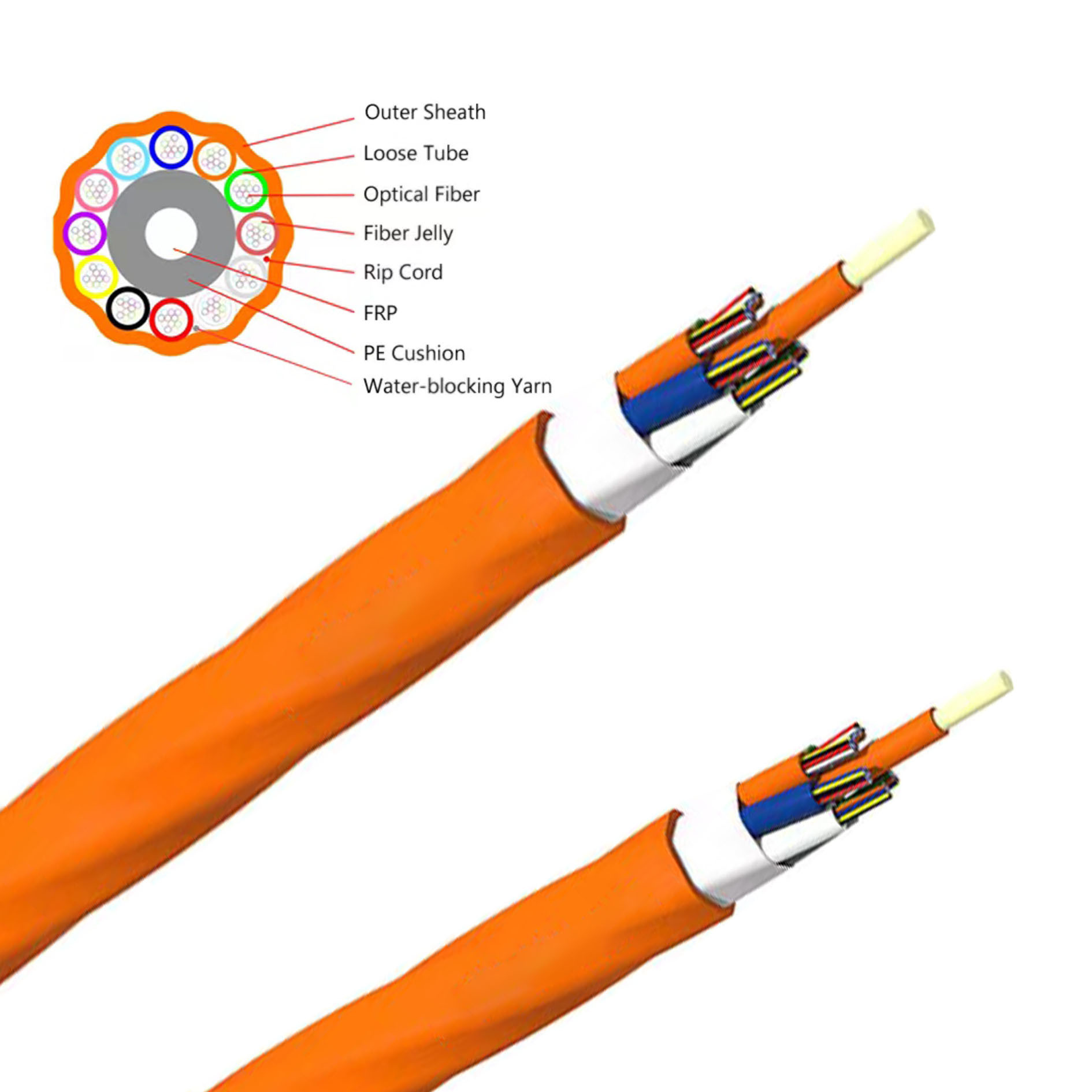

Construction	small loose sleeve central tube / loose sleeve layer fiber cable with non-metallic reinforcement
Fiber Type	Singlemode G.652D / G.657A1
Type	Center beam tube type,layer-stranding type
Application	duct,direct buried,piping
Application situation	long distance communication,good crush resistance,ratproofed
Cable Length	1km,2km,3km,5km per drum,can be customized
Test Wavelength	1310/1550nm
Operation Temperature	-40℃ to +70℃
Strengthen	multi layers with metal structure
Advantage	no grounding,easy to connect and construct

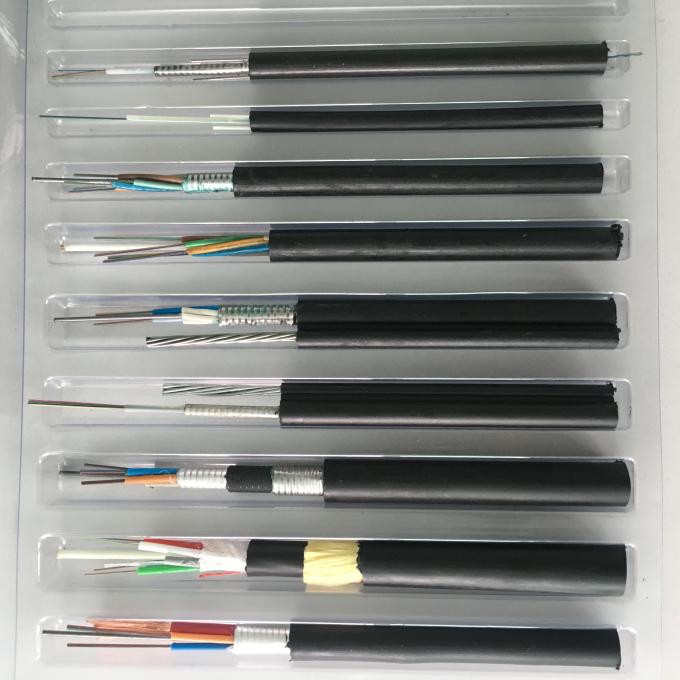

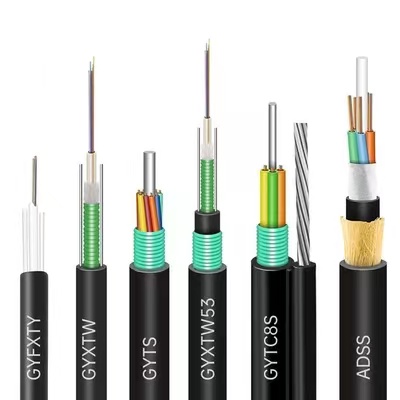

Related Products

Above are some other styles for reference,we can also customize according to customers' requirements like quantity of fibers,structure,diameter,weight,color of the cables.

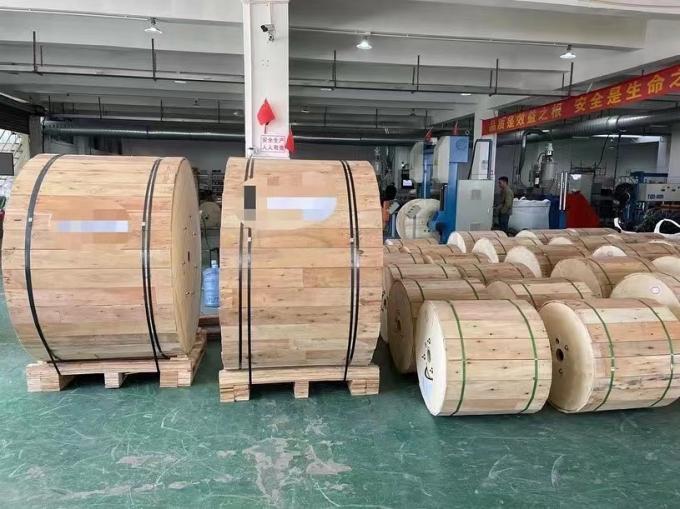

Packing & Delivery

Packaing detail:
1km/ 2km/3km/4km 5km per plywooden drum

Shipping:
By sea/by air or express delivery,it depends on the order quantity

Company Profile

Guangzhou Jiqian Fiber Optic Cable Co., Ltd. is a high-tech enterprise specializing in the R&D, production, and sales of communication products, with full import and export rights.

With over 8 years of experience in manufacturing fiber optic cables and patch cords, our company is ISO 9001:2015 certified. We provide OEM services and can customize various types of fiber optic cables based on your requirements.

Our main offerings include fiber optic cables and related components, which are widely used in telecom applications. Our products are exported to multiple countries, including Egypt, Pakistan, the Maldives, India, Brazil, Chile, and more.
