GCYFY Air-Blown Fiber Optic Cable 2 To 144 Cores Single-Mode For Outdoor Microducts

Product Description

Product Description:

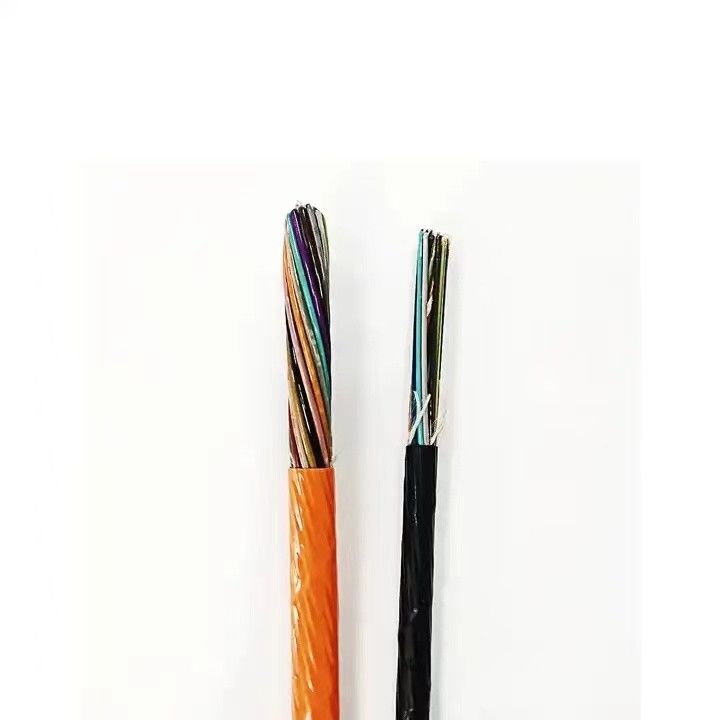

The GCYFY air-blown micro-cable utilizes a stranded loose tube construction, engineered with entirely non-metallic reinforcements and a non-armored design. This structure makes the cable exceptionally lightweight and flexible.

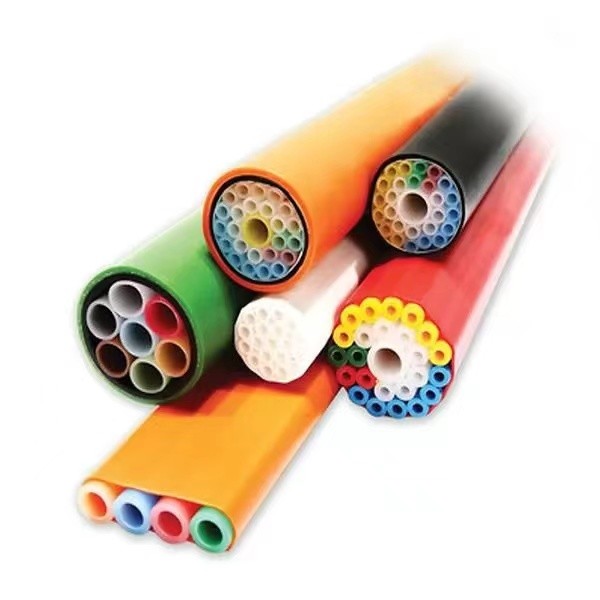

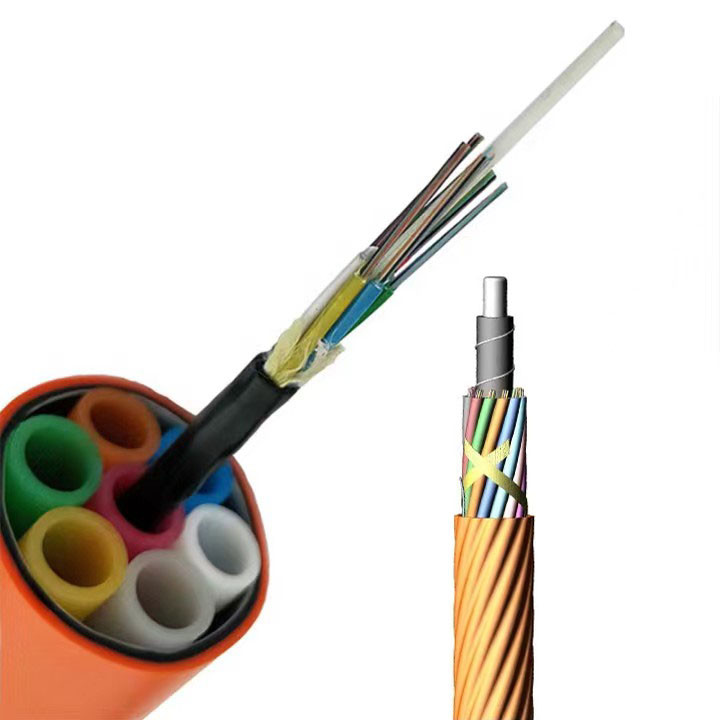

This cable is specifically designed for installation within a pre-installed outer protective conduit. The deployment method involves first placing smaller micro-ducts inside this main conduit. Subsequently, the GCYFY micro-cable is propelled through these micro-ducts using a jetting or air-blowing technique. This modern installation process transcends the traditional limitations associated with pulling heavy, conventional cables.

By adopting this air-blown system, the capacity and utilization efficiency of the existing duct space are significantly maximized. More importantly, it provides a highly scalable and future-proof solution for network growth. As bandwidth demands increase, additional fiber cables can be easily and cost-effectively installed into vacant micro-ducts, simplifying network expansion without the need for new civil works.

Core Characteristics

1. For fiber counts of 24 and below, a central tube design is utilized to create a more compact cable structure.

2. The cable features a small outer diameter, is lightweight, and is finished with a low-friction sheath material to optimize blowing performance.

3. Through precise control of the excess fiber length (EFL), the cable maintains stable transmission performance under various environmental conditions.

4. A specialized process control ensures excellent temperature cycling stability, enabling the cable to perform reliably through drastic temperature changes.

5. It supports high-speed, long-distance air-blowing installation, which significantly enhances deployment efficiency and reduces installation costs.

6. An optional Low Smoke Zero Halogen (LSZH) outer sheath is available, making the cable suitable for applications requiring entry into indoor premises.

7. The cable can be specified with 200μm mini optical fibers to achieve an even smaller overall diameter, perfect for use in crowded or narrow ducts.

Fields of Application

• Ideal for use in backbone networks for voice, data, or other telecommunication services.

• Engineered specifically for installation in ducts, underground conduits, and micro-duct systems.

Specification:

item	value
Model Number	GCYFY
Product name	GCYFY air blowing cable
Type	Outdoor Fiber Optic Cable
Place of Origin	Guangdong,China
Brand Name	jiqian
Cable Structure	Multi-strand
Number of Conductors	≥ 10
Fiber count	2-144 Cores
Fiber Type	G652D Single mode or as your request
Central strength member	FRP
Loose tube	Jelly filled
Loose tube material	PBT
Jacket Sheath	LSZH/PVC/PE
Color	Black or as your need
Package	Plywood Reel/customized
Properties	anti-thunder and anti-static performances
Installation	aerial, in duct
operating temperature	-40 to +70
Certification	CE/ROHS/ISO9001 /ANATEL
Life span	>30 years

Optical Characteristics:

	G.655	50/125μm	62.5/125μm
G.652
Attenuation	'@850nm			≤3.0 dB/km
(+20℃)	'@1300nm			≤1.0 dB/km
	'@1310nm	≤0.34 dB/km	≤0.40 dB/km
	'@1550nm	≤0.21 dB/km	≤0.23 dB/km
	'@850nm			≥500 MHz·km
	'@1300nm			≥1000 MHz·km
Numerical Aperture				0.200±0.015NA

Company Profile:

Based in Guangzhou, China, Guangzhou Jiqian Fiber Optic Cable Co. Ltd. is a high-tech enterprise specializing in the research, development, production, and sales of fiber optic cables. We offer a wide range of optical cables with core counts from 2 to 288. Our corporate values are centered on "integrity, speed, flexibility, efficiency, and innovation," with a primary focus on achieving customer satisfaction. We are committed to providing high-quality products and excellent service at competitive prices. We invite customers from around the world to visit our factory and establish lasting partnerships.

WHY CHOOSE US:

Certification:

FAQ:

---



Who We Are



Based in Guangdong, China, our company has been operating since 2017. With a team of 11-50 employees, we primarily serve markets in Africa, South America, Western Europe, the Middle East, Southeast Asia, and South Asia.



Our Products



We specialize in a variety of communication cables, including:

• Fiber Optic Cables

• FTTH Drop Cables

• Outdoor/Indoor Fiber Cables



Quality Assurance



To ensure the highest quality, we follow a two-step inspection process:

1. A pre-production sample is always created and approved before mass production begins.

2. A final inspection is conducted on every order before shipment.



Our Services



We offer a range of flexible services to our clients:

• Delivery: FOB and EXW terms are available.

• Payment: We accept USD and CNY. You can pay via T/T, L/C, D/P D/A, Credit Card, PayPal, Western Union, or Cash.

• Language: Our team is fluent in both English and Chinese.



Common Questions



What is your minimum order quantity (MOQ)? Our MOQ is 1 kilometer.

Can I get a sample? Yes, we provide free samples. You only need to cover the express freight cost.

Do you accept OEM or ODM orders? Yes, as a manufacturer with our own engineering department, we accept both OEM and ODM orders. Just let us know your requirements.

What is your delivery time? The typical delivery time is 3-7 days after your order is confirmed, though this can vary based on the quantity.
