Product Description
ADSS Fiber Optic Cable Overview
ADSS (All-Dielectric Self-Supporting) fiber optic cable is designed to be installed without the need for conductive metal components, allowing it to support its own weight between structures. It is suitable for both single-mode and multimode fibers, with configurations available for up to 144 fibers.
Commonly used for aerial installations—from pole-to-building links to long-distance town-to-town connections—ADSS cables are ideal for duct applications in local networks, campus loops, and outside plant deployments. The complete cabling system, including suspension fittings, dead-end hardware, and termination enclosures, ensures high-reliability performance for a full transmission circuit.
Key Features
-
Can be installed without shutting down power lines.
-
Excellent anti-tracking (AT) performance, with a maximum operating sheath voltage up to 25 kV.
-
Lightweight, small diameter design minimizes wind and ice loading on towers and poles.
-
Capable of long-span installation—up to 1000 m between supports.
-
High tensile strength and wide temperature tolerance.
-
Long service life of up to 30 years.
Applications
-
LAN, WAN, and Metropolitan Area Networks
-
FTTH and FTTX deployments
-
CATV and GPON/EPON systems
-
Data centers and broadband transmission
-
Active device termination
-
Metro and local area networks
-
Data processing networks
-
Test equipment connections
-
Premises wiring
-
Wide area network infrastructure

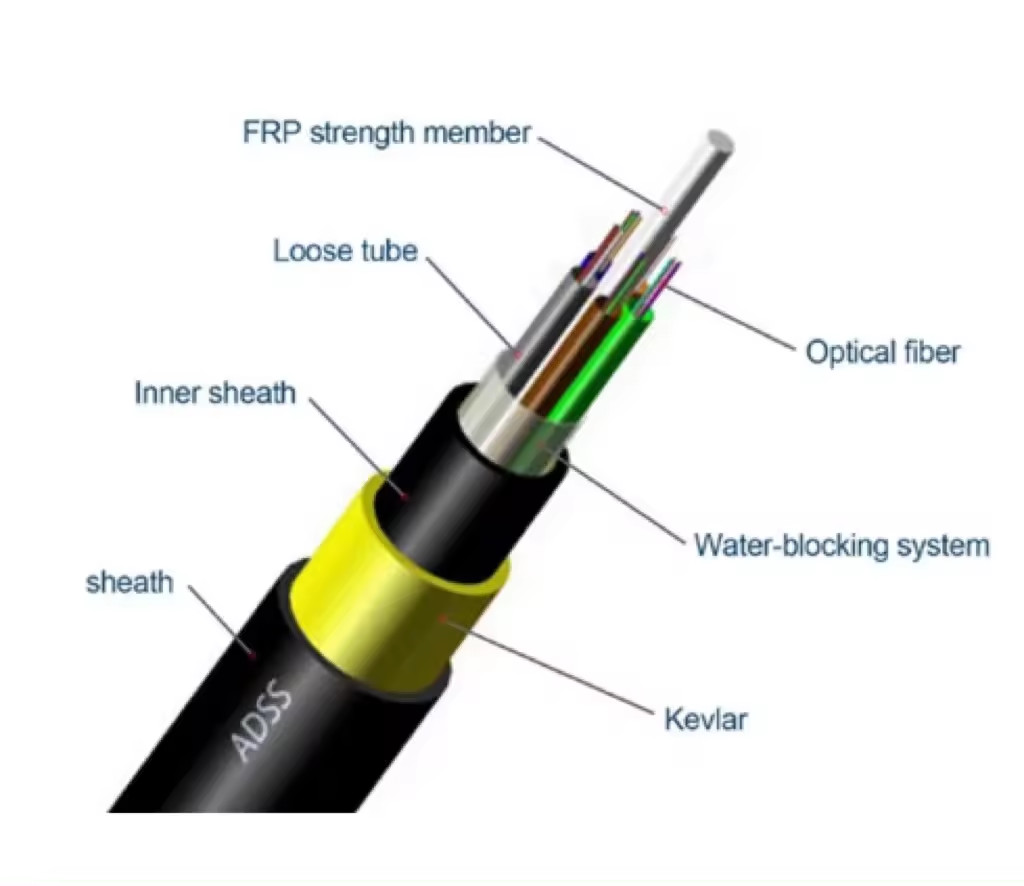

Structure and Technical Specifications
1. ADSS single jacket
| fiber count |
structure |
fiber per tube |
losse tube diameter
(MM)
|
FRP/pad diameter (mm) |
Thickness of outer jacket(mm) |
Ref. Outer
Diameter
(mm) |
Ref. Weight
(kg/km) |
| PE Jacket |
AT Jacket |
| 4 |
1+6 |
4 |
1.85 |
2.0/2.0 |
1.7±0.1 |
9.8 |
83 |
93 |
| 6 |
1+6 |
6 |
1.85 |
2.0/2.0 |
1.7±0.1 |
9.8 |
83 |
93 |
| 8 |
1+6 |
4 |
1.85 |
2.0/2.0 |
1.7±0.1 |
9.8 |
83 |
93 |
| 12 |
1+6 |
6 |
1.85 |
2.0/2.0 |
1.7±0.1 |
9.8 |
83 |
93 |
| 24 |
1+6 |
6 |
2.0 |
2.0/2.0 |
1.7±0.1 |
9.8 |
86 |
96 |
| 48 |
1+6 |
12 |
2.0 |
2.0/2.0 |
1.7±0.1 |
10.0 |
89 |
99 |
| 72 |
1+6 |
12 |
2.2 |
2.0/2.0 |
1.7±0.1 |
10.5 |
99 |
109 |
| 96 |
1+8 |
12 |
2.2 |
2.0/3.4 |
1.7±0.1 |
12.0 |
124 |
136 |
| 144 |
1+12 |
12 |
2.2 |
3.0/7.2 |
1.7±0.1 |
15.2 |
176 |
189 |
Tips: all the specifications in the abolve table is approximate data, for more detals specifications,
pls contact our salers.
2. ADSS double jacket
| fiber count |
structure |
fiber per tube |
losse tube diameter
(MM)
|
FRP/pad diameter (mm) |
Thickness of outer jacket(mm) |
Ref. Outer
Diameter
(mm) |
Ref. Weight
(kg/km) |
| PE Jacket |
AT Jacket |
| 4 |
1+6 |
4 |
1.85 |
2.0/2.0 |
1.7±0.1 |
12.0 |
125 |
135 |
| 6 |
1+6 |
6 |
1.85 |
2.0/2.0 |
1.7±0.1 |
12.0 |
125 |
135 |
| 8 |
1+6 |
4 |
1.85 |
2.0/2.0 |
1.7±0.1 |
12.0 |
125 |
135 |
| 12 |
1+6 |
6 |
1.85 |
2.0/2.0 |
1.7±0.1 |
12.0 |
125 |
135 |
| 24 |
1+6 |
6 |
2.0 |
2.0/2.0 |
1.7±0.1 |
12.0 |
128 |
138 |
| 48 |
1+6 |
12 |
2.0 |
2.0/2.0 |
1.7±0.1 |
12.5 |
130 |
140 |
| 72 |
1+6 |
12 |
2.2 |
2.0/2.0 |
1.7±0.1 |
13.2 |
145 |
155 |
| 96 |
1+8 |
12 |
2.2 |
2.0/3.4 |
1.7±0.1 |
14.5 |
185 |
195 |
| 144 |
1+12 |
12 |
2.2 |
3.0/7.2 |
1.7±0.1 |
16.5 |
212 |
228 |
Tips: all the specifications in the abolve table is approximate data, for more detals specifications,
pls contact our salers.
|
Fiber type
|
Attenuation
(+20℃)
|
Bandwidth
|
Optical cable cut-off wavelength
|
|
@850nm
|
@1300nm
|
@1310nm
|
@1550nm
|
@850nm
|
@1300nm
|
| G.652 |
--- |
--- |
≤0.36dB/km |
≤0.22dB/km |
--- |
--- |
≤1260nm |
| G.655 |
--- |
--- |
≤0.40dB/km |
≤0.23dB/km |
--- |
--- |
≤1450nm |
| 50/125µm |
≤3.3dB/km |
≤1.2dB/km |
--- |
--- |
≥500MHz·km |
≥500MHz·km |
--- |
| 62.5/125µm |
≤3.5dB/km |
≤1.2dB/km |
--- |
--- |
≥200MHz·km |
≥500MHz·km |
---
|
Details picture shows
single jacket ADSS fiber cable

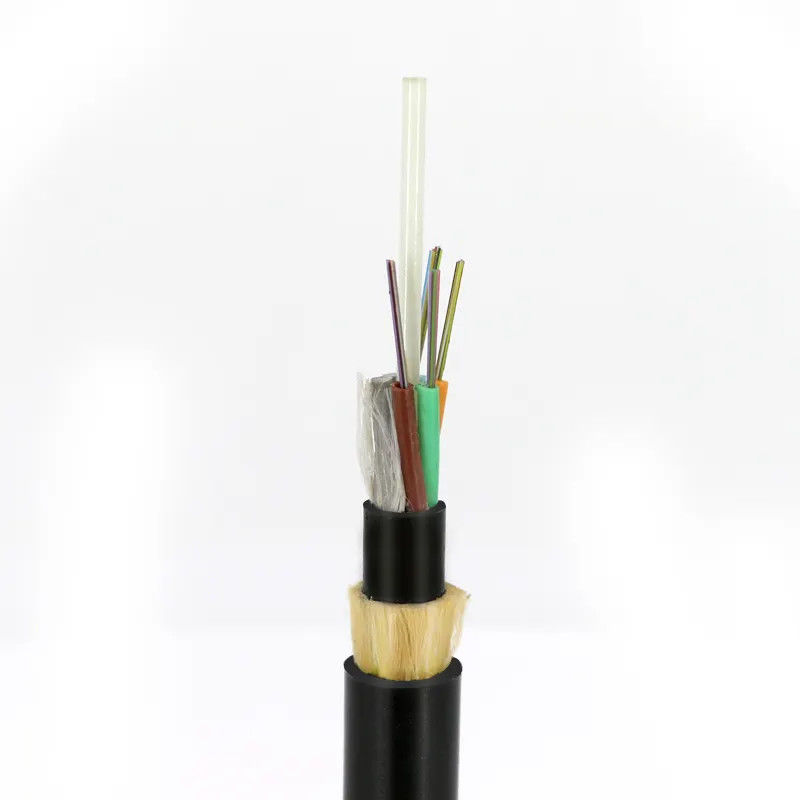

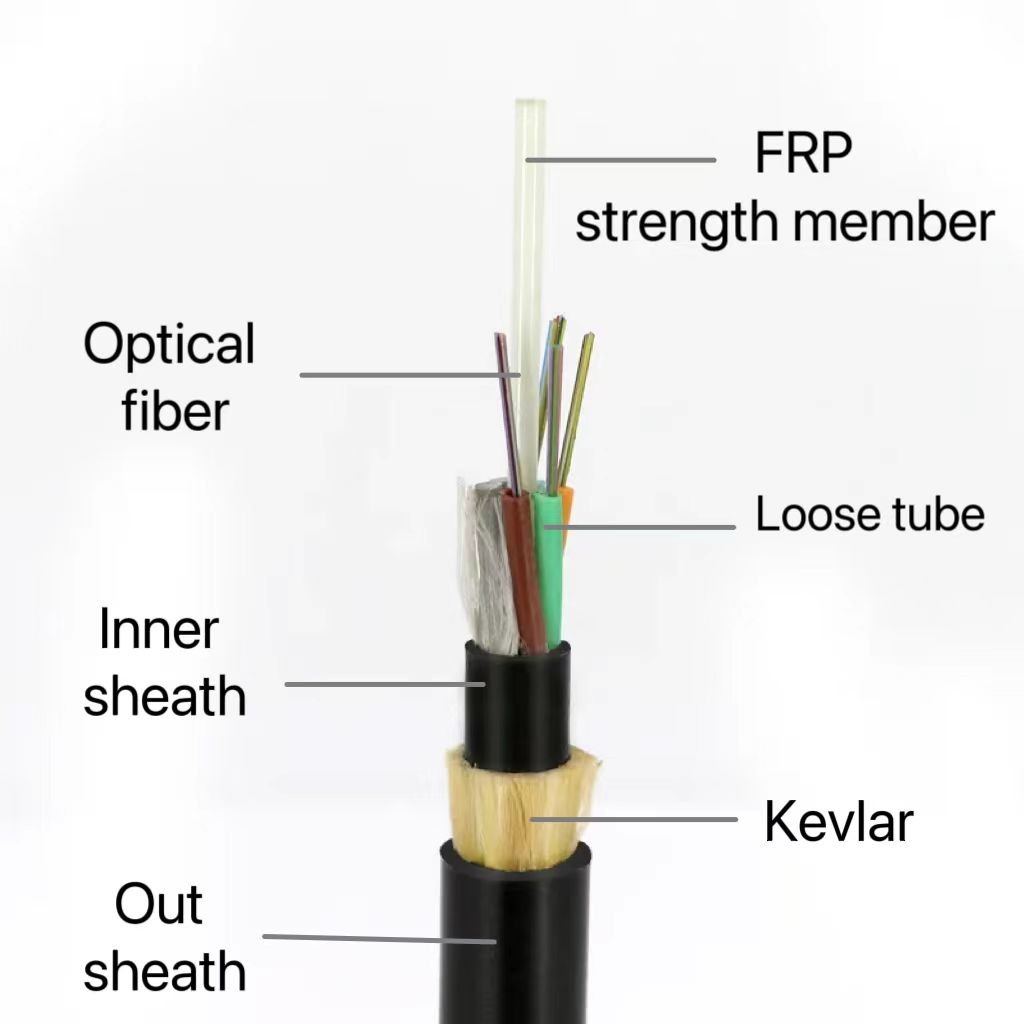

double jacket ADSS fiber optic cable
Packing:
1. Are you a factory direct supplier?
Yes. We are a professional cable manufacturer specializing in fiber optic cables, MPO breakout cables, and fiber optic patch cords. Our products are exported to Europe, South America, and various other regions.
2. What are your main products?
Our range includes outdoor and indoor fiber optic cables, FTTH drop cables, ADSS cables, indoor armored patch cords, and optical patch cords in SC, LC, FC, ST, MTP, and MPO configurations.
3. What is the product warranty period?
We provide a 20-year warranty for fiber optic cables.
4. Do you have raw material certificates?
Yes. We maintain long-term partnerships with ISO9001- and RoHS-certified raw material suppliers.
