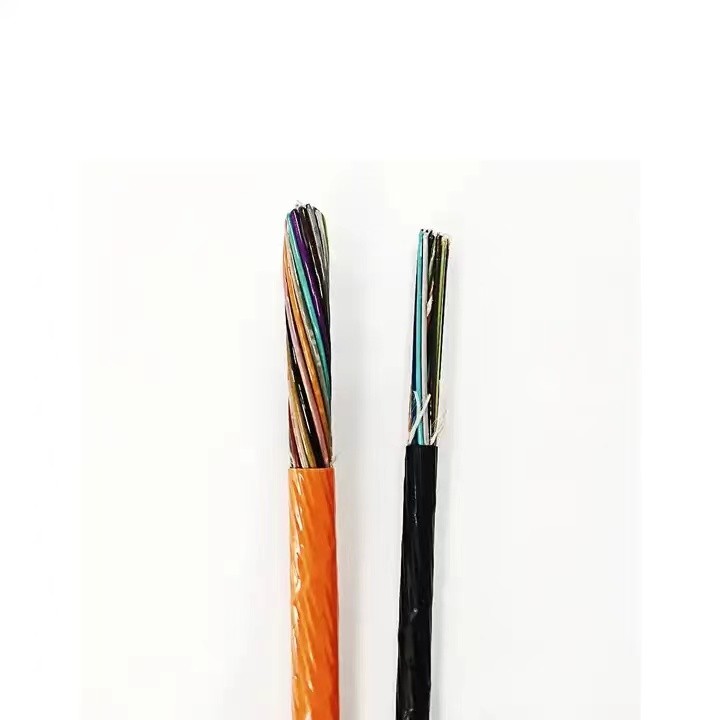

Stranded Loose Tube Air-blown Micro Duct Cable GCYFY
Product Description
The GCYFY Air-Blown Micro Duct Cable is designed with a stranded loose tube structure, providing exceptional performance for modern communication networks. Compact, lightweight, and flexible, this cable is engineered for installation in micro ducts using air-blown technology, ensuring fast, efficient, and cost-effective deployment.
Each loose tube contains high-quality optical fibers protected with water-blocking gel, offering excellent mechanical strength and reliable transmission even in challenging environments. The stranded design enhances tensile strength, while the outer sheath ensures durability and resistance against moisture and environmental stress.
With its high fiber density and optimized design, the GCYFY micro duct cable is the perfect solution for FTTx, backbone networks, data centers, and metropolitan area networks where high-speed and large-capacity data transmission is required.
1. Model: GCYFY-96B1.3
2. Cable Cross-section
Optical Characteristics
| Item |
Specification |
| Fiber type |
G.652D |
| Attenuation |
|
| @ 1310 nm |
≤0.36 dB/km |
| @ 1383 nm |
≤0.35 dB/km |
| @ 1550 nm |
≤0.22 dB/km |
| @ 1625 nm |
≤ 0.30 dB/km |
| Cable Cut-off Wavelength(λcc) |
≤1260 nm |
| Zero Dispersion Wavelength(nm) |
1300 ~ 1324 nm |
| Zero Dispersion Slope |
≤0.092 ps/(nm2.km) |
| Chromatic Dispersion |
|
| @ 1288 ~ 1339 nm |
≤3.5 ps/(nm. km) |
| @ 1550 nm |
≤18 ps/(nm. km) |
| @ 1625 nm |
≤22 ps/(nm. km) |
| PMDQ |
≤0.2 ps/km1/2 |
| Mode Field Diameter @ 1310 nm |
9.2±0.4 um |
| Core Concentricity Error |
≤0.6 um |
| Cladding Diameter |
125.0±0.7 um |
| Cladding Non-circularity |
≤1.0% |
| Coating Diameter |
245±10 um |
| Proof Test |
100 kpsi (=0.69 Gpa), 1% |
Fiber & Tube Color
Features

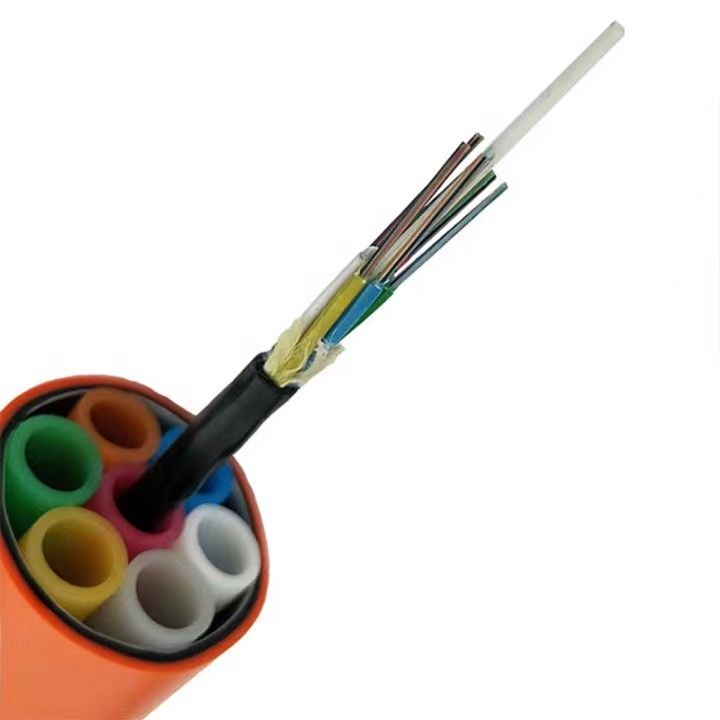

GCYFY loose-shell twisted air-blown micro-cable adopts non-metallic reinforcement and no armor structure, which can be hauled or air-blown micro-pipe in the outer protective tube that has been laid, and then air-blown The laying method breaks through the limitation of the existing pipeline cable laying technology, improves the utilization efficiency of the pipeline, and is easy to expand
Cable Parameters
|
Cores
|
Cores/tube
|
FRP diameter (mm)
|
Sheath thickness (mm)
|
Approx. overall diameter
(mm)
|
Approx.
weight (kg/km)
|
| 12 |
12 |
1.5 |
0.5±0.1 |
5.6 |
24 |
| 24 |
12 |
1.5 |
0.5±0.1 |
5.6 |
24 |
| 48 |
12 |
1.5 |
0.5±0.1 |
5.6 |
24 |
| 72 |
12 |
1.5 |
0.5±0.1 |
5.6 |
24 |
| 96 |
12 |
2.5 |
0.5±0.1 |
6.6 |
38 |
Environmental Characteristics
| Working temperature |
-35oC ~ +70oC |
| Storage and transportation temperature |
-35oC~ +70oC |
| Installation temperature |
-15oC~ +60oC |
Applications
• The cable can be used as the drop cable of feeder segments in FTTH networks and can be laid by air blowing to connect the branch point with the access point for subscribers. The cable is also applicable in backbone networks , metropolitan area networks and access networks.
Delivery Length
• Standard length: 2,000m; other lengths are also available.
FAQ
Q1: What is the application of GCYFY air-blown micro duct cable?
A: It is mainly used for FTTx, backbone networks, data centers, and metropolitan area networks, offering high fiber density and fast installation.
Q2: How is the cable installed?
A: The GCYFY cable is designed for air-blown installation into micro ducts, enabling quick, flexible, and cost-effective deployment.
Q3: What are the advantages of the stranded loose tube structure?
A: It provides excellent mechanical strength, flexibility, and protection of fibers, ensuring stable transmission performance.
Q4: Is the cable water-resistant?
A: Yes, the loose tubes are filled with water-blocking gel to prevent moisture penetration and protect the fibers.
Q5: What fiber counts are available?
A: Common options include 24, 48, and 96 cores, but custom fiber counts can be provided according to project requirements.
Q6: Do you offer OEM service?
A: Yes, we support OEM orders and can print your logo or label on products and packaging.
Q7: Can I get samples before bulk purchase?
A: Absolutely, sample orders are available for quality testing and evaluation.
