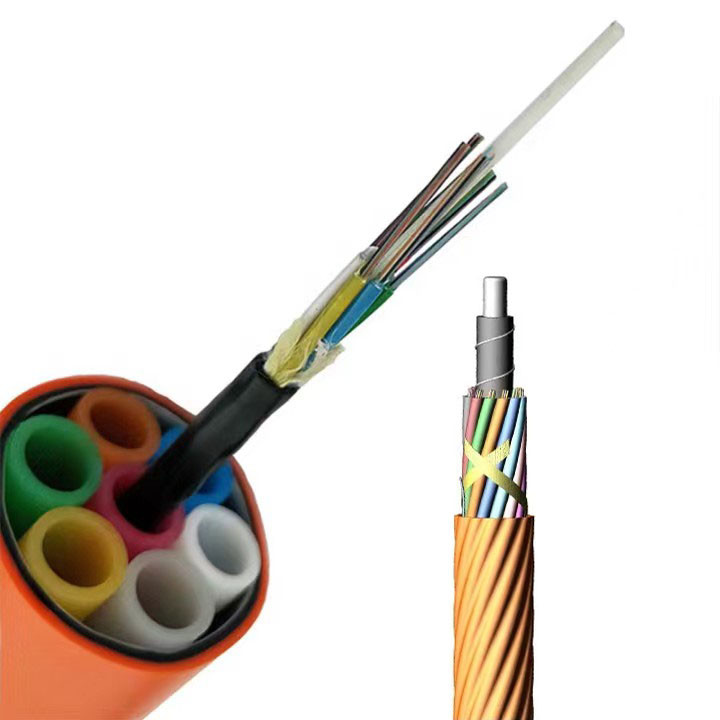

96 Core GCYFY Air Blown Microduct Fiber Cable Stranded Loose Tube High Speed Data Transmission

Contact Now

96 Core GCYFY Air Blown Microduct Fiber Cable Stranded Loose Tube High Speed Data Transmission

Minimum Order Quantity :	1km	Packaging Details :	wooden drum
Delivery Time :	5-8 work days	Payment Terms :	L/C, T/T, Western Union
Supply Ability :	30km per day

Place of Origin:	Guangzhou, China	Brand Name:	JQ/OEM/Customize
Certification:	ISO9001 ROHS CE-EMC FCC SDOC	Model Number:	GCYFY/GCYFTY

Detail Information
Fiber Count:	4-144Cores	Fiber Type:	Single Mode/multi Mode
Jacket:	PE/PVC/LSZH/HDPE/MDPE	Color:	Black Or Orange Or Customized
Product Name:	Air-blown Micro Cable	Model Number:	GCYFY/GCYFTY
Length:	2km Or Customized Length	Installation:	Aerial Or Duct
Number Of Conductors:	≥ 10	Outdoor:	Outdoor Fiber Optic Cable
Central Strength Member:	FRP Or Steel Wire	Waterblocking Material:	Water Blocking Tape Or Filling Compound
Armor:	Corrugated Steel Tape Armor	Cable Size:	8mm~16mm
Cores:	As Per Buyer's Request	Cable Structure:	Multi-Loose Tube Steel Tape Armor
Rts:	45-80 KN	Operating Temperature:	-40°C To +70°C
Oem:	Acceptable	Warranty:	25 Years
Loose Tube:	PBT	Model:	Armored Fiber Optic Cable
Jacket Material:	PE	Fiber Model:	Singlemode/Multimode
Core:	12-144cores	Messenger Diameter:	5.0mm
Out Jacket Color:	Black	Out Sheath:	HDPE
Lift Time:	More Than 20 Years	Loose Tube Material:	PBT
Structuer:	Central Loose Tube	Inner Sheath Material:	PE/HDPE
Sample:	Free	Core Number:	6cores/8cores/12cores
Strength Member:	Steel Wire	Cable Type:	Loose Tube
Highlight:	96 core microduct fiber cable , air blown outdoor fiber optic , loose tube high speed cable

Product Description

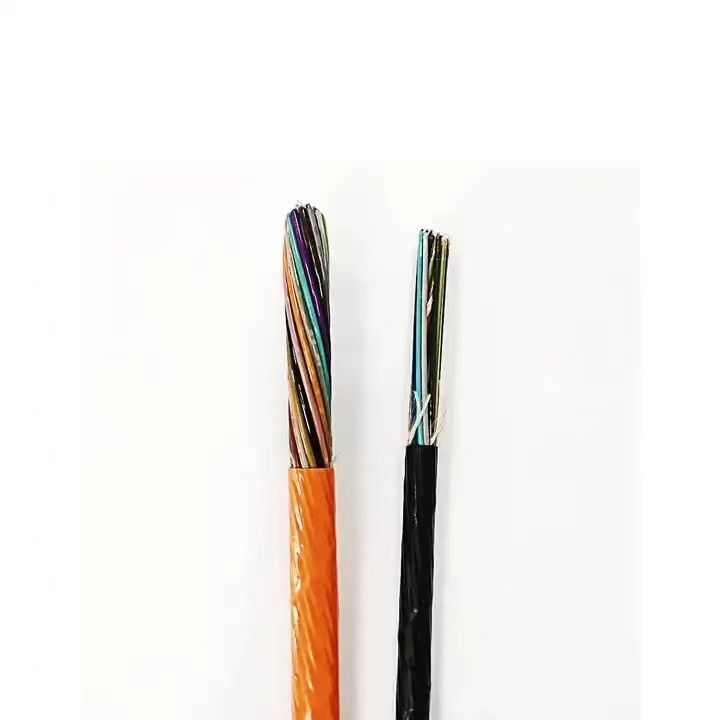

Stranded Loose Tube GCYFY Air-Blown Micro Duct Cable

Product Description

The GCYFY air-blown micro duct cable features a stranded loose tube design for high-performance communication networks. Compact, lightweight, and easy to handle, it is optimized for air-blown installation in micro ducts, allowing rapid and cost-effective deployment.

Each loose tube houses premium optical fibers with water-blocking gel, ensuring strong mechanical protection and stable signal transmission even in harsh conditions. The stranded construction improves tensile strength, while the durable outer sheath resists moisture and environmental impact.

Thanks to its high fiber count and efficient structure, this GCYFY cable is ideal for FTTx, backbone links, data centers, and metro networks requiring high-speed, high-capacity data transmission.

1. Model: GCYFY-96B1.3

2. Cable Cross-section

96 Core GCYFY Air Blown Microduct Fiber Cable Stranded Loose Tube High Speed Data Transmission 0

Optical Characteristics

Item	Specification
Fiber type	G.652D
Attenuation
@ 1310 nm	≤0.36 dB/km
@ 1383 nm	≤0.35 dB/km
@ 1550 nm	≤0.22 dB/km
@ 1625 nm	≤ 0.30 dB/km
Cable Cut-off Wavelength(λcc)	≤1260 nm
Zero Dispersion Wavelength(nm)	1300 ~ 1324 nm
Zero Dispersion Slope	≤0.092 ps/(nm2.km)
Chromatic Dispersion
@ 1288 ~ 1339 nm	≤3.5 ps/(nm. km)
@ 1550 nm	≤18 ps/(nm. km)
@ 1625 nm	≤22 ps/(nm. km)
PMDQ	≤0.2 ps/km1/2
Mode Field Diameter @ 1310 nm	9.2±0.4 um
Core Concentricity Error	≤0.6 um
Cladding Diameter	125.0±0.7 um
Cladding Non-circularity	≤1.0%
Coating Diameter	245±10 um
Proof Test	100 kpsi (=0.69 Gpa), 1%

Fiber & Tube Color

Features
GCYFY stranded loose tube air-blown micro cable uses a non-metallic strength member and unarmored structure, making it lightweight and flexible. It can be installed by air-blowing into pre-laid micro ducts, eliminating the constraints of traditional cable-laying methods. This design increases duct utilization, simplifies network expansion, and supports efficient, scalable deployment.

Cable Parameters

Cores

Cores/tube

FRP diameter (mm)

Sheath thickness (mm)

Approx. overall diameter

(mm)

Approx.

weight (kg/km)

1.5

0.5±0.1

5.6

1.5

0.5±0.1

5.6

48	12	1.5	0.5±0.1	5.6	24
72	12	1.5	0.5±0.1	5.6	24
96	12	2.5	0.5±0.1	6.6	38

Environmental Characteristics

Working temperature	-35oC ~ +70oC
Storage and transportation temperature	-35oC~ +70oC
Installation temperature	-15oC~ +60oC

Applications
• Ideal as a drop cable in FTTH networks, connecting branch points to subscriber access points through air-blown installation.
• Suitable for backbone, metropolitan area, and access networks requiring high-speed, high-capacity transmission.

Delivery Length
• Standard supply length: 2,000 m per reel; custom lengths available on request.

96 Core GCYFY Air Blown Microduct Fiber Cable Stranded Loose Tube High Speed Data Transmission 3

FAQ

Q1: What is GCYFY air-blown micro duct cable used for?
A: It is widely applied in FTTx projects, backbone links, data centers, and metro networks, delivering high fiber capacity and fast deployment.

Q2: How is it installed?
A: The cable is air-blown into micro ducts, allowing quick, flexible, and cost-efficient installation.

Q3: Why use a stranded loose tube design?
A: It enhances strength, flexibility, and fiber protection, ensuring stable data transmission.

Q4: Is it water-resistant?
A: Yes, water-blocking gel inside the loose tubes prevents moisture and safeguards fibers.

Q5: What fiber counts are available?
A: Standard counts include 24, 48, and 96 cores, with custom options available on request.

Q6: Do you offer OEM service?
A: Yes, we can provide OEM service and print your logo or label on the cable and packaging.

Q7: Can I request samples?
A: Yes, sample orders are available for quality testing before bulk purchase.
