48 96 Core GCYFY Air Blown Microduct Stranded Loose Tube Fiber Optic Cable

Contact Now

48 96 Core GCYFY Air Blown Microduct Stranded Loose Tube Fiber Optic Cable

Minimum Order Quantity :	1km	Packaging Details :	wooden drum
Delivery Time :	5-8 work days	Payment Terms :	L/C, T/T, Western Union
Supply Ability :	30km per day

Place of Origin:	Guangzhou, China	Brand Name:	JQ/OEM/Customize
Certification:	ISO9001 ROHS CE-EMC FCC SDOC	Model Number:	GCYFY/GCYFTY

Detail Information
Fiber Count:	4-144 Cores	Fiber Type:	Single Mode/multi Mode
Jacket:	PE/PVC/LSZH/HDPE/MDPE	Color:	Black Or Orange Or Customized
Product Name:	Air-blown Micro Cable	Model Number:	GCYFY/GCYFTY
Length:	2km Or Customized Length	Structure:	Micro Cable
Highlight:	48 96 core fiber optic cable , air blown microduct fiber cable , stranded loose tube outdoor cable

Product Description

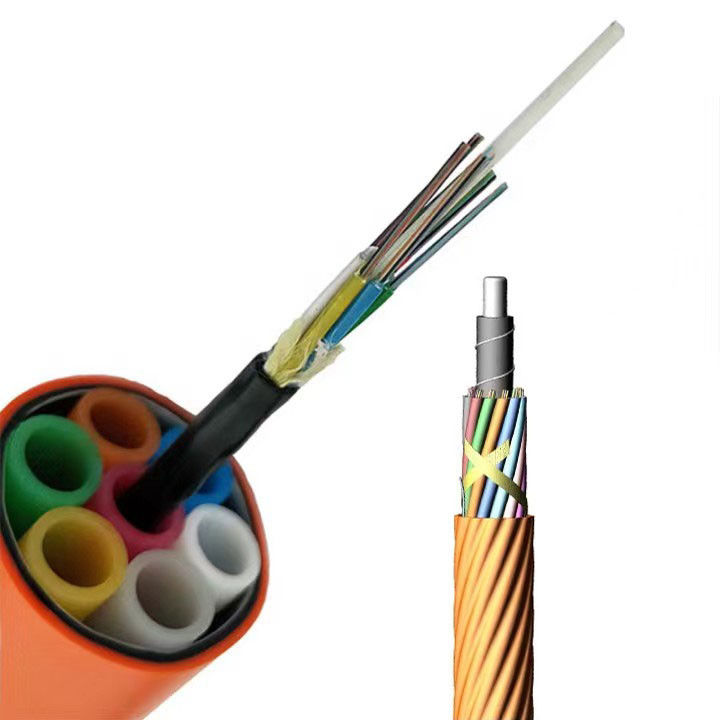

GCYFY Air-Blown Micro Duct Fiber Optic Cable

Key Features & Advantages

Stranded Loose Tube Design: Compact, lightweight, and flexible for easy air-blown installation in micro ducts—fast, efficient, and cost-effective deployment.
Superior Protection: Water-blocking gel safeguards fibers; high mechanical/tensile strength ensures reliable high-speed transmission in harsh environments.
Durable Sheath: Resists moisture and environmental stress for long-term performance.
High Density: Optimized for large-capacity data, ideal for modern networks.

Applications

FTTH drop cable: Air-blown from branch to subscriber access points in feeder segments.
Backbone, metropolitan, and access networks: Supports high-speed FTTx, data centers, and urban connectivity.

1. Model: GCYFY-96B1.3

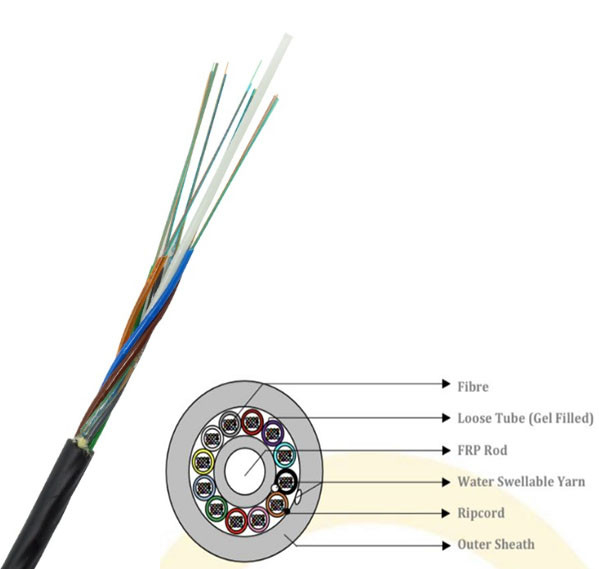

2. Cable Cross-section

Optical Characteristics

Item	Specification
Fiber type	G.652D
Attenuation
@ 1310 nm	≤0.36 dB/km
@ 1383 nm	≤0.35 dB/km
@ 1550 nm	≤0.22 dB/km
@ 1625 nm	≤ 0.30 dB/km
Cable Cut-off Wavelength(λcc)	≤1260 nm
Zero Dispersion Wavelength(nm)	1300 ~ 1324 nm
Zero Dispersion Slope	≤0.092 ps/(nm2.km)
Chromatic Dispersion
@ 1288 ~ 1339 nm	≤3.5 ps/(nm. km)
@ 1550 nm	≤18 ps/(nm. km)
@ 1625 nm	≤22 ps/(nm. km)
PMDQ	≤0.2 ps/km1/2
Mode Field Diameter @ 1310 nm	9.2±0.4 um
Core Concentricity Error	≤0.6 um
Cladding Diameter	125.0±0.7 um
Cladding Non-circularity	≤1.0%
Coating Diameter	245±10 um
Proof Test	100 kpsi (=0.69 Gpa), 1%

48 96 Core GCYFY Air Blown Microduct Stranded Loose Tube Fiber Optic Cable 0

Fiber & Tube Color

Cable Parameters

Cores

Cores/tube

FRP diameter (mm)

Sheath thickness (mm)

Approx. overall diameter

(mm)

Approx.

weight (kg/km)

1.5

0.5±0.1

5.6

1.5

0.5±0.1

5.6

48	12	1.5	0.5±0.1	5.6	24
72	12	1.5	0.5±0.1	5.6	24
96	12	2.5	0.5±0.1	6.6	38

Environmental Characteristics

Working temperature	-35oC ~ +70oC
Storage and transportation temperature	-35oC~ +70oC
Installation temperature	-15oC~ +60oC

FAQ

Q1: What are the applications of GCYFY air-blown micro duct cable? A: Ideal for FTTx, backbone networks, data centers, and metro networks—high density with fast installation.

Q2: How is the cable installed? A: Via air-blowing into micro ducts for quick, flexible, and low-cost deployment.

Q3: What are the benefits of its stranded loose tube structure? A: Offers superior mechanical strength,

flexibility, and fiber protection for reliable transmission.

Q4: Is the cable water-resistant? A: Yes, water-blocking gel in loose tubes prevents moisture damage.

Q5: What fiber counts are available? A: Standard: 24, 48, 96 cores; custom options per project needs.

Q6: Do you offer OEM service? A: Yes, including logo/label printing on products and packaging.

Q7: Can I get samples before bulk order? A: Yes, samples available for quality testing.
