High Strength ASU Outdoor Fiber Optic Cable with Unitube Design for Long Span Aerial Installations
High Strength ASU Outdoor Fiber Optic Cable with Unitube Design for Long Span Aerial Installations
High Strength ASU Outdoor Fiber Optic Cable with Unitube Design for Long Span Aerial Installations High Strength ASU Outdoor Fiber Optic Cable with Unitube Design for Long Span Aerial Installations High Strength ASU Outdoor Fiber Optic Cable with Unitube Design for Long Span Aerial Installations High Strength ASU Outdoor Fiber Optic Cable with Unitube Design for Long Span Aerial Installations
Contact Now

High Strength ASU Outdoor Fiber Optic Cable with Unitube Design for Long Span Aerial Installations

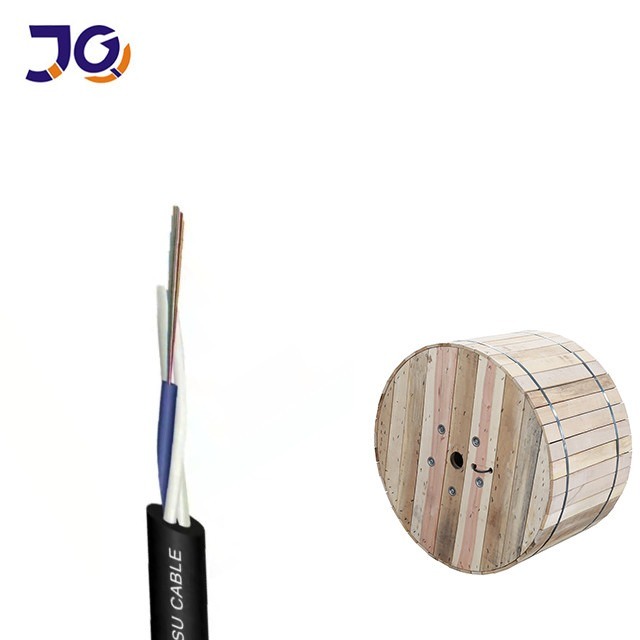

Minimum Order Quantity : 1KM Packaging Details : wooden drum
Delivery Time : 3-5 days, it depends on your quantity Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability : 60000KM/month
Place of Origin: Guangdong China Brand Name: jiqian/haiso/Customize/ ODM
Certification: ISO9001 ROHS CE-EMC FCC SDOC Model Number: ASU

Detail Information
Fiber Count: 2 12 24 48 Core Jacket: PE,MDPE,LSZH,PVC,HDPE
Color: Yellow Warranty: 25 Years
Fiber Brand: YOFC/Fiberhome/Fujikura/Corning Length: 1km/2km/3km/4km
Laying Method: Duct,Aerial Laying Fiber Model: Singlemode/Multimode
Highlight:

ASU outdoor fiber optic cable

,

unitube fiber optic cable

,

long span aerial fiber cable

Product Description

Product Title:
Outdoor ASU Fiber Optic Cable | 6–12 Core, 80–120m Span

Overview:
Lightweight, self-supporting unitube cable for outdoor long-span use. Non-metallic strength members ensure safety and stable performance in harsh conditions.



Technical parameters:

No. of cable 1-12
Fiber Model G.652D
Strength Member Material FRP
Diameter(±0.05)mm 1.8



Loose Tube

 Material PBT
Diameter(±0.06)mm 1.8
Thickness(±0.03)mm 0.35
The Max.Core NO./Tube 12
Outer Sheath Material PE
Cable Diameter(±0.2)mm 6.7
Cable Weight(±5)kg/km 38



Min. bending radius

 Without Tension 10.0×Cable-φ
Under Maximum Tension 20.0×Cable-φ



Temperature range

(℃)

 Installation -20~+60
Transport&Storage -40~+70
Operation -40~+7



Key Features:

  • Self-supporting, no messenger wire

  • Compact unitube, lightweight

  • High tensile strength, 80–120m spans

  • All-dielectric, EMI-free

  • UV- and weather-resistant

  • Single-mode, 6–12 cores

Applications:

  • Overhead telecom lines

  • Rural/suburban networks

  • FTTH/FTTx access

  • Campus connections

  • MAN networks

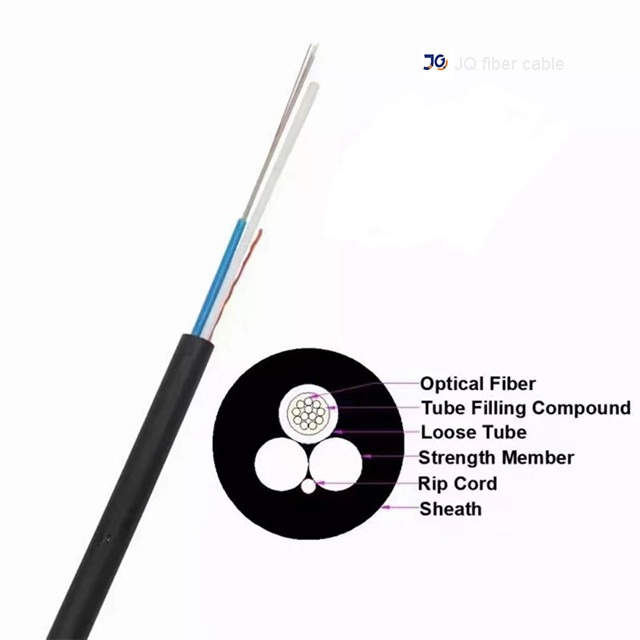

Structure:

  • Fiber: 2–12 cores, Single Mode (G652D / G657A1 / G657A2)

  • Construction: Loose tube with water-blocking gel

  • Fiber Brand: YOFC

  • Armor: Non-armored, mini ADSS, all-dielectric with FRP strength members

  • Strength Member: Two FRP rods for extra tensile support

  • Outer Jacket: Black PE, UV- and moisture-resistant

High Strength ASU Outdoor Fiber Optic Cable with Unitube Design for Long Span Aerial Installations 0





High Strength ASU Outdoor Fiber Optic Cable with Unitube Design for Long Span Aerial Installations 1

FAQ – ASU Fiber Optic Cable

Q1: What is an ASU cable?
A1: A non-metallic, self-supporting unitube cable for outdoor aerial use, offering high tensile strength and long spans without messenger wires.

Q2: What span options are available?
A2: ASU 80 (up to 80m), ASU 100 (up to 100m), and ASU 120 (up to 120m).

Q3: What fiber types are supported?
A3: Single-mode G652D, G657A1, and G657A2, with 2–12 cores.

Q4: Safe near power lines?
A4: Yes, fully dielectric and EMI-free.

Q5: OEM or custom services?
A5: Yes, including custom cores, fiber types, and logos.

Q6: How is it protected?
A6: UV- and moisture-resistant PE jacket, aramid/FRP strength members, and gel-filled loose tubes.

Q7: Typical installation environments?
A7: Aerial telecom, FTTH/FTTx, campus, inter-building, and metro/backbone networks.
