GYXTW Single Mode Armored HDPE Fiber Optic Cable for Aerial/Duct Use
GYXTW Single Mode Armored HDPE Fiber Optic Cable for Aerial/Duct Use
GYXTW Single Mode Armored HDPE Fiber Optic Cable for Aerial/Duct Use GYXTW Single Mode Armored HDPE Fiber Optic Cable for Aerial/Duct Use GYXTW Single Mode Armored HDPE Fiber Optic Cable for Aerial/Duct Use GYXTW Single Mode Armored HDPE Fiber Optic Cable for Aerial/Duct Use
Contact Now

GYXTW Single Mode Armored HDPE Fiber Optic Cable for Aerial/Duct Use

Minimum Order Quantity : 1KM Price : 60-200USD/KM
Packaging Details : wooden drum Delivery Time : 3-5 days, it depends on your quantity
Payment Terms : L/C, D/A, T/T, Western Union, MoneyGram Supply Ability : 60000KM/month
Place of Origin: Guangdong,China Brand Name: Jiqian/Customize/ OEM
Certification: CE/ISO9001/RoHS/FCC Model Number: GYXTW-4/6/8/12B1

Detail Information
Fiber Count: 2-24Core Armored: Yes
Construction: Stranded Loose Tube No Of Core: 24 Pairs
Connector Type: SC, LC, FC, ST, Or Customized Outer Diameter: 10.5~18.8+_0.5mm
Strengthen Core: FRP Fiber Code: GYTA53
Highlight:

single mode armored fiber optic cable

,

HDPE fiber optic cable for aerial

,

duct use fiber optic cable

Product Description

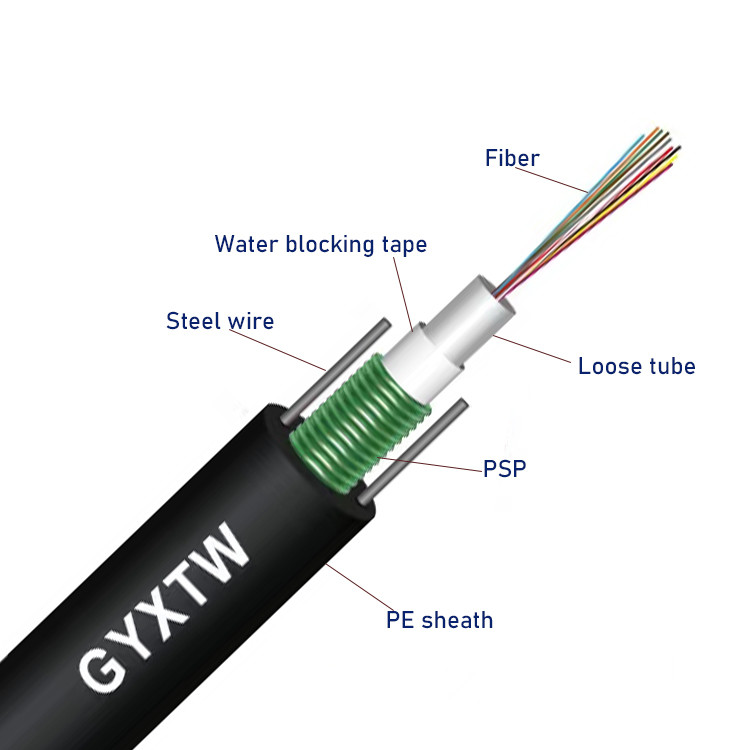

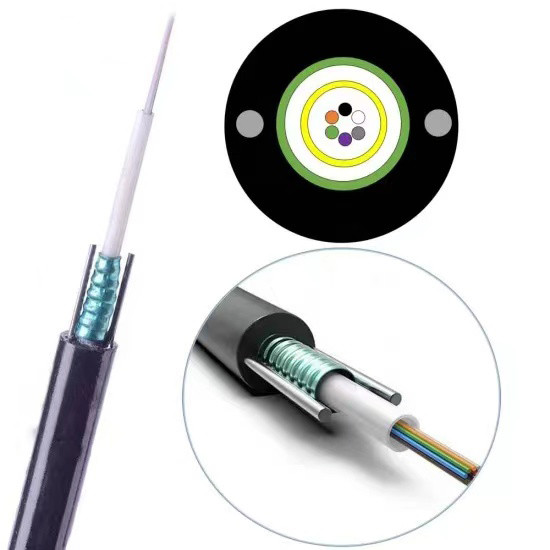

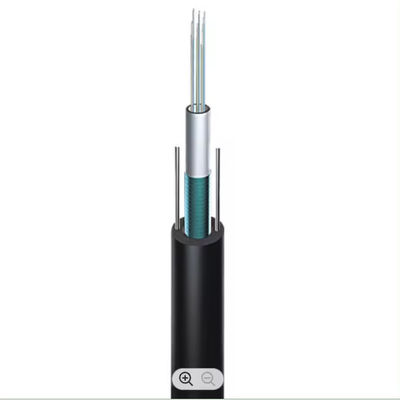

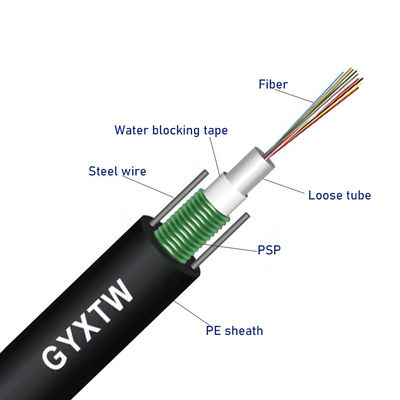

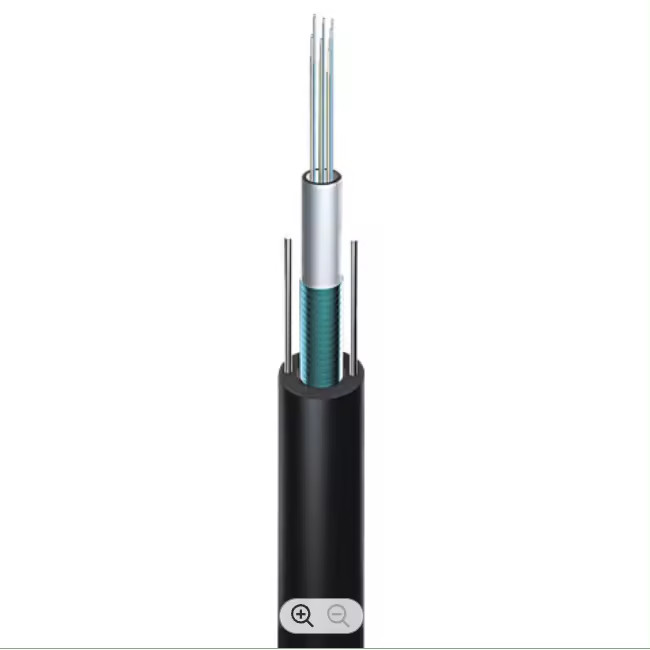

GYXTW Fiber Optic Cable – Armored Outdoor Type

Characteristics

  • Steel wire strength member for extra protection

  • Tape-armored design for high durability

  • Excellent mechanical and environmental performance

  • Compact, lightweight, and easy to install

Operating Temperature

  • −40°C to +60°C

Applications

  • Designed for outdoor distribution networks

  • Suitable for aerial and duct installations

  • Ideal for long-distance and LAN communication

  • PRODUCT SPECIFICATIONS

Item
Parameters
Fiber Count
12
Colored coated fiber
Dimension
250µm±15µm
Color
Blue,Orange,Green,Brown,Gray,White,Red,Black,Yellow,Purple,Pink,Aqua
Loose tube
Dimension
2.2mm±0.1mm
Material
PBT
Color
nature
Filler
MATERIAL
none
color
none
Strength Member
Dimension
0.7mm±0.05mm
material
Phosphating steel wire
Armoured
Material
Plastic coated steel strip
Outer jacket
Material
PE
color
black

GYXTW Single Mode Armored HDPE Fiber Optic Cable for Aerial/Duct Use 0

GYXTW Single Mode Armored HDPE Fiber Optic Cable for Aerial/Duct Use 1
FAQ

  1. FAQ

    Q: Are you a factory?
    A: Yes, we are a manufacturer.

    Q: MOQ?
    A: 1km per order.

    Q: Fiber brands?
    A: Corning, YOFC, Fiberhome, etc.

    Q: Small orders accepted?
    A: Yes, trial orders are welcome.

    Q: Delivery time?
    A: 5–7 days after confirmation.

    Q: OEM service?
    A: Yes, customized logo and products available.

    Q: Payment terms?
    A: T/T, L/C, Western Union (30% deposit, 70% before shipment).
