GYTS Armored Underground Fiber Optic Cable 2 288 Cores Direct Burial Duct Laying
GYTS Armored Underground Fiber Optic Cable 2 288 Cores Direct Burial Duct Laying
GYTS Armored Underground Fiber Optic Cable 2 288 Cores Direct Burial Duct Laying GYTS Armored Underground Fiber Optic Cable 2 288 Cores Direct Burial Duct Laying GYTS Armored Underground Fiber Optic Cable 2 288 Cores Direct Burial Duct Laying GYTS Armored Underground Fiber Optic Cable 2 288 Cores Direct Burial Duct Laying
Contact Now

GYTS Armored Underground Fiber Optic Cable 2 288 Cores Direct Burial Duct Laying

Minimum Order Quantity : 1KM Packaging Details : wooden drum
Delivery Time : 3-5 days, it depends on your quantity Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability : 60000KM/month
Place of Origin: Guangdong China Brand Name: Jiqian/Customize/ OEM
Certification: CE/ISO9001/RoHS/FCC Model Number: GYTS-48B1

Detail Information
Fiber Type: G652D/G657A1/G657A2 Fiber Count: 2-288 Cores
Jacket: PE,MDPE,LSZH,PVC,HDPE Color: Black
Length: 2km , 5Km, Or Customized Length Warranty: 10 Years
Application: Duct/ Direct Burial Wave Length: 1310/1550
Highlight:

armored underground fiber optic cable

,

direct burial fiber optic cable 288 cores

,

duct laying outdoor fiber optic cable

Product Description

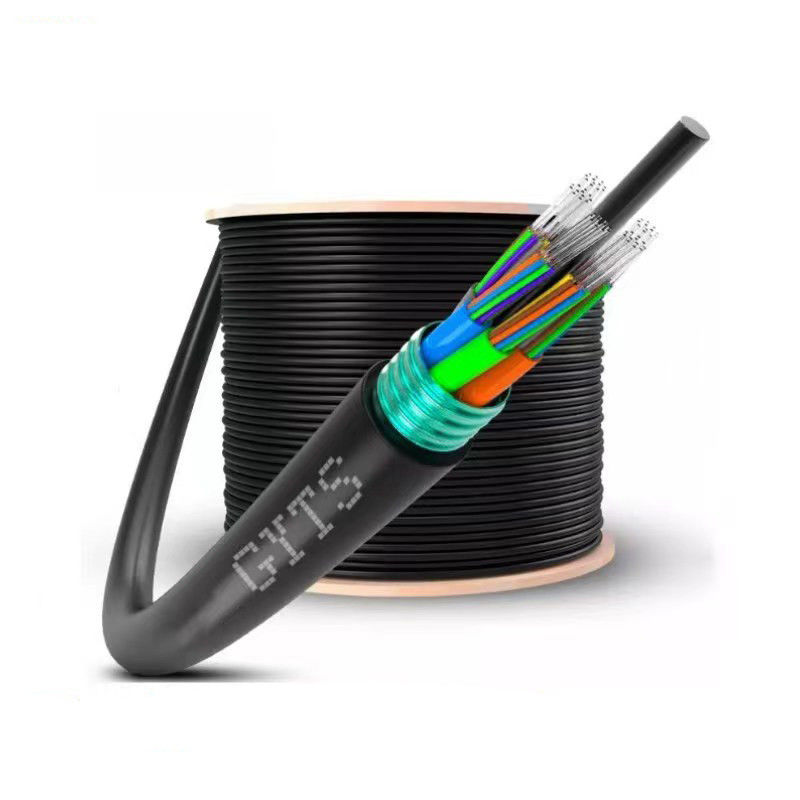

GYTS Armored Underground Fiber Optic Cable

The GYTS armored cable (2–48 cores) is built for reliable underground and direct burial installations. Its strong armored structure ensures durability, protection, and stable long-distance transmission for telecom and data networks.



Product Features

  • Designed for underground and direct burial use

  • High mechanical strength and environmental protection

  • Stable, long-distance signal transmission

  • Available in 2–48 cores

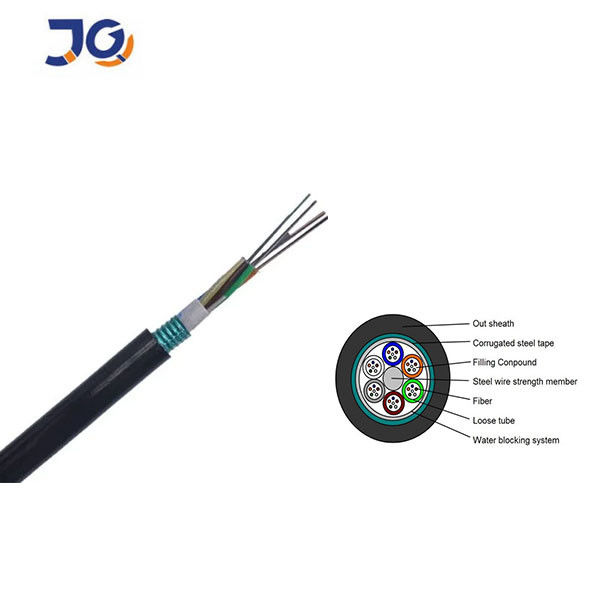

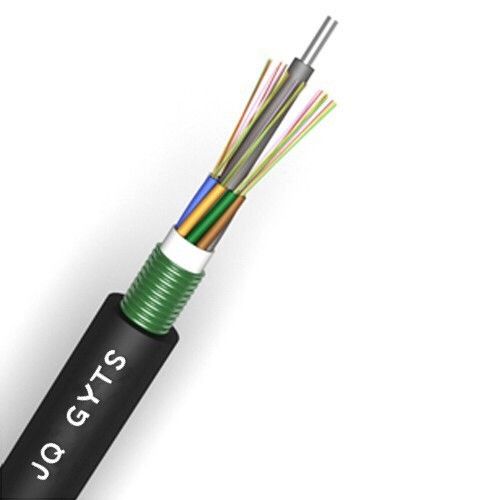

Structural Features
Loose tubes are stranded around a central steel strength member.
The core is reinforced with corrugated steel tape and protected by a PE jacket.
Tubes house single-mode or multi-mode fibers made from heat-resistant materials.


Technical Parameters:
Cable Type (increased by 2fibers)
Fiber Count
Tubes+Fillers
Cable Diameter mm
Cable Weight kg/km
Tensile Strength Long/Short Term N
Crush Resistance Long/Short Term N/100mm
Bending Radius Static/Dynamic mm
GYTS 2 ~ 30
2~30
5
9.5
80
600/1500
300/1000
10D/20D
GYTS 32 ~36
32~36
6
9.7
97
600/1500
300/1000
10D/20D
GYTS 38 ~60
38~60
6
10.5
109
600/1500
300/1000
10D/20D
GYTS 62 ~72
62~72
6
11.5
126
600/1500
300/1000
10D/20D
GYTS 74 ~96
74~96
8
13.2
153
600/1500
300/1000
10D/20D
GYTS
98 ~120
98~120
10
14.6
182
600/2000
300/1000
10D/20D
GYTS
122 ~ 144
122~144
12
16.5
221
600/2500
300/1000
10D/20D
GYTS
146 ~ 216
146~216
18
16.5
221
600/2500
300/1000
10D/20D



GYTS Armored Underground Fiber Optic Cable 2 288 Cores Direct Burial Duct Laying 0

GYTS Armored Underground Fiber Optic Cable 2 288 Cores Direct Burial Duct Laying 1
Fiber Tube Color:
GYTS Armored Underground Fiber Optic Cable 2 288 Cores Direct Burial Duct Laying 2

Packaging Details

  • Wooden reel options: 1000m, 2000m, 3000m, or custom lengths.

  • Inner packaging in fumigated wooden drum, outer covered with polyethylene sheet, sealed with sturdy wooden battens.

GYTS Armored Underground Fiber Optic Cable 2 288 Cores Direct Burial Duct Laying 3
Delivery
For large orders: by sea (LCL or FCL)
For small orders: by sea (LCL), by air or by courier services(DHL ,UPS,TNT.....)


Frequently Asked Questions (FAQ)

1. What is a fiber optic cable?
It transmits data as light signals, offering higher speed and bandwidth than copper cables.



2. What types do you offer?
We provide armored, drop, and loose tube cables for FTTH and underground applications.



3. What core counts are available?
2–48 cores standard; custom options available.



4. Single-mode vs. multi-mode?
Single-mode: long-distance, high speed.
Multi-mode: short-distance, high data rate.



5. How are cables packaged?
On fumigated wooden drums with PE wrapping and wooden battens.



6. How to choose the right cable?
Consider core count, fiber type, and installation environment. We can assist with selection.



7. What’s the lead time?
7–10 business days for standard orders; longer for custom ones.



8. Do you offer installation?
No, but we can recommend reliable partners.



9. How to get a quote?
Email jiqian@gzjqofc.com with your required type, core count, and quantity.
