GYFTY Non Metallic Strength Member Outdoor Fiber Optic Cable Non Armored Anti EMI Design

1000m
MOQ
GYFTY Non Metallic Strength Member Outdoor Fiber Optic Cable Non Armored Anti EMI Design
Features Gallery Product Description Request A Quote
Features
Specifications
Fiber Type: G652D Single Mode Or As Your Request
Oem: Available
Application: Aerial/duct/overhead
Number Of Conductors: 72/48core
Structure: Stranded Loose Tube
Operating Temperature: -40 ~ +60 C
Central Strength Member: FRP Glass Yarn Strength Member
Fiber Brand: YOFC/Fiberhome/Fujikura/Corning
Highlight:

non metallic outdoor fiber optic cable

,

anti EMI outdoor fiber cable

,

non armored fiber optic cable
Basic Infomation
Place of Origin: China
Brand Name: Jiqian/Customize/ OEM
Certification: ISO9001 ROHS CE-EMC FCC SDOC
Model Number: GYFTY-24F
Payment & Shipping Terms

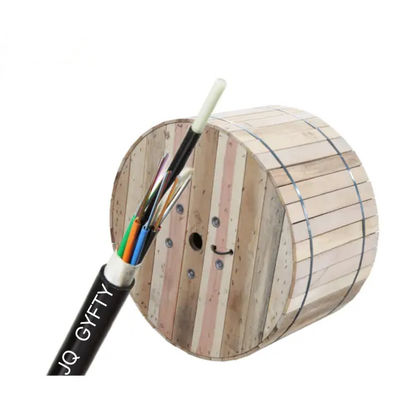

Packaging Details: wooden drum
Delivery Time: 2-4day
Payment Terms: Western Union, T/T, L/C
Supply Ability: 100km per 2 day
Product Description

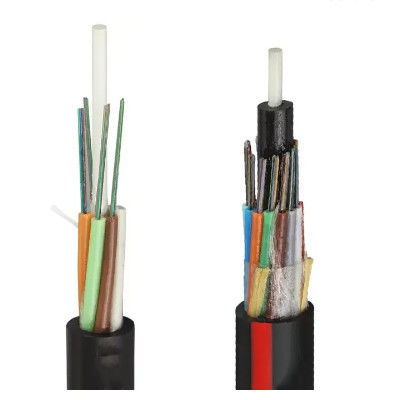

GYFTY Non Metallic Strength Member Non Armored Outdoor Fiber Optic Cable

Product Description

GYFTY is a non armored outdoor fiber optic cable with a non metallic FRP central strength member. Optical fibers are placed in hydrolysis resistant loose tubes filled with water blocking compound. The cable core is stranded into a compact structure and protected by a PE outer jacket, ensuring stable performance for aerial and duct installation.

Key Features

  • Non metallic FRP strength member anti EMI

  • Good mechanical and temperature performance

  • Hydrolysis resistant loose tube design

  • Water blocking compound for reliable protection

  • Good flexibility and crush resistance

Product Standard / PRODUCT

·GYFTY cable complies with Standard YD/T 901-2009 as well as IEC 60794-1.

Optical Characteristics / PRODUCT

  G.652 G.655 50/125μm 62.5/125μm
Attenuation
(+20℃)		 @850nm     ≤3.0dB/km ≤3.0dB/km
@1300nm     ≤1.0dB/km ≤1.0dB/km
@1310nm ≤0.36dB/km ≤0.36dB/km
@1550nm ≤0.22dB/km ≤0.23dB/km
Bandwidth (Class A) @850     ≥500MHZ·km ≥200MHZ·km
@1300     ≥1000MHZ·km ≥600MHZ·km
Numerical Aperture       0.200±0.015NA 0.275±0.015NA
Cable Cut-off Wavelength λcc   ≤1260nm ≤1480nm

Technical Parameters / PRODUCT

Cable Type Fiber Count Loose tube count Filler count Cable Diameter
Mm		 Cable Weight
Kg/km		 Tensile Strength
Long/short term
N		 Crush Resistance
Long/short term N/100mm		 Bending
Radius
Static/dynamic mm
GYFTY-2~6 2~6 1 4 9.0 88 800/1500 500/1000 15D/30D
GYFTY-8~12 8~12 2 3 9.0 88 800/1500 500/1000 15D/30D
GYFTY-14~18 14~18 3 2 9.0 88 800/1500 500/1000 15D/30D
GYFTY-20~24 20~24 4 1 9.0 88 800/1500 500/1000 15D/30D
GYFTY-26~30 26~30 5 0 9.0 88 800/1500 500/1000 15D/30D
GYFTY-32~36 32~36 5 0 9.0 88 800/1500 500/1000 15D/30D
GYFTY-38~48 38~48 5 0 9.0 88 800/1500 500/1000 15D/30D
GYFTY-50~60 50~60 5 0 9.0 88 800/1500 500/1000 15D/30D
GYFTY-62~72 62~72 6 0 9.5 100 1000/2000 500/1000 15D/30D
GYFTY-74~84 74~84 7 1 10.5 120 1000/2000 500/1000 15D/30D
GYFTY-86~96 86~96 8 0 10.5 120 1500/2500 500/1000 15D/30D
GYFTY-98~108 98~108 9 1 11.5 150 1500/2500 500/1000 15D/30D
GYFTY-110~120 110~120 10 0 12.0 150 1500/2500 500/1000 15D/30D
GYFTY-122~144 122~144 12 0 13.0 150 1500/2500 500/1000 15D/30D
GYFTY-146~216 146~216 18 0 13.0 150 1000/2000 500/1000 15D/30D

GYFTY Non Metallic Strength Member Outdoor Fiber Optic Cable Non Armored Anti EMI Design 0
storage/Operating Temperature : -40℃ to + 70℃GYFTY Non Metallic Strength Member Outdoor Fiber Optic Cable Non Armored Anti EMI Design 1



FAQ

1 Are you a manufacturer
Yes we are a direct factory in Guangzhou China



2 What is the minimum order quantity
MOQ is 1 km Trial orders are supported



3 Can I get a sample
Free samples are available Freight collected



4 What payment methods do you accept
T T L C Western Union and PayPal



5 What is the delivery time
Usually 3 to 7 working days depending on quantity



6 Do you support customization
Yes OEM ODM service and logo printing are available
