2 Copper Wire OPLC Outdoor Fiber Optic Cable 4 Core YOFC Type Composite Cable

1km
MOQ
2 Copper Wire OPLC Outdoor Fiber Optic Cable 4 Core YOFC Type Composite Cable
Features Gallery Product Description Request A Quote
Features
Specifications
Jacket Material: PE, MDPE, LSZH, HDPE
Fiber Count: 2-144Core
Fiber Type: YOFC Or As Request
Type: Hybrid Fiber Optic Cable
Structure: Stranded Loose Tube
Installation: Aerial/tube/duct
Operating Temperature: -40 ~ +60 C
Application: Telecommunication
Highlight:

4 core outdoor fiber optic cable

,

copper wire OPLC composite cable

,

YOFC type outdoor fiber cable
Basic Infomation
Place of Origin: Guangzhou China
Brand Name: JQ/OEM/Customize
Certification: ISO9001 ROHS CE-EMC FCC SDOC
Model Number: GDTS/OPLC
Payment & Shipping Terms
Packaging Details: 1/2/3/4/5 km in one wooden drum
Delivery Time: 3-5dyas
Payment Terms: L/C, T/T, Western Union
Supply Ability: 30km Per day
Product Description

Outdoor 2 Copper wire OPLC 4 Core Composite Hybrid Optical Fiber Cable

Product Description

Composite fiber optic cable combines optical fibers and metal conductors in one cable to reduce installation cost and time. 250 μm fibers are placed in water blocked loose tubes wrapped with PSP and protected by a PE outer sheath for reliable outdoor performance.

Key Features

  • Composite design for fiber and power transmission

  • Compact lightweight and flexible structure

  • Excellent mechanical and temperature performance

  • Low attenuation and low dispersion

  • Steel wire and corrugated steel tape armor for moisture and crush resistance



Optical Characteristics

Items Unit Specification
G652D
Mode Field Diameter 1310nm um 9.2±0.4
1550nm um 10.4±0.5
Cladding Diameter um 124.8±0.7
Cladding Non-Circularity %  ≤0.7
Core-Cladding Concentricity Error um  ≤0.5
Coating Diameter um 245±5
Coating Non-Circularity %  ≤6.0
Cladding-Coating Concentricity Error um  ≤12
Cable Cutoff Wavelength nm acc≤1260
Attenuation(max.) 1310nm dB/km ≤0.36
1550nm dBkm ≤0.22







Technical Parameters

Range of Temperature -20c~ +60c
Riser Type OFNR/OFN FT4
Plenum Type OFNR/OFN FT6
Jacket LSZH or PE
Code name cable
cores		 Diameter
(mm)		 Copper
Wire
(mm)		 Linear
mass
(kgk
m)		 Tensile Crush Bending
radius
Short
Term
(N)		 Long
Term
(N)		 Short
lerm
N)		 Long
Term
(N)		 short
Term
N)		 Long
Term
(N)
OPLC-2*0.5 6~24 10 2*0.5 125 1500 600 1000 300 20D 10D
OPLC-4*0.5 6-~24 10 4*0.5 130 1500 600 1000 300 20D 10D
OPLC-2*0.75 6~24 10 2*0.75 128 1500 600 1000 300 20D 10D
OPLC-4*0.75 6~24 10 4*0.75 135 1500 600 1000 300 20D 10D
oPLC-2*1.0 6~24 10 2*1.0 130 1500 600 1000 300 20D 10D
OPLC-4*1.0 6-~24 12 4*1.0 150 1500 600 1000 300 20D 10D
OPLC-2*1.5 6~24 12 2*1.5 140 1500 600 1000 300 20D 10D
OPLC-4*1.5 6~24 12 4*1.5 160 1500 600 1000 300 20D 10D
OPLC-2*2.5 6~-24 12 2*2.5 150 1500 600 1000 300 20D 10D
OPLC-4*2.5 6-~24 14.5 4*2.5 180 1500 600 1000 300 20D 10D



Product Image

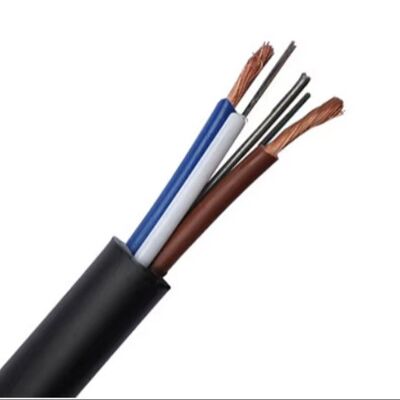

2 Copper Wire OPLC Outdoor Fiber Optic Cable 4 Core YOFC Type Composite Cable 0

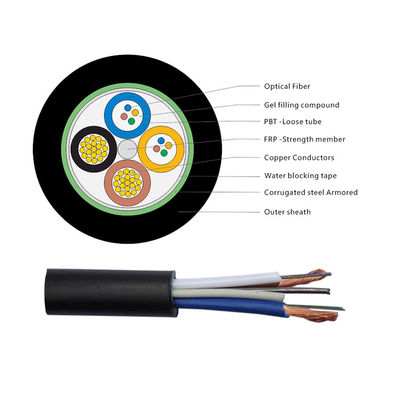

2 Copper Wire OPLC Outdoor Fiber Optic Cable 4 Core YOFC Type Composite Cable 1



FAQ



1. Are you a trading company or manufacturer
We are a manufacturer with over 10 years of experience in fiber optic cables drop cables and patch cords. Our factory is located in Guangzhou and visits are welcome.



2. How do you ensure product quality
All products are fully tested before delivery. Free samples are available after price confirmation.



3. Do you accept small orders
Yes small orders are accepted. We support new projects and long term cooperation.



4. What is your delivery time
Usually 3–7 working days depending on order quantity. Shipment is arranged promptly after payment.



5. Do you support OEM service
Yes OEM service is available. Custom logo and design are supported.
