Stranded Air Blown Micro Duct Fiber Cable 96 Core GCYFY G652D High Density Network Cable

1km
MOQ
Stranded Air Blown Micro Duct Fiber Cable 96 Core GCYFY G652D High Density Network Cable
Features Gallery Product Description Request A Quote
Features
Specifications
Fiber Count: 4-144 Cores
Fiber Type: Single Mode/multi Mode
Jacket: PE/PVC/LSZH/HDPE/MDPE
Color: Black Or Orange Or Customized
Product Name: Air-blown Micro Cable
Length: 2km Or Customized Length
Installation: Aerial Or Duct Pipe Laying
Number Of Conductors: ≥ 10
Highlight:

96 core stranded fiber optic cable

,

air blown micro duct network cable

,

outdoor G652D high density cable
Basic Infomation
Place of Origin: Guangzhou,China
Brand Name: JQ/OEM/Customize
Certification: ISO9001 ROHS CE-EMC FCC SDOC
Model Number: GCYFY/GCYFTY
Payment & Shipping Terms
Packaging Details: wooden drum
Delivery Time: 5-8 work days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 30km per day
Product Description

Stranded Air Blown Micro Duct Fiber Cable 96 Core GCYFY G652D High Density Network Cable

Product Features

  • Air-blown installation for fast and cost-effective deployment

  • Stranded loose tube structure for strong fiber protection

  • Non-metallic design, lightweight and corrosion resistant

  • Compact size for efficient duct space utilization

  • Supports easy network upgrade and expansion

Applications

  • FTTH feeder and drop cable connections

  • Metropolitan and backbone fiber networks

  • Micro duct and access network installations

  • Telecom, broadband, and smart city projects

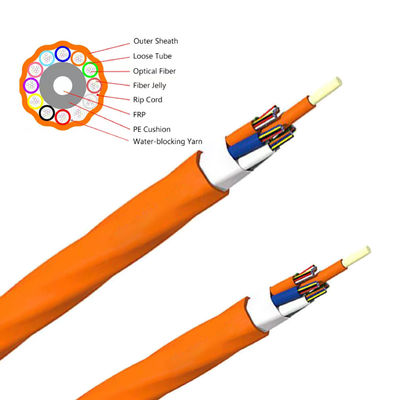

Stranded Air Blown Micro Duct Fiber Cable 96 Core GCYFY G652D High Density Network Cable 0







Optical Characteristics

Item Specification
Fiber type G.652D
Attenuation
@ 1310 nm ≤0.36 dB/km
@ 1383 nm ≤0.35 dB/km
@ 1550 nm ≤0.22 dB/km
@ 1625 nm ≤ 0.30 dB/km
Cable Cut-off Wavelength(λcc) ≤1260 nm
Zero Dispersion Wavelength(nm) 1300 ~ 1324 nm
Zero Dispersion Slope ≤0.092 ps/(nm2.km)
Chromatic Dispersion
@ 1288 ~ 1339 nm ≤3.5 ps/(nm. km)
@ 1550 nm ≤18 ps/(nm. km)
@ 1625 nm ≤22 ps/(nm. km)
PMDQ ≤0.2 ps/km1/2
Mode Field Diameter @ 1310 nm 9.2±0.4 um
Core Concentricity Error ≤0.6 um
Cladding Diameter 125.0±0.7 um
Cladding Non-circularity ≤1.0%
Coating Diameter 245±10 um
Proof Test 100 kpsi (=0.69 Gpa), 1%





Fiber & Tube Color

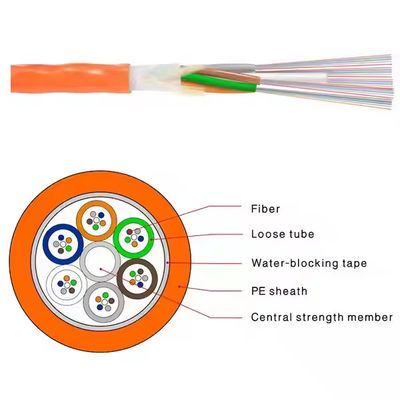

Stranded Air Blown Micro Duct Fiber Cable 96 Core GCYFY G652D High Density Network Cable 1


Stranded Air Blown Micro Duct Fiber Cable 96 Core GCYFY G652D High Density Network Cable 2


Cable Parameters





Cores



Cores/tube



FRP diameter (mm)



Sheath thickness (mm)

Approx. overall diameter

(mm)

Approx.

weight (kg/km)
12 12 1.5 0.5±0.1 5.6 24
24 12 1.5 0.5±0.1 5.6 24
48 12 1.5 0.5±0.1 5.6 24
72 12 1.5 0.5±0.1 5.6 24
96 12 2.5 0.5±0.1 6.6 38





Environmental Characteristics

Working temperature -35oC ~ +70oC
Storage and transportation temperature -35oC~ +70oC
Installation temperature -15oC~ +60oC



FAQ

Q1: What installation method is used for GCYFY cable?
A: It is designed for air-blown installation in micro ducts.



Q2: Is the cable suitable for FTTH networks?
A: Yes, it is widely used as feeder and drop cable in FTTH applications.



Q3: Does the cable contain metal components?
A: No, it adopts a non-metallic structure, providing excellent corrosion resistance and EMI protection.



Q4: Can the cable support future network expansion?
A: Yes, its compact design allows additional cables to be installed in existing ducts.



Q5: What network types is this cable suitable for?
A: It is suitable for backbone networks, metropolitan area networks, and access networks.
