Name: GCYFY Air Blown Micro Fiber Optic Cable 72 96 144 Core Small Diameter For FTTH
Brand: Guangzhou Jiqian Fiber Optic Cable Co., Ltd.
SKU: GCYFY/GCYFTY
Price: 1,249.28 USD
Availability: InStock

Features Gallery Product Description Request A Quote

Features

Specifications

Fiber Count: 2-288 Cores

Fiber Type: Single Mode/multi Mode

Jacket: PE/PVC/LSZH/HDPE/MDPE

Product Name: Air-blown Micro Cable

Model Number: GCYFY/GCYFTY

Length: 2km Or Customized Length

Installation: Aerial Or Duct Pipe Laying

Number Of Conductors: ≥ 10

Highlight:

small diameter fiber optic cable

FTTH micro fiber optic cable

outdoor air blown fiber cable

Basic Infomation

Place of Origin: Guangzhou,China

Brand Name: JQ/OEM/Customize

Certification: ISO9001 ROHS CE-EMC FCC SDOC

Model Number: GCYFY/GCYFTY

Payment & Shipping Terms

Packaging Details: wooden drum

Delivery Time: 5-8 work days

Payment Terms: L/C, T/T, Western Union

Supply Ability: 30km per day

Gallery

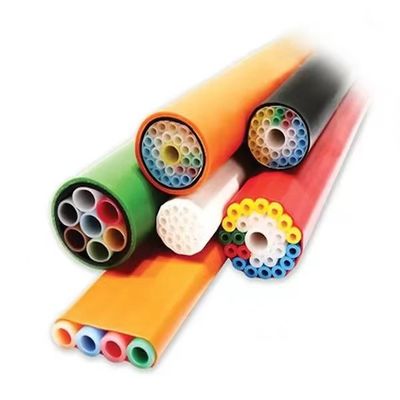

GCYFY Air Blown Micro Fiber Optic Cable 72 96 144 Core Small Diameter For FTTH

Product Description

GCYFY GCYFTY Air Blown Micro Fiber Optic Cable for Outdoor Duct Installation

Product Features

Air blown micro cable design for fast and efficient installation
Non metallic reinforcement with lightweight flexible structure
Loose tube stranded design for stable fiber protection
High pipeline utilization and easy network expansion
Suitable for micro duct blowing and pulling installation

Application Scenarios

Outdoor duct and micro duct fiber networks
FTTH and FTTX access network deployment
Urban communication pipeline systems
High density fiber infrastructure projects

Optical Characteristics

Item	Specification
Fiber type	G.652D
Attenuation
@ 1310 nm	≤0.36 dB/km
@ 1383 nm	≤0.35 dB/km
@ 1550 nm	≤0.22 dB/km
@ 1625 nm	≤ 0.30 dB/km
Cable Cut-off Wavelength(λcc)	≤1260 nm
Zero Dispersion Wavelength(nm)	1300 ~ 1324 nm
Zero Dispersion Slope	≤0.092 ps/(nm2.km)
Chromatic Dispersion
@ 1288 ~ 1339 nm	≤3.5 ps/(nm. km)
@ 1550 nm	≤18 ps/(nm. km)
@ 1625 nm	≤22 ps/(nm. km)
PMDQ	≤0.2 ps/km1/2
Mode Field Diameter @ 1310 nm	9.2±0.4 um
Core Concentricity Error	≤0.6 um
Cladding Diameter	125.0±0.7 um
Cladding Non-circularity	≤1.0%
Coating Diameter	245±10 um
Proof Test	100 kpsi (=0.69 Gpa), 1%

Fiber & Tube Color

Cable Parameters

Cores

Cores/tube

FRP diameter (mm)

Sheath thickness (mm)

Approx. overall diameter

(mm)

Approx.

weight (kg/km)

1.5

0.5±0.1

5.6

1.5

0.5±0.1

5.6

48	12	1.5	0.5±0.1	5.6	24
72	12	1.5	0.5±0.1	5.6	24
96	12	2.5	0.5±0.1	6.6	38

Working temperature	-35oC ~ +70oC
Storage and transportation temperature	-35oC~ +70oC
Installation temperature	-15oC~ +60oC

Product Detail

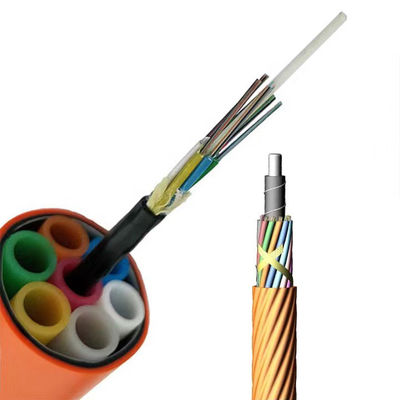

GCYFY Air Blown Micro Fiber Optic Cable 72 96 144 Core Small Diameter For FTTH 2

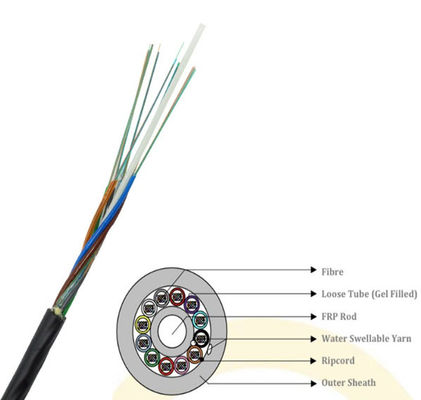

GCYFY Air Blown Micro Fiber Optic Cable 72 96 144 Core Small Diameter For FTTH 3

FAQ

1. Are you a manufacturer or trading company?
We are a professional manufacturer with 10 years of experience in fiber optic cables, FTTH drop cables and patch cords. Our factory is located in Guangzhou.

2. How do you ensure product quality?
All products are tested before delivery. Free samples are available after price confirmation.

3. Do you accept small orders?
Yes, small and trial orders are welcome.

4. What is your delivery time?
Usually 3–7 working days depending on order quantity.

5. Do you provide OEM service?
Yes, we support OEM service including logo printing and product customization.
