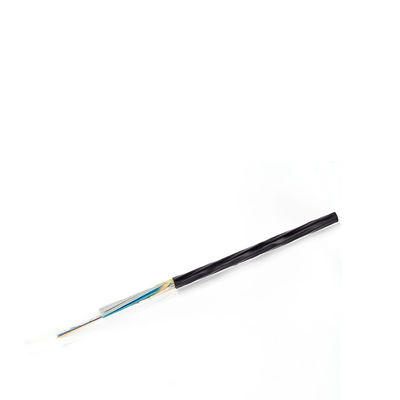

GCYFY Air Blown Fiber Optic Micro Cable 24 48 96 Core Optical Fiber for Duct Network Installation Lightweight

1KM
MOQ
Inquiry for price
Price
GCYFY Air Blown Fiber Optic Micro Cable 24 48 96 Core Optical Fiber for Duct Network Installation Lightweight
Features Gallery Product Description Request A Quote
Features
Specifications
Fiber Count: 4-144Cores
Fiber Type: Single Mode/Multi Mode
Jacket: PE/PVC/LSZH/HDPE/MDPE
Color: Black Or Orange Or Customized
Product Name: Air-blown Micro Cable
Installation: Aerial Or Duct Pipe Laying
Number Of Conductors: ≥ 10
Fiber Brand: YOFC/Fiberhome/Fujikura/Corning
Highlight:

air blown fiber optic micro cable

,

24 core duct network fiber optic

,

lightweight outdoor fiber optic cable
Basic Infomation
Place of Origin: Guangzhou, China
Brand Name: JQ/OEM/Customize
Certification: ISO9001 ROHS CE-EMC FCC SDOC
Model Number: GCYFY/GCYFTY
Payment & Shipping Terms
Packaging Details: Wooden drum or Customized
Delivery Time: 5-8 work days
Payment Terms: L/C, T/T, Western Union,Alipay
Supply Ability: 30KM Per day
Product Description

GCYFY Air Blown Fiber Micro Cable 24 48 96 Core Micro Duct Cable



Product Introduction:

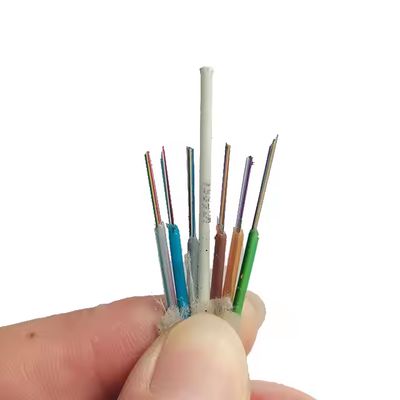

GCYFY air blown fiber micro cable features a loose tube stranded structure with non-metallic strength member, designed for efficient air blowing installation in micro duct networks.



Key Features:

  •  Lightweight and compact cable structure
  •  Non-metallic strength member with no armor design
  •  Suitable for air blowing or pulling installation
  •  Improves duct utilization and reduces installation cost
  •  Supports easy network expansion

Applications:

  • FTTH feeder and drop networks
  • Access and metropolitan area networks
  • Backbone communication systems
  • Subscriber access connections



Optical Characteristics

Item Specification
Fiber type G.652D
Attenuation
@ 1310 nm ≤0.36 dB/km
@ 1383 nm ≤0.35 dB/km
@ 1550 nm ≤0.22 dB/km
@ 1625 nm ≤ 0.30 dB/km
Cable Cut-off Wavelength(λcc) ≤1260 nm
Zero Dispersion Wavelength(nm) 1300 ~ 1324 nm
Zero Dispersion Slope ≤0.092 ps/(nm2.km)
Chromatic Dispersion
@ 1288 ~ 1339 nm ≤3.5 ps/(nm. km)
@ 1550 nm ≤18 ps/(nm. km)
@ 1625 nm ≤22 ps/(nm. km)
PMDQ ≤0.2 ps/km1/2
Mode Field Diameter @ 1310 nm 9.2±0.4 um
Core Concentricity Error ≤0.6 um
Cladding Diameter 125.0±0.7 um
Cladding Non-circularity ≤1.0%
Coating Diameter 245±10 um
Proof Test 100 kpsi (=0.69 Gpa), 1%

GCYFY Air Blown Fiber Optic Micro Cable 24 48 96 Core Optical Fiber for Duct Network Installation Lightweight 0

Fiber & Tube Color


GCYFY Air Blown Fiber Optic Micro Cable 24 48 96 Core Optical Fiber for Duct Network Installation Lightweight 1



GCYFY Air Blown Fiber Optic Micro Cable 24 48 96 Core Optical Fiber for Duct Network Installation Lightweight 2

Environmental Characteristics

• Transport/storage temperature: -40℃ to +70℃



Cable Parameters



Cores



Cores/tube



FRP diameter (mm)



Sheath thickness (mm)

Approx. overall diameter

(mm)

Approx.

weight (kg/km)
12 12 1.5 0.5±0.1 5.6 24
24 12 1.5 0.5±0.1 5.6 24
48 12 1.5 0.5±0.1 5.6 24
72 12 1.5 0.5±0.1 5.6 24
96 12 2.5 0.5±0.1 6.6 38



GCYFY Air Blown Fiber Optic Micro Cable 24 48 96 Core Optical Fiber for Duct Network Installation Lightweight 3



Delivery Length

• Standard length: 4,000m; other lengths are also available.

GCYFY Air Blown Fiber Optic Micro Cable 24 48 96 Core Optical Fiber for Duct Network Installation Lightweight 4

GCYFY Air Blown Fiber Optic Micro Cable 24 48 96 Core Optical Fiber for Duct Network Installation Lightweight 5

GCYFY Air Blown Fiber Optic Micro Cable 24 48 96 Core Optical Fiber for Duct Network Installation Lightweight 6

GCYFY Air Blown Fiber Optic Micro Cable 24 48 96 Core Optical Fiber for Duct Network Installation Lightweight 7



GCYFY Air Blown Fiber Micro Cable FAQ



Q1: What is GCYFY cable used for?
A: It is used for air blown installation in micro duct fiber networks.



Q2: What fiber counts are available?
A: Common options include 24, 48, and 96 cores.



Q3: What is the installation method?
A: The cable is installed by air blowing or pulling into micro ducts.



Q4: What are the advantages of air blown cables?
A: They reduce installation cost and allow easy network expansion.



Q5: Where is this cable commonly applied?
A: FTTH networks, access networks, and metropolitan area networks.
