GYTC8S 12/24/96core Figure 8 Fiber Optic Cable

Contact Now

GYTC8S 12/24/96core Figure 8 Fiber Optic Cable

Name: GYTC8S 12/24/96core Figure 8 Fiber Optic Cable
Brand: jiqian
SKU: GYTC8S
Rating: 5 (190 reviews)

Minimum Order Quantity :	1000m	Packaging Details :	wooden drum
Delivery Time :	2-4day	Payment Terms :	Western Union, MoneyGram, T/T, L/C
Supply Ability :	100km per 2 day

Place of Origin:	CHINA	Brand Name:	jiqian
Certification:	ISO	Model Number:	GYTC8S

Detail Information
Fiber Type:	Single Mode & Multi Mode	Oem:	Available
Application:	Aerial	Number Of Conductors:	24 48
Structure:	Stranded Loose Tube	Operating Temperature:	-40 ~ +60 C
Length:	1KM OR 2KM OR 500M
Highlight:	96core Figure 8 Fiber Optic Cable , GYTC8S Figure 8 Fiber Optic Cable , GYTC8S 96 core fiber optic cable

Product Description

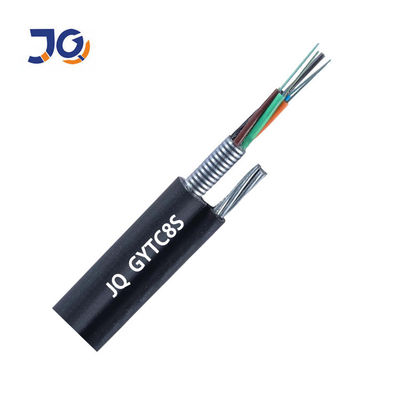

Self-Supporting Figure 8 GYTC8A /GYTC8S 12/24/96core Outdoor Aerial Fiber Optic Cable GYTC8S

Cable structure:

Loose tube style, a figure-8 optical fiber cable with metallic central strength member of steel wire/strand and moisture barrier inner sheath incorporating steel messenger wire suitable for overhead installation as pole-to-pole or pole-topremises.Tubes contain optical single-mode or multimode fibers color coded as per the color coding scheme.

Optical Characteristics:

		G.652D	50/125μm	62.5/125μm
Attenuation (+20℃)	@850nm		≤3.0 dB/km	≤3.0 dB/km
	@1300nm		≤1.0 dB/km	≤1.0 dB/km
	@1310nm	≤0.36 dB/km
	@1550nm	≤0.22 dB/km
Bandwidth (Class A)	@850nm		≥500 MHz·km	≥200 MHz·km
Bandwidth (Class A)	@1300nm		≥1000 MHz·km	≥600 MHz·km
Numerical Aperture			0.200±0.015NA	0.275±0.015NA
Cable Cut-off Wavelength λcc		≤1260nm

GYTC8S 12/24/96core Figure 8 Fiber Optic Cable 2

Cable Specification:

Item Name:Fiber optical cable GYTC8S

Optical Mode:Singlemode/Multimode

Fiber Diameters:G652, G655, 50/125μm, 62.5/125μm

Total Fiber Count:2-144

Bend Radius(Static/Dynamic):10D/20D

Working Life:More than 25 years

Application:Aerial self-supporting,Local network,Local network,Long distance network communication.

Structure:

Figure 8 non armoured fiber cable consists of :

1.Stranded loose tube

2.Steel wire strength member

3.Core filler compound

4.Fillers

5.Phosphating or Galvanized steel wire

6.PE sheath

Standards and Certificate:

Fiber optical cable complies with Standard YD/T 769-2003,IEC60794-1

Certificate: ISO9001

Characteristics
· Good mechanical and temperature performance
· High strength loose tube that is hydrolysis resistant
· Special tube filling compound ensure a critical protection of fiber
· Crush resistance and flexibility GYTC8S 12/24/96core Figure 8 Fiber Optic Cable 3

GYTC8S 12/24/96core Figure 8 Fiber Optic Cable 4

COMPANY PROFILE

Guangzhou jiqian fiber optical cable co., LTD is located in guangzhou city, guangdong province mingying west 2 road industrial zone, xintang town, is a collection of scientific research, development, production, sales for the integration of large-scale specialization of high-tech joint-stock enterprise, specializing in the production of various specifications of 2-288 core cable.

FAQ:

1. Are you the real manufacturer?

Yes, we are factory in guangzhou china, welcome to visit us!

2. what is your minimum quantity?

1KM. We support new project of our customers, trial order is available

3.Can I get a sample?

Yes, we provide FREE sample and you just need to pay for express freight.

4.What about Payment?

L/C,T/T,Western Union and Paypal are acceptable.

5.Delivery time?

Generally 3-7 working days, also it is according to qty.

6.Can you supply customized products and logo?

Yes, we supply OEM&ODM service, pls feel free to contact. GYTC8S 12/24/96core Figure 8 Fiber Optic Cable 5
