ARMOURED FIBER OPTIC CABLE AERIAL FIG 8 OUTDOOR OPTICAL FIBRE CABLE 48 96 CORE GYTC8S GYXTC8S

1km
MOQ
ARMOURED FIBER OPTIC CABLE AERIAL FIG 8 OUTDOOR OPTICAL FIBRE CABLE 48 96 CORE GYTC8S GYXTC8S
Features Gallery Product Description Request A Quote
Features
Specifications
Place Of Origin: Guangzhou,China
Brand Name: Jiqian
Model Numer: GYTC8S/GYXTC8S
OEM: Available
Sheath Material: PE
Number Of Fiber: 2-288
Certification: ISO 9001
Manufacturer: Yes
Strength Member: Phosphated Steel Wire
Highlight:

GYTC8S Figure 8 Fiber Optic Cable

,

7000N Figure 8 Fiber Optic Cable

Basic Infomation
Place of Origin: China
Brand Name: Jiqian
Certification: ISO 9001/FCC/ISO9001/CE
Model Number: GYTC8A/GYXTC8S
Payment & Shipping Terms
Packaging Details: 1km
Delivery Time: 3-5 days
Payment Terms: L/C, T/T, Western Union,Alipay
Supply Ability: 4500 per month
Product Description

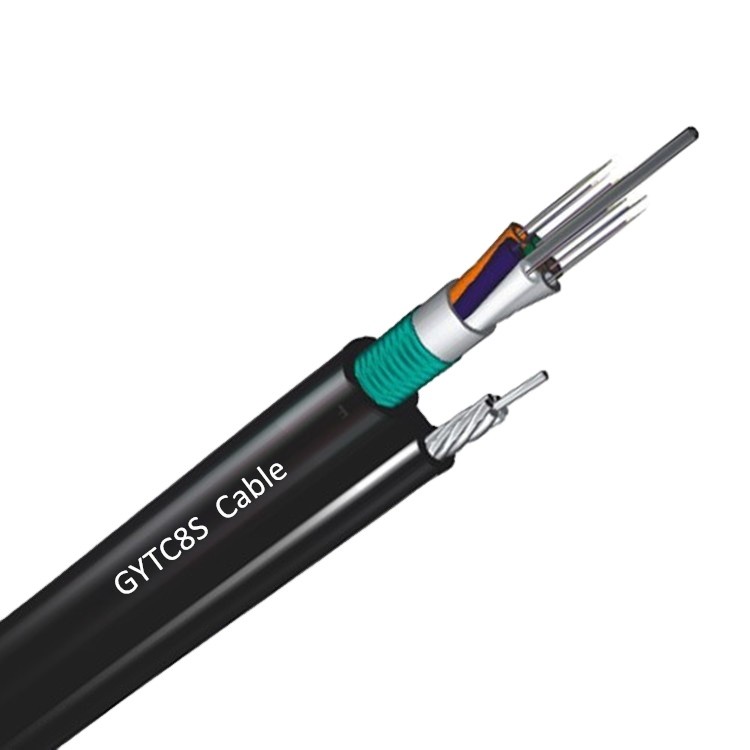

ARMOURED FIBER OPTIC CABLE AERIAL FIG 8 OUTDOOR OPTICAL FIBRE CABLE 48 96 CORE GYTC8S GYXTC8S

ARMOURED FIBER OPTIC CABLE AERIAL FIG 8 OUTDOOR OPTICAL FIBRE CABLE 48 96 CORE GYTC8S GYXTC8S 0

Features

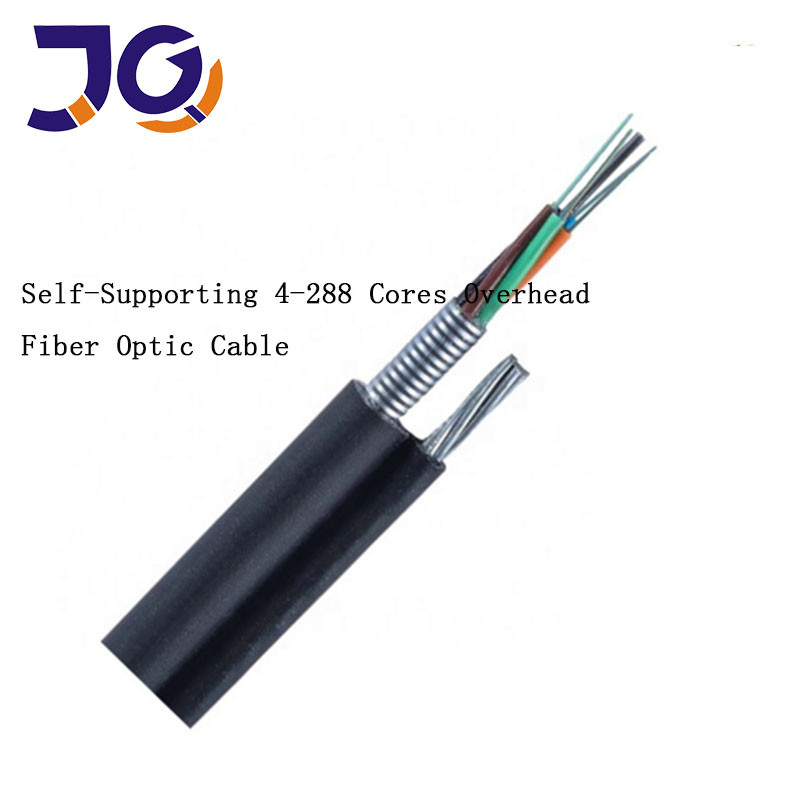

• The steel wire strand has extremely high tensile strength, which is convenient for self-supporting overhead laying and reduces installation costs

• Optical cable has good mechanical properties and temperature characteristics

• The loose tube material itself has good hydrolysis resistance and high strength

• The tube is filled with special grease to protect the optical fiber critically

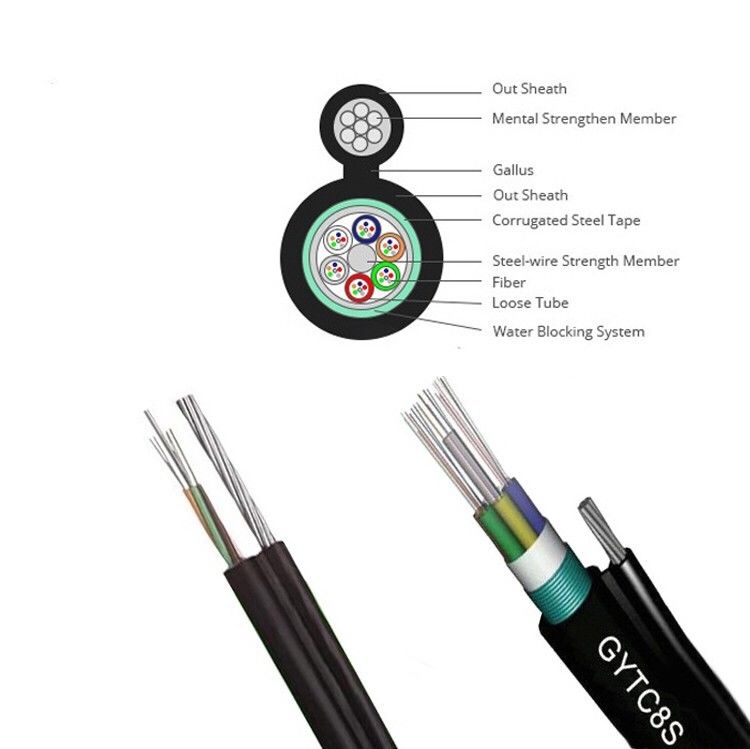

• Use the following measures to ensure the waterproof performance of the optical cable:

- Single steel wire center reinforcement core

- Loose tube filled with special waterproof compound

- Complete cable core filling

- Plastic coated aluminum tape (APL) moisture barrier


Technical parameter



Performance Long-term Short-term
Max.Tension(N) 3500 7000
Max.Crushing 300 1000
Resistance(N/100mm2) 30D(Dynamic) 15D(static)
Storage and operating temperature -40℃ to +70℃



Optical Characteristics

  G.652D 50/125μm 62.5/125μm
Attenuation (+20℃) @850nm   ≤3.0 dB/km ≤3.0 dB/km
@1300nm   ≤1.0 dB/km ≤1.0 dB/km
@1310nm ≤0.36 dB/km
@1550nm ≤0.22 dB/km
Bandwidth (Class A) @850nm   ≥500 MHz·km ≥200 MHz·km
@1300nm   ≥1000 MHz·km ≥600 MHz·km
Numerical Aperture   0.200±0.015NA 0.275±0.015NA
Cable Cut-off Wavelength λcc ≤1260nm

Application: overhead

Certification:

ARMOURED FIBER OPTIC CABLE AERIAL FIG 8 OUTDOOR OPTICAL FIBRE CABLE 48 96 CORE GYTC8S GYXTC8S 1

FAQ:



Q1.What is your terms of packing?

A: Generally, we pack our goods in drum with pallet for export.2KM/3KM/4KM/5KM of one drum or as per your requirements



Q2. What is your terms of payment?

A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages

before you pay the balance.



Q3. What is your terms of Trade?

A: EXW, FOB, CFR, CIF



Q4. How about your delivery time?

A: Generally, it will take 5 to 7days after receiving your initial. The specific delivery time depends

on the items and the quantity of your order.



Q5. Can you provide OEM or ODM

A: Yes



Q6. What is your sample policy?

A: We provide FREE sample if we have them in stock



Q7. Do you test all your goods before delivery?

A: Yes, all of cables have to be tested before delivery



Q8: How do you make our business long-term and good relationship?

A:1. We keep good quality and competitive price to ensure our customers benefit ;

2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
