Competitive Price Self Supporting Aerial GYTC8S GYXTC8Y GYXTC8S 12 24 48 96 144 Core Overhead Optical Fiber Cable

1km
MOQ
Competitive Price Self Supporting Aerial  GYTC8S GYXTC8Y GYXTC8S 12 24 48 96 144 Core Overhead Optical Fiber Cable
Features Gallery Product Description Request A Quote
Features
Specifications
Place Of Origin: Guangzhou,China
Brand Name: Jiqian
Model Numer: GYTC8S/GYXTC8S/GYTC8Y
OEM: Available
Sheath Material: PE
Number Of Fiber: 2-288
Certification: ISO 9001/CE/FCC/ROHS
Manufacturer: Yes
Strength Member: Phosphated Steel Wire
Highlight:

GYTC8S Optical Fiber Cable

,

FCC Optical Fiber Cable

,

PE Figure 8 Fiber Optic Cable

Basic Infomation
Place of Origin: China
Brand Name: Jiqian
Certification: ISO9001/ROHS/CE/FCC
Model Number: GYTC8S/GYXTC8S/GYXTC8Y
Payment & Shipping Terms
Packaging Details: 1km
Delivery Time: 3-5 days
Payment Terms: L/C, T/T, Western Union,Alipay
Supply Ability: 4500 per month
Product Description

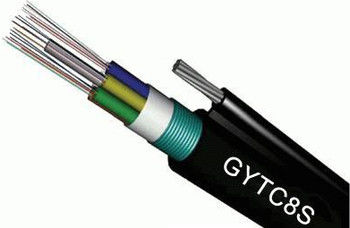

Competitive Price Self Supporting Aerial GYTC8S GYXTC8Y GYXTC8S 12 24 48 96 144 Core Overhead Optical Fiber Cable



Features
• The steel wire strand has extremely high tensile strength, which is convenient for self-supporting overhead laying and reduces installation costs

• Optical cable has good mechanical properties and temperature characteristics

• The loose tube material itself has good hydrolysis resistance and high strength

• The tube is filled with special grease to protect the optical fiber critically

• Use the following measures to ensure the waterproof performance of the optical cable:

- Single steel wire center reinforcement core

- Loose tube filled with special waterproof compound

- Complete cable core filling

- Plastic coated aluminum tape (APL) moisture barrier

Competitive Price Self Supporting Aerial  GYTC8S GYXTC8Y GYXTC8S 12 24 48 96 144 Core Overhead Optical Fiber Cable 0
Technical parameter



Performance Long-term Short-term
Max.Tension(N) 3500 7000
Max.Crushing 300 1000
Resistance(N/100mm2) 30D(Dynamic) 15D(static)
Storage and operating temperature -40℃ to +70℃



Optical Characteristics

  G.652D 50/125μm 62.5/125μm
Attenuation (+20℃) @850nm   ≤3.0 dB/km ≤3.0 dB/km
@1300nm   ≤1.0 dB/km ≤1.0 dB/km
@1310nm ≤0.35 dB/km
@1550nm ≤0.22 dB/km
Bandwidth (Class A) @850nm   ≥500 MHz·km ≥200 MHz·km
@1300nm   ≥1000 MHz·km ≥600 MHz·km
Numerical Aperture   0.200±0.015NA 0.275±0.015NA
Cable Cut-off Wavelength λcc ≤1260nm

Application: overhead

Certification:

Competitive Price Self Supporting Aerial  GYTC8S GYXTC8Y GYXTC8S 12 24 48 96 144 Core Overhead Optical Fiber Cable 1

FAQ:



Q1.What is your terms of packing?

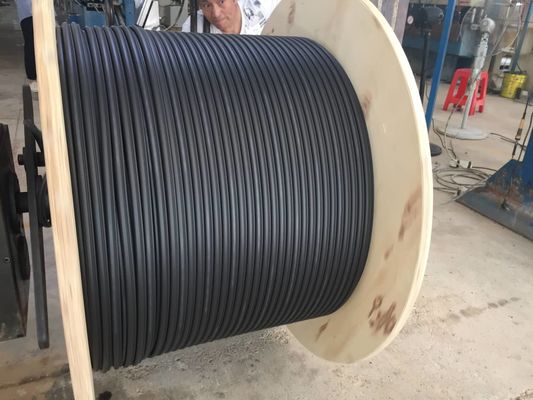

A: Generally, we pack our goods in drum with pallet for export.2KM/3KM/4KM/5KM of one drum or as per your requirements



Q2. What is your terms of payment?

A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages

before you pay the balance.



Q3. What is your terms of Trade?

A: EXW, FOB, CFR, CIF



Q4. How about your delivery time?

A: Generally, it will take 5 to 7days after receiving your initial. The specific delivery time depends

on the items and the quantity of your order.



Q5. Can you provide OEM or ODM

A: Yes



Q6. What is your sample policy?

A: We provide FREE sample if we have them in stock



Q7. Do you test all your goods before delivery?

A: Yes, all of cables have to be tested before delivery



Q8: How do you make our business long-term and good relationship?

A:1. We keep good quality and competitive price to ensure our customers benefit ;

2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.


Competitive Price Self Supporting Aerial  GYTC8S GYXTC8Y GYXTC8S 12 24 48 96 144 Core Overhead Optical Fiber Cable 2
