Name: GYXTC8Y GYXTC8S Self Supporting Figure 8 Fiber Optic Cable 12 Core
Brand: Guangzhou Jiqian Fiber Optic Cable Co., Ltd.
SKU: GYXTC8S
Price: 480.00 USD
Availability: InStock

Features Gallery Product Description Request A Quote

Features

Specifications

Place Of Origin: Guangzhou,China

Brand Name: Jiqian

Application: Overhead

Jacket Sheath: PE

Certification: ISO 9001

Manufacturer: Yes

Fiber Range: 2-12 Cores

Fiber Type: Fiberhome/YOFC

Highlight:

GYXTC8Y Figure 8 Fiber Optic Cable

YOFC Figure 8 Fiber Optic Cable

Basic Infomation

Place of Origin: China

Brand Name: Jiqian

Certification: ISO 9001

Model Number: GYXTC8S

Payment & Shipping Terms

Packaging Details: Wooden drum

Delivery Time: 3-5 days

Payment Terms: L/C, T/T, Western Union,Alipay

Supply Ability: 4500KM Per month

Gallery

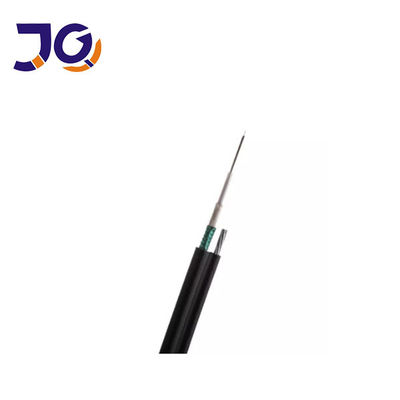

GYXTC8Y GYXTC8S Self Supporting Figure 8 Fiber Optic Cable 12 Core

Product Description

GYXTC8Y/GYXTC8S Self Supporting Figure 8 Shape Fiber Optic Cable 12 Core

GYXTC8Y GYXTC8S Self Supporting Figure 8 Fiber Optic Cable 12 Core 0

GYXTC8Y GYXTC8S Self Supporting Figure 8 Fiber Optic Cable 12 Core 1

Applications

Long distance and local area network(LAN) communication.
Aerial & conduit installation

Features

Central loose tube with jelly compound inside to protect the cladding fiber.

Corrugated steel tape laminated with plastic at both sides bonding to PE sheath.
Good mechanical and temperature resistant performance.

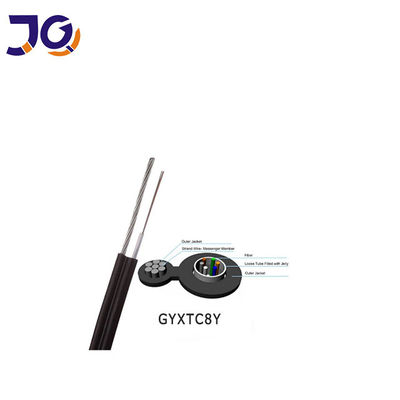

The cross-section in fig8 structure.
Crush resistance and flexibility.
Light weight and small diameter, easy to installation and operation.

Fiber Parameter

Fiber No	1-12 FO
Fiber Type	Single mode G652D/ Multimode
Loose Tube	PBT
Armored	Corrugated steel tape
Mental Strength Member	1.4mm Steel (single type)
Outer Sheath	PE
Cable Diameter	3.2*6.3mm
Color	Black or customize

Tensile strength	Long term	600N
Tensile strength	Short term	1500N
Crush load	Long term	600N/100mm
Crush load	Short term	1500N/100mm
Bending radius	Dynamic	20D
Bending radius	Static	10D
Temperature	-20~+60℃

FAQ:

1,Q:Are you a factory or trade company?
A:We are a factory

2,Q:What is the MOQ?

A:The MOQ of Fiber Optic cable is 1km.

3.Q:Which brand of fiber do you use?

A:YOFC,Fiberhome,etc

4,Q:Can you accept small order?
A:Yes, small order is available .We support new project of our customers as we know business is always from small order.

5,Q:What’s delivery time?
A:The general delivery time is 5-7 days after order confirmed. It depends on the order quantity.

6.Can you supply customized products and logo?

A:Yes. We supply OEM service.

7.What’s your payment terms?

A: We accept T/T,L/C,Western Union, 30% Deposit and 70% before shipment.
