ISO9001 GYFTC8A Figure 8 Fiber Optic Cable APL Tape

Minimum Order Quantity : 2km Packaging Details : wooden drum
Delivery Time : 5-8 work days Payment Terms : L/C, T/T, Western Union
Place of Origin: Guangzhou,China Brand Name: JQ/OEM
Certification: ISO9001 ROHS CE-EMC FCC SDOC Model Number: GYTC8A

Detail Information

Fiber Type: G652D Fiber Count: 2-144 Cores
Length: 2 Km Or Customized Model Number: GYTC8A/GYFTC8A/GYXTC8A
Color: Black Messenger Wire: 1.0*7 Steel Stranded Wire
Structure: Figure 8 Cable Type: APL Tape
Operating Temperature: -40 ~ +60 C Application: Outdoor Aerial Application
Product Name: Figure 8 Self Support Fiber Optical Cable
High Light:

GYFTC8A Figure 8 Fiber Optic Cable

,

ISO9001 Figure 8 Fiber Optic Cable

Product Description

overhead self supporting 24 or 48 core single mode outdoor fiber optical Cable GYTC8S

12 Cores Self-supporting Figure 8 Fiber Optic Cable GYTC8A



The fibers, 250µm, are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. A steel wire locates or FRP in the center of core as a metallic strength member. Tubes (and fillers) are stranded around the strength member into a compact and circular cable core. A corrugated steel is applied around the cable core, which is filled with the filling compound to protect it from water ingress. This part of cable accompanied with the strand wires, as the supporting part are completed with a polyethylene(PE)sheath to be figure 8 structure.

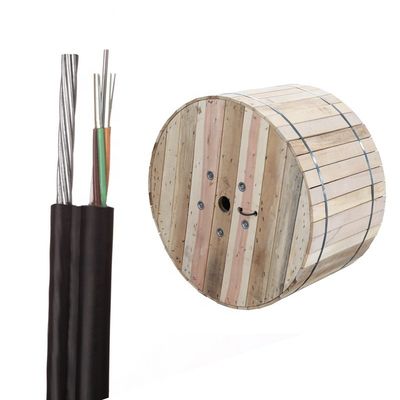

ISO9001 GYFTC8A Figure 8 Fiber Optic Cable APL Tape 0





Features

1,High tensile strength of stranded wires meet the requirement of self-supporting and reduce the installation cost
2,Good mechanical and temperature performance
3,High strength loose tube that is hydrolysis resistant
4,Special tube filling compound ensure a critical protection of fiber
5,The following measures are taken to ensure the cable watertight:
---Steel wire used as the central strength member
---Loose tube filling compound
---100% cable core filling
---PSP enhancing moisture-proof



Optical Characteristics

Items Unit Specification
G652D
Mode Field Diameter 1310nm um 9.2±0.4
1550nm um 10.4±0.5
Cladding Diameter um 124.8±0.7
Cladding Non-Circularity %  0.7
Core-Cladding Concentricity Error um  0.5
Coating Diameter um 245±5
Coating Non-Circularity %  6.0
Cladding-Coating Concentricity Error um  12
Cable Cutoff Wavelength nm acc≤1260
Attenuation(max.) 1310nm dB/km 0.36
1550nm dBkm 0.22





Technical Parameters

Fiber Model G.652D
Design(Strength Member+Tube&Filler) 1+5
CentralStrengthMember Material Steel Wire
Diameter(+0.05)mm 1.5
LooseTube Material PBT
Diameter(+0.06)mm 2
Thickness(+0.03)mm 0.32
TheMax.CoreNO./Tube 12
Filler Rope Material HDPE
Color White
Diameter(+0.06)mm 2.1
Strand Strength Member Material Galvanized Steel
Type φ0.9x3
Armor layer Material Steel Tape
OuterSheath① Material MDPE
Thickness(+0.03)mm 1.
OuterSheath① Material MDPE
Thickness(40.03)mm 1.8
CableDiameter(土0.2)mm 9.5*17.8(nominal)
CableWeight(+10)kg/km 160(nominal)
Min.installation/N 1500
Attenuation 1310nm 0.35dB/KM
1550nm 0.21dB/KM
Min.bendingradius Without Tension 10.0*Cableφ
Under Maximum Tension 20.0xCableφ





Picture Show

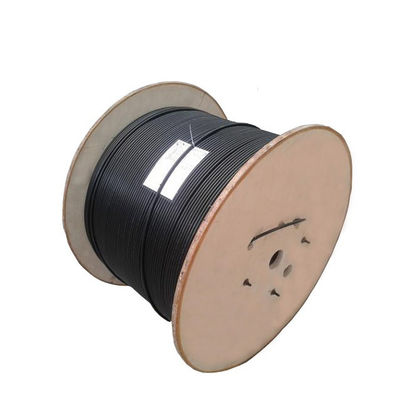

ISO9001 GYFTC8A Figure 8 Fiber Optic Cable APL Tape 1

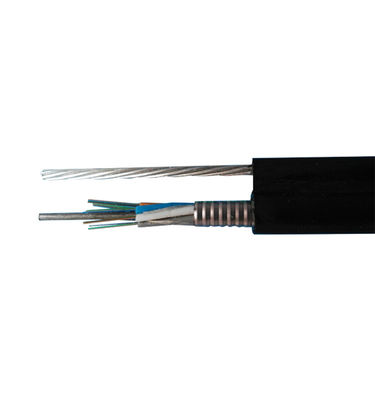

ISO9001 GYFTC8A Figure 8 Fiber Optic Cable APL Tape 2



Packing

• Standard Cable Wooden Drum

• Standard reel length: 2/3km/reel, other length is also available

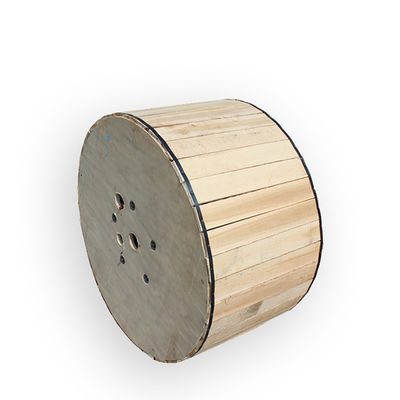

ISO9001 GYFTC8A Figure 8 Fiber Optic Cable APL Tape 3





FAQ

1.Are you the real manufacturer?

Yes.  We are the real manufacturer  with 10 years’ history.



2.Can you accept small order?

Yes, small order is available .We support new project of our customers as we know business is always from small order.



3.What is your warranty period?

25 years for fiber optic cable



4.What is your delivery time?

Usually within 3-5 working days



5.What about your annual production capacity?

Outdoor/Indoor Fiber Optic Cable, our annual output is 6,000,000 KM;

FTTH/FTTX/FTTA Cable, it is 6,000,000 KM per year;

Patch Cord/Pigtails, it is 12,400,000 Pieces per year.



6.Can you supply customized products and logo?

-Yes. We supply OEM&ODM service. You can send us your drawing.
