GYTC8S Overhead Self Supporting Optical Fiber Cable 24 48 Core

Minimum Order Quantity : 1km Packaging Details : 1km
Delivery Time : 3-5 days Payment Terms : L/C, T/T, Western Union,Alipay
Supply Ability : 4500 per month
Model Number: GYTC8S

Detail Information

Place Of Origin: Guangzhou,China Brand Name: Jiqian
Certification: ISO 9001/CE/FCC/ROHS Model Numer: GYTC8S
OEM: Available Sheath Material: PE
Number Of Fiber: 2-288 Manufacturer: Yes
Strength Member: Phosphated Steel Wire
High Light:

Overhead Self Supporting Optical Fiber Cable


GYTC8S Optical Fiber Cable


PE Sheath Optical Fiber Cable

Product Description

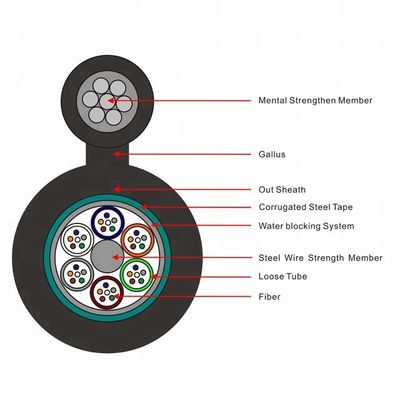

GYTC8S Overhead Self Supporting 24 Or 48 Core Single Mode Outdoor Optical Fiber Cable


• The steel wire strand has extremely high tensile strength, which is convenient for self-supporting overhead laying and reduces installation costs

• Optical cable has good mechanical properties and temperature characteristics

• The loose tube material itself has good hydrolysis resistance and high strength

• The tube is filled with special grease to protect the optical fiber critically

• Use the following measures to ensure the waterproof performance of the optical cable:

- Single steel wire center reinforcement core

- Loose tube filled with special waterproof compound

- Complete cable core filling

- Plastic coated aluminum tape (APL) moisture barrier

GYTC8S Overhead Self Supporting Optical Fiber Cable 24 48 Core 0
Technical parameter


Performance Long-term Short-term
Max.Tension(N) 3500 7000
Max.Crushing 300 1000
Resistance(N/100mm2) 30D(Dynamic) 15D(static)
Storage and operating temperature -40℃ to +70℃


Optical Characteristics

  G.652D 50/125μm 62.5/125μm
Attenuation (+20℃) @850nm   ≤3.0 dB/km ≤3.0 dB/km
@1300nm   ≤1.0 dB/km ≤1.0 dB/km
@1310nm ≤0.36 dB/km
@1550nm ≤0.22 dB/km
Bandwidth (Class A) @850nm   ≥500 MHz·km ≥200 MHz·km
@1300nm   ≥1000 MHz·km ≥600 MHz·km
Numerical Aperture   0.200±0.015NA 0.275±0.015NA
Cable Cut-off Wavelength λcc ≤1260nm
Application: overhead
GYTC8S Overhead Self Supporting Optical Fiber Cable 24 48 Core 1


1,Q:Are you a factory or trade company?
A:We are a factory

2,Q:What is the MOQ?

A:The MOQ of Fiber Optic cable is 1km.


3.Q:Which brand of fiber do you use?



4,Q:Can you accept small order?
A:Yes, small order is available .We support new project of our customers as we know business is always from small order.

5,Q:What’s delivery time?
A:The general delivery time is 5-7 days after order confirmed. It depends on the order quantity.


6.Can you supply customized products and logo?

A:Yes. We supply OEM service.


7.What’s your payment terms?

A: We accept T/T,L/C,Western Union, 30% Deposit and 70% before shipment.
