36 Core Multimode Outdoor Figure 8 Fiber Optic Cable

Minimum Order Quantity : 1km Packaging Details : wooden drum
Delivery Time : 5-8 work days Payment Terms : L/C, T/T, Western Union
Place of Origin: Guangzhou,China Brand Name: JQ/OEM
Certification: ISO9001,ROHS,CE,FCC Model Number: GYTC8S-24B1,36B1,48B1

Detail Information

Fiber Type: G652D Fiber Count: 2-144 Cores
Length: 2 Km Or Customized Color: Black
Messenger Wire: 1.0*7 Steel Stranded Wire Application: Aerial,Overhead
Structure: Figure 8 Cable Type: Singlemode & Multimode
Operating Temperature: -40 ~ +60 C Oem: Yes
Armored: Aluminium Tape/Steel Tape,steel Tape Certification: ISO9001,CE,ROHS,CE And ROHS
High Light:

Multimode Figure 8 Fiber Optic Cable


ROHS Figure 8 Fiber Optic Cable


Overhead Figure 8 Fiber Optic Cable

Product Description

4 6 8 12 24 36 Core Gytc8s Outdoor Fibre 48 Hilos Cabo De Fibra Optica Price List Fiber Optic Cable Figure 8


24/48 Core Aerial Optical Fiber Cable Gytc8s


24 Core 48 Core Figure 8 GYTC8S Self-Supporting Armored Outdoor Fiber Optic Cable



Structure :

  • Loose tube
  • Filling compound
  • Aluminum (steel) tape coated with PE jacket
  • Self-supporting by high grade zinc-galvanized stranded steel wires

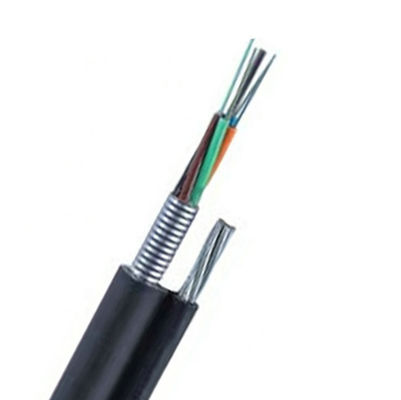

36 Core Multimode Outdoor Figure 8 Fiber Optic Cable 0



1,High tensile strength of stranded wires meet the requirement of self-supporting and reduce the installation cost
2,Good mechanical and temperature performance
3,High strength loose tube that is hydrolysis resistant
4,Special tube filling compound ensure a critical protection of fiber
5,The following measures are taken to ensure the cable watertight:
---Steel wire used as the central strength member
---Loose tube filling compound
---100% cable core filling
---PSP enhancing moisture-proof



Dimensional Characteristics

Designation Max. number Steel wire/ stand Stranded Nominal cable Nominal cable
Of fibers per tube Diameter (mm) units diameter (mm) weight (kg/km)
GYTC8S 2-36 6 2.3 6 11.6X25.5 270
GYTC8S 38-72 12 2.3 6 13.2X28.5 310
GYTC8S 74-96 12 2.3 8 14.9X33.0 390
GYTC8S 98-120 12 2.3 10 16.8X33.0 390
GYTC8S 122-144 12 2.3 12 18.8X35.0 440




Picture Show

36 Core Multimode Outdoor Figure 8 Fiber Optic Cable 1

36 Core Multimode Outdoor Figure 8 Fiber Optic Cable 2


36 Core Multimode Outdoor Figure 8 Fiber Optic Cable 3



1.Are you the real manufacturer?

Yes.  We are the real manufacturer  with 10 years’ history.


2.Can you accept small order?

Yes, small order is available .We support new project of our customers as we know business is always from small order.


3.What is your warranty period?

25 years for fiber optic cable


4.What is your delivery time?

Usually within 3-5 working days


5.What about your annual production capacity?

Outdoor/Indoor Fiber Optic Cable, our annual output is 6,000,000 KM;

FTTH/FTTX/FTTA Cable, it is 6,000,000 KM per year;

Patch Cord/Pigtails, it is 12,400,000 Pieces per year.


6.Can you supply customized products and logo?

-Yes. We supply OEM&ODM service. You can send us your drawing.
