96 Core Aerial Self-supporting Fig 8 Structure GYTC8S With Messenger Wire Optical Fiber Cable Price
Contact Person : JQ CABLE
Phone Number : +8618122383351
whatsapp : +8618122383351
Minimum Order Quantity : | 1km | Packaging Details : | wooden drum |
---|---|---|---|
Delivery Time : | 5-8 work days | Payment Terms : | L/C, T/T, Western Union |
Supply Ability : | 4500KM Per Month |
Place of Origin: | Guangzhou,China | Brand Name: | JQ/OEM |
---|---|---|---|
Certification: | ISO9001 ROHS CE-EMC FCC SDOC | Model Number: | GYXTC8S/GYXTC8Y |
Detail Information |
|||
Fiber Type: | YOFC/Fiberhome Or As Request | Color: | Black |
---|---|---|---|
Messenger Wire: | 2.0mm/3.0mm Steel Wire | Structure: | Figure 8 |
Type: | Singlemode & Multimode | Jacket: | PE,MDPE |
Oem: | Available | Installation: | Self- Supporting Aerial |
Product Name: | Outdoor Optic Fiber Cable | Length: | 2km Or Customized Length |
Fiber Count: | 2/4/6/8/12 Core | ||
Highlight: | 6 Core Figure 8 Fiber Optic Cable,3.0mm steel wire Figure 8 Cable,2km Figure 8 Fiber Optic Cable |
Product Description
Figure 8 Outdoor Self-supporting 6 Core Aerial Optical Fiber Cable GYXTC8S/GYXTC8Y

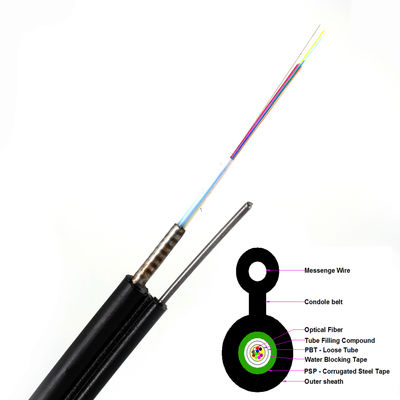

The fibers, 250µm, are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. A steel wire locates in the center of core as a metallic strength member. Tubes (and fillers) are stranded around the strength member into a compact and circular cable core. A corrugated steel is applied around the cable core, which is filled with the filling compound to protect it from water ingress. This part of cable accompanied with 2mm or 3mm steel wires , as the supporting part are completed with a polyethylene(PE) sheath to be figure 8 structure.
Features
1,High tensile strength of stranded wires meet the requirement of self-supporting and reduce the installation cost
2,Good mechanical and temperature performance
3,High strength loose tube that is hydrolysis resistant
4,Special tube filling compound ensure a critical protection of fiber
5,The following measures are taken to ensure the cable watertight:
---Steel wire used as the central strength member
---Loose tube filling compound
---100% cable core filling
---PSP enhancing moisture-proof
Optical Characteristics
Items | Unit | Specification | |
G652D | |||
Mode Field Diameter | 1310nm | um | 9.2±0.4 |
1550nm | um | 10.4±0.5 | |
Cladding Diameter | um | 124.8±0.7 | |
Cladding Non-Circularity | % | ≤0.7 | |
Core-Cladding Concentricity Error | um | ≤0.5 | |
Coating Diameter | um | 245±5 | |
Coating Non-Circularity | % | ≤6.0 | |
Cladding-Coating Concentricity Error | um | ≤12 | |
Cable Cutoff Wavelength | nm | acc≤1260 | |
Attenuation(max.) | 1310nm | dB/km | ≤0.36 |
1550nm | dBkm | ≤0.22 |

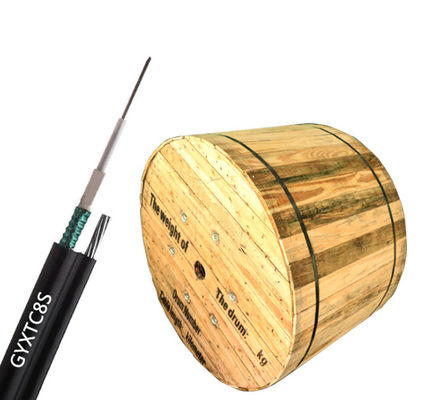

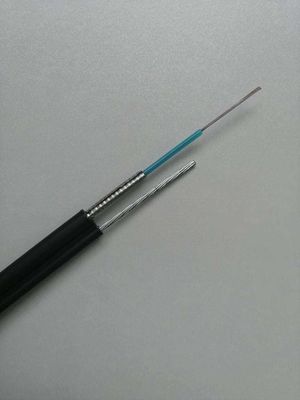

Picture Show
FAQ
1.Are you the real manufacturer?
Yes. We are the real manufacturer with 10 years’ history.
2.Can you accept small order?
Yes, small order is available .We support new project of our customers as we know business is always from small order.
3.What is your warranty period?
25 years for fiber optic cable
4.What is your delivery time?
Usually within 3-5 working days
5.What about your annual production capacity?
Outdoor/Indoor Fiber Optic Cable, our annual output is 6,000,000 KM;
FTTH/FTTX/FTTA Cable, it is 6,000,000 KM per year;
Patch Cord/Pigtails, it is 12,400,000 Pieces per year.
6.Can you supply customized products and logo?
-Yes. We supply OEM&ODM service. You can send us your drawing.
