Aerial G652A Figure 8 Fiber Optic Cable Aerial Self Supporting

Minimum Order Quantity : 1KM Packaging Details : wooden drum
Delivery Time : 3-5 days, it depends on your quantity Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability : 6000KM/month
Place of Origin: Guangdong, China Brand Name: Jiqian
Certification: CE/IOS9001 Model Number: GYTC8S

Detail Information

Fiber Type: G652D Application: Outdoor Aerial
Jacket Color: Black Jacket Material: PE
OEM: Yes
High Light:

Aerial Figure 8 Fiber Optic Cable

,

G652A figure 8 aerial cable

,

G652A Figure 8 Fiber Optic Cable

Product Description

Outdoor Aerial Self Supporting 12 24 48 Core G652d G657a Figure8 Cable GYTC8S Communication Cable

Aerial G652A Figure 8 Fiber Optic Cable  Aerial Self Supporting 0

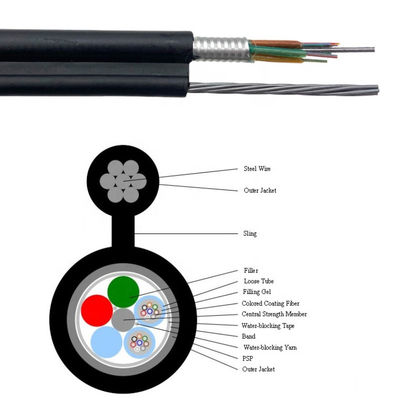

Structural feature:

1.Central loose tubes with jelly compound inside to protect the cladding fiber

2.Corrugated steel tape laminated with plastic at both sides bonding to PE sheath

3.The cross-section in fig8 shape

4.Incorporates stranded steel messenger wire

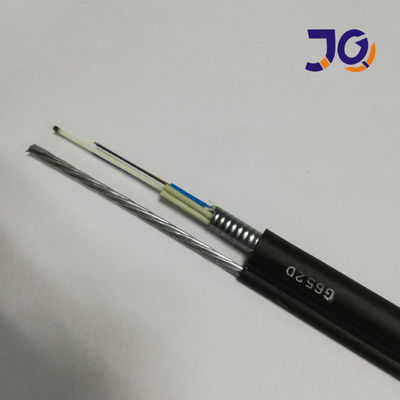

Aerial G652A Figure 8 Fiber Optic Cable  Aerial Self Supporting 1

Product Features:

1. Low attenuation and dispersion, special control of exceed length and layer stranding technology ensures the good transmission performance in varying environment.
2.Good water blocking material prevents the cable from longitudinal water penetration.
3. Aluminum (steel) tape coated with PE sheath provides excellent water blocking performance.
4. High grade zinc-galvanized stranded steel wires as self-supporting element enhance the tensile resistance.



Aerial G652A Figure 8 Fiber Optic Cable  Aerial Self Supporting 2





Mechanical and Environmental Characteristics



ems
Unite
Specifications
Tension(Long Term)/(Short Term)
N
600/1500
Crush(Long Term)/(Short Term)
N
1000/3000
Min. Bend Radius(Dynamic)
N/10cm
20D
Min.Bend Radius(Static)
N/10cm
10D
Installation Temperature
°C
-40~+60
Operating Temperature
°C
-40~+70
Storage Temperature
°C
-40~+70


Dimensional Characteristics:



Designation
Max. number Of fibers per tube
Steel wire/ stand Diameter (mm)
Stranded
units
Nominal cable
diameter (mm)
Nominal cable
weight (kg/km)
GYTC8S 2-36
6
2.3
6
11.6X25.5
270
GYTC8S 38-72
12
2.3
6
13.2X28.5
310
GYTC8S 74-96
12
2.3
8
14.9X33.0
350
GYTC8S 98-120
12
2.3
10
16.8X33.0
390
GYTC8S 122-144
12
2.3
12
18.8X35.0
440



Applications

Aerial G652A Figure 8 Fiber Optic Cable  Aerial Self Supporting 3



Packaging Details
1.Wooden reel, 1000m/reel,2000m/reel,3000m/reel,customer's requirements are also welcomed;
2.Inner packed in fumigated wooden drum, and outer covered by polyethelene sheet,then sealed by strong wooden battens.

Aerial G652A Figure 8 Fiber Optic Cable  Aerial Self Supporting 4

Delivery

For large orders: by sea (LCL or FCL)
For small orders: by sea (LCL), by air or by courier services(DHL ,UPS,TNT.....)
