Home /Products/Figure 8 Fiber Optic Cable/48 Core Stranded Steel Wire Figure 8 Fiber Cable PE Jacket

48 Core Stranded Steel Wire Figure 8 Fiber Cable PE Jacket

1KM
MOQ
48 Core Stranded Steel Wire Figure 8 Fiber Cable PE Jacket
Features Gallery Product Description Request A Quote
Features
Specifications
Fiber Count: 2-12Cores
Jacket: PE
Color: Black
Length: 1km 2km 3km 4km
Warranty: 25 Years
Application: Overhead
Factory: Yes
Highlight:

Stranded Steel Wire figure 8 cable

,

48 Core figure 8 fiber cable

,

PE jacket Stranded Steel Wire cable
Basic Infomation
Place of Origin: Guangdong, China
Brand Name: Jiqian
Certification: CE/ISO9001
Model Number: GYXTC8Y
Payment & Shipping Terms
Packaging Details: woodenn drum
Delivery Time: 3-5 days, it depends on your quantity.
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 60000KM/month
Product Description

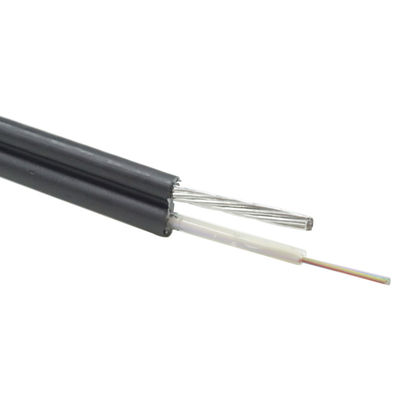

Overhead Aerial 8 12 24 48 Core Figure 8 Cable Fiber Optical Cable With Stranded Steel Wire

48 Core Stranded Steel Wire Figure 8 Fiber Cable PE Jacket 0

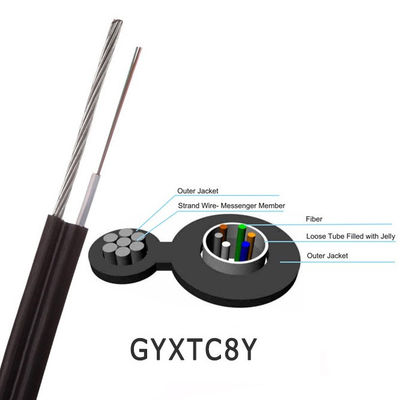

Structure Feature

1.The fibers, are positioned in a loose tube made of a high modulus plastic.

2.The tubes are filled with a water-resistant filling compound.
3.This part of cable companied with the wires as the supporting part are completed with a PE sheath to be figure 8 structure.

48 Core Stranded Steel Wire Figure 8 Fiber Cable PE Jacket 1

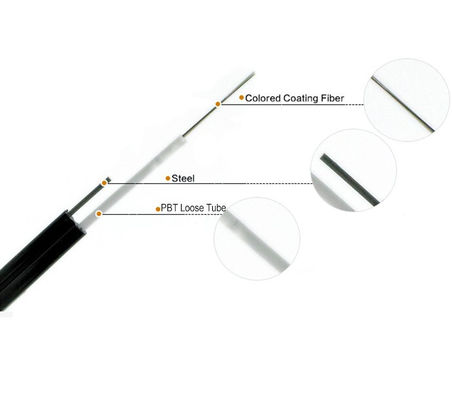

Product feature
1. Proven loose tube design for good performance

2. Excellent mechanical and environmental characteristics

3. Good flexibility and bending performance

4. Small outer diameter, light weigh easy to installation

48 Core Stranded Steel Wire Figure 8 Fiber Cable PE Jacket 2

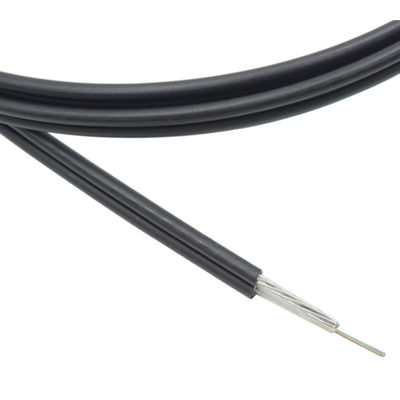

Application
48 Core Stranded Steel Wire Figure 8 Fiber Cable PE Jacket 3


Factory Picture
48 Core Stranded Steel Wire Figure 8 Fiber Cable PE Jacket 4
48 Core Stranded Steel Wire Figure 8 Fiber Cable PE Jacket 5

Data Sheet
Fiber count
1~12
Fiber type
G652D
Strength member
Steel Wires Stranded
Cable diameter
4.0×6.0
Min Bending Radius(mm)
Long term
10D
Short term
20D
Min allowable
Tensile Strength(N)
Long term
700
Short term
1200
Operation temperature (℃)
-40+70
Installation temperature(℃)
-20+60
Storage temperature(℃)
-40+70





Fig 8 fiber cable

48 Core Stranded Steel Wire Figure 8 Fiber Cable PE Jacket 6





Fiber Color

48 Core Stranded Steel Wire Figure 8 Fiber Cable PE Jacket 7



A grade fiber



48 Core Stranded Steel Wire Figure 8 Fiber Cable PE Jacket 8



Packaging Details
1.Wooden reel, 1000m/reel,2000m/reel,3000m/reel,customer's requirements are also welcomed;
2.Inner packed in fumigated wooden drum, and outer covered by polyethelene sheet,then sealed by strong wooden battens.

48 Core Stranded Steel Wire Figure 8 Fiber Cable PE Jacket 9



Delivery
For large orders: by sea (LCL or FCL)
For small orders: by sea (LCL), by air or by courier services(DHL ,UPS,TNT.....)

48 Core Stranded Steel Wire Figure 8 Fiber Cable PE Jacket 10

We still have more. Plsease feel free to contact me. Whatsapp: +8618122383351
