Self Supporting 48 Core Aerial Optical Fiber Cable Gytc8s
Contact Person : Philip
Phone Number : +8613422342788
whatsapp : +8613422342788
| Minimum Order Quantity : | 1km | Packaging Details : | wooden drum |
|---|---|---|---|
| Delivery Time : | 5-8 work days | Payment Terms : | L/C, T/T, Western Union |
| Supply Ability : | 4500KM Per Month |
| Place of Origin: | Guangzhou,China | Brand Name: | JQ/OEM |
|---|---|---|---|
| Certification: | ISO9001 ROHS CE-EMC FCC SDOC | Model Number: | GYXTC8S |
|
Detail Information |
|||
| Fiber Type: | YOFC/Fiberhome Or As Request | Color: | Black |
|---|---|---|---|
| Messenger Wire: | 2.0mm/3.0mm Steel Wire | Structure: | Figure 8 |
| Type: | Singlemode & Multimode | Jacket: | PE,MDPE |
| Oem: | Available | Installation: | Self- Supporting Aerial |
| Product Name: | Outdoor Optic Fiber Cable | Length: | 2km Or Customized Length |
| Fiber Count: | 2/4/6/8/12 Core | ||
| High Light: | Self Supportin Figure 8 Fiber Optic Cable,Gyxtc8s figure 8 aerial cable,Singlemode figure 8 aerial cable |
||
Product Description
Self Supporting Gyxtc8s Outdoor Optical Cable Optic Fiber Optic Cable
Cable Design
| Dimension and Properties | |||
| General properties | Unit | Nominal value | |
| Fiber count (G.652D) | PC | Up to 12 | |
| Max. No of loose tube | PC | 1 | |
| Fiber No. per tube | PC | 12 | |
| Loose tube | Material | PBT | |
| Cable Diameter | mm | 5.0*7.4 | |
| Menssenger Wire | Material | Steel wire | |
| Outer PE Sheath | Diameter | mm | 2.0 |
| Material | MDPE | ||
| Max. allowable pulling force | N | 1000/3000 | |
| Armoured | Material | Corrugated steel tape | |
| Crush resistance | N/100mm | 1000/1500 | |
Features
---Steel wire used as the central strength member
---Loose tube filling compound
---100% cable core filling
---PSP enhancing moisture-proof
Optical Characteristics
| Items | Unit | Specification | |
| G652D | |||
| Mode Field Diameter | 1310nm | um | 9.2±0.4 |
| 1550nm | um | 10.4±0.5 | |
| Cladding Diameter | um | 124.8±0.7 | |
| Cladding Non-Circularity | % | ≤0.7 | |
| Core-Cladding Concentricity Error | um | ≤0.5 | |
| Coating Diameter | um | 245±5 | |
| Coating Non-Circularity | % | ≤6.0 | |
| Cladding-Coating Concentricity Error | um | ≤12 | |
| Cable Cutoff Wavelength | nm | acc≤1260 | |
| Attenuation(max.) | 1310nm | dB/km | ≤0.36 |
| 1550nm | dBkm | ≤0.22 | |

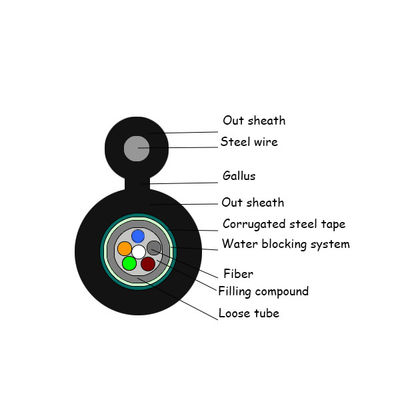

Cable Structure
Package
1-5km/wooden drum
