8 12 24 Core GYTC8Y/GYTC8S Strand Fiber Optic Cable Self Supporting Fiber Optic Cable
Contact Person : Lillian
Phone Number : +8618122384553
whatsapp : +8618122384553
| Minimum Order Quantity : | 1km | Packaging Details : | wooden drum |
|---|---|---|---|
| Delivery Time : | 5-8 work days | Payment Terms : | L/C, T/T, Western Union |
| Supply Ability : | 30KM Per days |
| Place of Origin: | Guangzhou,China | Brand Name: | JQ/OEM |
|---|---|---|---|
| Certification: | ISO9001 ROHS CE-EMC FCC SDOC | Model Number: | GYFTC8S53/GYFTC8Y53 |
|
Detail Information |
|||
| Color: | Black | Messenger Wire: | 1.0*7 Steel Wire |
|---|---|---|---|
| Structure: | Figure 8 | Fiber Type: | Single Mode |
| Jacket: | Double PE Sheath | Oem: | Available |
| Installation: | Self- Supporting Aerial | Product Name: | Aerial Fiber Optic Cable |
| Length: | 2km Or Customized Length | Fiber Count: | 2-144 Core |
| Cable Type: | SADJ Or DADJ | Diameter: | 11.5*18mm |
| High Light: | GYFTC8Y53 Figure 8 fiber optic cable,PE sheath Figure 8 fiber optic cable,PE sheath figure 8 fiber cable |
||
Product Description

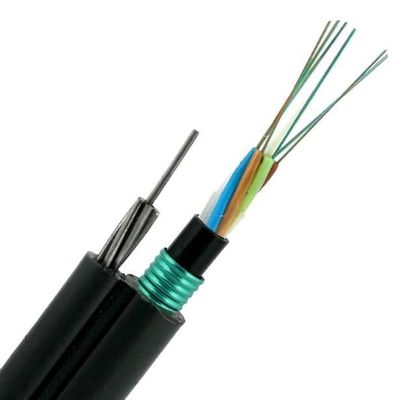

Self-Supporting Single Armored Double Sheath 24 Core Aerial Fig 8 Fiber Optic Cable
Description

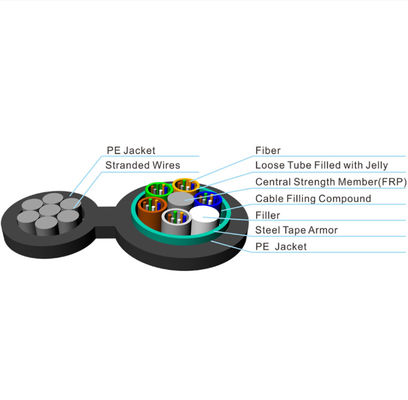

Aerial Fig8 Armored Loose Tube Double Jacket/Single Armor cable is designed especially for aerial installations while incorporating a second jacket and Single metallic armor when extra mechanical protection is desired. With fiber counts up to 288 and S-Z strand designs.
Features
Loose tube gel-filled construction for superior fiber protection.
Double jacket and double armor to protect cable from rodent attack and mechanical damage.
UV and moisture-resistant design. Self-supporting Figure 8 design.
Optical Characteristics
| Items | Unit | Specification | |
| G652D | |||
| Mode Field Diameter | 1310nm | um | 9.2±0.4 |
| 1550nm | um | 10.4±0.5 | |
| Cladding Diameter | um | 124.8±0.7 | |
| Cladding Non-Circularity | % | ≤0.7 | |
| Core-Cladding Concentricity Error | um | ≤0.5 | |
| Coating Diameter | um | 245±5 | |
| Coating Non-Circularity | % | ≤6.0 | |
| Cladding-Coating Concentricity Error | um | ≤12 | |
| Cable Cutoff Wavelength | nm | acc≤1260 | |
| Attenuation(max.) | 1310nm | dB/km | ≤0.36 |
| 1550nm | dBkm | ≤0.22 | |
Technical Parameters
| Type | SADJ |
| Fiber count | 4-144cores |
| PBT Loose tube diameter | 1.9mm |
| Central strength member diameter FRP | 1.5mm |
| Outer sheath thickness/inner sheath thickness | 1.7mm/1.0mm |
| Cable OD mm | 11.5mmx18mm |
| Messenger | 7*1.0mm steel wire |
| Inner Jacket material | MDPE |
| Out jacket | HDPE |
| Cable weight kg/km | 220KG/KM |
| Operation temperature range | -40 ℃ to + 70 ℃ |
| Installation temperature range | -40 ℃ to + 70 ℃ |
| Transport and storage temperature range | -40 ℃ to + 70 ℃ |
| Allowable Tensile Load(N) | Short term:1000 |
| Long term:3000 | |
| Crush resistance | Short term :3000 N/100mm |
| Long term:1000N/100mm | |
| Minimal installation bending radius | 20 x OD |
| Minimal operation bending radius | 10 x OD |

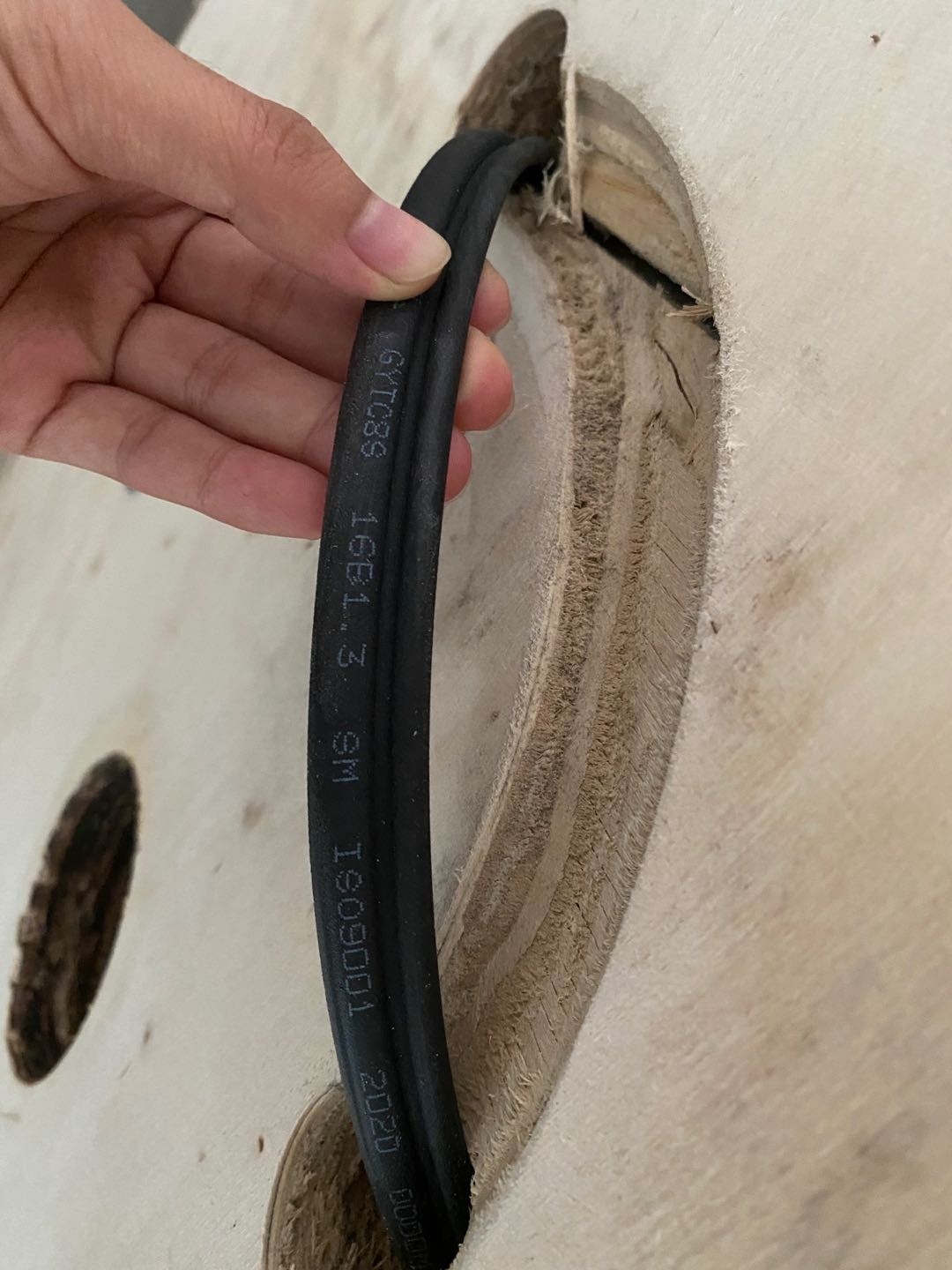

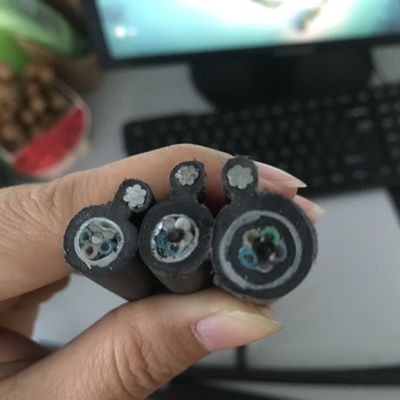

Samples Picture
MORE PRODUCT
Our Service
1.We are the one of biggest manufacture of fiber optic cable in China and has more than 10 years manufacturing and selling experience.
2.We accept OEM. The cable size and material are customized.Ur own logo and own design are welcome. We will produce according to your requirment and description;
3.Please send us inquiry for more products info and we will give you feedback in 12 hours.
